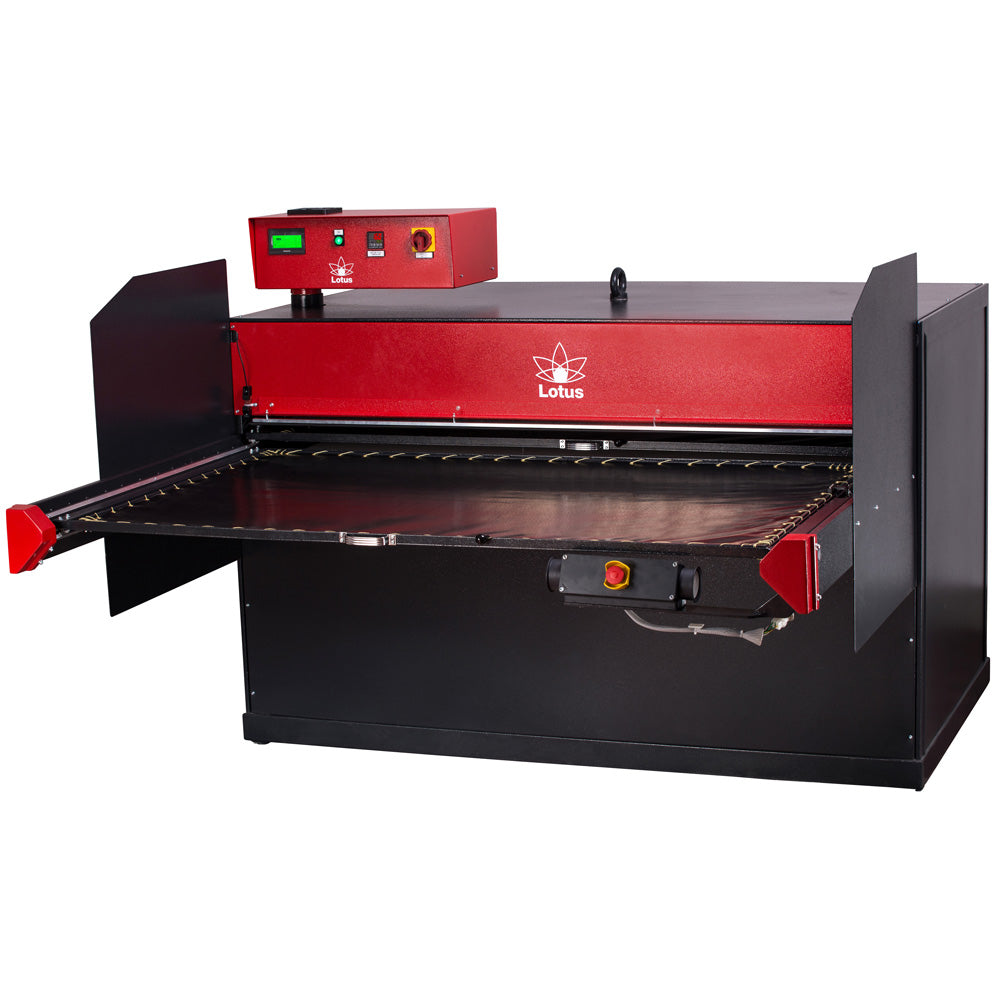

Lotus LTS 1575 M / 1600 M / 1675 M / 1800 M XXL Membrane Heat Press Series

The Lotus LTS 1575 M / 1600 M / 1675 M / 1800 M XXL Membrane Heat Press Series is an industrial large-format platform engineered for applications where exceptionally even, precisely controlled pressure is required across oversized materials. Available with dual work areas ranging from 150 x 75 cm up to 180 x 100 cm, these presses are designed for large-format sublimation, lamination, technical textiles, smart textiles, electronic components, rigid media, and advanced industrial transfer applications.

Unlike a conventional pneumatic heat press that applies pressure using a rigid lower platen, the LTS M Series uses an air-inflated flexible rubber membrane. During the pressing cycle, the membrane inflates beneath the material and pushes it upward against the heated platen. Because the membrane can conform to variations in the surface, it helps provide consistent pressure across substrates with different heights and thicknesses—including complex assemblies and electronic components.

Each machine features two extractable lower workstations. While one platen is inside the press completing a transfer or lamination cycle, the second can be loaded and prepared for the next job. This alternating dual-station workflow helps reduce downtime while also providing excellent access for accurately positioning oversized textiles, rigid substrates, and transfer media.

Operation is controlled through a clear touchscreen interface that allows the operator to set and monitor transfer time, temperature, and working pressure. Once the cycle is started, the membrane automatically inflates and presses the material against the upper heating surface. At the end of the programmed cycle, the membrane lowers and deflates automatically for unloading.

The XXL membrane series uses high-quality ceramic heating elements designed for fast heating, consistent temperature distribution, and extended service life. Individual heating elements can also be replaced separately when required, simplifying long-term service and maintenance of these industrial machines.

With precisely adjustable membrane pressure and transfer areas up to 180 x 100 cm, the Lotus XXL Membrane Series is particularly well suited for production environments working with advanced textiles, laminated assemblies, electronic components, rigid sublimation media, and other applications where conventional flat-platen pressure may not provide sufficient conformity.

Choose Your Model

Key Features

• Advanced membrane pressure technology – Air-inflated flexible membrane conforms to varying substrate heights for consistent pressure across the transfer area
• Four XXL sizes – Choose from dual 150 x 75 cm, 160 x 100 cm, 160 x 75 cm, or 180 x 100 cm workstations
• Dual-station production – Prepare one substrate while the opposite workstation is completing its pressing cycle
• Two extractable work platens – Provide convenient access for loading oversized textiles, rigid media, and complex assemblies
• Push-button automatic operation – Starts the membrane inflation and pressing process automatically
• Automatic membrane release – Membrane lowers and deflates when the programmed cycle is complete
• Precisely adjustable pressure – Working pressure can be tailored to the substrate and application
• Uniform corner-to-corner pressure – Flexible membrane helps maintain consistent contact even across complex or uneven materials
• Touchscreen controls – Set and monitor time, temperature, and operating pressure from an intuitive digital interface
• Ceramic heating technology – Provides fast heating and consistent temperature distribution across the oversized heating surface
• Individually serviceable heating elements – Ceramic heating rods can be replaced separately when required
• Industrial 380 V operation – Designed for professional production environments
• Custom configurations available – Lotus can accommodate specialized production requirements upon request
• 1-year warranty – Covers the press and heating system

Why Membrane Technology?

A conventional heat press typically applies pressure between two relatively rigid surfaces. This works well when the substrate has a uniform thickness, but it can become challenging when different sections of the product vary in height.

The Lotus membrane system uses a flexible air-inflated surface that can conform around these height differences. This makes the LTS M Series particularly useful when pressure needs to remain consistent across complex substrates, laminated assemblies, embedded components, and advanced textile constructions.

Applications

• Large-Format Textile Sublimation
• Rigid Sublimation Media
• Lamination
• Smart Textiles
• Electronic Components
• Technical Textiles
• Advanced Textile Assemblies
• Automotive Textiles
• Interior Design Products
• Product Design
• Thermal Fixation
• Large-Format Transfer Printing
• Materials with Varying Surface Heights

Specifications

These are industrial membrane heat presses requiring 380 V electrical service and a suitable compressed-air supply. Facility requirements should be confirmed before installation.
