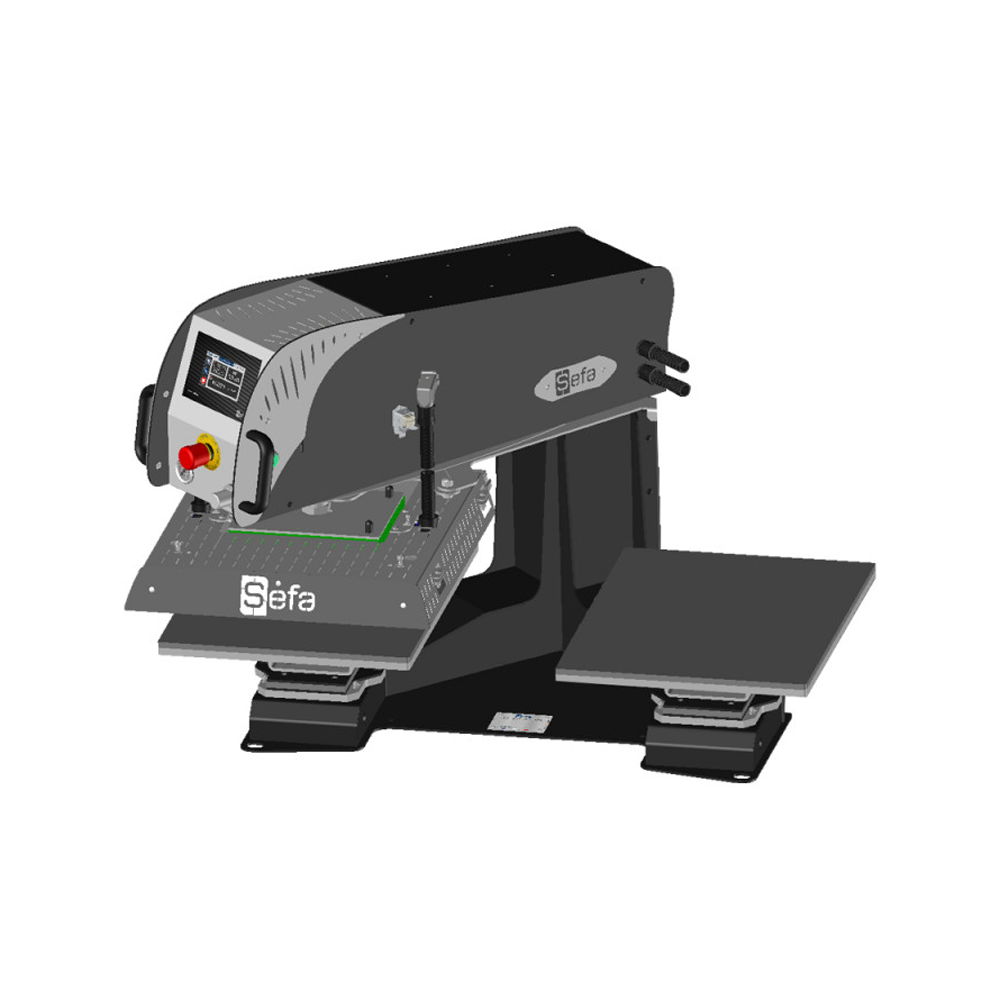

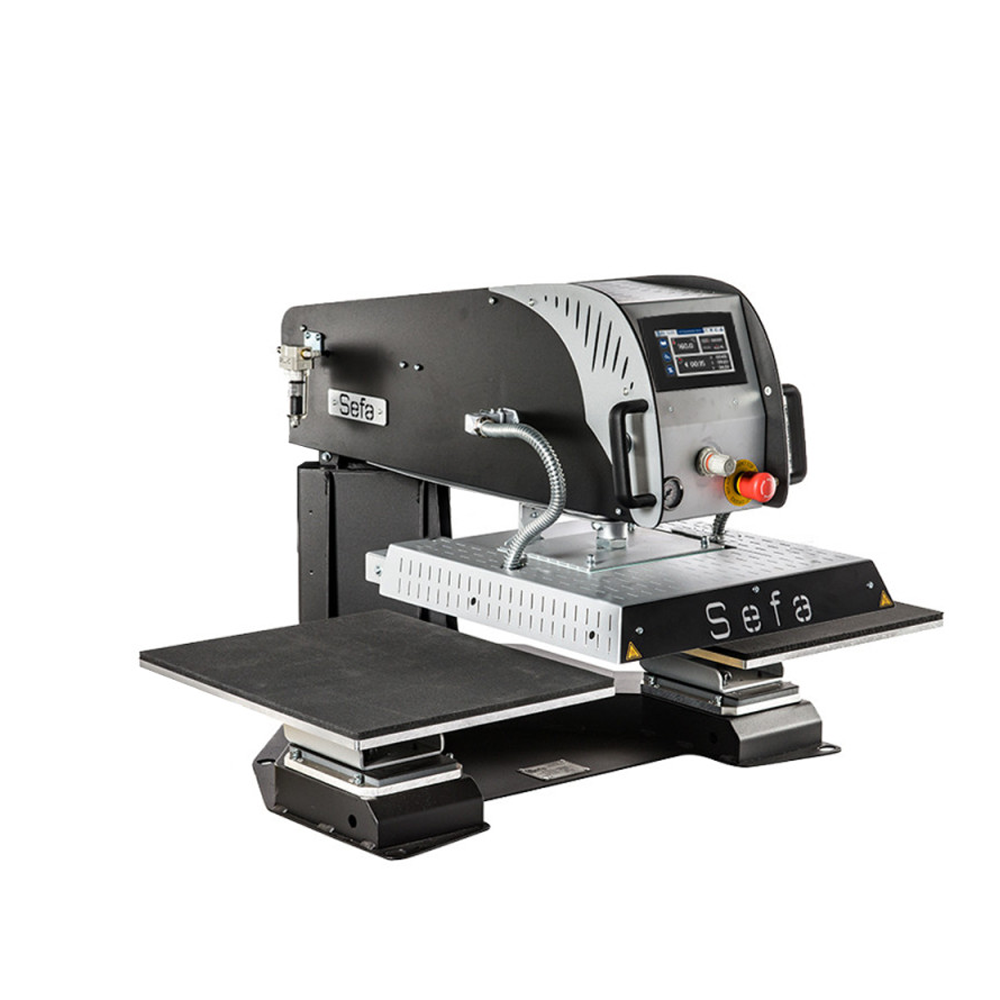

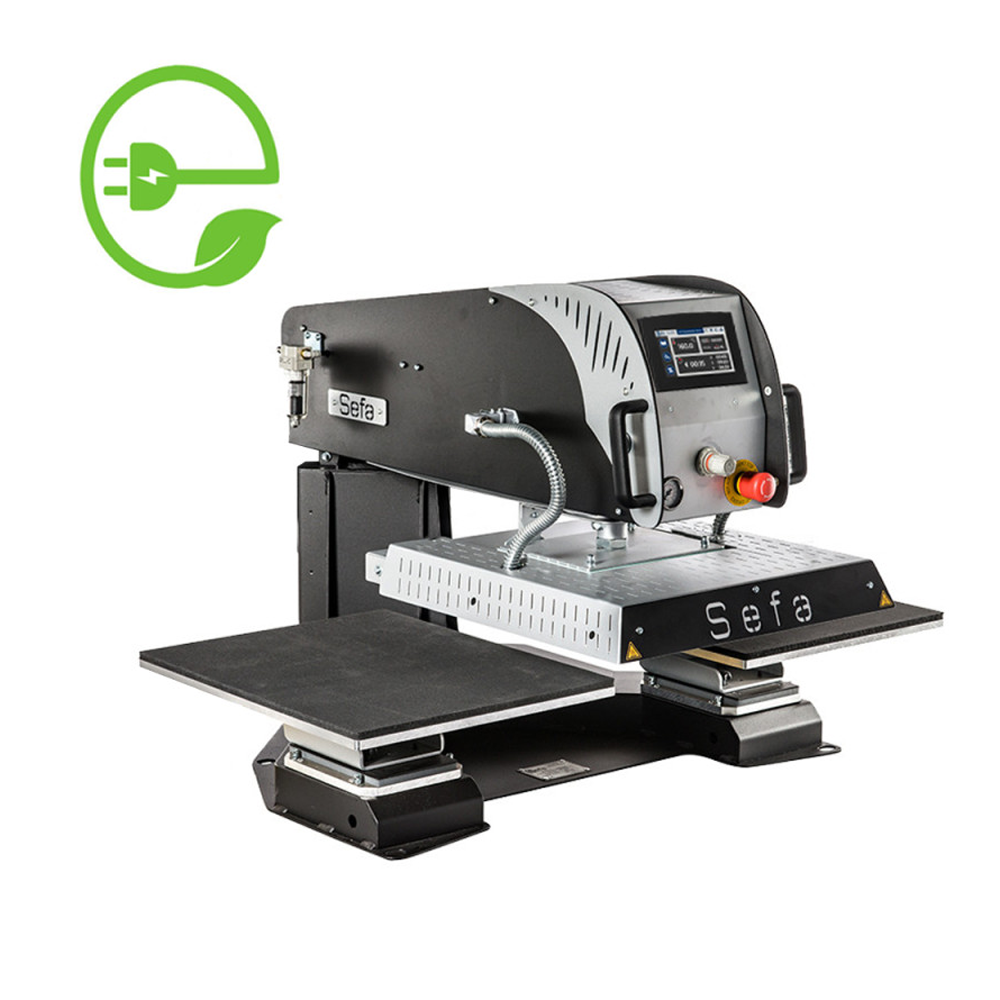

The e-DUPLEX LITE is made for large-volume textile marking, but is also suitable for sublimation on textiles and rigid substrates, DTG (thanks to its high heating power) and laser printing. The operator can work alternately at different stages on each platen.
Pneumatic dual-platen press with manual head shuttle.
Two Nomex® covers of 40x50 cm included.
Strengths:
- Automatic opening and closing
- High heating power for DTG pre-treatment drying
- Quick platen change system
- T-shirts can be loaded from the front or rear of the platen
- Allows background tasking on the free platen
- Large clearance between, underneath and behind the platens
- Pre-heating time
- Designed and manufactured in France
- Two-year machine warranty
- Ten-year warranty on heating elements
SEFA Electronics:
|
| Type | Pneumatic |
| Operation | Swing - Rotating Plate |
| Platen size | 40x50 cm / 16x20 " |
| Max thickness | 45 mm |
| Weight | 158 Kg / 348 lbs |
| Pressure | 625 g/cm² |
| °C / °F Max | 220 °C / 429 °F |
| Power | 2200W |
| Power supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 10A |
| Applications | ChromaLuxe, Flex, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing |
| Dimension | 713x891x1079 mm / 28x35x42 " |
