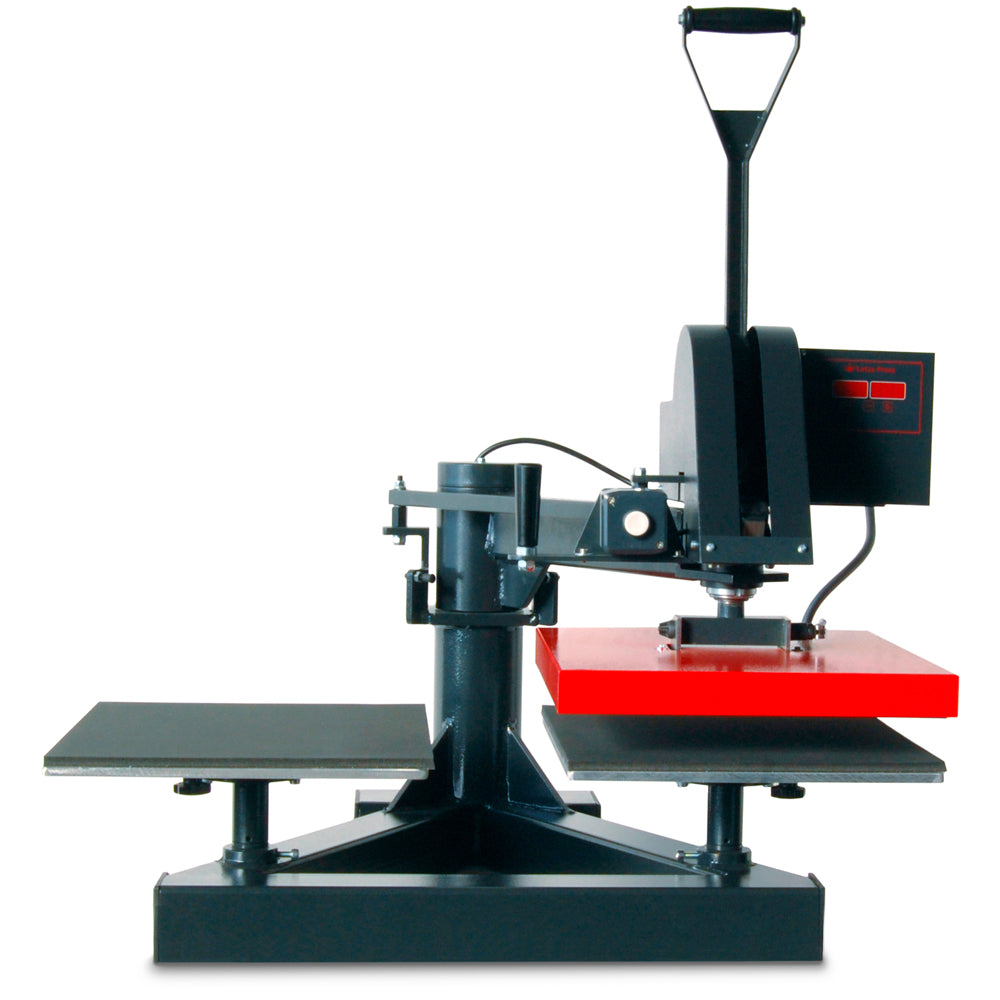

Lotus LTS 238 SA / LTS 250 SA Dual-Platen Semi-Automatic Heat Press Series

The Lotus LTS 238 SA / LTS 250 SA Dual-Platen Semi-Automatic Heat Press Series combines two freestanding working platens with semi-automatic operation for faster, more efficient garment production.

The operator lowers the heating platen using the hand lever, and an electromagnetic locking system takes over to maintain pressure throughout the transfer cycle. Once the programmed time is complete, the press automatically releases and opens, helping reduce repetitive operator effort and improve consistency during longer production runs.

The swing-away heating platen moves between two lower working platens, allowing one garment to be loaded or prepared while another is being pressed. This dual-station workflow helps minimize downtime between applications.

Both models feature Mikanit 2.0 heating technology for consistent heat distribution, digital time and temperature controls, programmable settings, and pre-press and post-press functionality.

Choose Your Size

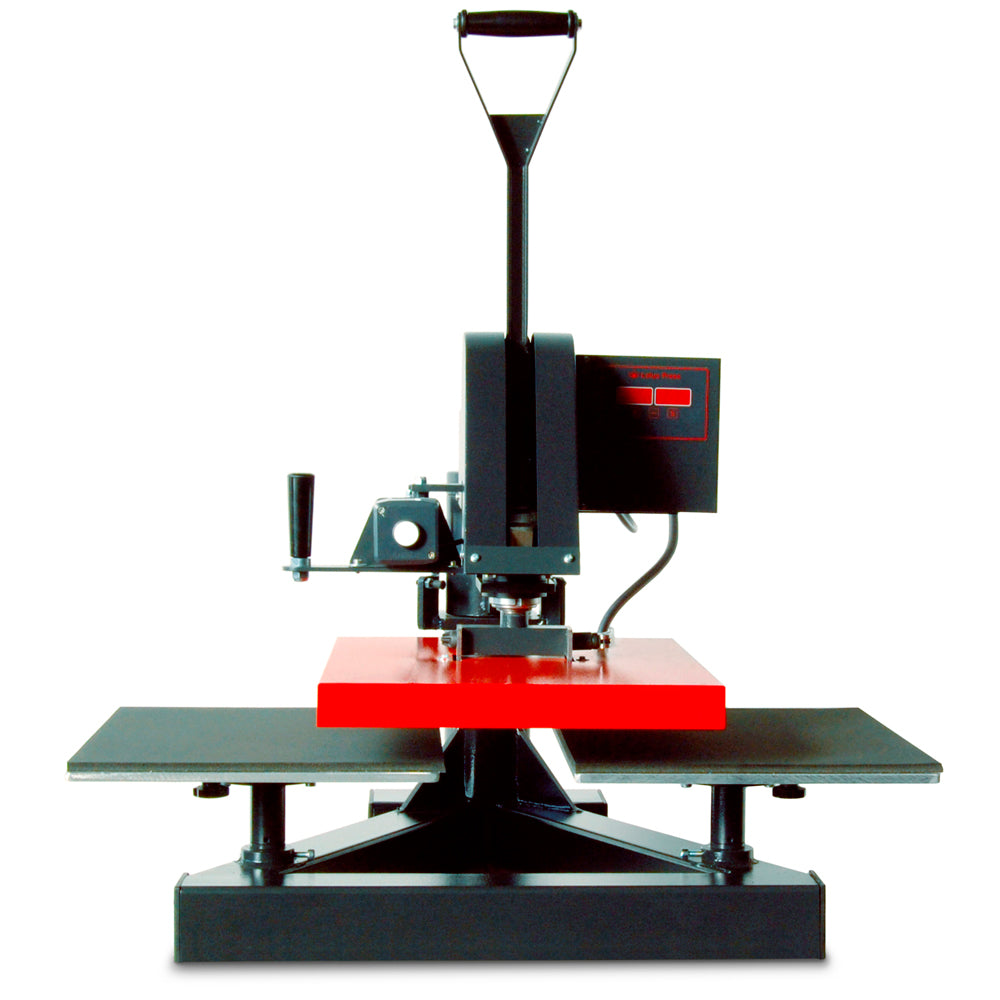

• LTS 238 SA: Dual 38 x 45 cm working platens

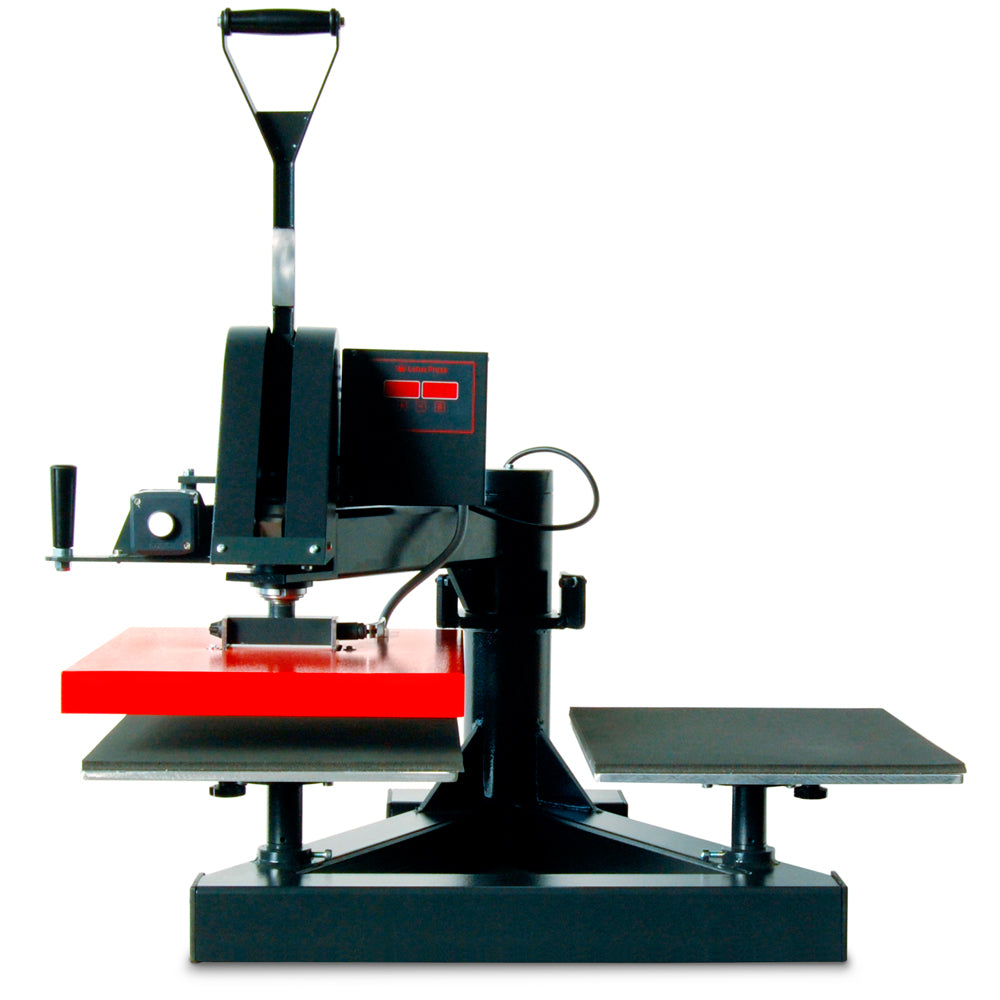

• LTS 250 SA: Dual 40 x 50 cm working platens

Both models share the same semi-automatic operating features, with platen size being the primary difference.

Key Features

• Dual-station design with two freestanding lower platens

• Semi-automatic electromagnetic locking system

• Automatic release and opening at the end of the transfer cycle

• Swing-away heating platen

• Continuously adjustable pressure

• Digital time and temperature controls

• Up to 3 programmable settings

• Pre-press and post-press functionality

• Acoustic cycle notification

• Mikanit 2.0 heating technology for consistent heat distribution

• Threadable lower platens for easier single-layer garment loading

• Compatible with optional specialty lower platens and cap attachments

• Designed for professional and higher-volume garment production

Specifications

LTS 238 SA

• Working Area: 2 x 38 x 45 cm

• Timer: 0 - 999 seconds

• Temperature Range: 0 - 250°C

• Heating Output: 2000W

• Voltage: 220 - 240V

LTS 250 SA

• Working Area: 2 x 40 x 50 cm

• Timer: 0 - 999 seconds

• Temperature Range: 0 - 250°C

• Heating Output: 2000W

• Voltage: 220 - 240V

Ideal For

• Heat transfer vinyl

• DTF transfers

• Screen printed transfers

• Sublimation transfers on compatible materials

• Rhinestone applications

• Higher-volume garment decoration

Warranty

• 2-Year Heat Press Warranty

• 10-Year Heating Element Warranty
