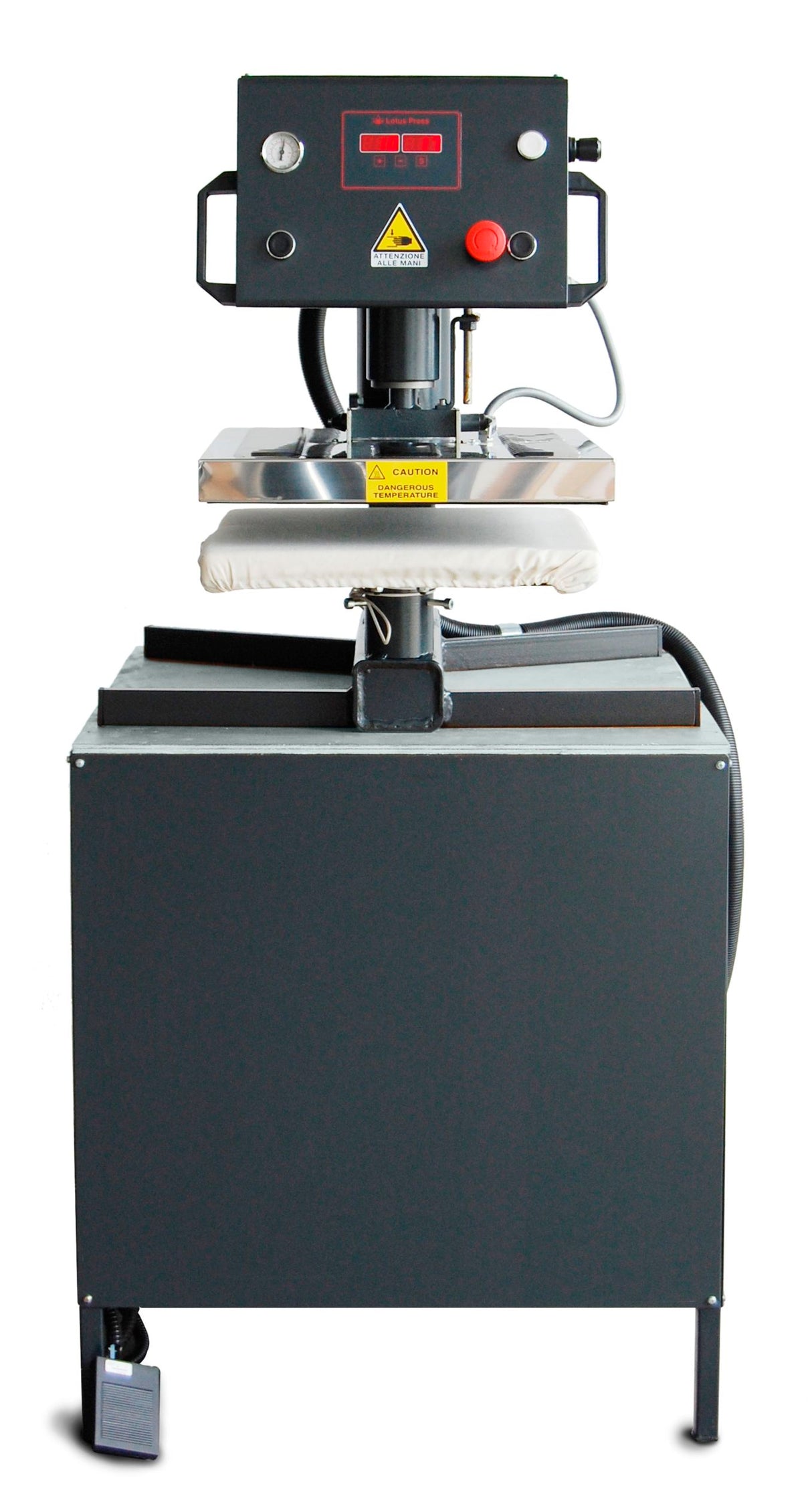

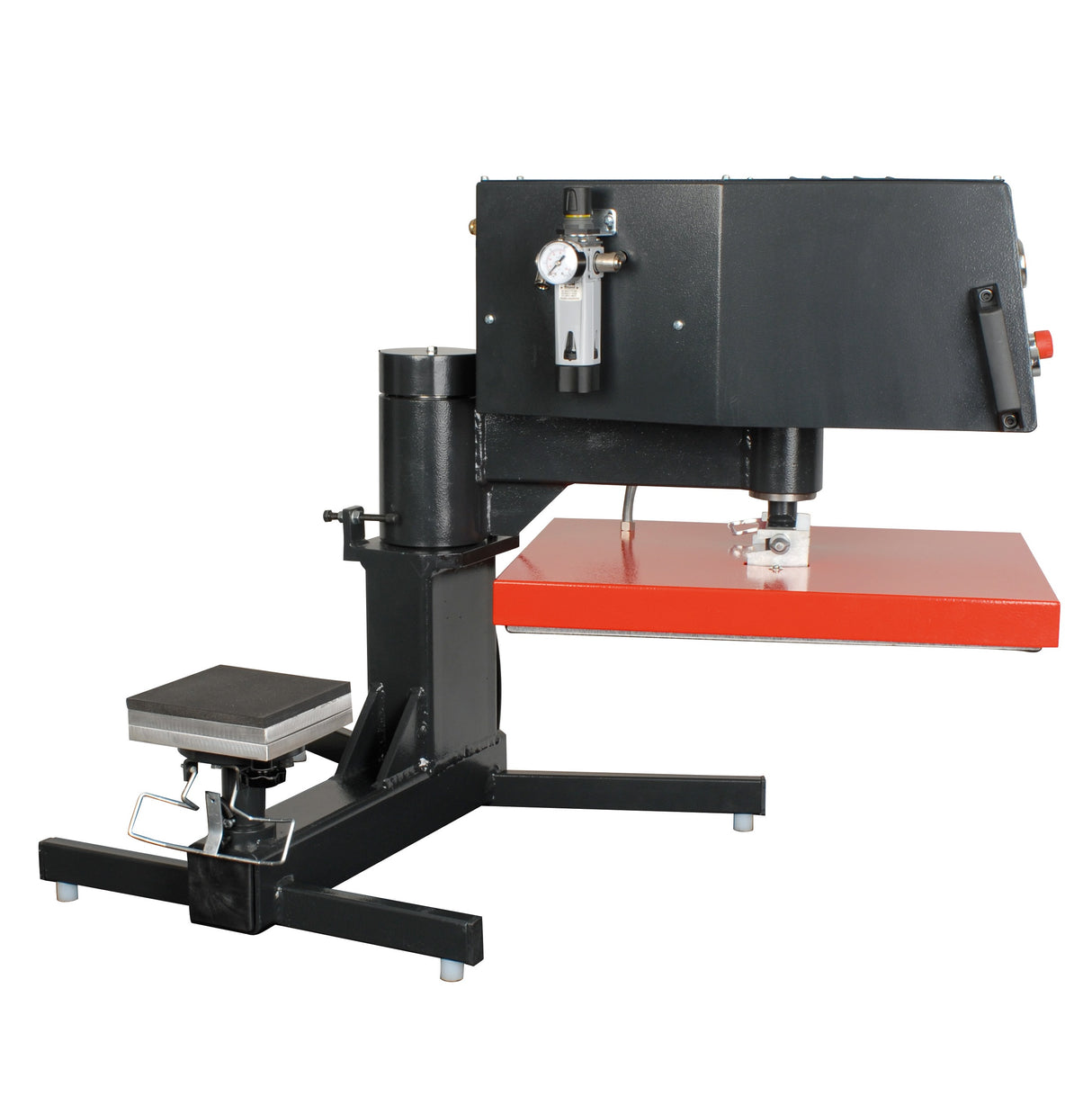

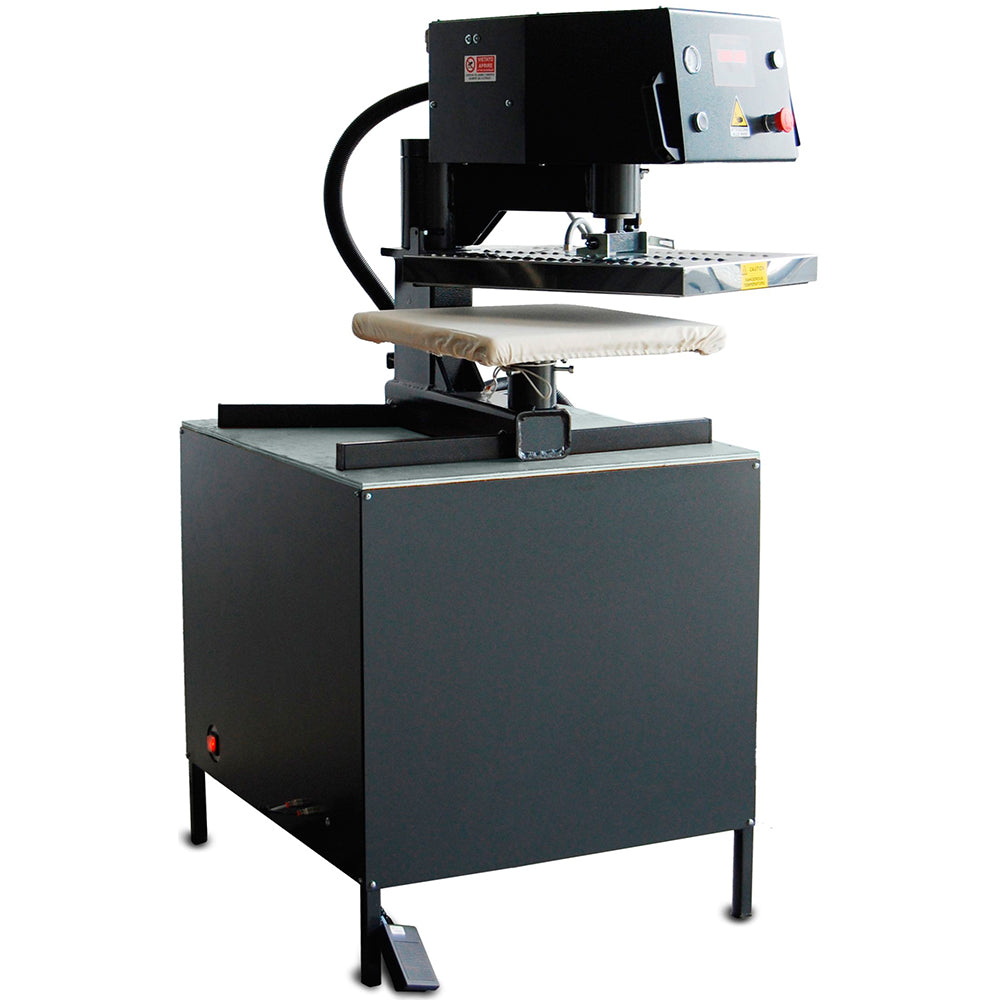

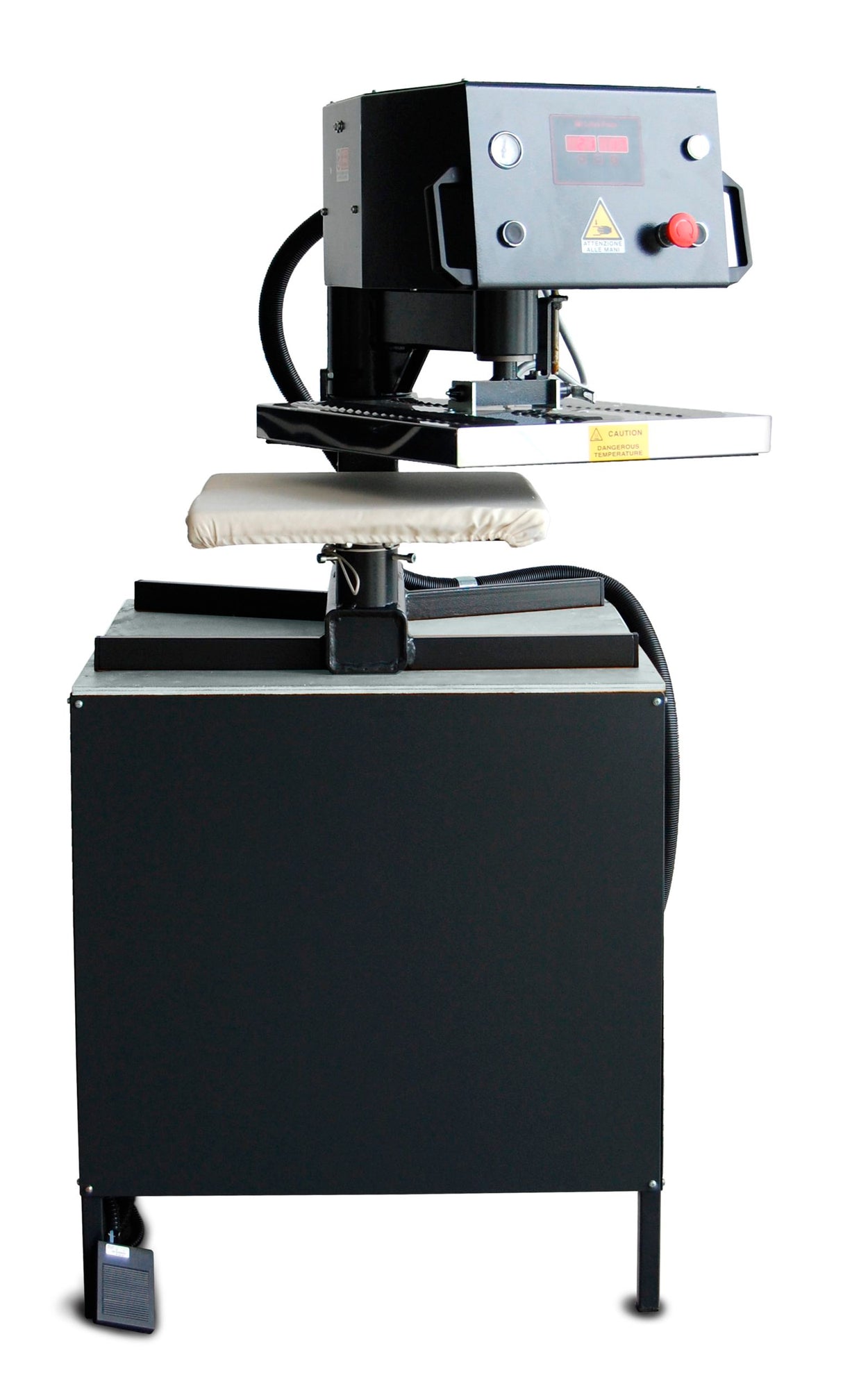

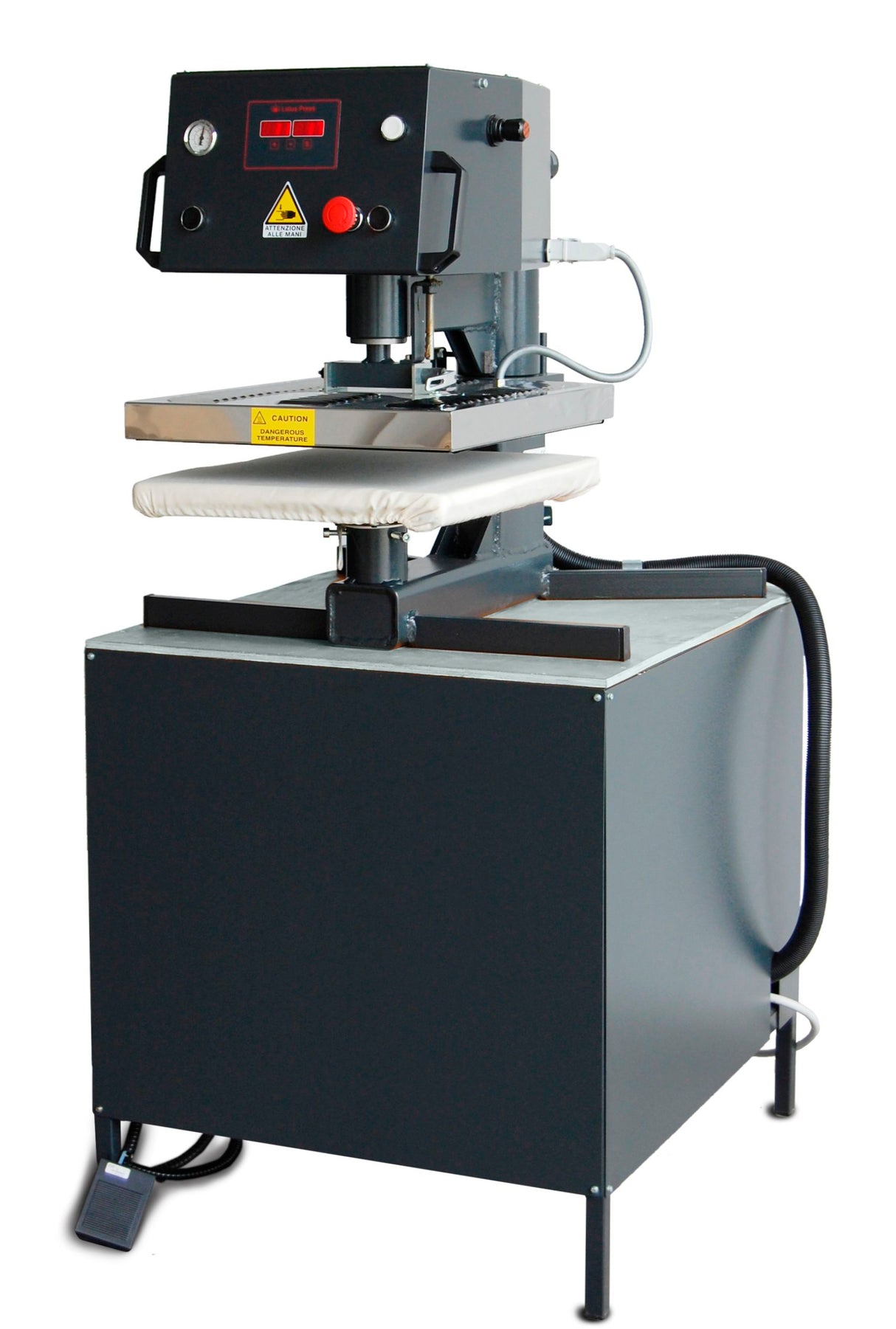

Introducing the Lotus LTS 550 / 560 Pneumatic Heat Press Series! Designed for professional production environments, this series combines push-button pneumatic operation with multiple configurations for apparel, sportswear, workwear, sublimation media, technical textiles, and specialty applications.
The Lotus LTS 550 / 560 Series gives decorators a flexible way to choose the right pneumatic press based on size and workflow. The LTS 550 models are based around a 40 x 50 cm transfer area, while the LTS 560 models offer a larger 45 x 60 cm transfer area. Select membrane models use slightly different transfer areas designed for specialty membrane pressing applications.
The transfer process starts conveniently at the push of a button. The pneumatic system lowers the heating plate, locks it under pressure, and automatically lifts it after the countdown reaches zero. This makes the series a strong choice for users who want consistent pressure, easier operation, and a more production-friendly workflow than a manual heat press.
Available configurations include standard pneumatic, double-heated, touch screen, and membrane models. This allows customers to choose between a standard production setup, two heating plates for specialty applications, touch screen controls for added convenience, or membrane technology for applications requiring constant and precise pressure.
FEATURES
- Pneumatic heat press series with push-button operation
- Available in LTS 550 and LTS 560 model families
- Standard models include 40 x 50 cm and 45 x 60 cm transfer areas
- Membrane models include 38 x 48 cm and 43 x 58 cm transfer areas
- Choose from standard pneumatic, double-heated, touch screen, and membrane configurations
- Automatic heating plate lift after the timer reaches zero
- High-pressure pneumatic operation up to 8 bar on standard models and up to 10 bar on membrane models
- Clear digital display for easy time and temperature setup
- Touch screen models include intuitive touch controls, individual program settings, and counter functionality

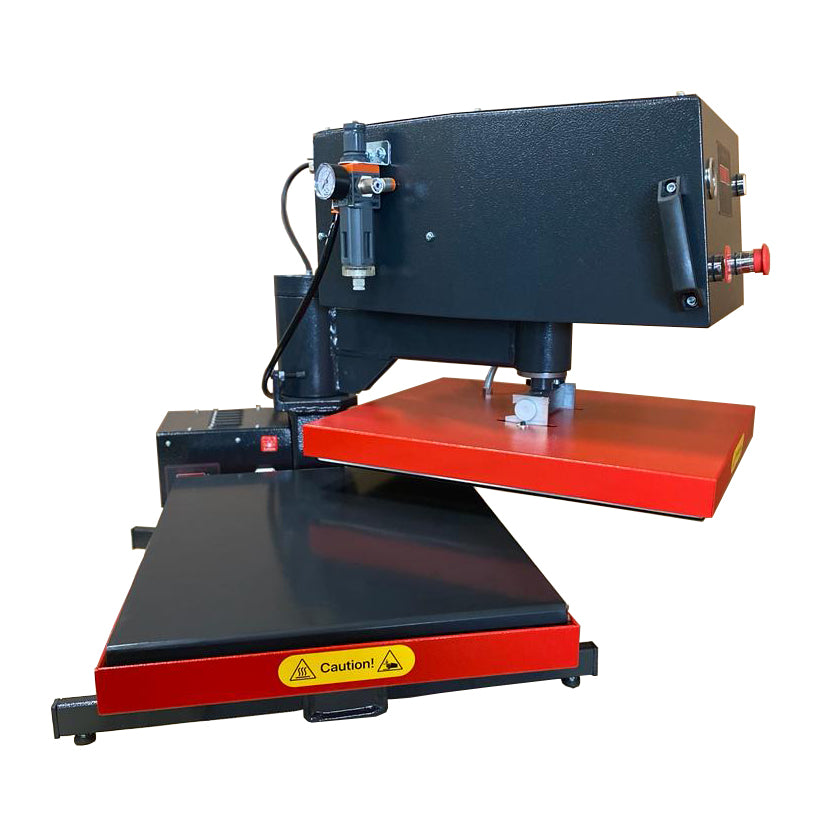

- Double-heated S models include upper and lower heating plates for rhinestones, heat-sensitive textiles, and specialty applications
- Membrane models are designed for applications requiring constant and precise pressure
- Memory function saves up to three time and temperature programs on compatible models

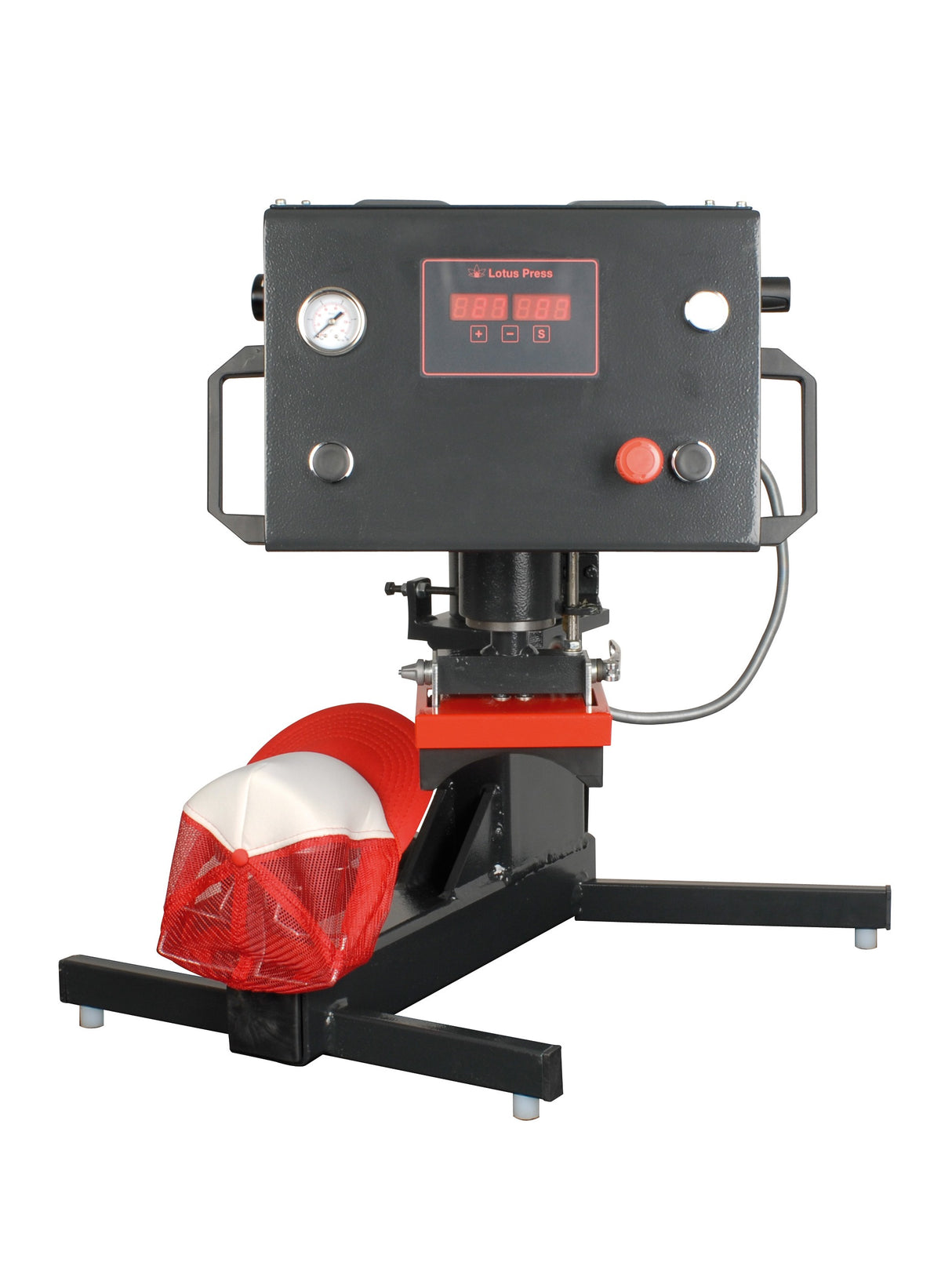

- Optional cap set and printing plates available for compatible configurations
- Mikanit 2.0 heating technology provides fast heating and consistent temperature distribution
- 2-year warranty on heat press
- 10-year warranty on heating system
SPECIFICATIONS
- Available Models: LTS 550 / LTS 560 / LTS 550 S / LTS 560 S / LTS 550 TS / LTS 560 TS / LTS 550 M / LTS 560 M
- Transfer Area: 40 x 50 cm (LTS 550, LTS 550 S, LTS 550 TS) / 45 x 60 cm (LTS 560, LTS 560 S, LTS 560 TS) / 38 x 48 cm (LTS 550 M) / 43 x 58 cm (LTS 560 M)
- Digital Timer: 0 - 999 Seconds
- Temperature Range: 0 - 250°C
- Heating Output: 2000W - 4000W depending on model
- Voltage: 220V or 220 - 240V depending on model
- Product Weight: 50 kg - 130 kg depending on model
- Contact Pressure: 1.2 - 1.5 kg/cm² or 2.5 - 8 bar on standard/touch screen models; 2.5 - 10 bar on membrane models
- Applications: Transfer Print, Sublimation, Fixation, Lamination, Rhinestones, Technical Textiles, Membrane Applications
