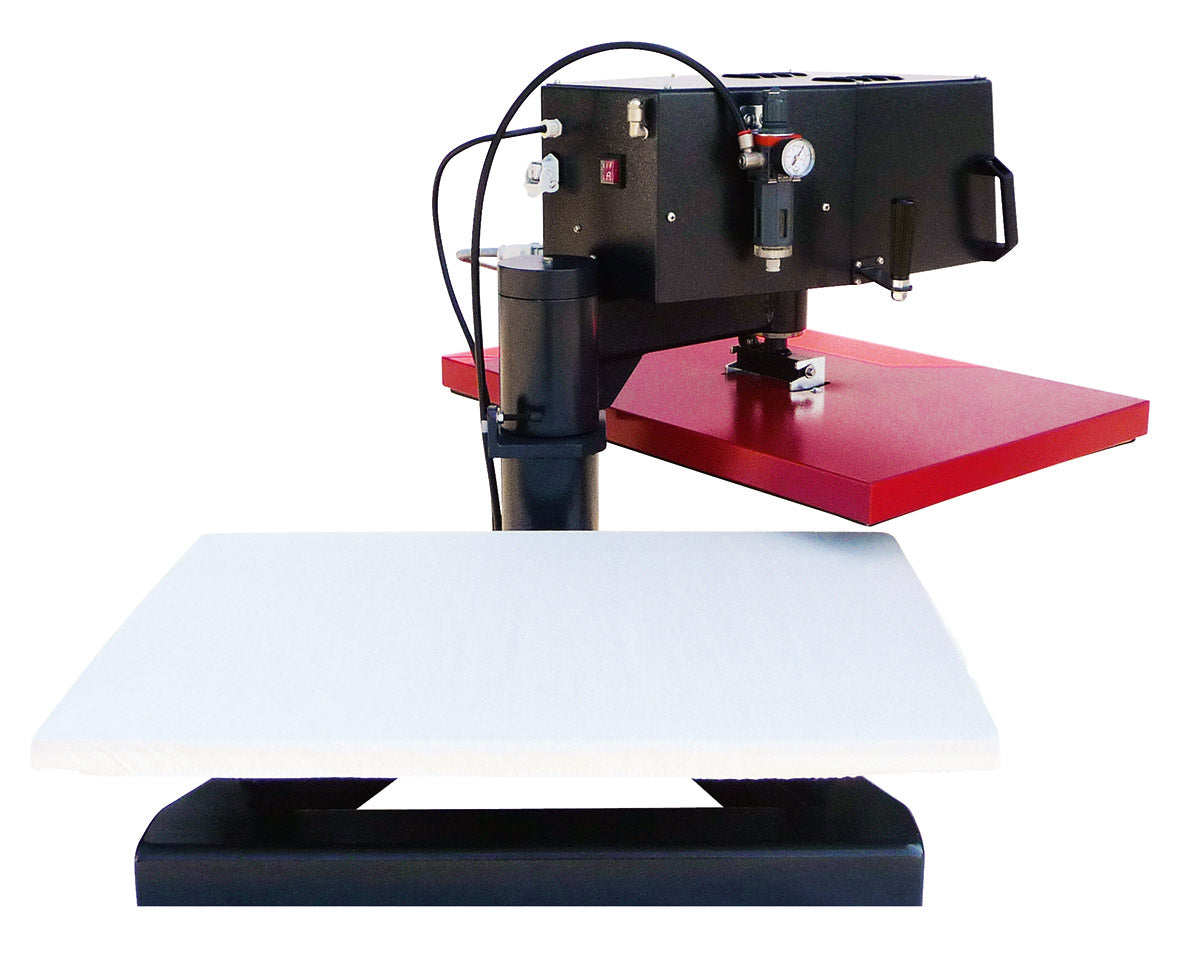

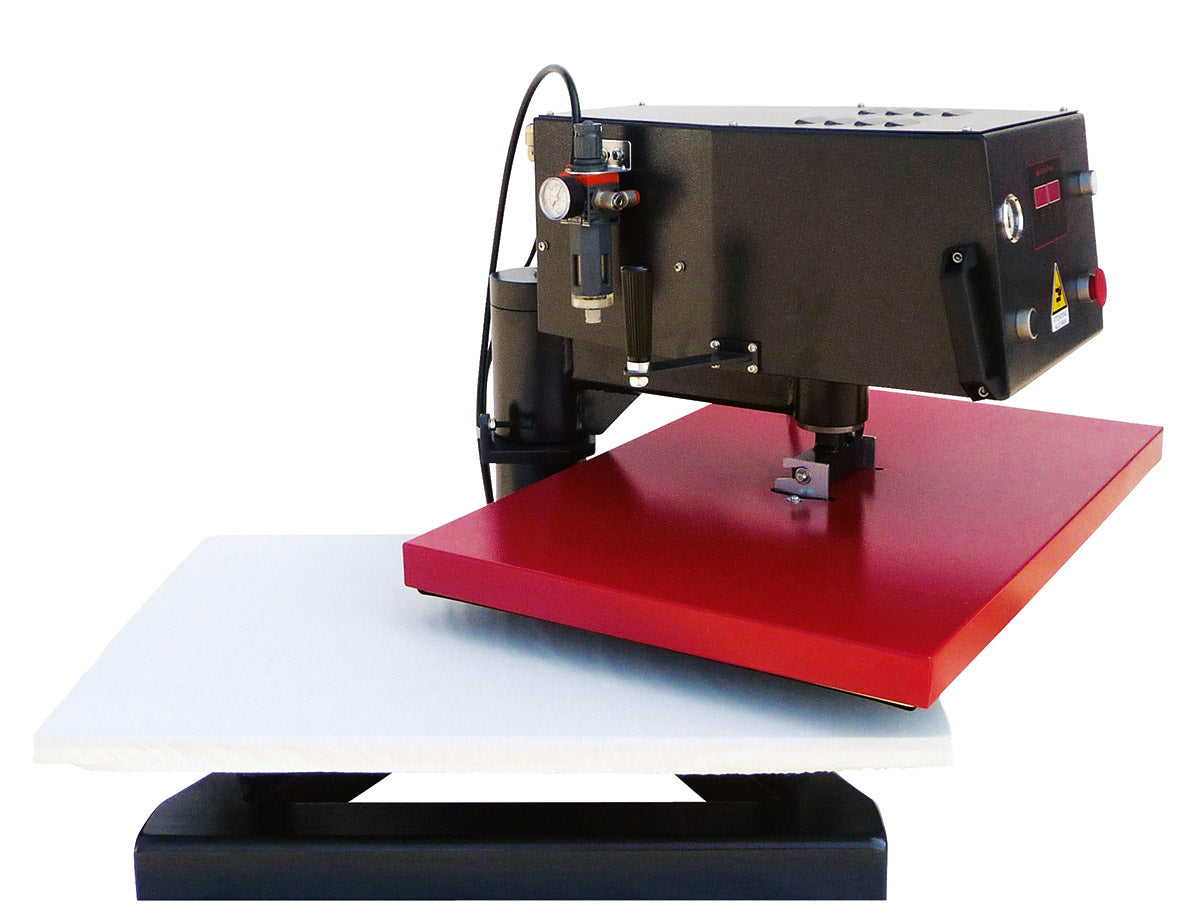

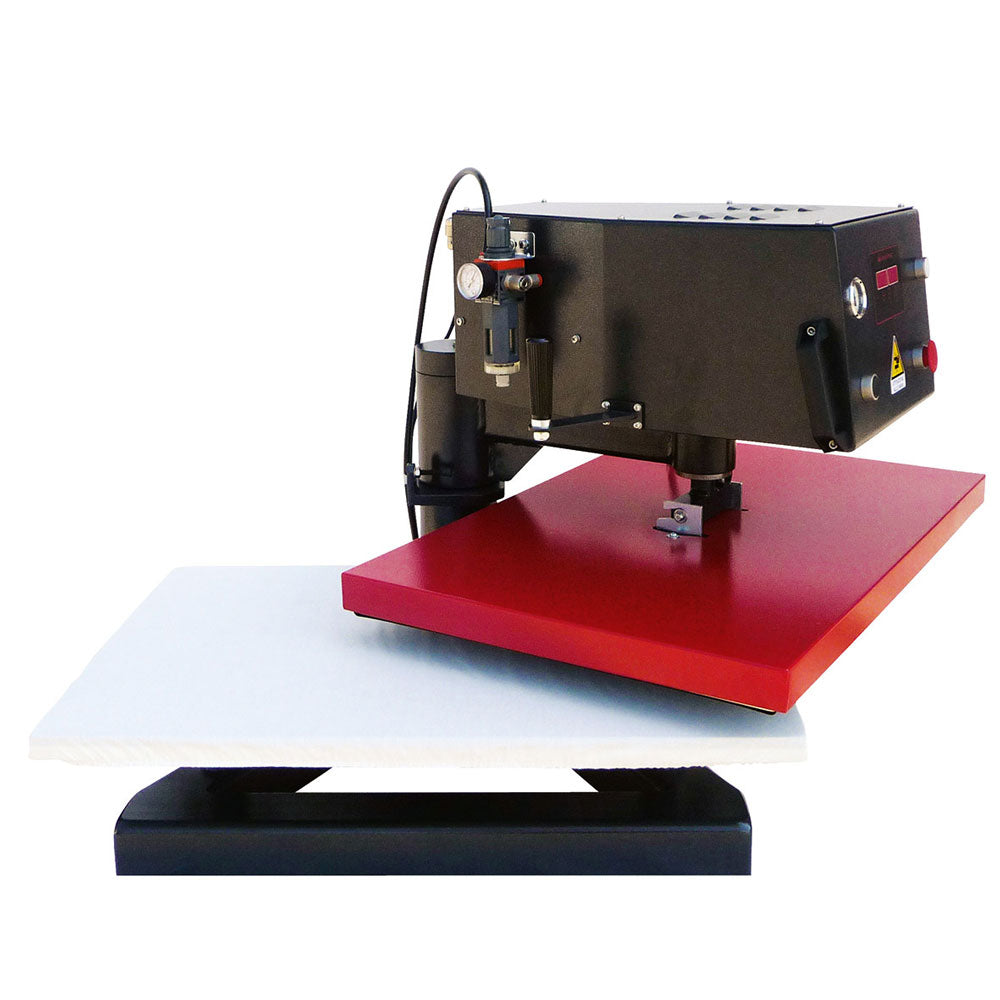

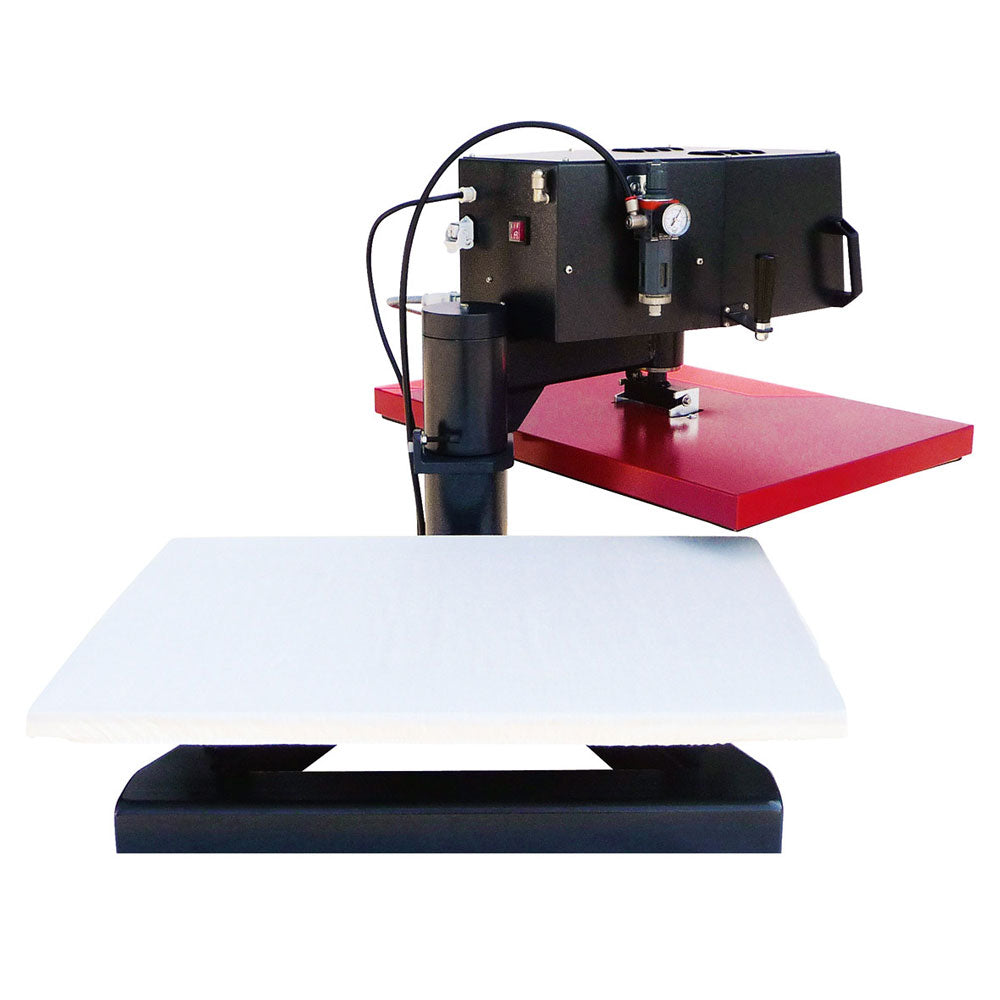

Lotus LTS 575 75cm x 50cm Pneumatic XL Swing-Away Heat Press

The Lotus LTS 575 75cm x 50cm Pneumatic XL Swing-Away Heat Press is a professional large-format heat press designed for oversized transfers, sublimation, technical textiles, and applications that require both a larger working area and strong, consistent pressure. Featuring a generous 75 x 50 cm pressing area, pneumatic operation, and a swing-away heating platen, the LTS 575 provides excellent access and production capability for demanding transfer work.

Pneumatic operation eliminates the need to manually pull the press closed. The pressing cycle is activated using push-button controls, allowing the heating platen to lower and maintain consistent pressure throughout the programmed transfer time. When the cycle is complete, the heating platen automatically lifts, reducing repetitive operator effort and helping create a consistent workflow from one transfer to the next.

The swing-away heating platen can then be moved completely away from the lower platen, providing an unobstructed view of the entire 75 x 50 cm work surface. This makes it easier to load bulky garments, align oversized transfers, and position rigid sublimation substrates accurately before pressing.

A freestanding lower platen allows textiles and garments to be threaded onto the press in a single layer, helping keep seams, additional fabric layers, and previously applied graphics away from the transfer area. This is especially useful when working with sportswear, workwear, large textiles, and other products that can be difficult to position on a conventional fixed-platen press.

Lotus's Mikanit 2.0 heating technology provides fast warm-up and even, stable temperature distribution across the large heating surface. Digital time and temperature controls, programmable settings, production counting, and pre- and post-press functionality help streamline repeat production while maintaining precise transfer parameters.

With pneumatic pressure up to 8 bar and a powerful 2800 W heating system, the Lotus LTS 575 is an excellent choice for professional decorators producing oversized apparel graphics, sublimation media, floor mats, technical textiles, rigid panels, and other large-format products.

Key Features

• 75 x 50 cm XL pressing area – Provides significantly more workspace for oversized transfers, textiles, and sublimation products
• Pneumatic operation – Reduces repetitive operator effort while providing consistent pressure from cycle to cycle
• Push-button activation – Starts the pneumatic pressing cycle without requiring manual closing
• Automatic opening – Heating platen lifts automatically when the programmed transfer time is complete
• Swing-away heating platen – Moves completely away from the lower platen for unobstructed loading and transfer positioning
• Up to 8 bar pressure – Provides strong pneumatic pressure for demanding large-format applications
• Freestanding lower platen – Allows garments and textiles to be threaded onto the press in a single layer
• Digital time and temperature controls – Provides straightforward setup and monitoring of transfer parameters
• 3 programmable presets – Save frequently used time and temperature combinations
• Production counter – Helps track completed pressing cycles
• Pre- and post-press functionality – Allows shorter preparation or finishing cycles without changing the primary transfer program
• Acoustic and visual cycle alerts – Provide clear feedback during operation
• Mikanit 2.0 heating technology – Designed for fast heating and even, stable temperature distribution
• Serviceable heating elements – Individual heating rods can be replaced separately when required
• 2-year heat press warranty
• 10-year heating system warranty

Applications

• Large-Format Heat Transfers
• Heat Transfer Vinyl / Flex
• Screen Print Transfers
• Textile Sublimation
• Rigid Substrate Sublimation
• ChromaLuxe® Panels
• Oversized Apparel Graphics
• Sportswear
• Workwear and Uniforms
• Floor Mats
• Technical Textiles
• Lamination
• Thermal Fixation
• Large Sublimation Media
