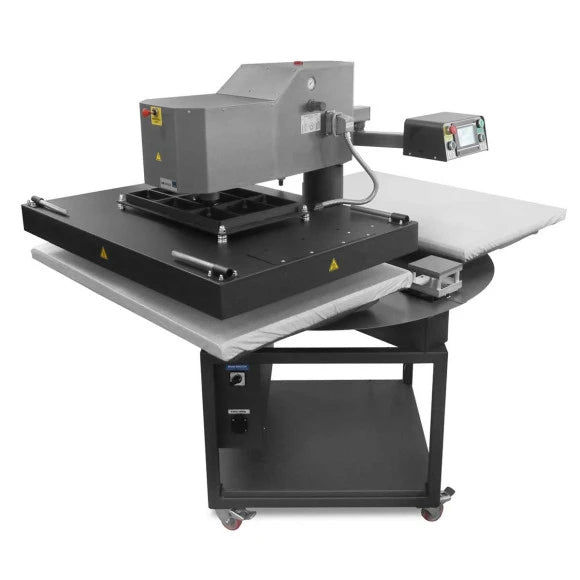

Introducing the SCHULZE Air 2 Press! This semi-automatic pneumatic carousel heat press is designed for high-output production on towels, doormats, carpets, curtains, and other large textile applications.
The Air 2 Press features two large 70 x 100 cm base plates, allowing operators to load and remove textiles at separate stations for a smoother, more productive workflow.
Operation can be controlled through the touch display or built-in light barrier, while the adjustable control unit helps improve operator comfort during repeated production.
With a 2.4 kW Turbo heating platen, stepless adjustable pressure, safety frame, and emergency stop button, the Air 2 Press is made for efficient large-format textile production. A compressor is required for operation.
FEATURES
- Semi-automatic pneumatic carousel heat press
- Two large 70 x 100 cm base plates
- Ideal for towels, doormats, carpets, curtains, and other large textiles
- Operated by touch display or light barrier
- Adjustable control unit for operator comfort
- Stepless adjustable pressure
- 2.4 kW Turbo heating platen
- Transfer counter for production tracking
- Protective safety frame and emergency stop button
- Soft foam mats on both base plates for sublimation applications
- Can be upgraded with additional base plates to expand capacity
- Compressor required for operation
SPECIFICATIONS
- Heat Press Style: Pneumatic/Semi-Automatic/Carousel
- Base Plates: 2x 70 x 100 cm
- Dimensions: 120 x 170 x 157 cm
- Transport Dimensions: 120 x 120 x 195 cm
- Product Weight: 307 kg
- Weight Including Packaging: Approx. 352 kg
- Power Supply / Voltage: 230V
- Temperature Range: Max. 220°C
- Heating Power: 2.4 kW
- Preheating Time: Approx. 9 minutes to 165°C
- Pneumatic Pressure: 6 bar
- Air Consumption Per Cycle: 7.2 l
