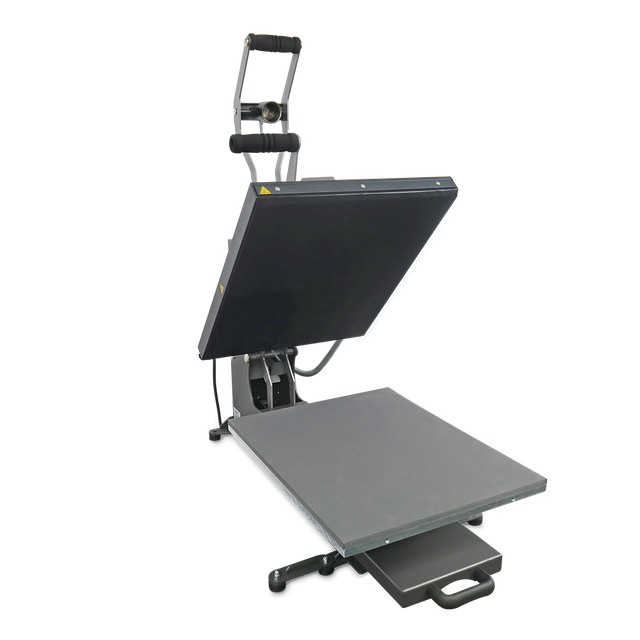

Introducing the SCHULZE Clam Press Slide! Designed for professional textile finishing, the SCHULZE Clam Press Slide combines a compact manual self-opening clam design with a sliding base plate for safer loading, unloading, and transfer positioning.
The Clam Press Slide is ideal for decorators who want the compact footprint of a clam-style press with the added convenience of a sliding lower plate. After the press cycle is complete, the press opens automatically and the base plate slides forward for comfortable access to the transfer area.
Its modern touch display provides control over temperature, time, pre-press, Eco mode, piece counter, and self-diagnosis functions. The Quick Release system allows fast installation or replacement of compatible base plates for greater production flexibility.
With a 3300W turbo heating platen, two heating zones, and interchangeable heating and base plates, the Clam Press Slide is built for consistent results in daily professional use.
FEATURES
- Manual self-opening clam/iron heat press
- 40 x 50 cm platen size

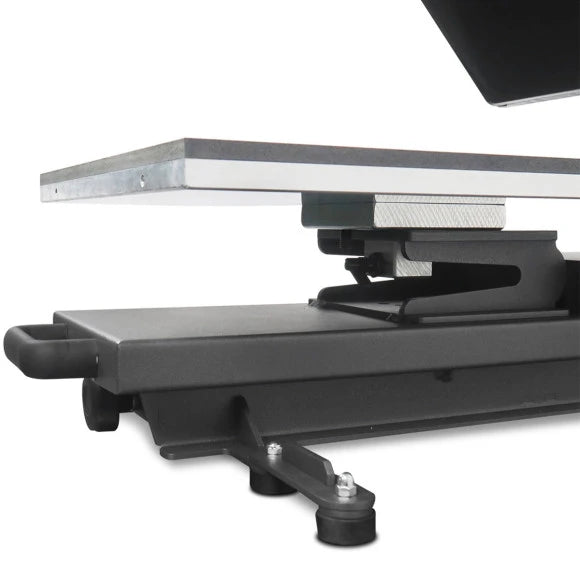

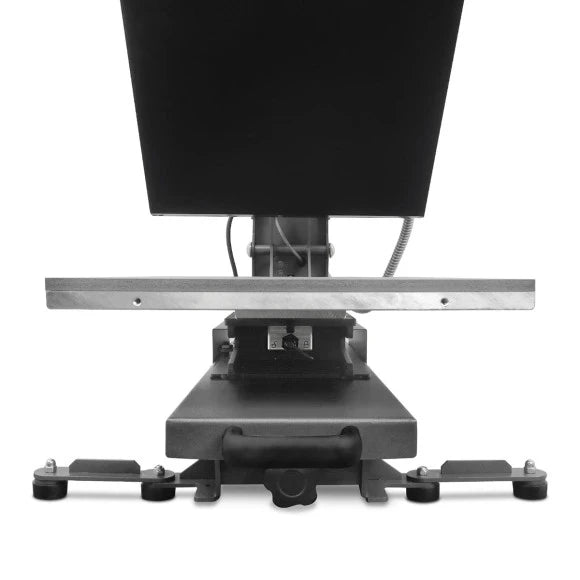

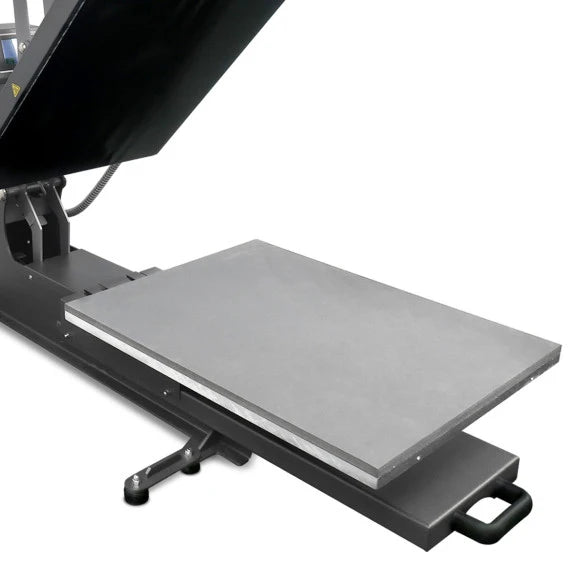

- Sliding base plate extends forward after opening for easier positioning and safer removal
- Slider can be locked in place when needed
- Automatic opening after the preset press time
- Modern touch display with temperature, time, pre-press, Eco mode, counter, and self-diagnosis functions
- Quick Release system for fast base plate changes
- Interchangeable heating platen and base plates
- Turbo heating platen with 3300W power
- Two heating zones for even heat distribution
- Maximum substrate height of 2 cm
- Ideal for professional textile printing, bags, t-shirts, and similar transfer applications
SPECIFICATIONS
- Heat Press Style: Manual/Self-Opening/Clam/Slide-Out
- Platen Size: 40 x 50 cm
- Dimensions: 95 x 80 x 109 cm
- Weight Including Packaging: 59 kg
- Power Supply / Voltage: 16A / 230V
- Time Range: 00:01 - 99:59 min:sec
- Maximum Substrate Height: 2 cm
- Heating Power: 3.3 kW
