Sefa e-Clam Pro 2 40cm x 50cm Heat Press

Data Sheet

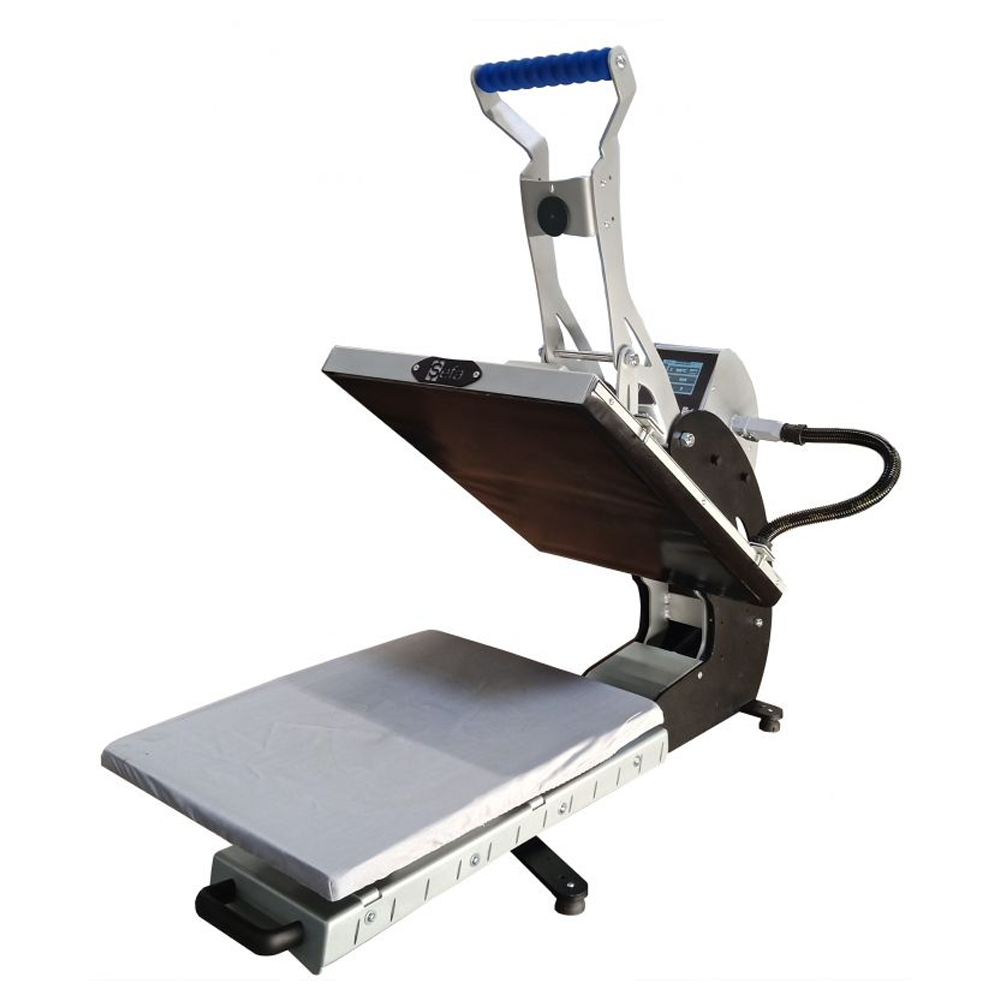

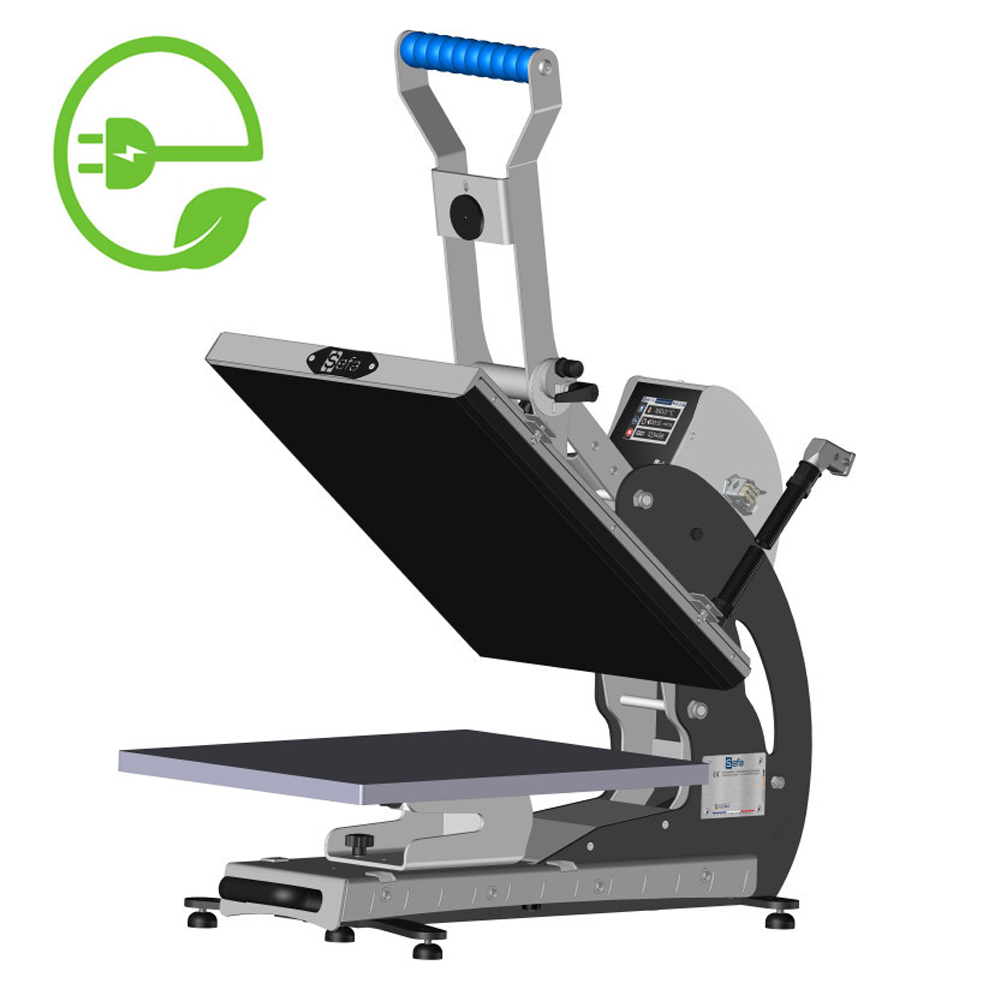

The SEFA e-Clam Pro 2 40cm x 50cm Heat Press is a professional auto-open heat press designed for efficient medium-volume production across a wide range of heat transfer applications. Featuring a full-size 40 x 50 cm (16" x 20") platen, sliding lower platen, and electromagnetic auto-open operation, it provides the productivity and control needed for apparel decoration, sublimation, DTG-related processes, and specialty transfers.

A key feature of the e-Clam Pro 2 is its dual-position pressure system, which allows the operator to quickly switch between higher and lower pressure settings without readjusting the main pressure knob. This is especially useful in production environments where different garments, substrates, or transfer materials require different pressure levels throughout the day.

The electromagnetic system automatically releases the upper platen when the timed pressing cycle is complete, helping reduce the risk of over-pressing while allowing the operator to prepare the next item. Its sliding lower platen provides easy access for garment positioning, and shirts can be threaded onto the platen from either the front or rear for greater flexibility during production.

Designed and manufactured in France, the e-Clam Pro 2 features SEFA-developed electronics with precise PID temperature regulation, programmable preheating, three customizable programs, dual cycle counters, and a stop-cycle function. Quick-change platens further expand its versatility, making it a strong choice for growing print shops and professional decorators handling multiple types of heat transfer work.

Key Features

• Dual-position pressure system – Quickly switch between high and low pressure without readjusting the main pressure knob
• Electromagnetic auto-open operation – Automatically releases the upper platen when the pressing cycle is complete
• 16" x 20" platen – Full-size working area for apparel, transfers, and a variety of substrates
• Sliding lower platen – Provides easier loading, alignment, and garment positioning
• Front or rear garment loading – Allows T-shirts and other garments to be threaded onto the platen from either direction
• Quick-change platens – Makes it easier to configure the press for different products and specialty applications
• PID temperature regulation – Provides fast and precise heat control for repeatable results
• Programmable preheating – Supports applications requiring a separate pre-press cycle
• Dual timer – Separate timing for main pressing and preheating operations
• 3 customizable programs – Save frequently used production settings for faster setup
• Dual cycle counters – Helps monitor production quantities
• Stop-cycle function – Provides additional control during operation
• Designed and manufactured in France
• 2-year machine warranty
• 10-year heating element warranty

Applications

• Heat Transfer Vinyl / Flex
• Screen Print Transfers
• Textile Sublimation
• Rigid Substrate Sublimation
• Laser Transfers
• Direct-to-Garment Applications
• DTG Pretreatment Drying
• Ink Curing and Drying

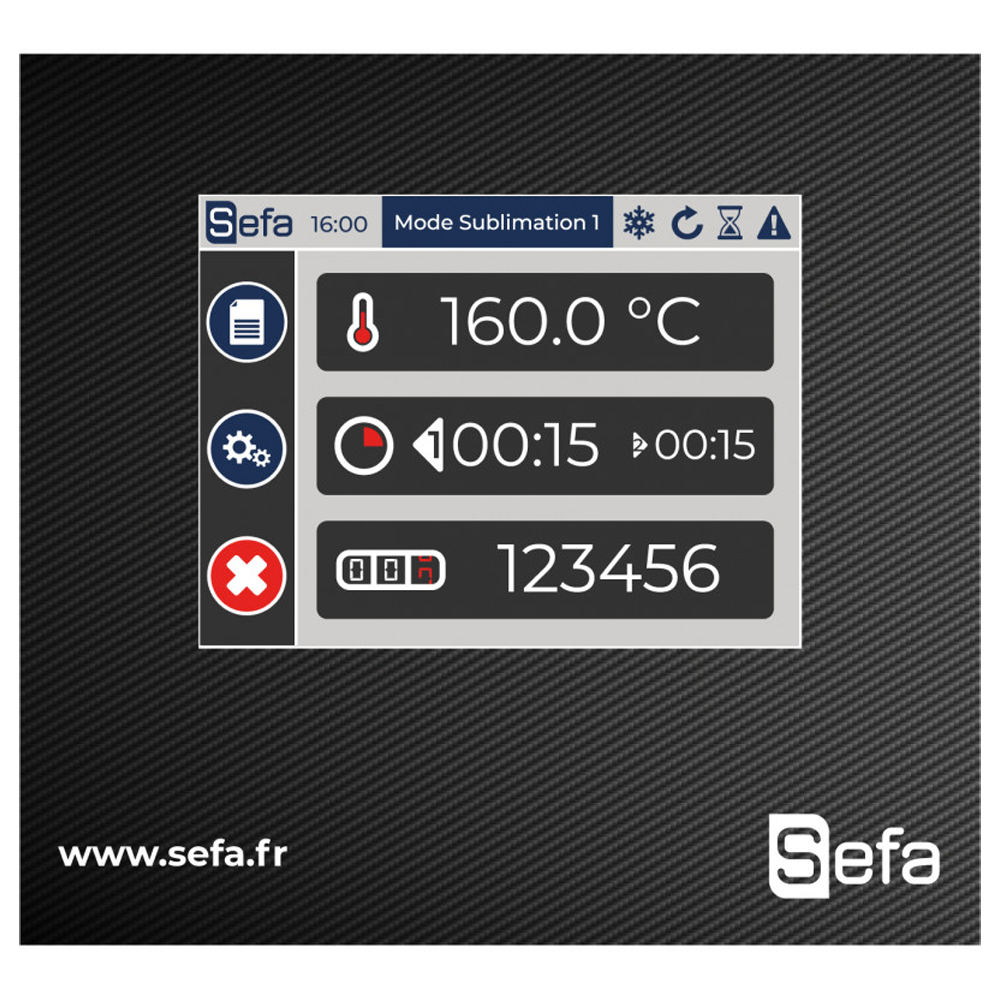

Digital Controls

• SEFA-developed electronic controls
• PID temperature regulation
• Main pressing timer
• Programmable preheating timer
• 3 customizable programs
• 2 cycle counters
• Stop-cycle function

Specifications
