Sefa e-Clam Pro 40cm x 50cm Heat Press

Data Sheet

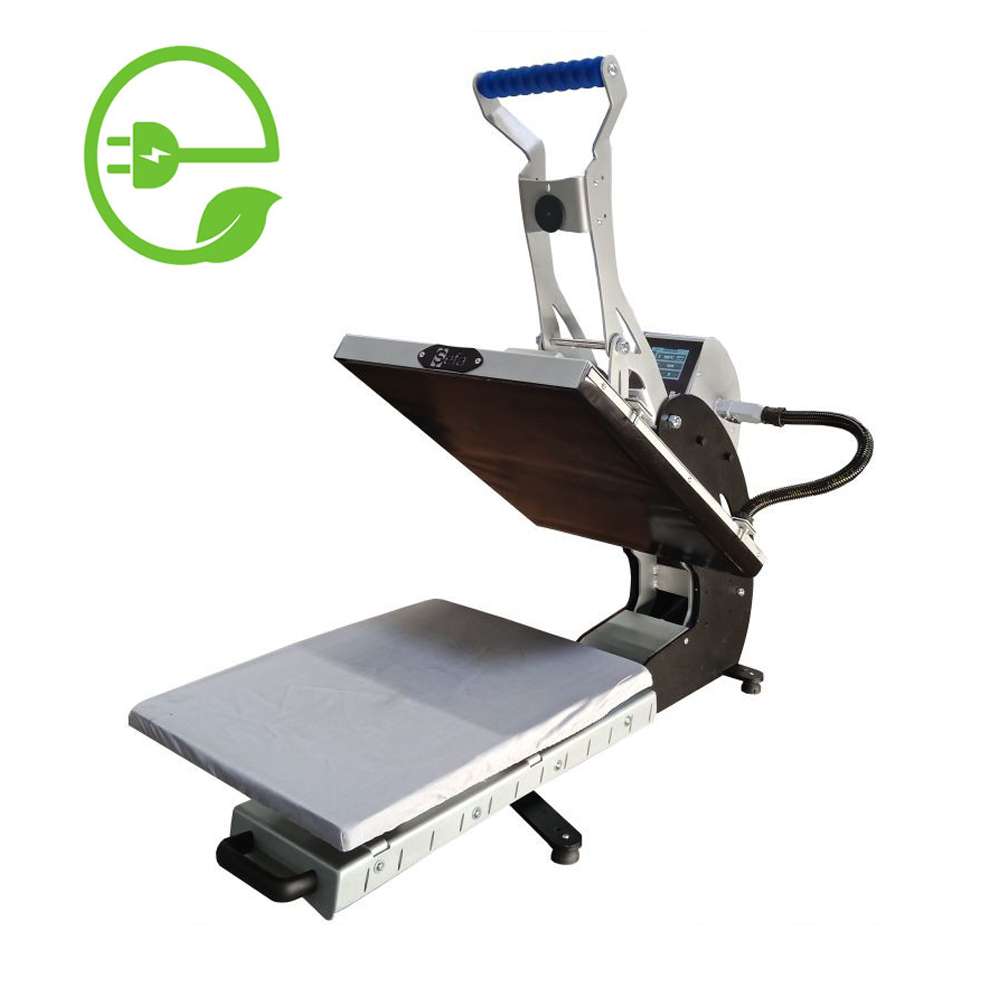

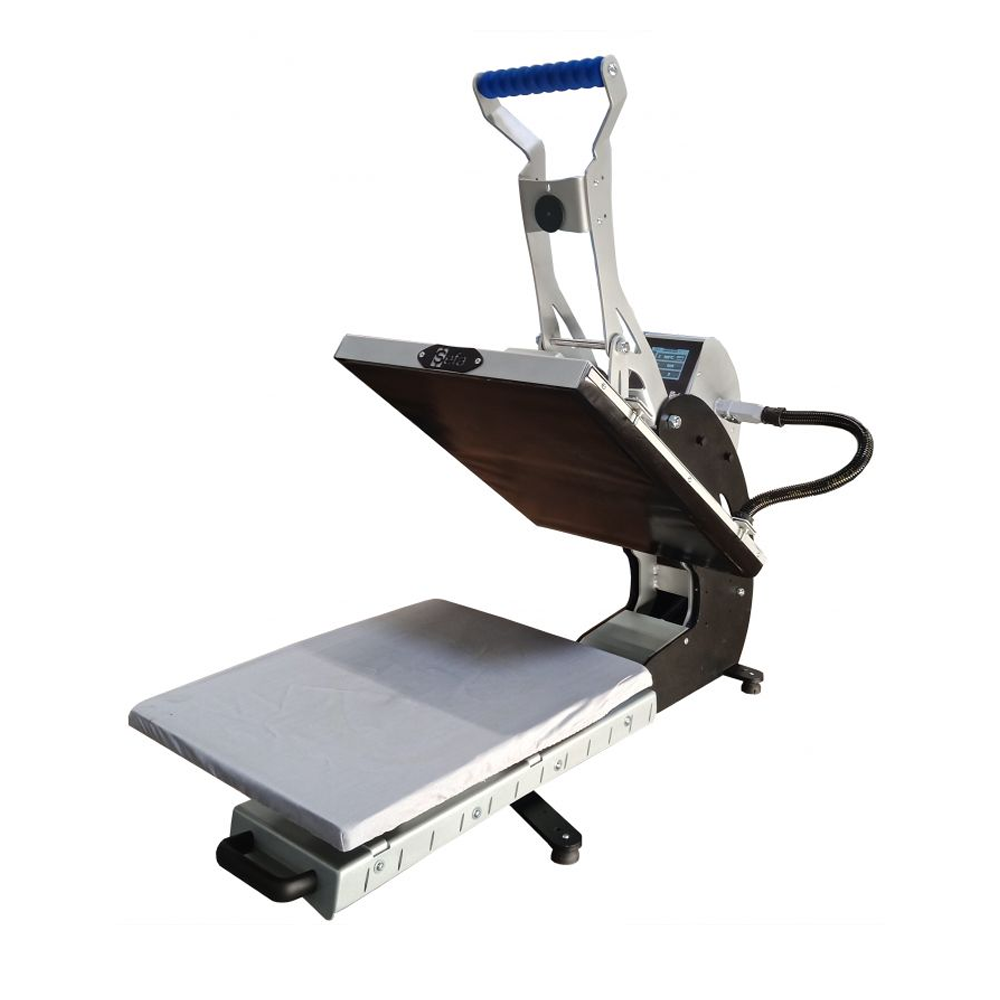

The SEFA e-Clam Pro 40cm x 50cm Heat Press is a professional auto-open heat press designed for efficient, repeatable production across a wide range of heat transfer applications. Its full-size 40 x 50 cm (16" x 20") platen, sliding lower platen, and automatic opening system make it an excellent choice for apparel decorators handling small-to-medium production runs.

The electromagnetic auto-open system automatically releases the upper platen when the timed cycle is complete, helping reduce the risk of over-pressing while allowing the operator to prepare the next garment or transfer. A sliding lower platen provides easier access for loading and positioning, while the ability to load garments from either the front or rear of the platen helps streamline production.

Designed and manufactured in France, the e-Clam Pro features SEFA's advanced touchscreen control system with precise PID temperature regulation and adaptive control for different decorating processes. Fully editable recipes, programmable preheating, dual independent timers, production counters, and Eco Mode make it easy to configure the press for frequently used applications and maintain consistent results throughout production.

The e-Clam Pro is suitable for heat transfer vinyl, screen print transfers, textile sublimation, rigid substrate sublimation, laser transfers, and DTG-related applications. With quick-change platens and professional-grade controls, it offers the versatility needed for growing print shops, apparel decorators, sportswear businesses, and other production environments.

Key Features

• Electromagnetic auto-open operation – Automatically releases the upper platen when the pressing cycle is complete
• 16" x 20" platen – Full-size pressing area for apparel, transfers, and a wide variety of substrates
• Sliding lower platen – Provides easier access for loading, alignment, and garment positioning
• Front or rear garment loading – Allows T-shirts and other garments to be threaded onto the platen from either direction
• Quick-change platens – Makes it easier to adapt the press for different products and decorating applications
• SEFA touchscreen controls – Intuitive interface for managing time, temperature, recipes, and production settings
• PID temperature regulation – Delivers fast and precise temperature control
• Adaptive regulation – Optimizes heat control for applications such as flex, sublimation, rigid substrates, and DTG
• Fully editable recipes – Save and modify frequently used application settings
• Programmable preheating – Supports workflows requiring a separate pre-press cycle
• Dual independent timers – Configure up to two timing stages for multi-step applications
• Cycle counters – Helps monitor production quantities
• Eco Mode – Helps reduce energy consumption during periods of inactivity
• 40 x 50 cm Nomex® cover included
• Designed and manufactured in France
• 3-year machine warranty
• 10-year heating element warranty

Applications

• Heat Transfer Vinyl / Flex
• Screen Print Transfers
• Textile Sublimation
• Rigid Substrate Sublimation
• Laser Transfers
• Direct-to-Garment Applications
• Pretreatment Applications
• Sportswear and Team Apparel

Digital Controls

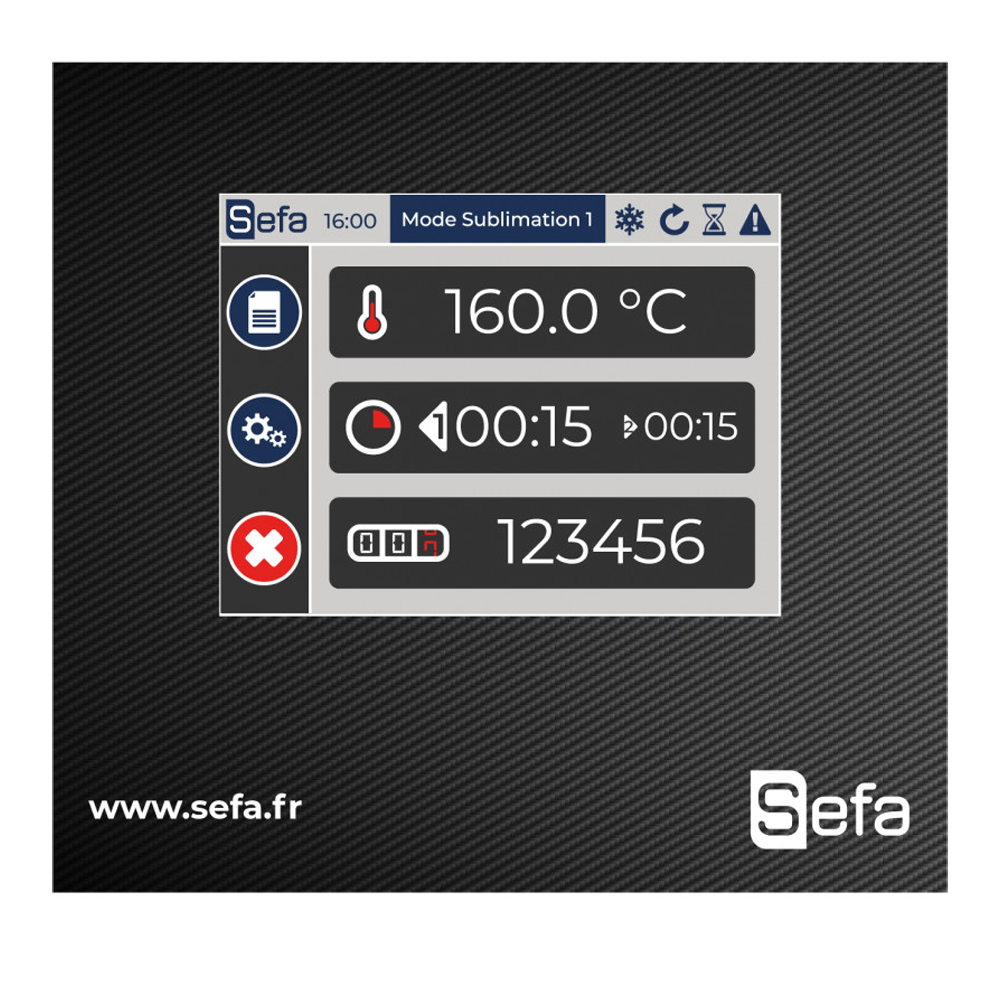

• SEFA-developed touchscreen interface
• PID temperature regulation
• Adaptive regulation for different transfer applications
• Fully editable recipes
• Programmable preheating time
• Up to 2 independent timers
• Timer range: 0 to 60 minutes
• Temperature range: 15°C to 220°C
• Cycle counter
• Stop-cycle function
• Eco Mode
• Approximately 12-minute heat-up time to 180°C

Specifications
