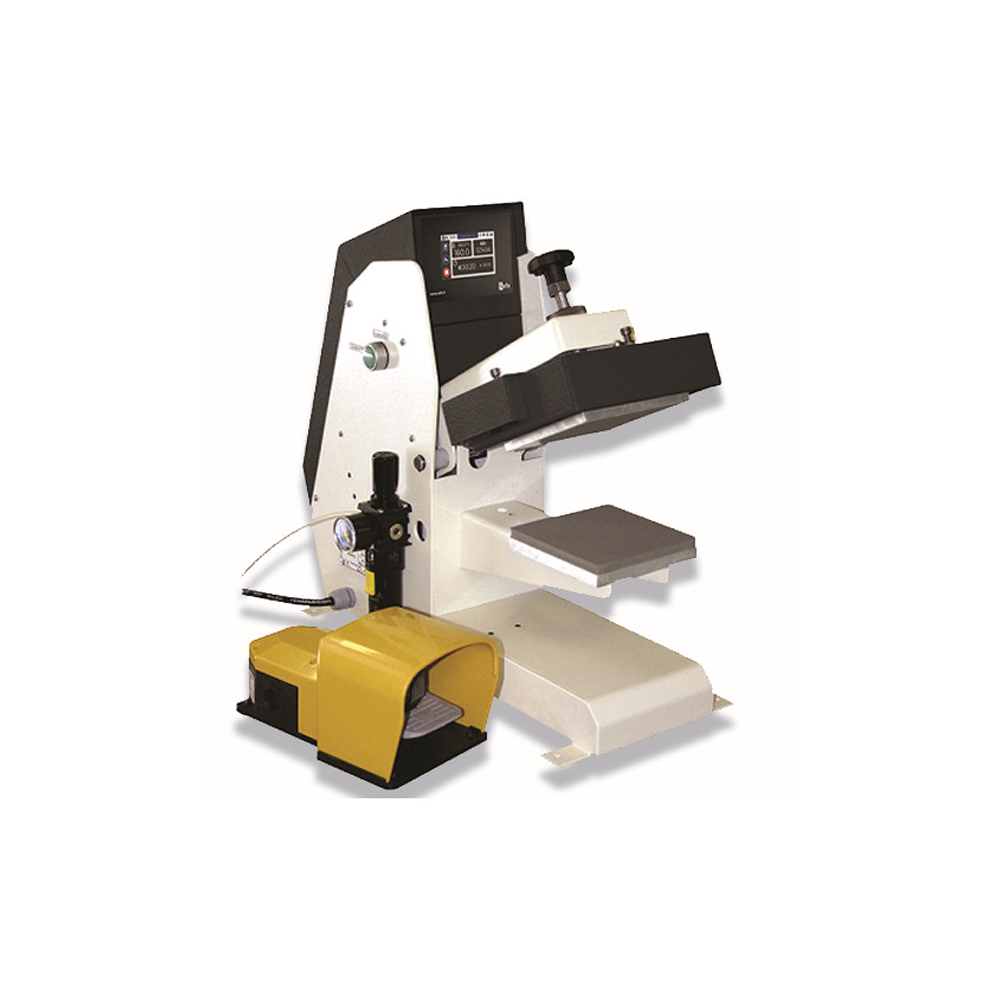

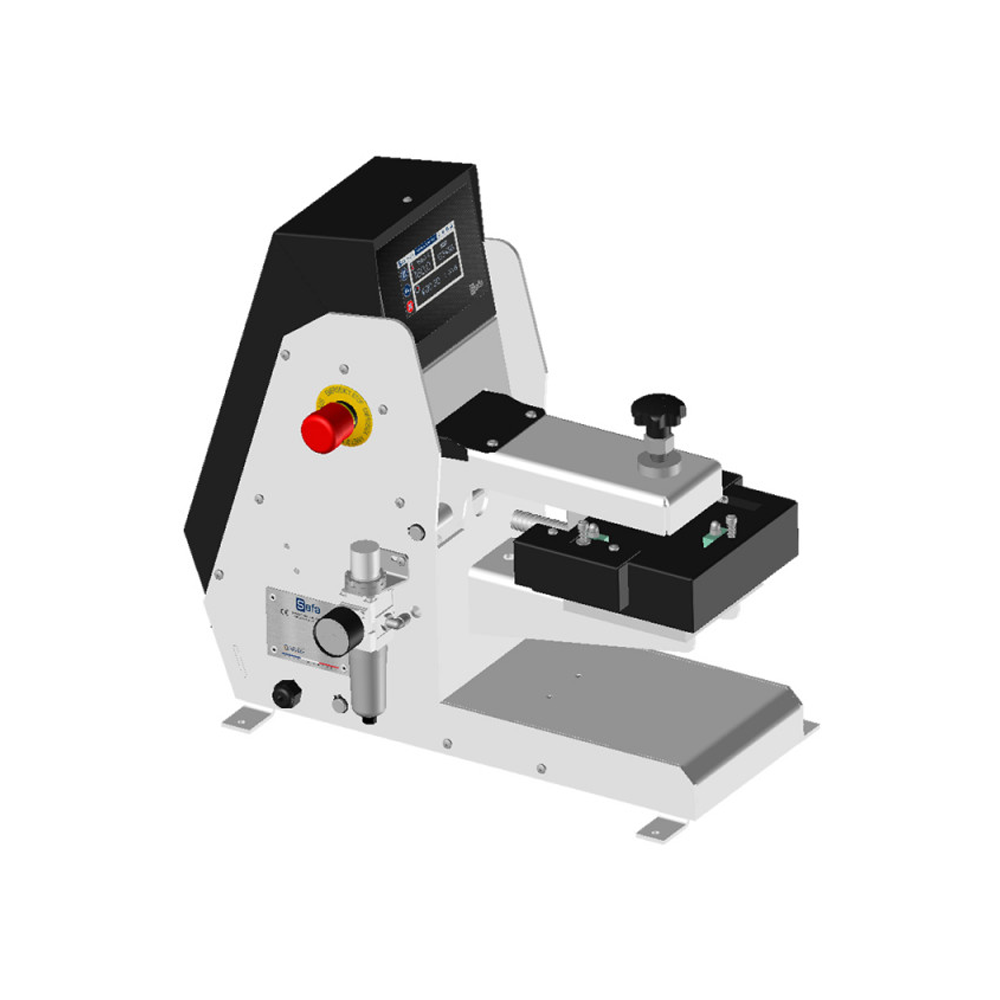

Sefa LP 130 V3 13cm x 13cm Heat Press

Manual Data Sheet

The SEFA LP 130 V3 13cm x 13cm Heat Press is a compact pneumatic heat press designed for efficient, repeatable logo and small-format transfer production. Featuring a 13 x 13 cm (5" x 5") platen, pneumatic operation, and foot-pedal control, the LP 130 V3 is ideal for decorators producing chest logos, labels, sleeves, patches, and other specialty applications at medium production volumes.

Unlike a manual press, the LP 130 V3 uses pneumatic pressure to automatically close and open the platen, reducing operator effort and helping maintain consistent pressure from one cycle to the next. Foot-pedal activation keeps the operator's hands free for positioning garments and transfers, helping streamline production while improving workflow efficiency.

With pressure up to 940 g/cm², the LP 130 V3 delivers significantly more pressing force than SEFA's manual and electromagnetic small-format models. A built-in safety guard helps protect the operator during automatic closing, making the machine well suited for professional environments where productivity, consistency, and operator safety are priorities.

SEFA's advanced electronic controls provide precise time and temperature adjustment, programmable preheating, and 10 customizable recipes for frequently used combinations of time, temperature, and substrate. Adaptive regulation helps optimize performance for different transfer processes, while Eco Mode, Standby Mode, and dual production counters make everyday operation more convenient.

Designed and manufactured in France, the SEFA LP 130 V3 is an excellent choice for businesses looking to automate small-format pressing and increase output while maintaining precise, repeatable transfer results.

Key Features

• Pneumatic operation – Automatically closes and opens the press for consistent, repeatable production
• Foot-pedal activation – Keeps both hands free for positioning garments and transfers
• 5" x 5" platen – Ideal for logos, chest prints, sleeves, labels, patches, and specialty applications
• Up to 940 g/cm² pressure – Delivers strong and consistent pneumatic pressure across the platen
• Automatic opening and closing – Reduces repetitive manual operation during production runs
• Safety guard – Helps protect hands and fingers during automatic platen movement
• Digital time and temperature control – Precise settings for repeatable transfer results
• 10 programmable recipes – Save frequently used time, temperature, and substrate configurations
• Adaptive regulation – Helps optimize temperature control for different decorating applications
• Programmable preheating – Supports applications requiring a separate pre-press cycle
• Dual production counters – Helps monitor production quantities
• Eco Mode – Helps reduce unnecessary energy use during inactivity
• Standby Mode – Provides additional energy-saving functionality when the press is not in active use
• Designed and manufactured in France
• 2-year machine warranty
• 10-year heating element warranty

Applications

• Heat Transfer Vinyl / Flex
• Screen Print Transfers
• Textile Sublimation
• Laser Transfers
• Logos and Chest Prints
• Sleeves and Labels
• Patches and Specialty Applications

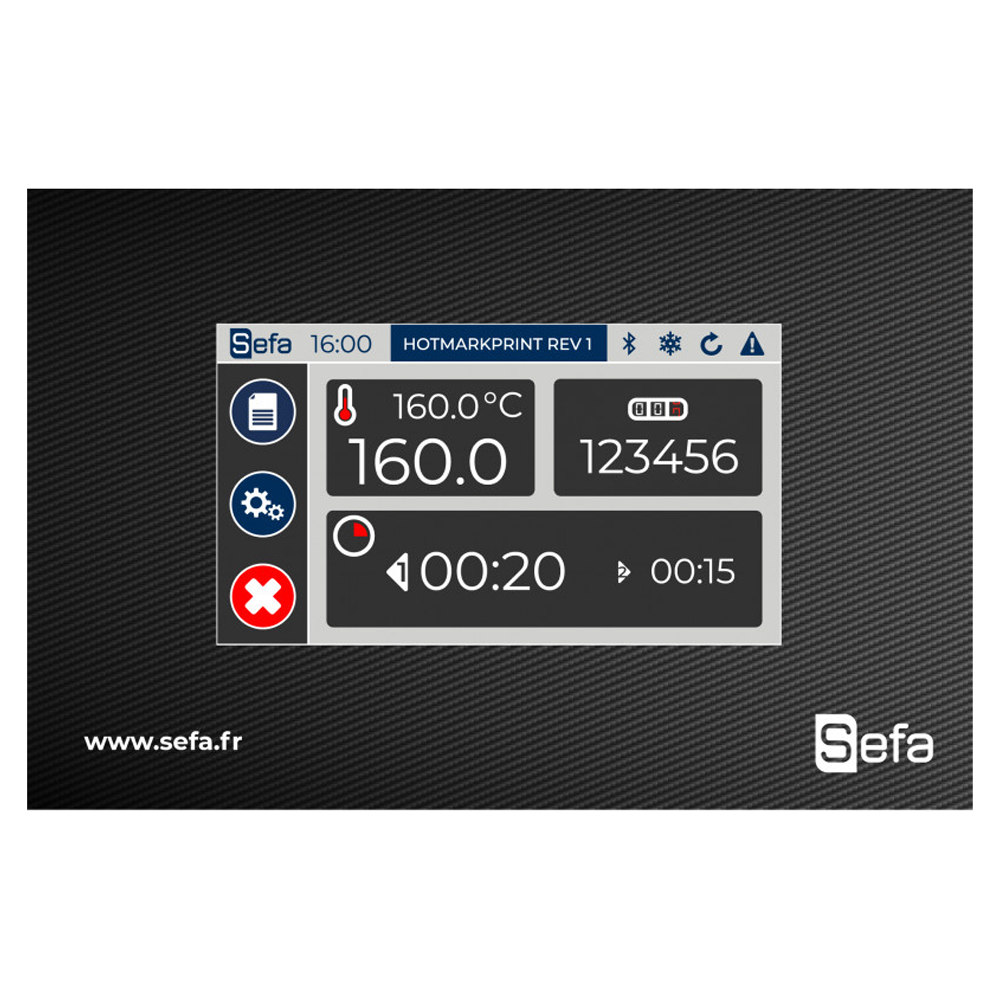

Digital Controls

• Time control
• Temperature control
• Programmable preheating time
• 10 programmable time / temperature / substrate recipes
• Adaptive regulation for different applications
• Eco Mode
• Standby Mode
• Dual production counters

Specifications
