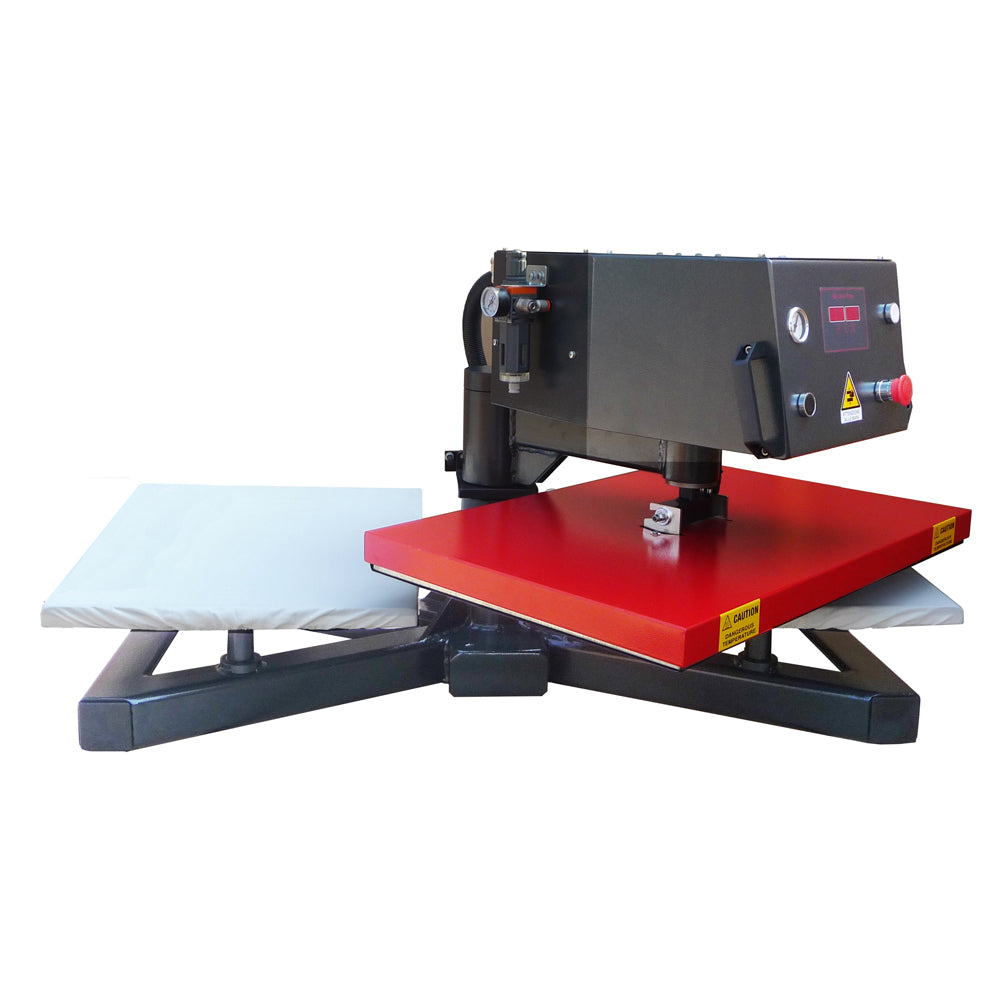

Lotus LTS 775 Dual 75cm x 50cm Pneumatic XL Swing-Away Heat Press

The Lotus LTS 775 Dual 75cm x 50cm Pneumatic XL Swing-Away Heat Press is a professional large-format production press designed for oversized heat transfers, sublimation, technical textiles, sportswear, workwear, and specialty applications. Featuring two 75 x 50 cm lower platens, pneumatic operation, and a swing-away heating platen, the LTS 775 combines an XL working area with an efficient dual-station workflow.

The dual-platen design allows the operator to prepare one garment, textile, or substrate while the opposite station is being pressed. When the first cycle is complete, the heating platen can be moved to the prepared workstation while the finished product is unloaded and the next transfer is positioned. This alternating workflow helps reduce downtime and improve productivity compared with a single-station large-format press.

Pneumatic operation takes the physical effort out of closing the oversized heating platen. At the push of a button, the heating platen automatically lowers, locks into position, and maintains pressure throughout the programmed transfer cycle. When the timer reaches zero, the platen automatically lifts, helping provide a consistent and repeatable production process.

The swing-away heating platen provides excellent access to both lower workstations. Its wide opening angle gives the operator a clear view of the full transfer area for easier loading and accurate positioning of oversized graphics, textiles, and sublimation media while also helping keep hands away from the heated surface.

Both lower platens are freestanding, allowing garments and textiles to be threaded onto the press in a single layer. This helps keep seams, additional fabric layers, and previously applied graphics away from the pressing surface while making large products easier to position.

Lotus's Mikanit 2.0 heating technology provides fast warm-up and even, stable temperature distribution across the large 75 x 50 cm heating surface. Digital controls provide precise adjustment of time and temperature, while three programmable presets, a production counter, and pre- and post-press functionality help streamline repeat production.

Key Features

• Dual 75 x 50 cm pressing stations – Two XL lower platens provide a productive alternating workflow
• Dual-station production – Prepare one product while the opposite workstation is being pressed
• Pneumatic operation – Reduces repetitive operator effort while providing consistent pressure
• Push-button activation – Automatically lowers and locks the heating platen under pressure
• Automatic opening – Heating platen lifts automatically when the programmed transfer cycle is complete
• Swing-away heating platen – Moves between the two workstations while providing excellent access to each lower platen
• Wide-angle opening – Provides a clear view of the full transfer area and helps reduce accidental contact with the heating surface
• Freestanding lower platens – Allow garments and textiles to be threaded onto the press in a single layer
• Up to 8 bar pressure – Provides strong pneumatic pressure for demanding large-format applications
• Digital time and temperature controls – Provides straightforward setup and monitoring of transfer parameters
• 3 programmable presets – Save frequently used time and temperature combinations
• Production counter – Tracks completed pressing cycles
• Pre- and post-press functionality – Allows shortened preparation or finishing cycles without changing the primary transfer settings
• Acoustic and visual cycle alerts – Provide clear machine-status and automatic-opening feedback
• Mikanit 2.0 heating technology – Designed for fast heating and even, consistent temperature distribution
• Serviceable heating elements – Individual heating rods can be replaced separately when required
• 2-year heat press warranty
• 10-year heating system warranty

Applications

• Large-Format Heat Transfers
• Heat Transfer Vinyl / Flex
• Screen Print Transfers
• Large-Format Textile Sublimation
• ChromaLuxe® Panels
• Floor Mats
• Oversized Apparel Graphics
• Sportswear
• Workwear and Uniforms
• Fashion and Textile Products
• Technical Textiles
• Lamination
• Thermal Fixation
• Large Sublimation Media

Specifications
