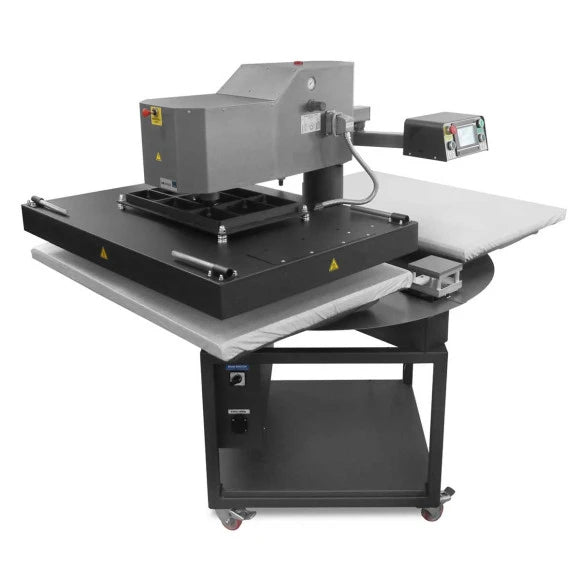

SCHULZE Air 2 Press 70cm x 100cm 2-Station Pneumatic Carousel Heat Press

The SCHULZE Air 2 Press 70cm x 100cm 2-Station Pneumatic Carousel Heat Press is a professional large-format production press designed for sublimation, oversized textiles, towels, floor mats, carpets, curtains, and other applications that require significantly more working area than a conventional apparel heat press. Featuring two oversized 70 x 100 cm workstations, pneumatic operation, touchscreen controls, and semi-automatic carousel movement, the Air 2 Press combines large-format capacity with an efficient dual-station workflow.

The two-station carousel design allows the operator to prepare one textile or substrate while the opposite workstation is being pressed. This alternating workflow reduces downtime between cycles and makes it easier to maintain continuous production when working with large products that require additional time for positioning and alignment.

Once the textile and transfer are positioned, the pressing cycle can be activated using either the touch display or integrated motion sensor / light barrier. The pneumatic heating platen then automatically closes, maintains the programmed pressure and pressing time, and opens when the cycle is complete.

Pneumatic operation provides consistent pressure from one transfer to the next while reducing the repetitive physical effort associated with manually operated large-format presses. Pressure is continuously adjustable up to 6 bar, allowing the machine to accommodate different textiles, transfer materials, and sublimation applications.

Both 70 x 100 cm workstations are equipped with soft foam mats that make the Air 2 Press particularly well suited for sublimation applications. The larger platen area provides ample room for towels, doormats, carpets, curtains, and other oversized products that may not fit on a standard apparel heat press.

An intuitive touch display provides control over temperature, pressing time, transfer programs, memory settings, and separate pre-press and main-press cycles. A built-in transfer counter also helps operators track completed production during larger jobs.

The 2.4 kW Turbo heating platen is engineered for efficient and consistent heating, reaching approximately 165°C in about nine minutes and supporting temperatures up to 220°C. Safety features include a protective frame surrounding the heating platen and a dedicated emergency stop button.

For businesses that outgrow the standard two-station configuration, the Air 2 Press can also be expanded with additional base plates, allowing the production system to be upgraded toward an Air 4 Press configuration.

Key Features

• Dual 70 x 100 cm workstations – Provides ample space for oversized textiles and large-format sublimation applications
• 2-station carousel workflow – Prepare one product while the opposite workstation is completing its pressing cycle
• Pneumatic operation – Provides consistent pressure while reducing repetitive operator effort
• Automatic opening and closing – Pneumatic system automatically completes the pressing cycle
• Motion sensor / light barrier activation – Start the press using a hand signal for convenient hands-free operation
• Touchscreen activation – Machine functions can also be controlled directly from the touch display
• Stepless pressure adjustment – Fine-tune pneumatic pressure up to 6 bar for different materials and applications
• Touch display – Controls temperature, time, transfer programs, memory settings, and production functions
• Pre-press and main-press settings – Create repeatable multi-stage transfer workflows
• Transfer counter – Helps track completed production cycles
• Soft foam workstation mats – Particularly well suited for sublimation and large textile applications
• 2.4 kW Turbo heating platen – Provides efficient heating across the large transfer area
• Approx. 9-minute warm-up – Reaches approximately 165°C in about nine minutes
• Adjustable control unit – Allows the operating controls to be positioned for operator comfort
• Protective heating-platen safety frame
• Emergency stop button
• Expandable workstation system – Additional base plates can be added to increase production capacity

Production Workflow

Applications

• Large-Format Textile Sublimation
• Towels
• Doormats and Floor Mats
• Carpets and Rugs
• Curtains
• Large Fabric Panels
• Oversized Heat Transfers
• Interior Textile Products
• Promotional Textiles
• Technical and Specialty Textiles
• High-Volume Sublimation Production

Specifications

An external air compressor capable of supplying the required pneumatic pressure and airflow is required for operation.
