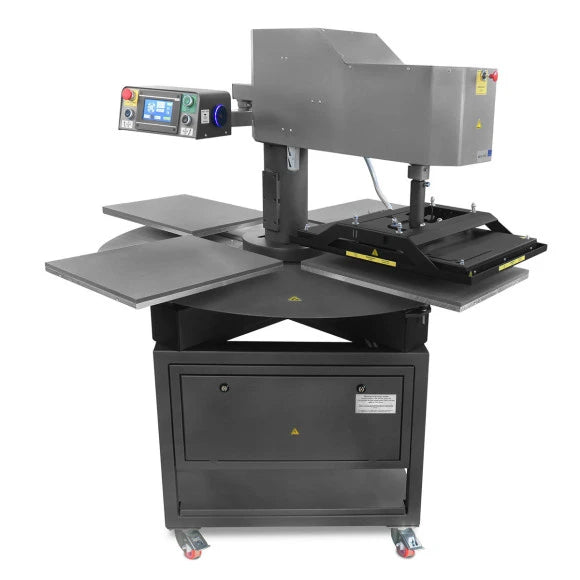

Introducing the SCHULZE Air 4 Press! Designed for maximum production efficiency, this semi-automatic pneumatic carousel heat press features four rotating base plates for continuous high-volume textile printing.
The Air 4 Press automatically completes the pressing cycle after the operator loads the textile and starts the machine by button or hand signal using the built-in motion sensor.
With four 40 x 50 cm rotating base plates, operators can load and unload across multiple stations, helping increase output and reduce downtime in demanding production environments.
A touch display controls temperature, time, transfer type selection, memory settings, and press cycles. The heating platen includes a protective safety frame, and the press also includes an emergency stop button. A compressor is required for operation.
FEATURES
- Semi-automatic pneumatic carousel heat press
- Four rotating 40 x 50 cm base plates
- Self-opening and self-closing operation
- Start by push button or hand signal with built-in motion sensor
- Touch display for time, temperature, transfer type, memory, and press settings
- Stepless adjustable pressure
- 2.4 kW Turbo heating platen
- Protective safety frame and emergency stop button
- Base plates include durable 10 mm silicone mats
- Designed for high-volume continuous production
- Compatible with alternate base plates for greater versatility
- Compressor required for operation
SPECIFICATIONS
- Heat Press Style: Pneumatic/Semi-Automatic/Carousel
- Base Plates: 4x 40 x 50 cm
- Dimensions: 155 x 155 x 157 cm
- Transport Dimensions: 120 x 120 x 195 cm
- Product Weight: 253 kg
- Weight Including Packaging: Approx. 280 kg
- Power Supply / Voltage: 230V
- Temperature Range: Max. 220°C
- Heating Power: 2.4 kW
- Preheating Time: Approx. 9 minutes to 165°C
- Pneumatic Pressure: 6 bar
- Air Consumption Per Cycle: 7.2 l
