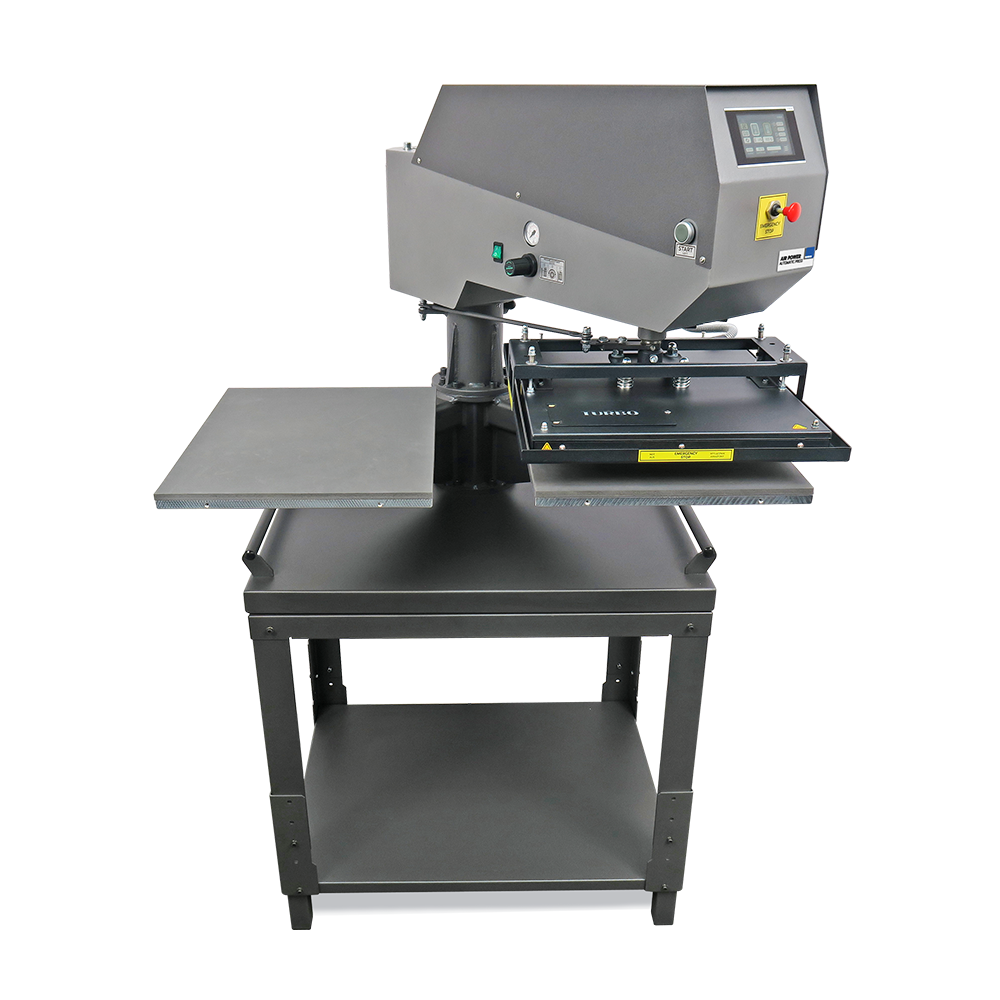

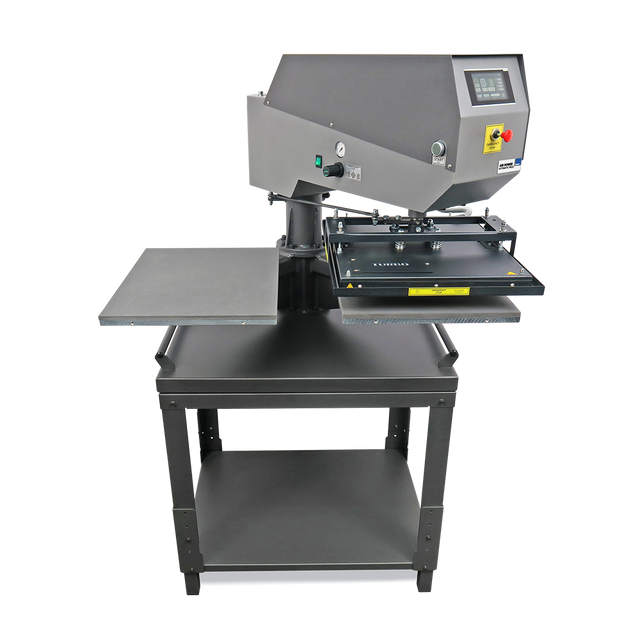

SCHULZE Air Power Automatic Press Dual-Station 40cm x 50cm Pneumatic Heat Press

The SCHULZE Air Power Automatic Press Dual-Station 40cm x 50cm Pneumatic Heat Press is a professional production heat press built for high-volume apparel decoration and repeatable transfer workflows. Featuring two 40 x 50 cm workstations, pneumatic pressure, automatic opening and closing, and a fully automated swiveling heating platen, the Air Power Automatic Press minimizes manual movement and allows the operator to focus primarily on loading garments and positioning transfers.

The dual-station design allows one garment or product to be prepared while the opposite workstation is being pressed. In fully automatic operation, the heating platen can automatically complete the pressing cycle, open, and move to the opposite workstation, helping create a continuous production workflow with minimal downtime between transfers.

This automatic platen movement is one of the key differences between the Air Power Automatic Press and SCHULZE's more manually operated dual-station machines. Instead of requiring the operator to physically swing the heating platen from side to side, a stepper-motor drive automatically positions the heating platen between the two workstations.

Pneumatic operation provides strong, repeatable pressure while reducing the repetitive physical effort associated with manual heat presses. Pressure can be continuously adjusted up to 6 bar, allowing the press to be configured for different textiles, transfer materials, and substrate thicknesses.

A modern 5-inch touchscreen provides control over temperature, pressing time, pressure settings, operating modes, and production programs. Up to three pressing times can be programmed for each workstation, allowing operators to create dedicated pre-press, main-press, and post-press cycles for frequently used transfer applications.

The machine can be operated in multiple ways depending on the desired workflow, including fully automatic operation, foot pedal activation, touchscreen control, and manual operation. This flexibility allows the Air Power Automatic Press to adapt to both continuous production runs and jobs that require more direct operator control.

SCHULZE's Quick Release base plate system allows compatible lower platens to be exchanged quickly using a lever-operated mechanism. Interchangeable heating and base plates expand the machine beyond standard T-shirt production for bags, backpacks, shoes, umbrellas, specialty textiles, and other products.

The 3.3 kW Turbo heating platen is designed for fast warm-up and even temperature distribution across the 40 x 50 cm pressing area. Up to two heating zones help maintain consistent platen temperature during demanding production runs.

A protective safety frame surrounding the heating platen helps protect the operator during automatic operation. If the safety system is triggered while the platen is closing, the machine prevents the pressing cycle from continuing, making the Air Power Automatic Press well suited for busy production environments where operators are continually loading and unloading products around the machine.

Key Features

• Dual 40 x 50 cm workstations – Prepare one garment or product while the opposite station is being pressed
• Fully automatic platen movement – Heating platen automatically moves between the two workstations
• Pneumatic operation – Provides consistent pressure while reducing repetitive operator effort
• Automatic opening and closing – Pneumatic system handles the complete pressing cycle
• Stepper-motor swivel drive – Provides smooth and precise automated platen movement
• Multiple operating modes – Use fully automatic operation, foot pedal activation, touchscreen controls, or manual operation
• 5-inch touchscreen – Provides intuitive control over temperature, time, programs, and machine functions
• 3 programmable pressing times per workstation – Configure separate pre-press, main-press, and post-press cycles
• Stepless pressure adjustment – Fine-tune pneumatic pressure up to 6 bar
• Quick Release base plate system – Compatible lower platens can be exchanged quickly using the lever-operated release
• Interchangeable heating and base plates – Expand the machine for different products and specialty applications
• Threadable workstation design – Makes it easier to position garments, bags, backpacks, and other products
• 3.3 kW Turbo heating platen – Designed for fast warm-up and even heat distribution
• Up to two heating zones – Helps maintain consistent temperature across the 40 x 50 cm platen
• Protective safety frame – Helps protect the operator during automatic closing and platen movement
• Protective lower-platen covers included
• Designed for continuous professional production

Operating Modes

Mode	Operation
Fully Automatic	The press automatically closes, completes the pressing cycle, opens, moves to the opposite workstation, and continues the programmed production sequence
Foot Pedal	Allows the operator to initiate machine functions while keeping both hands available for positioning products and transfers
Touchscreen	Machine functions can be initiated and controlled directly from the 5-inch display
Manual	Provides direct operator control when a fully automated production workflow is not required

Applications

• Direct-to-Film (DTF) Transfers
• Heat Transfer Vinyl / Flex
• Flock Transfers
• Screen Print Transfers
• Sublimation Transfers
• T-Shirts and Sweatshirts
• Sportswear
• Workwear and Uniforms
• Tote Bags and Backpacks
• Shoes and Specialty Products
• Umbrellas
• Promotional Products
• High-Volume Apparel Production

Specifications

Model	SCHULZE Air Power Automatic Press
SKU	90717
Heat Press Type	Pneumatic / Fully Automatic / Dual-Station
Workstations	2
Platen Size	40 x 50 cm
Heating Output	3.3 kW
Maximum Temperature	220°C
Temperature Accuracy	±0.5°C
Time Range	00:01–99:59 min:sec
Maximum Pressure	6 bar
Air Consumption	Approx. 1.2 L per cycle
Maximum Substrate Thickness	2 cm
Supply Voltage	230 V / 14.5 A
Warm-Up Time	Approx. 12 minutes to 180°C
Machine Dimensions	90 x 110 x 165 cm
External Compressor	Required

An external air compressor capable of supplying the required pneumatic pressure and airflow is required for operation. Optional heating and base plates are sold separately.
