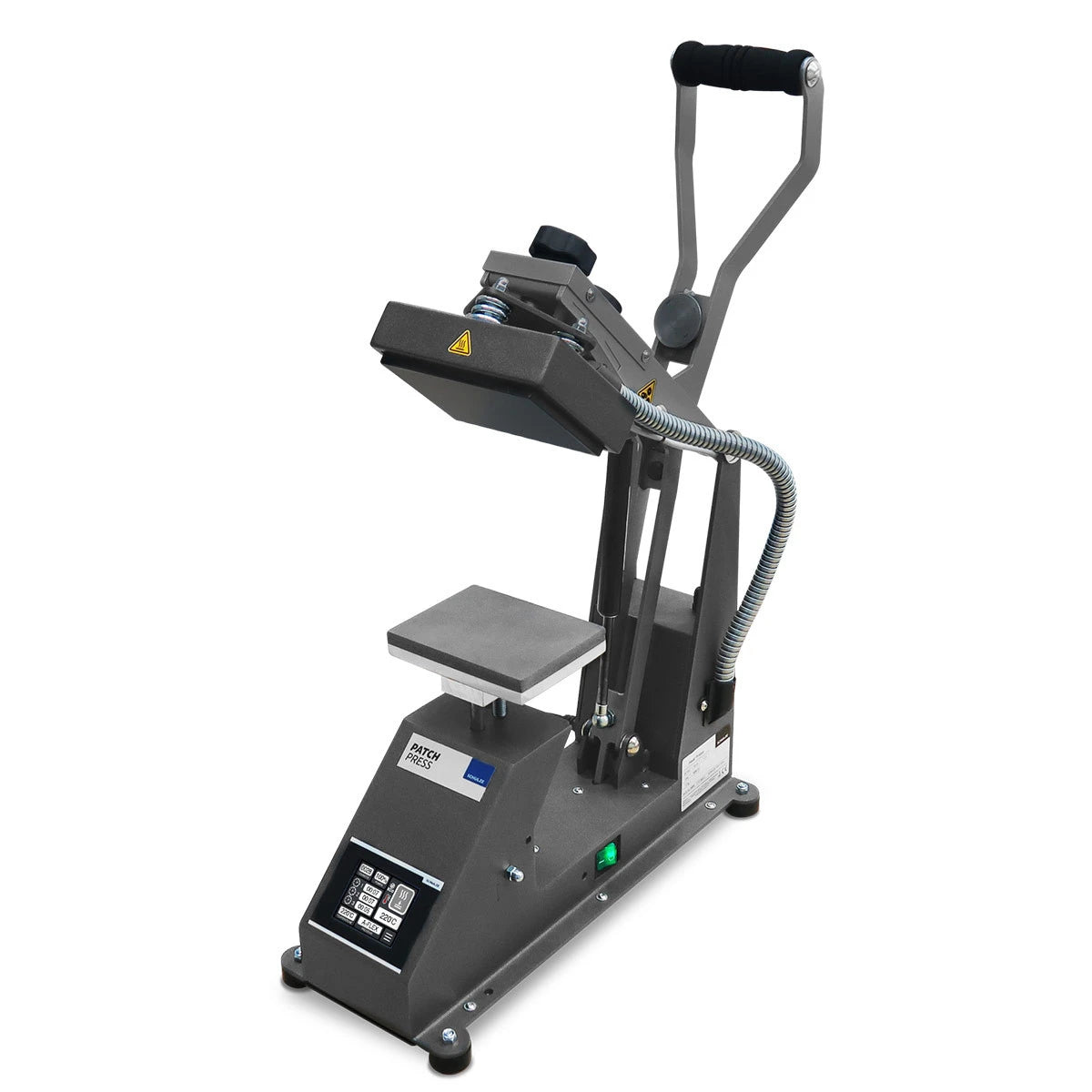

SCHULZE Patch Press 10cm x 13cm Manual Self-Opening Heat Press

The SCHULZE Patch Press 10cm x 13cm Manual Self-Opening Heat Press is a compact professional transfer press designed specifically for patches, labels, emblems, logos, and other small-format applications. Its focused 10 x 13 cm heating platen provides a precise working area for applications where using a full-size heat press would be unnecessarily large or difficult to position accurately.

The Patch Press is manually closed using its pressure handle and automatically opens when the programmed pressing time is complete. This self-opening design helps reduce the risk of over-pressing during repetitive production while allowing the operator to prepare the next patch, label, or garment between cycles.

A modern touch display provides control over temperature, pressing time, pre-press, main-press, and post-press cycles. The controller also includes an integrated transfer counter and ECO Mode, helping streamline repeat production while reducing unnecessary energy use during periods of inactivity.

Although designed primarily for small-format applications, the Patch Press includes a 43 x 31 cm enlargement plate that provides additional support when working with larger garments and textiles. This makes it easier to position full-size products while still concentrating the heating area directly over the patch, label, or emblem.

The press can also be expanded with optional interchangeable lower platens, including a 5 x 10 cm rectangular platen and 6 cm round platen. For thicker embroidered patches and other applications that benefit from heating from both sides, an optional heated lower platen is available to deliver additional heat from beneath the transfer.

With a compact footprint, up to 300 kg of pressing force, and a maximum temperature of 220°C, the SCHULZE Patch Press is an excellent choice for apparel decorators, uniform shops, embroidery businesses, laundries, and production environments that frequently apply small logos, identification labels, patches, and emblems.

Key Features

• 10 x 13 cm heating platen – Precision-sized working area for patches, labels, emblems, and small transfers
• Manual operation – Provides straightforward operator-controlled pressure and closing
• Automatic opening – Heating platen automatically releases when the programmed pressing cycle is complete
• Up to 300 kg pressing force – Provides substantial pressure for demanding patch and label applications
• Modern touch display – Controls temperature, time, and production functions
• Pre-press, main-press, and post-press cycles – Configure multiple pressing stages for different applications
• Transfer counter – Helps track completed production cycles
• ECO Mode – Places the press into an energy-saving standby state during periods of inactivity
• Even heat distribution – Designed to provide consistent temperature across the small-format heating platen
• 43 x 31 cm enlargement plate included – Provides additional garment support for larger textiles
• Interchangeable lower platens – Optional specialty sizes expand the press for different patch shapes and placements
• Optional heated lower platen – Provides heat from below for thicker patches and embroidered emblems
• Compact footprint – Ideal for limited production spaces and dedicated patch workstations
• Approx. 12-minute preheat time

Optional Platen Configurations

Applications

• Embroidered Patches
• Heat-Applied Patches
• Uniform Emblems
• Name and Identification Labels
• Branding Labels
• Small Logos
• Heat Transfer Vinyl / Flex
• Direct-to-Film (DTF) Transfers
• Workwear and Uniforms
• Sportswear
• Promotional Apparel
• Small-Format Textile Applications

Specifications

The 43 x 31 cm enlargement plate is included. Optional rectangular, round, and heated lower platens are sold separately.
