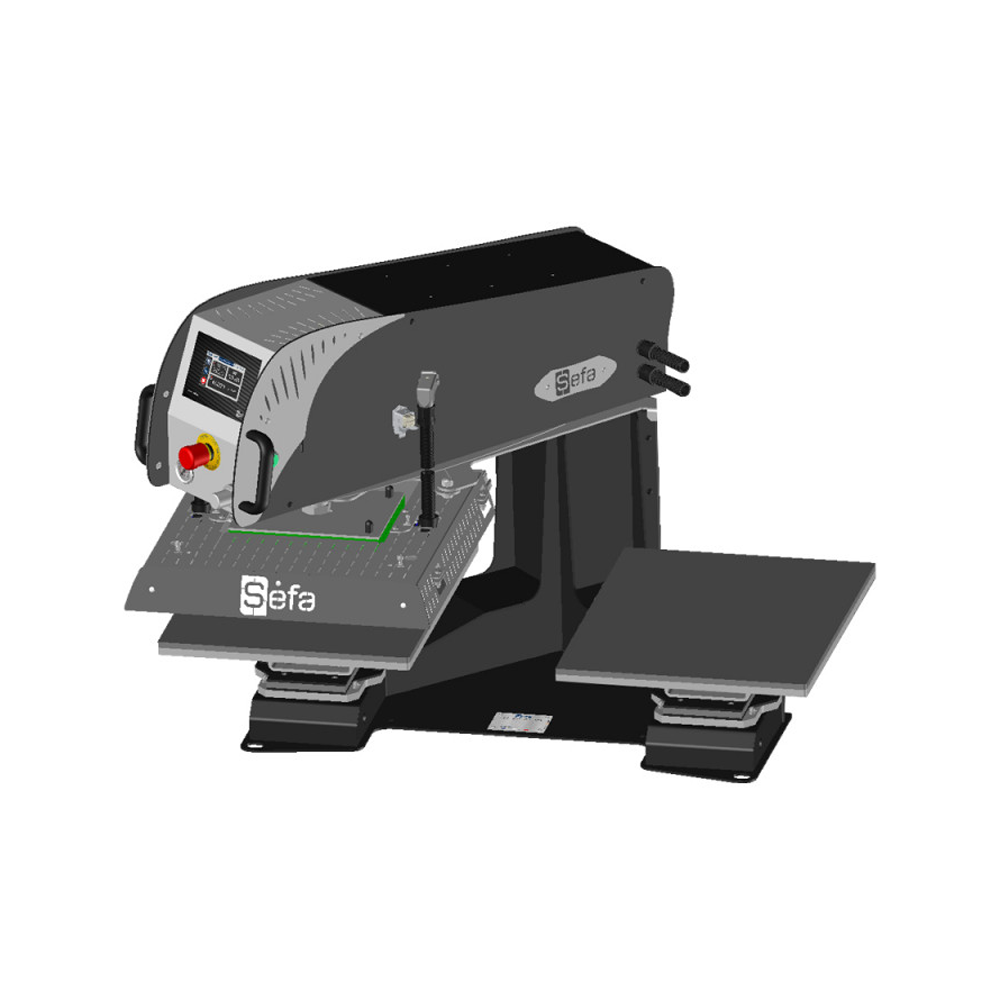

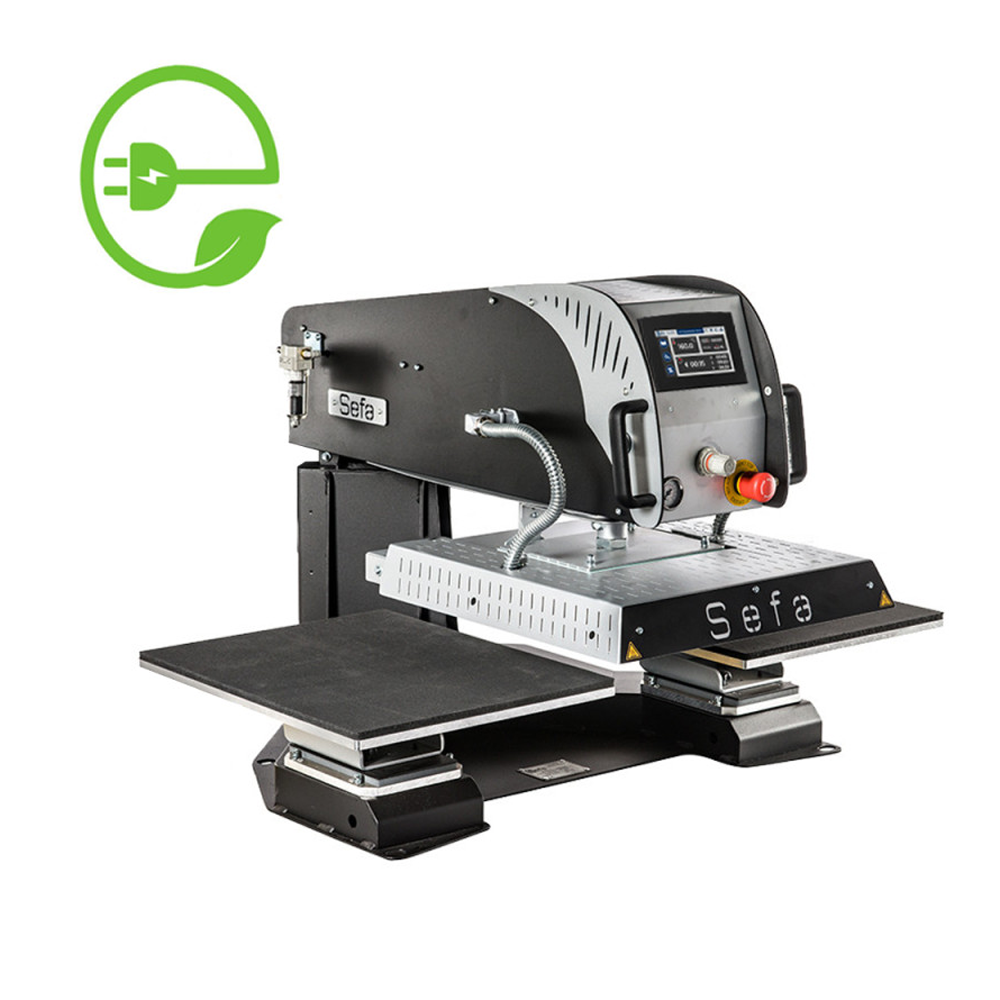

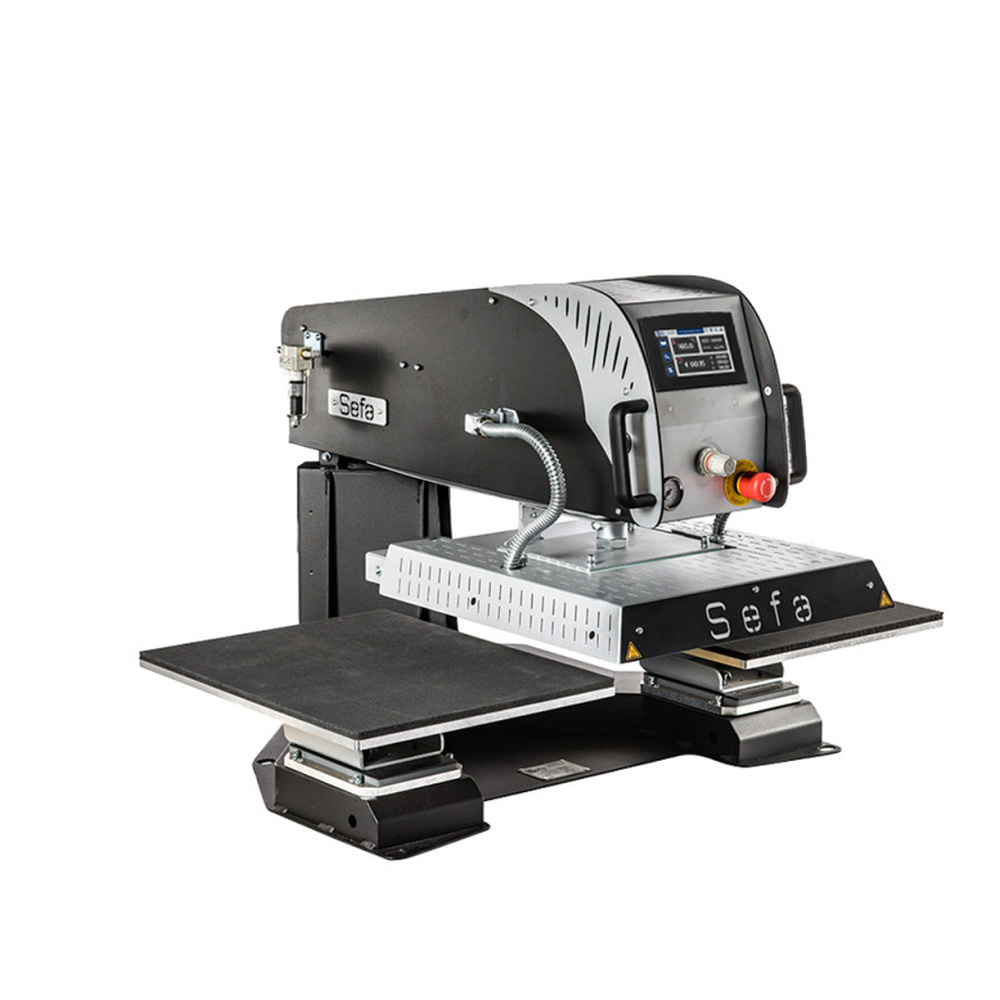

Sefa e-Duplex Air Pro 40cm x 50cm Heat Press
Talk to our team of experts to get 1-on-1 personalized information and have your questions answered in real time!
Why Choose HeatPressNation?
With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.
Thank you for your submission!
We will get back to you soon.
The e-DUPLEX AIR PRO is our most comprehensive dual-platen model. It includes all the features of the e-DUPLEX PRO, plus the added option of membrane platens for marking thick garments with raised surfaces such as workwear and winter clothing.
Hybrid pneumatic press with dual standard platens and membrane platens, featuring automatic head shuttle.
Two 40x50 cm Nomex® covers and two 45x55 cm Nomex® covers included.
As the membrane inflates, it evens out raised surfaces, allowing transfers to be applied over linings, thick seams, buttons, zippers, topstitched pockets and other garment reliefs.
Suitable for: high-volume flex and screen print transfers, textile and rigid substrate sublimation, DTG, laser printing and textile marking on thick garments with raised areas.
Strengths:
- Automatic opening, closing and head shuttle
- High heating power, ideal for DTG pre-treatment drying
- Foot pedal for hands-free garment positioning and holding before and during pressing
- Quick-change platens
- Anti-pinch safety guard
- Allows marking directly over garment reliefs
- Combined membrane and standard platen operation
- T-shirts can be loaded from the front or rear of the platens
- Allows masked-time operation on the free platen
- Large working space between, below and behind the platens
- Three different press modes

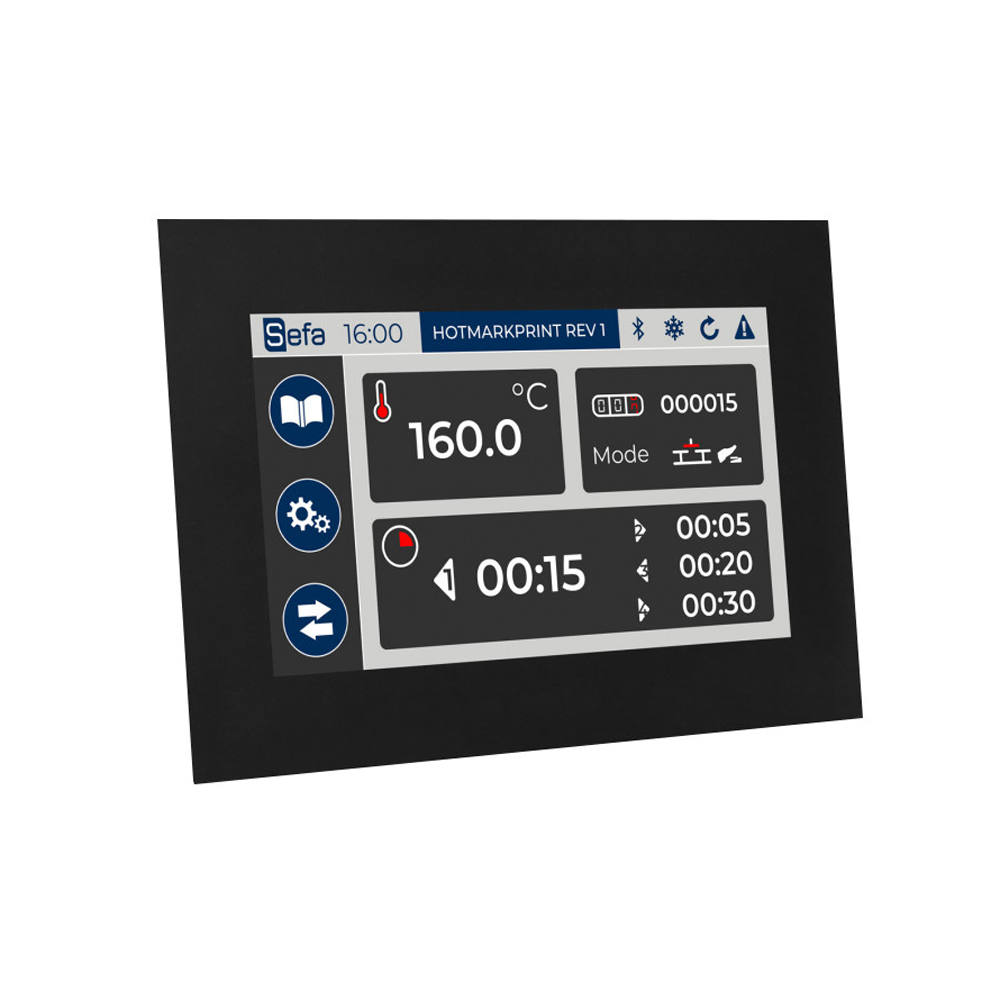

- Multifunction touchscreen control panel
- Independent press time for each platen
- Designed and manufactured in France
- Two-year machine warranty
- Ten-year warranty on the heating elements
SEFA Electronics:
|
| Type | Pneumatic, Membrane |
| Operation | Swing - Rotating Plate |
| Platen size | 40x50 cm / 16x20 ", 45x55 cm / 18x22 " |
| Useful size | 40x50 cm / 16x20 " |
| Max thickness | 45 mm |
| Weight | 193 Kg / 425 lbs |
| Pressure | 625 g/cm² |
| °C / °F Max | 220 °C / 429 °F |
| Power | 2200W |
| Power supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 10A |
| Applications | Flex, ChromaLuxe, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Screen Printing, Laser Transfer |
| Dimension | 713x891x1099 mm / 28x35x43 " |
