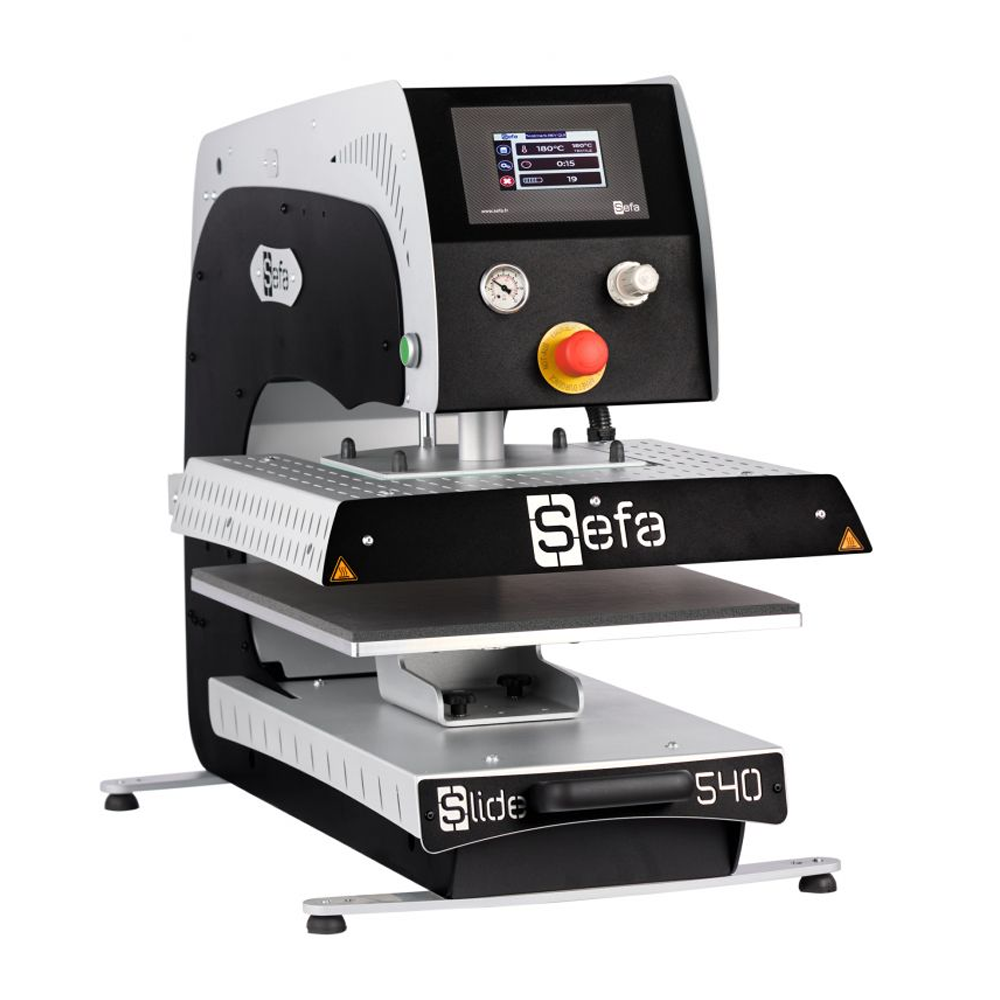

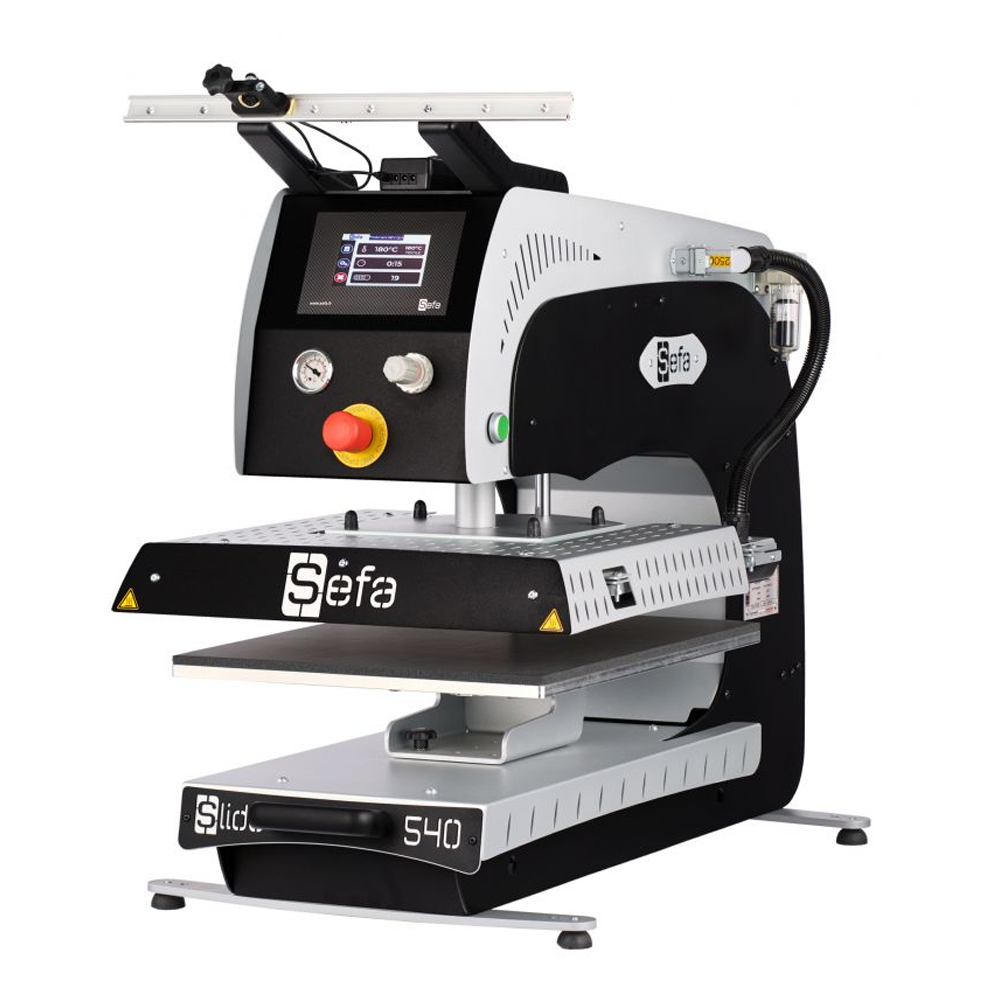

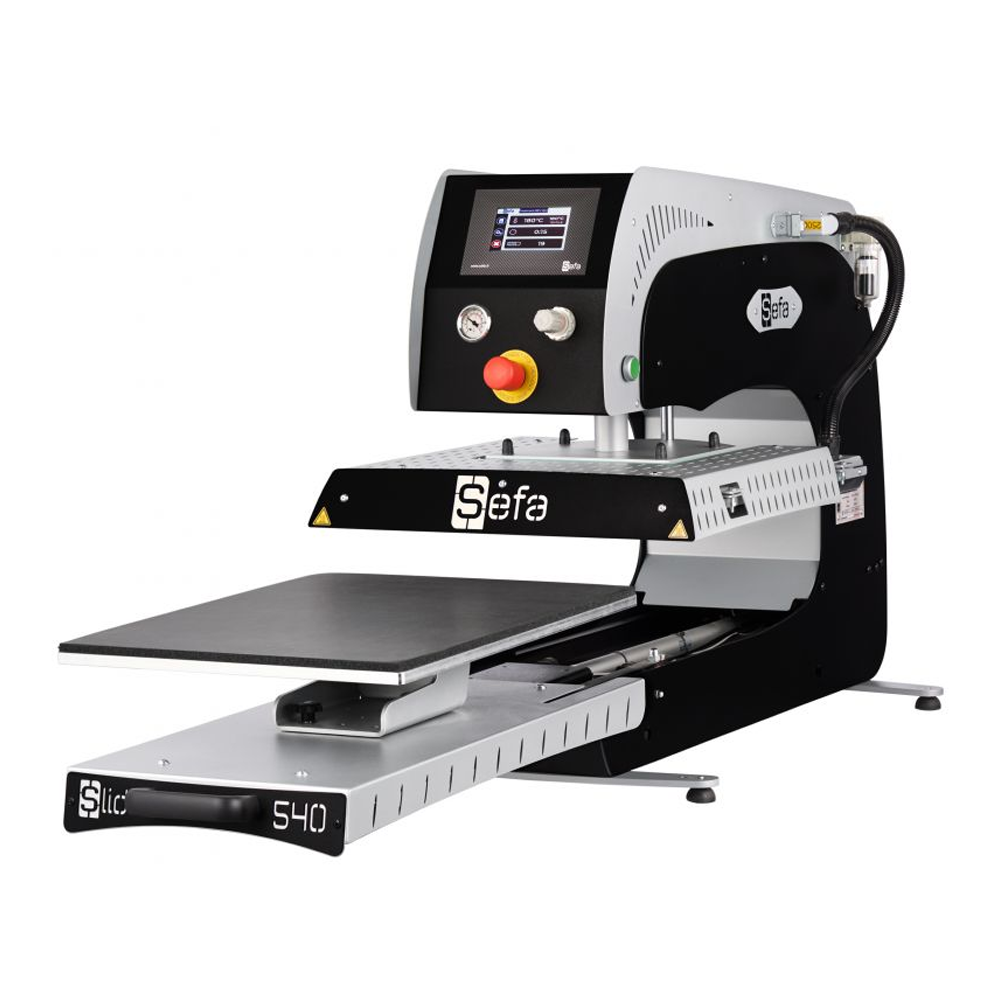

Sefa e-Slide 540 Lite/Pro 40cm x 50cm Heat Press

Data Sheet

The SEFA e-Slide 540 Lite/Pro 40cm x 50cm Heat Press is a professional pneumatic heat press designed to deliver efficient production in a compact footprint. Featuring a full-size 40 x 50 cm (16" x 20") platen and a front-loading drawer system, the e-Slide 540 gives operators easy access to the lower platen without requiring the additional side clearance of a traditional swing-away press.

Both the Lite and Pro versions use pneumatic opening and closing, helping provide consistent pressure from cycle to cycle while reducing repetitive operator effort. The key difference is the lower platen movement: the e-Slide 540 Lite uses a manually operated drawer, while the e-Slide 540 Pro uses a pneumatically assisted automatic drawer that moves in and out as part of the production cycle.

The e-Slide 540 also features SEFA's Quick Release platen attachment system and a reversible sleeve-style lower platen, giving decorators greater flexibility when loading garments and changing platen configurations. Its 2200 W heating system provides the performance needed for heat transfer vinyl, screen print transfers, textile and rigid substrate sublimation, ChromaLuxe®, laser transfers, and DTG-related processes such as pretreatment drying.

Advanced SEFA electronics provide precise control over time, temperature, and preheating, along with 10 programmable recipes, adaptive temperature regulation, Eco Mode, Standby Mode, and dual production counters. Designed and manufactured in France, the e-Slide 540 is an excellent choice for professional shops that want pneumatic consistency, front-loading convenience, and strong production capability without requiring a large operating footprint.

Key Features

• Pneumatic opening and closing – Provides consistent pressing pressure while reducing repetitive manual operation
• 16" x 20" platen – Full-size pressing area for apparel, transfers, and rigid substrates
• Front-loading drawer design – Provides easy access to the lower platen while minimizing required workspace
• Lite version with manual drawer – Operator manually slides the lower platen in and out

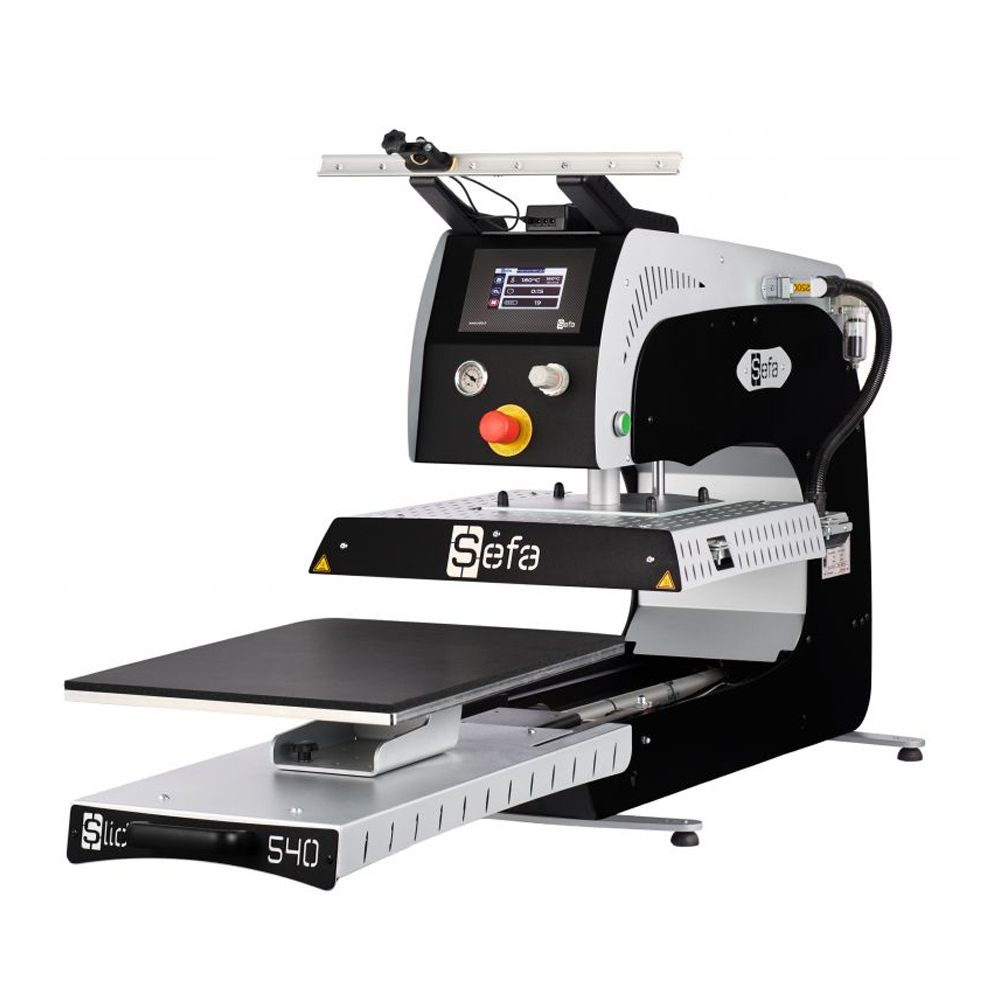

• Pro version with pneumatic drawer – Pneumatically assisted drawer automatically moves the lower platen for a more automated workflow
• Bi-manual controls – Two-hand activation helps support safe pneumatic operation
• Quick Release platen system – Makes platen changes faster and easier
• Reversible sleeve-style lower platen – Provides additional garment-loading flexibility
• High-power 2200 W heating system – Supports demanding transfer applications and DTG pretreatment drying
• Up to 363 g/cm² pressure – Provides consistent pneumatic pressure for a variety of transfer processes
• 10 programmable recipes – Save frequently used time, temperature, and substrate settings
• Adaptive regulation – Helps optimize heat control for different transfer applications
• Programmable preheating – Supports applications requiring a separate pre-press cycle
• Dual production counters – Helps monitor pressing quantities
• Eco Mode – Helps reduce energy consumption during periods of inactivity
• Standby Mode – Provides additional energy-saving functionality when not actively pressing
• 40 x 50 cm Nomex® cover included
• Designed and manufactured in France
• 2-year machine warranty
• 10-year heating element warranty

Lite vs. Pro

Applications

• Heat Transfer Vinyl / Flex
• Screen Print Transfers
• Textile Sublimation
• Rigid Substrate Sublimation
• ChromaLuxe® Panels
• Laser Transfers
• Direct-to-Garment Applications
• DTG Pretreatment Drying

Digital Controls

• Time control
• Temperature control
• Programmable preheating time
• 10 programmable time / temperature / substrate recipes
• Adaptive regulation for different transfer applications
• Eco Mode
• Standby Mode
• Dual production counters

Specifications
