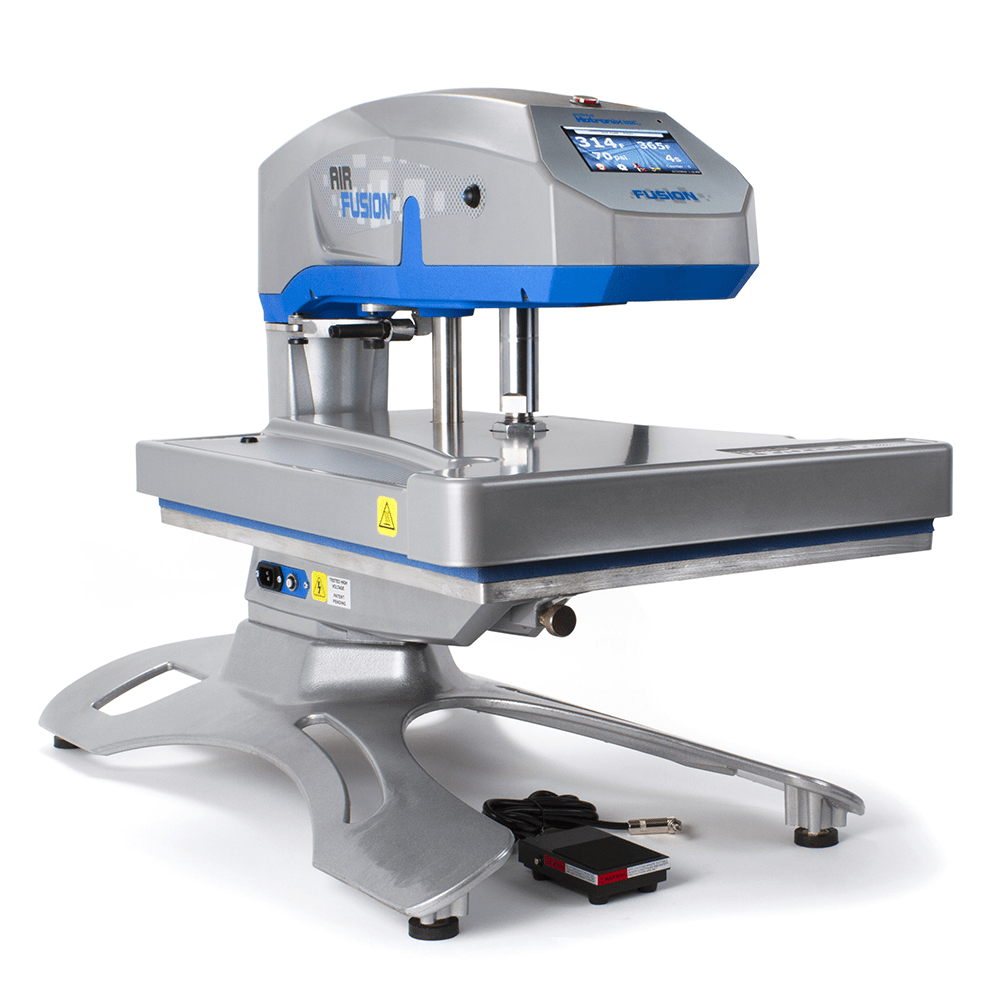

The STAHLS' Hotronix® Air Fusion IQ® is a pneumatic 40 x 50 cm heat press designed for high-volume production with minimal operator effort. Air-powered closing and pressure control reduce repetitive manual force, while the automatic opening and swing-away action create a clear, heat-free work area between applications.

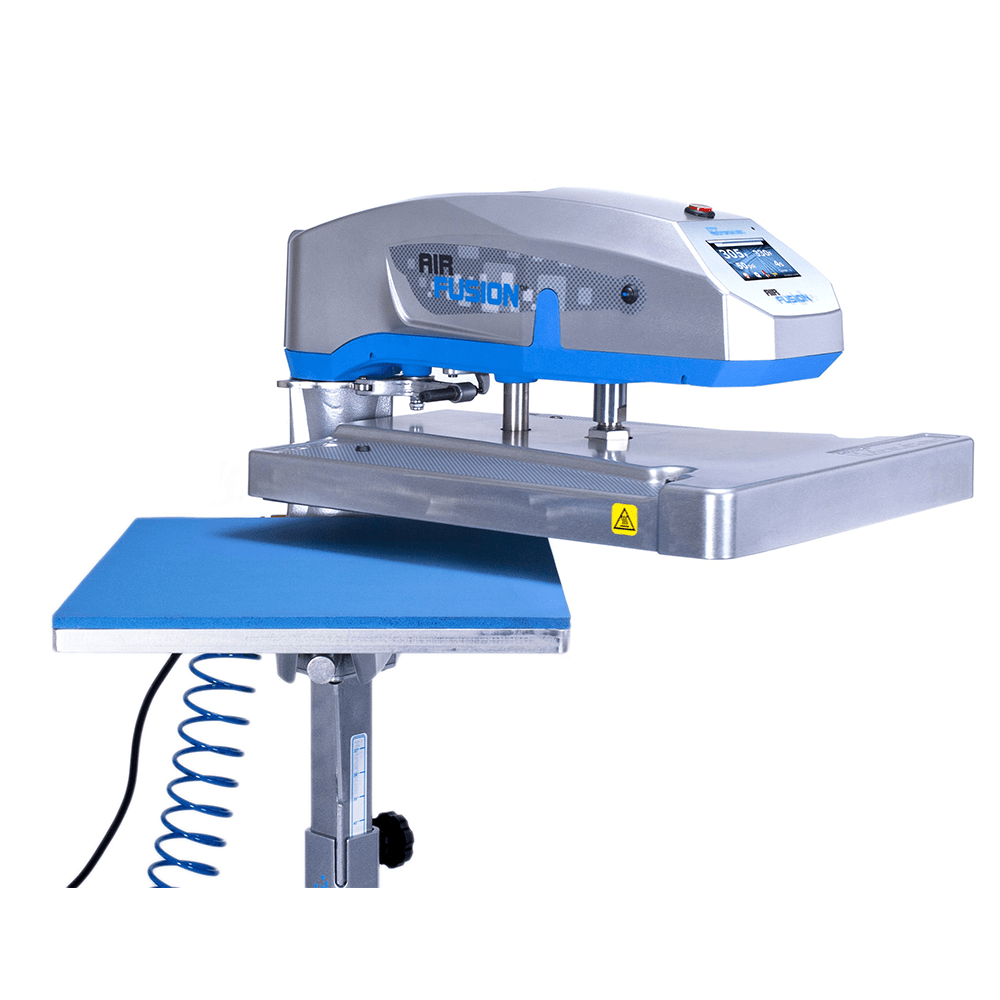

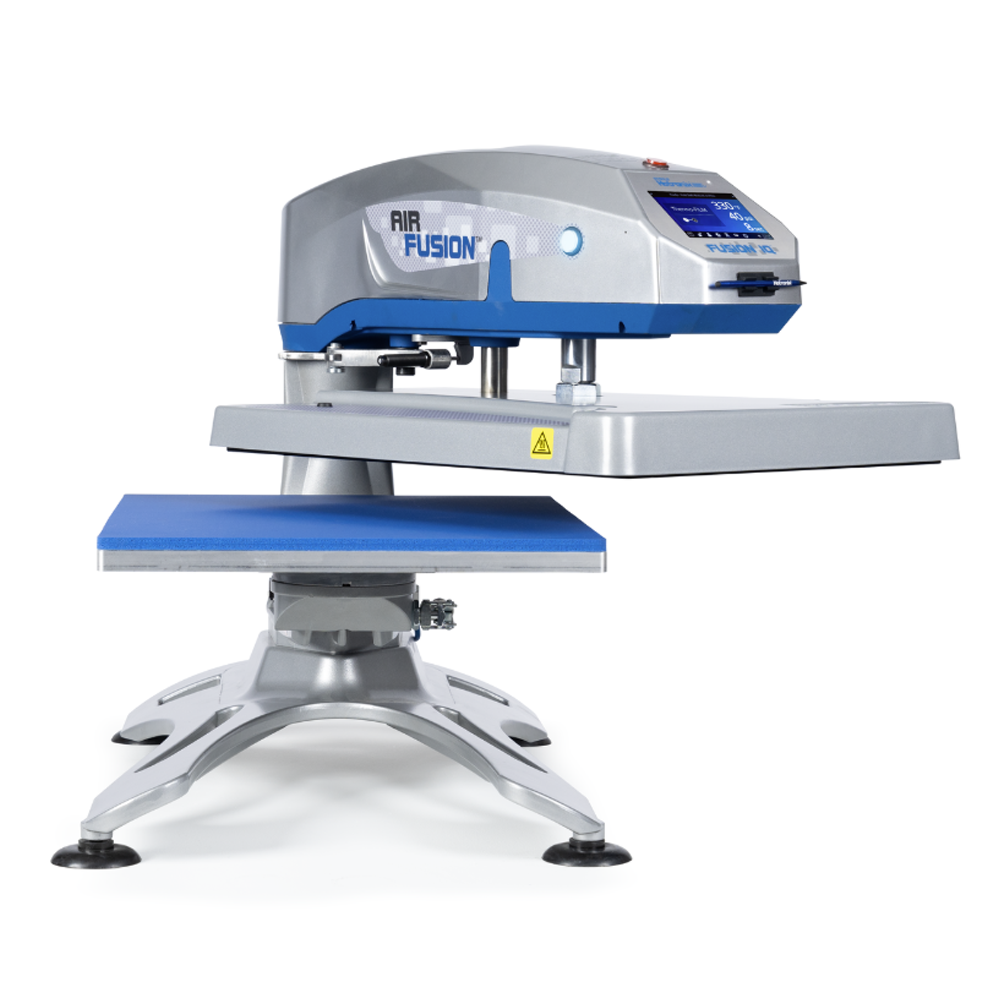

The Fusion IQ® controller displays time, temperature, and pressure in real time, stores application recipes, and connects by Wi-Fi for machine reporting and diagnostics. Choose the Table Top model for a compact production bench or the Pedestal model for a dedicated freestanding workstation. An air compressor is required and is not included.
Why Choose This Press
- Pneumatic operation reduces operator fatigue during repetitive production

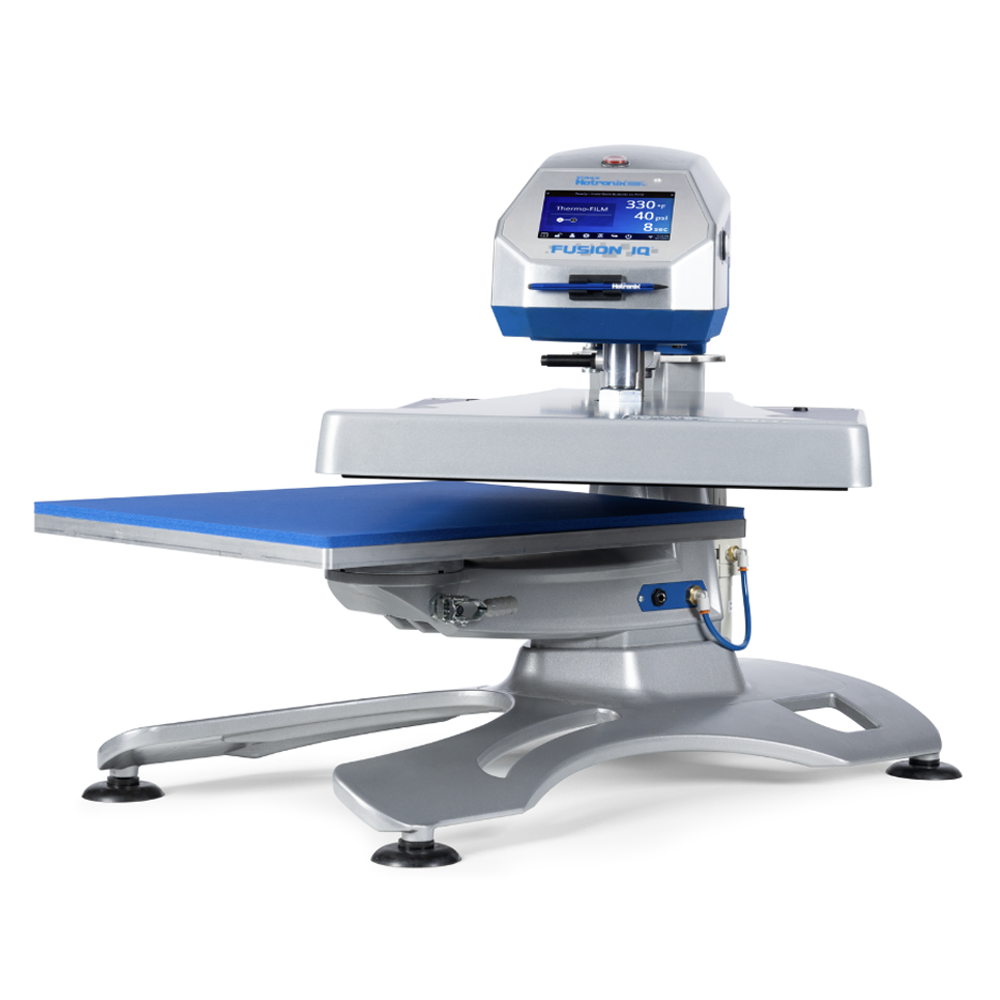

- Auto-open and powered swing-away motion
- Auto-Adjust Pressure™ for controlled, repeatable pressure
- Fusion IQ® touchscreen with Wi-Fi reporting and self-diagnostics
- Threadability™ and Quick-Change lower platen compatibility
Key Features

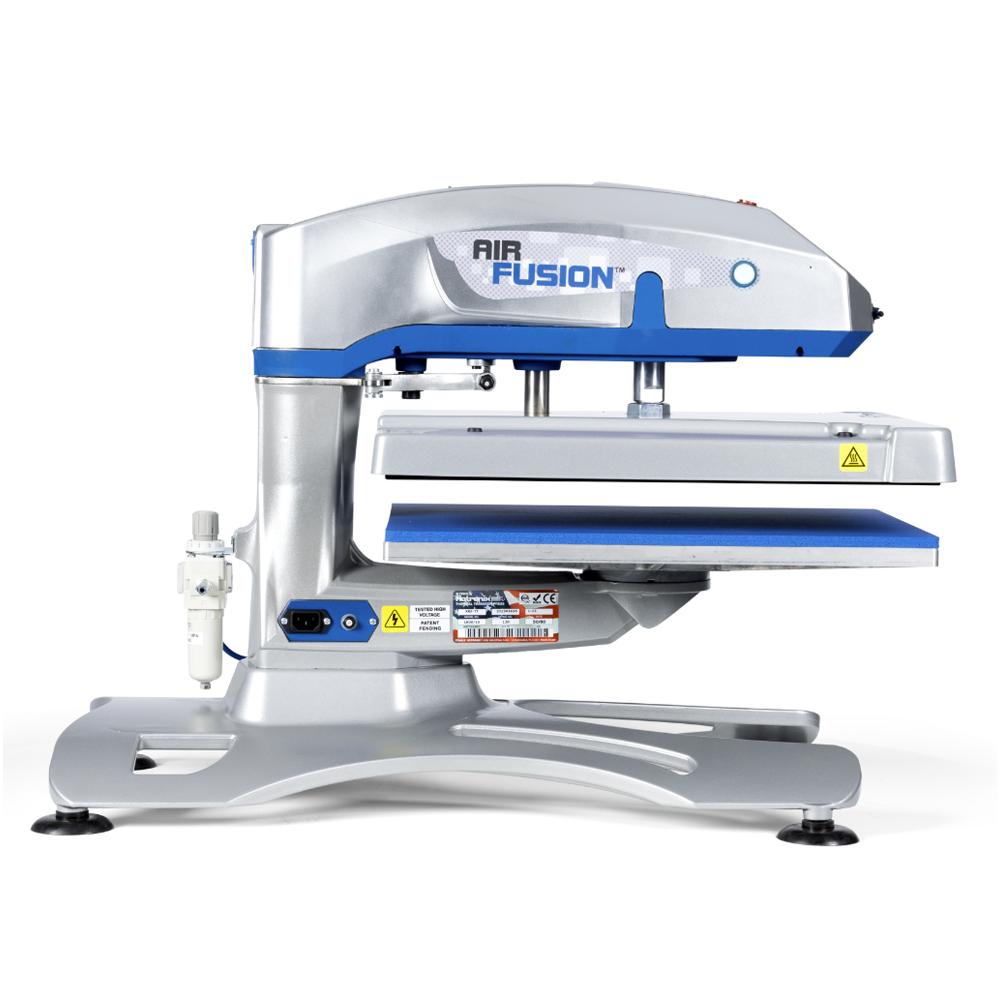

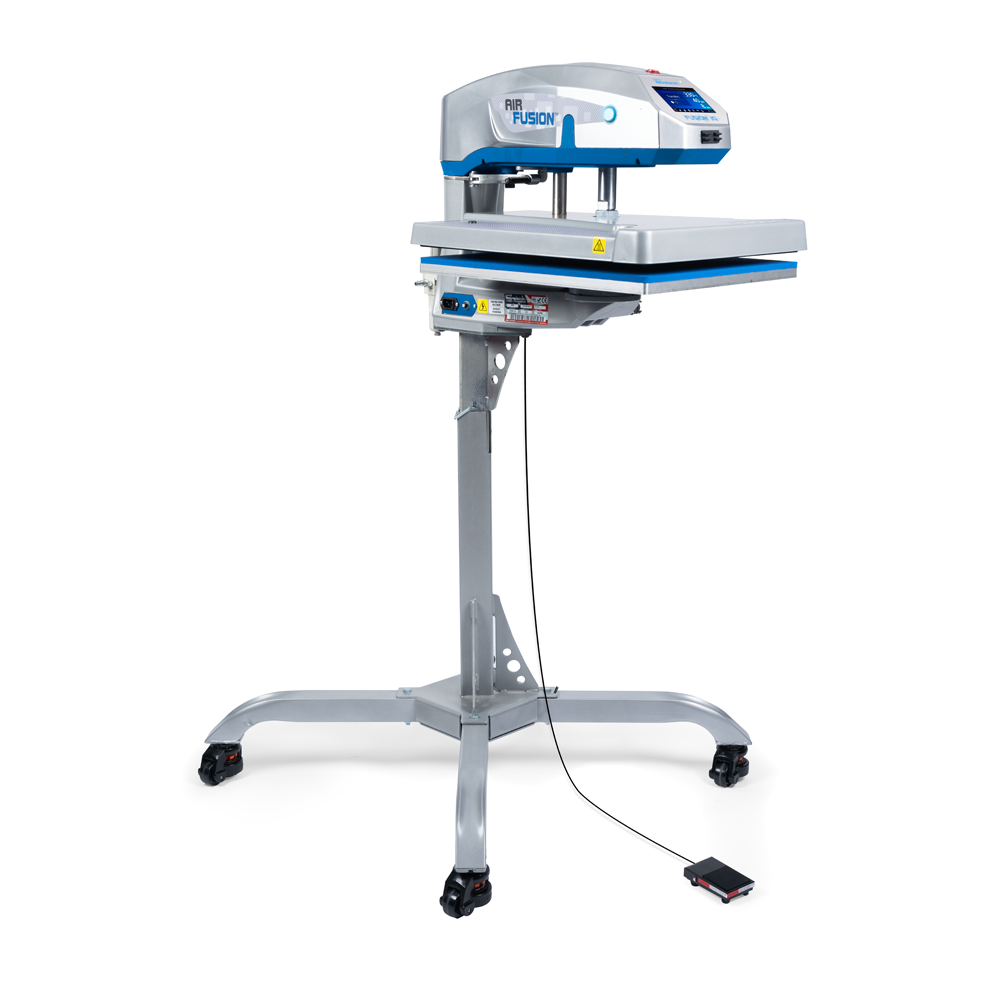

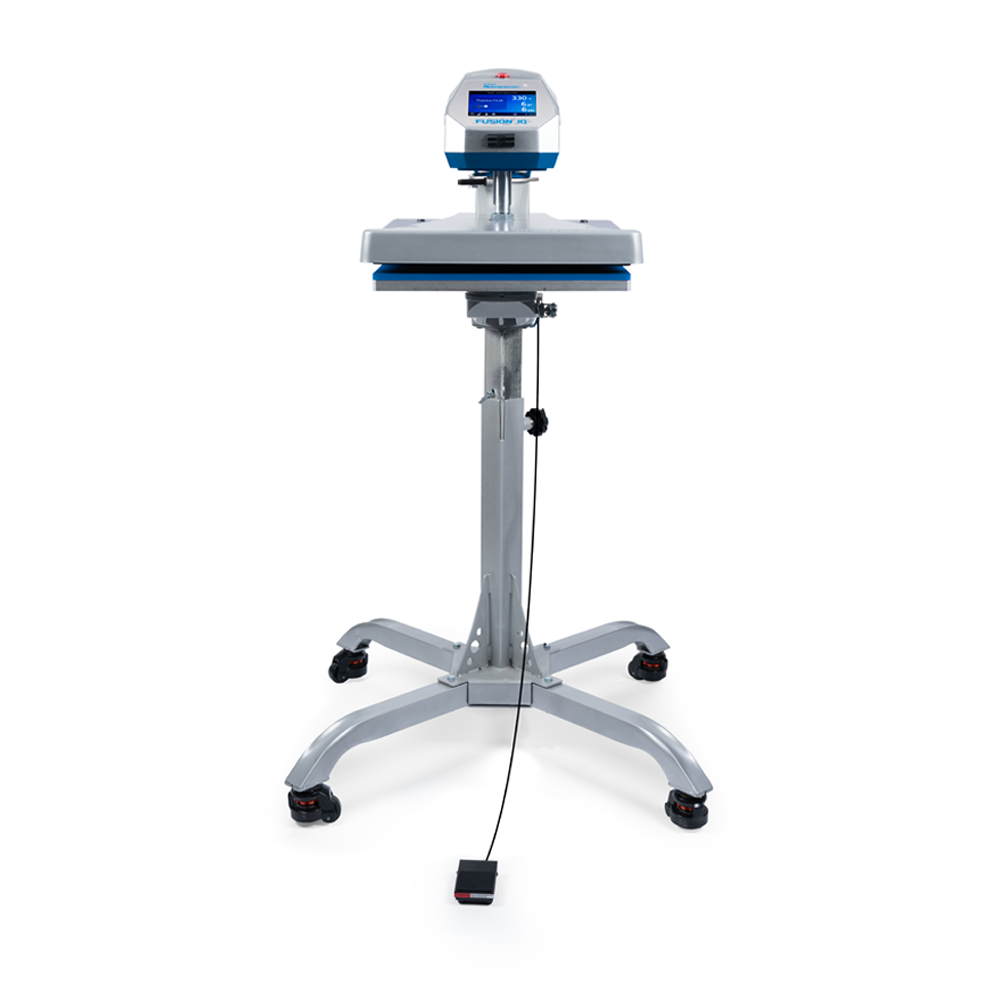

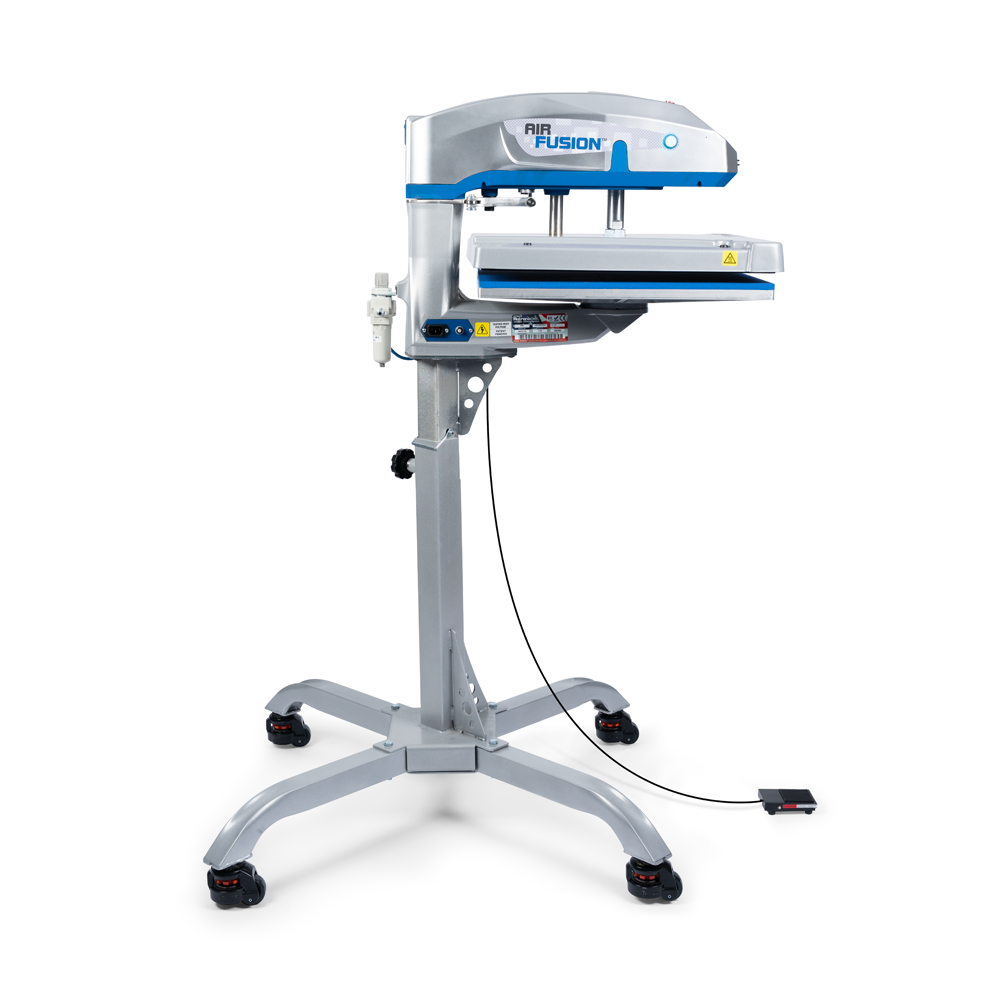

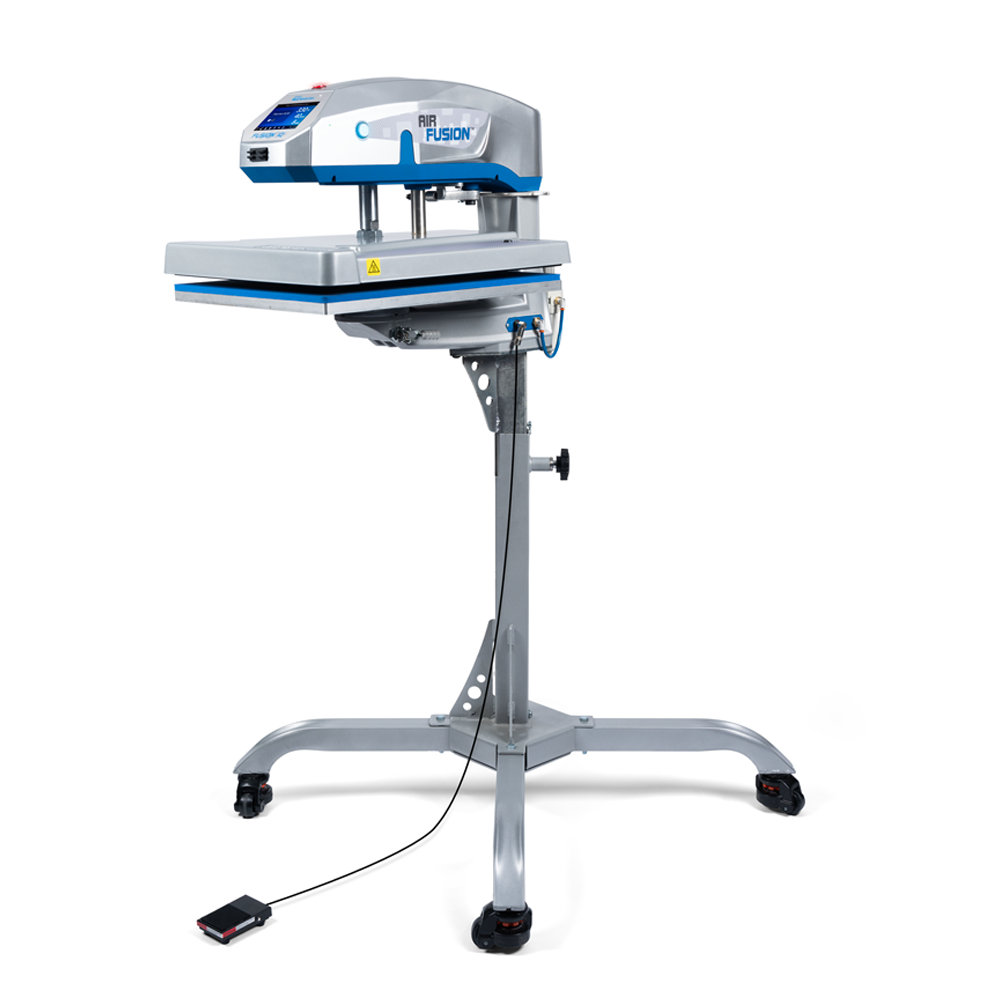

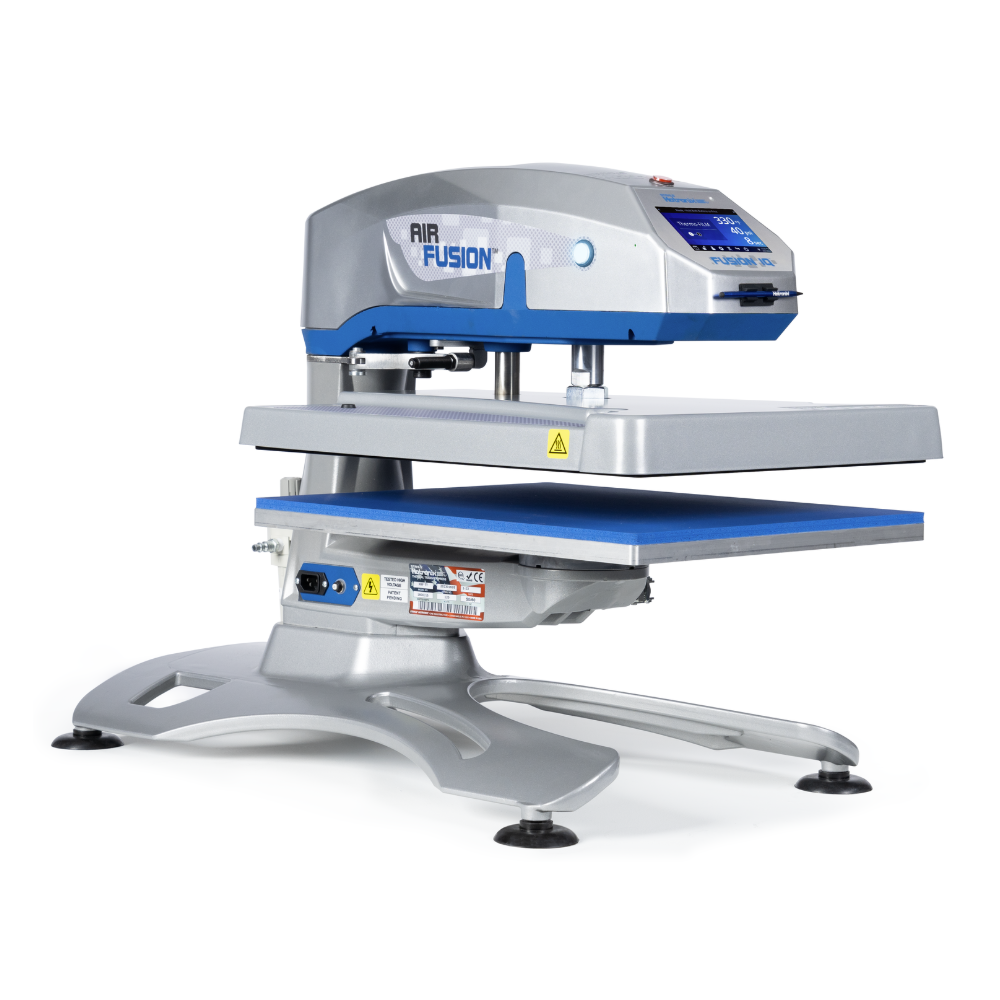

- Available in Table Top and Pedestal configurations
- 40 x 50 cm non-stick coated heating platen
- Digital time, temperature, and pressure readouts
- Temperature adjustable up to 220°C / 430°F
- Platinum RTD heat sensor and embedded heating element
Technical Specifications
| Heat Platen | 40 x 50 cm |
|---|---|
| European Electrical | 240V / 7.5A / 1800W |
| Table Top Shipping | 95 x 63 x 68 cm; 72 kg net / 82 kg gross |
| Pedestal Press Package | 90 x 57 x 60 cm; 56 kg net / 61 kg gross |
| Pedestal Stand Package | 84 x 84 x 28 cm; 22 kg net / 26 kg gross |
| Air Supply | External air compressor required; not included |
Warranty & Build Quality
- 30-year warranty on the heating element
- 5-year warranty on the frame construction
- 2-year warranty on the press excluding wear parts
- Made in the USA with a durable, powder-coated frame
- UL / ULC / CE / RoHS certified
