Lotus LTS 609 / 630 / 640 / 660 / 690 Large Format Pneumatic Heat Press Series

The Lotus LTS 609 / 630 / 640 / 660 / 690 Large Format Pneumatic Heat Press Series is engineered for professional XXL heat transfer and sublimation production where a large working surface, strong pneumatic pressure, and consistent temperature are essential. With five available platen sizes ranging from 100 x 90 cm up to 160 x 100 cm, the LTS 600 Series provides a scalable solution for oversized textiles, rigid sublimation substrates, ChromaLuxe® panels, technical textiles, interior products, and other demanding large-format applications.

Each model uses automatic pneumatic operation to simplify pressing large or heavy substrates. At the push of a button, the heating platen automatically lowers, locks into position, and maintains consistent pressure throughout the programmed transfer cycle. When the timer reaches zero, the heating platen automatically lifts, helping create a repeatable workflow while reducing repetitive operator effort.

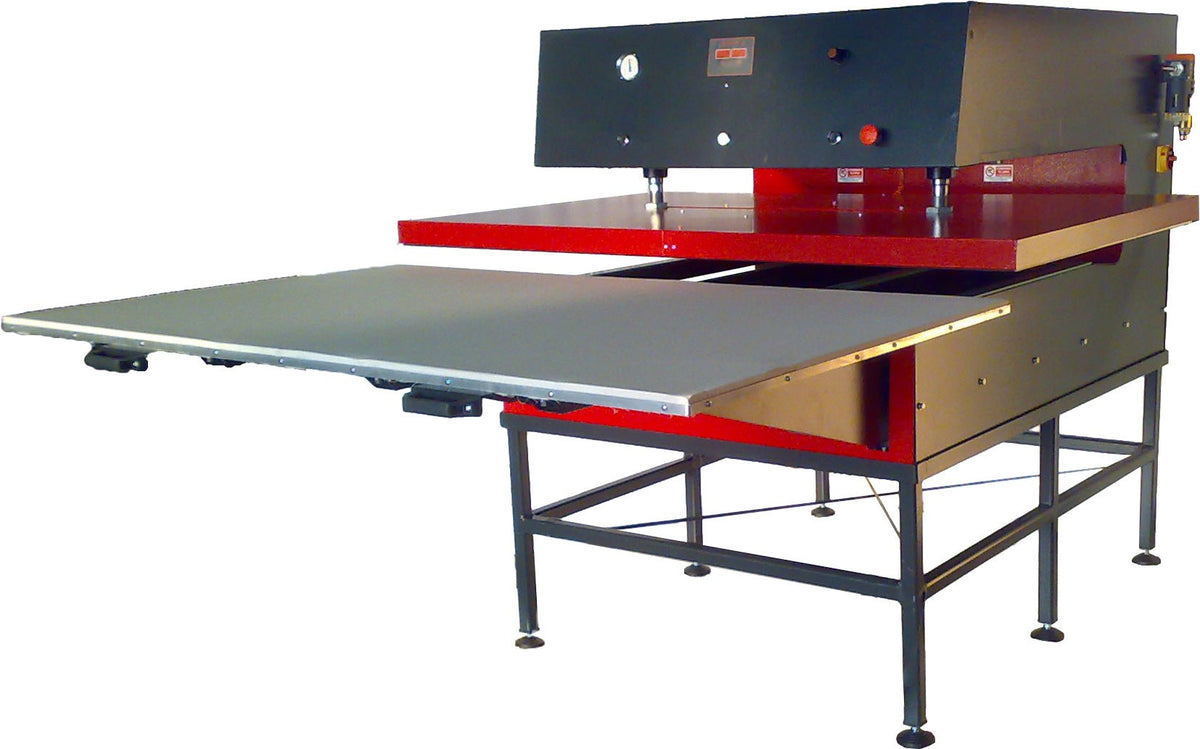

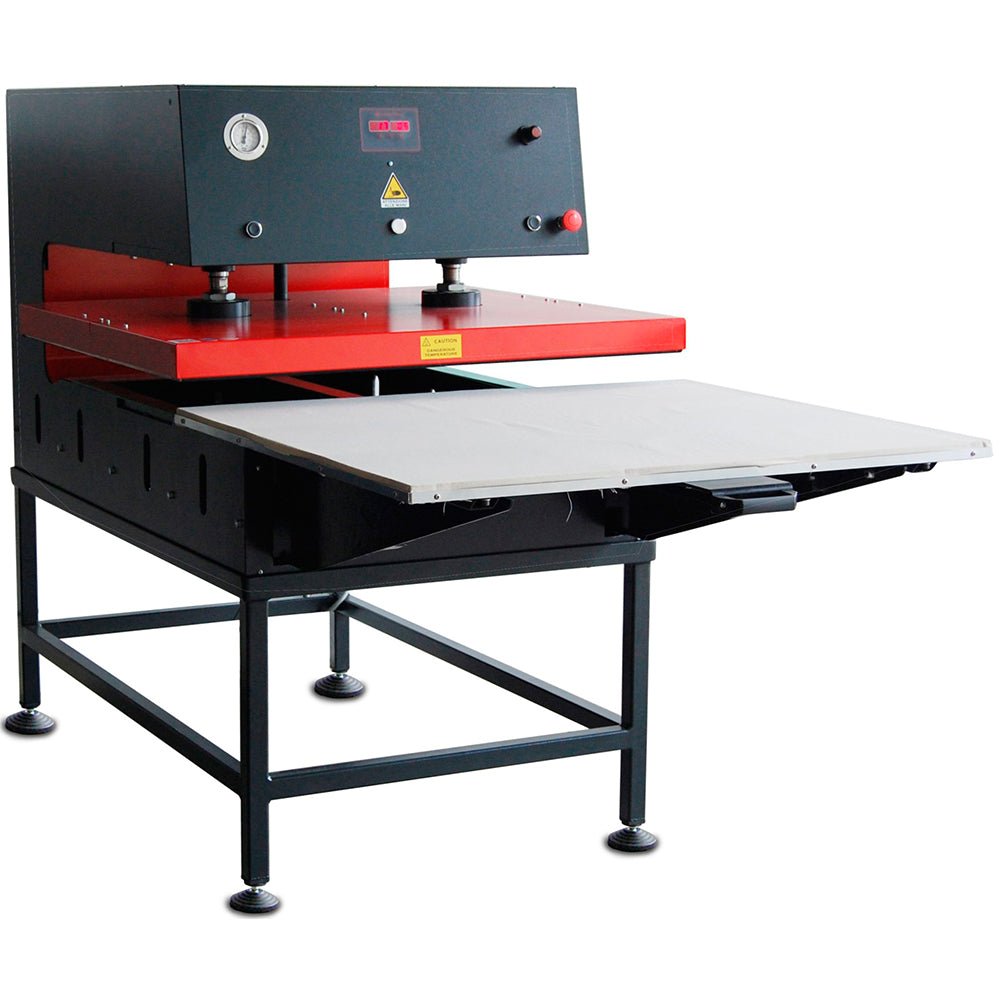

An extractable lower platen provides clear access to the entire transfer area for easier loading, unloading, and accurate positioning of oversized textiles, panels, and transfer graphics. The wide opening also helps keep the operator away from the heated surface while preparing the next job.

Lotus's Mikanit 2.0 heating technology is designed to provide fast warm-up and even, stable temperature distribution across these exceptionally large heating surfaces. Individual heating elements can be serviced separately when required, helping extend the useful life of the heating system while simplifying long-term maintenance.

Digital controls allow operators to precisely set and monitor transfer time and temperature. The press can store up to three frequently used time and temperature programs, while a production counter tracks completed cycles. Pre- and post-press functionality also allows a shortened pressing cycle to be performed without changing the primary saved transfer settings.

For specialized applications, the LTS 600 Series can also be supplied with an optional additional lower heating platen. This allows configurations using upper heat, lower heat, or both heating systems depending on the application.

Choose Your Model

Key Features

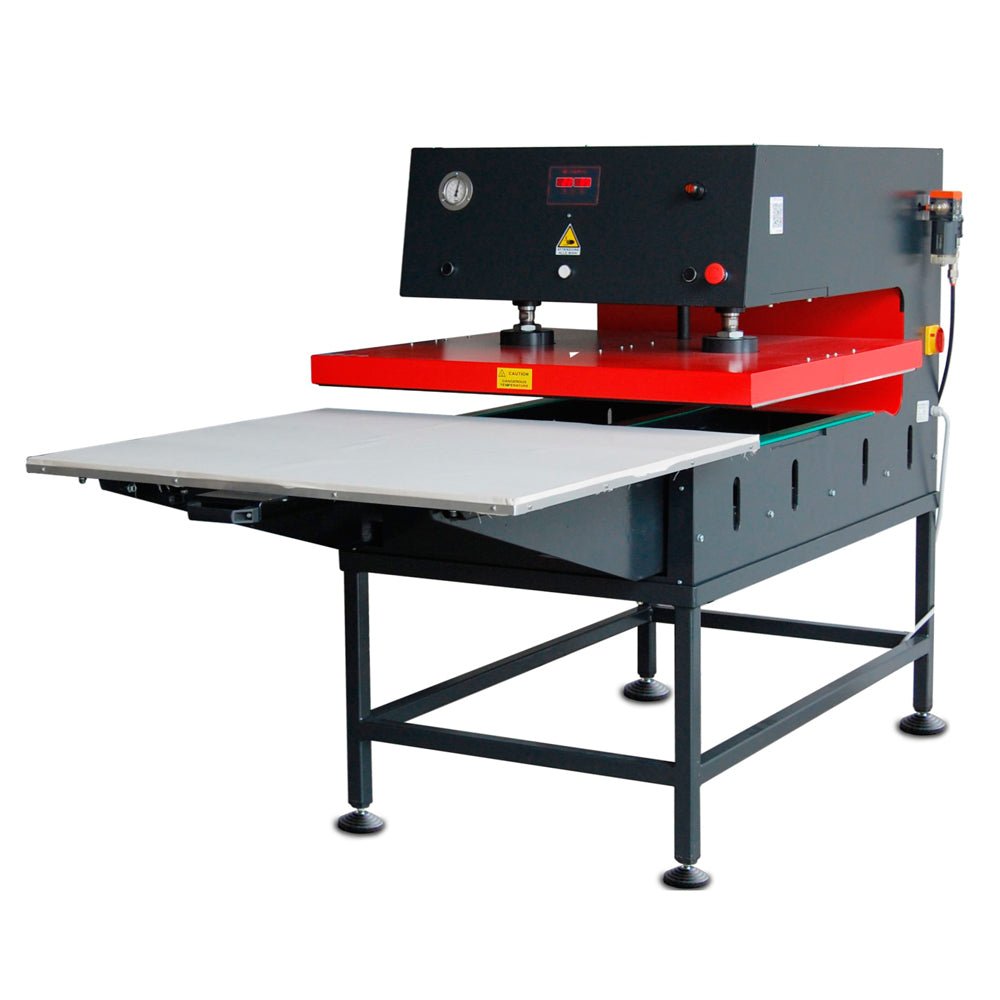

• Five large-format sizes – Choose from transfer areas ranging from 100 x 90 cm up to 160 x 100 cm
• Automatic pneumatic operation – Heating platen lowers, locks, and maintains pressure automatically at the push of a button
• Automatic opening – Heating platen lifts automatically when the programmed transfer cycle is complete
• Extractable lower platen – Provides unobstructed access for positioning oversized textiles, panels, and transfer media
• Up to 8 bar pneumatic pressure – Provides strong, consistent pressure for demanding large-format applications
• Digital time and temperature controls – Provides precise setup and monitoring of transfer parameters
• 3 programmable presets – Store frequently used time and temperature combinations
• Production counter – Tracks completed pressing cycles
• Pre- and post-press functionality – Perform shortened preparation or finishing cycles without changing saved transfer settings
• Optional speed regulator – Allows the platen movement speed to be adjusted when equipped
• Acoustic and visual safety alerts – Provide clear feedback during automatic operation
• Mikanit 2.0 heating technology – Designed for fast heating and even, stable temperature distribution across the entire platen
• Serviceable heating elements – Individual heating rods can be replaced separately when required
• Optional lower heating platen – Available for specialty applications requiring heat from below or from both sides
• 2-year heat press warranty
• 10-year heating system warranty

Applications

• Large-Format Textile Sublimation
• ChromaLuxe® Panels
• Rigid Substrate Sublimation
• Large-Format Heat Transfers
• Technical Textiles
• Lamination
• Thermal Fixation
• Interior Design Products
• Automotive Textiles
• Sportswear
• Workwear and Uniforms
• Fashion and Textile Production
• Product Design and Specialty Substrates

Specifications

An additional lower heating platen is available by special request. Electrical and facility requirements should be confirmed before installation.
