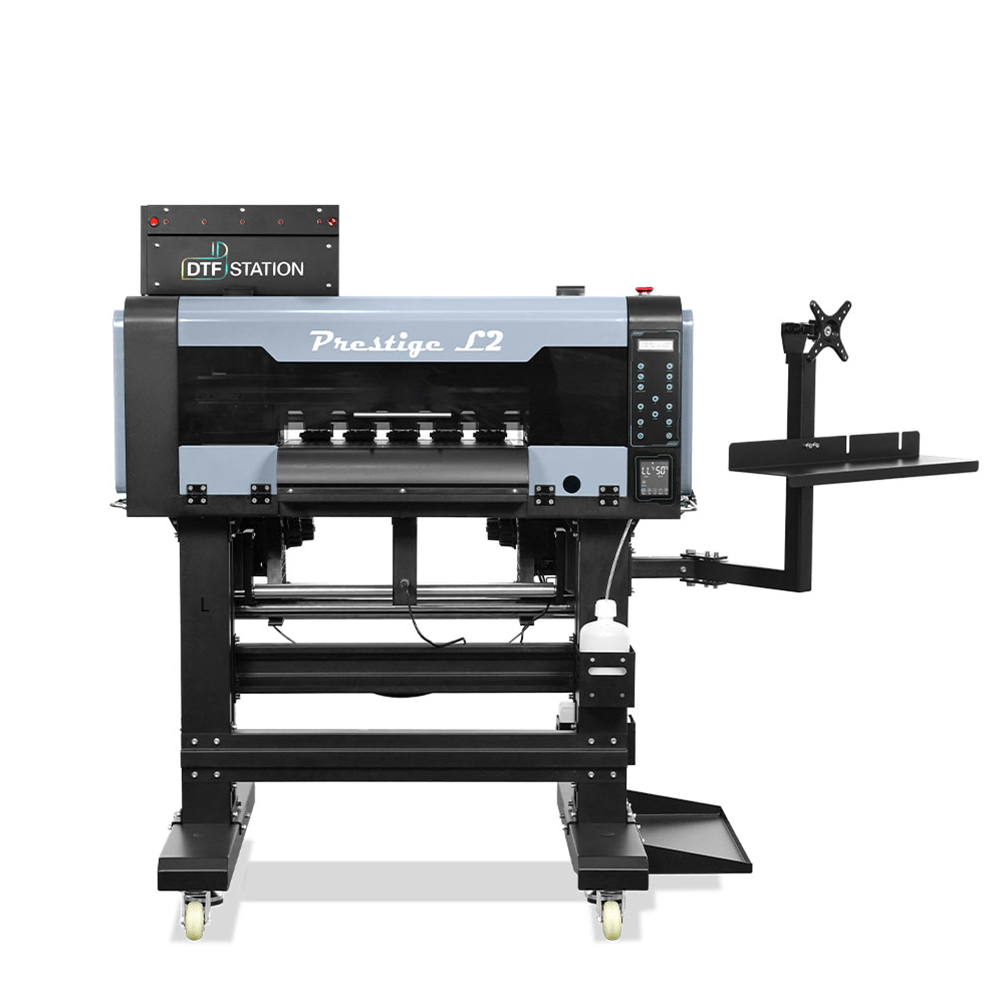

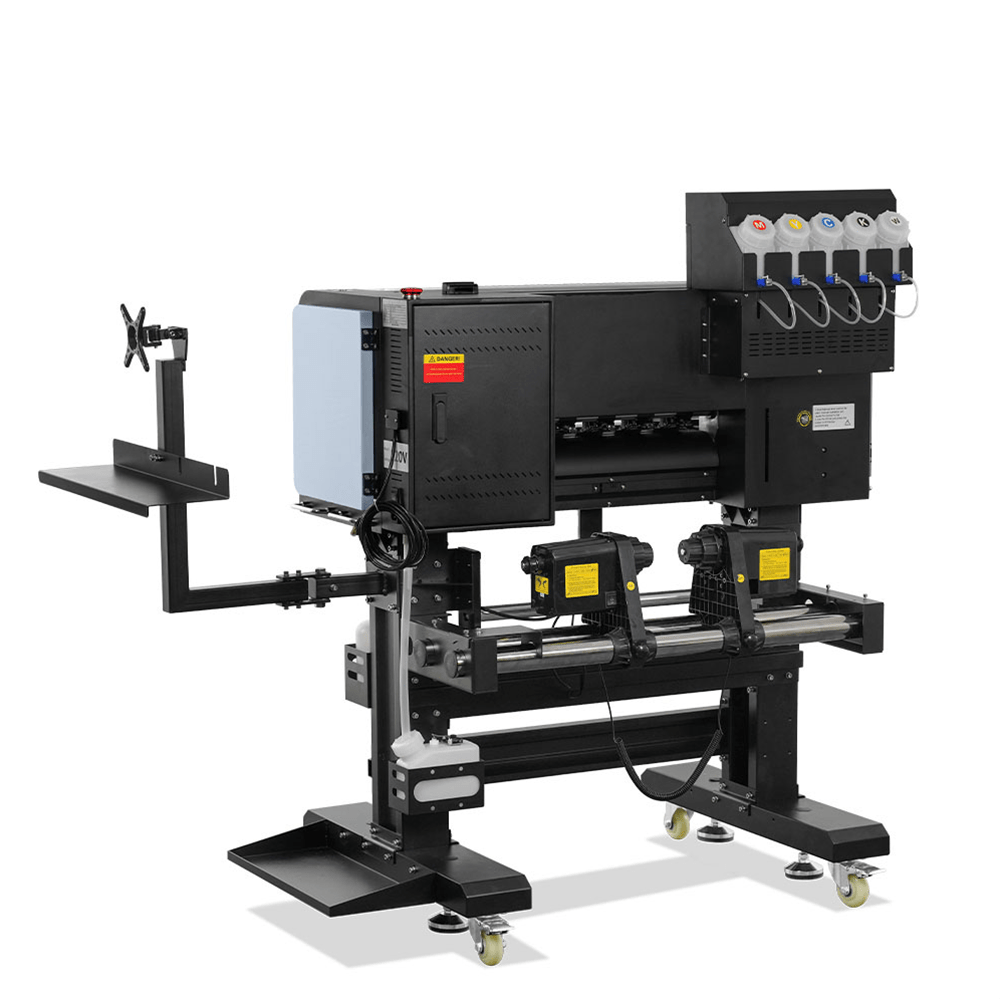

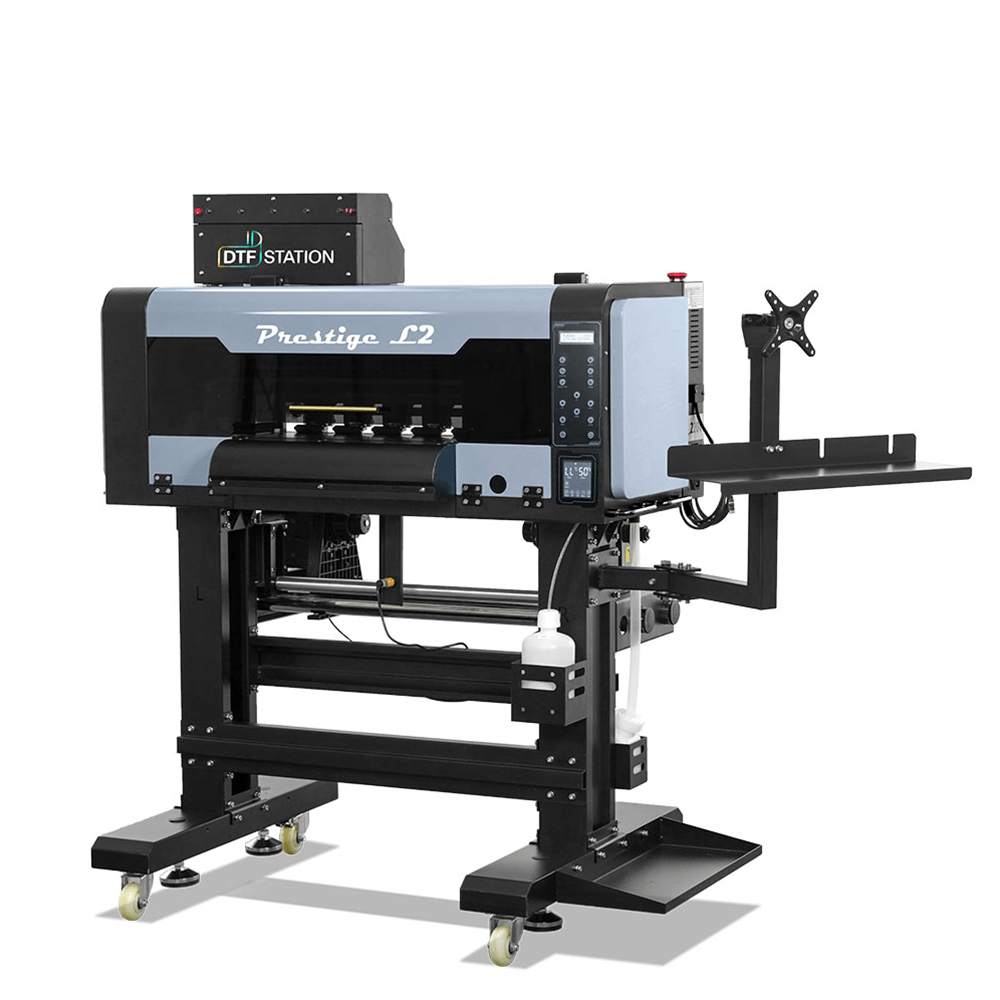

The Prestige L2 is the perfect fit for mid-sized businesses and those looking to upgrade from smaller pipelines. With similar features as the Prestige XL2 in a smaller package, this 16" roll printer will boost your DTF printing speed with ease and efficiency.
Bundled with a Seismo L16R & Purifier L2 to help ease your operation for powdering and curing which has a larger footprint and automatic powder recycling.
Requires On-Site Training:
- On-Site Setup/Training + Driving Distance includes:
- One Time Driving Distance within 2 hours (of Buena Park, CA, 90621)
- 4~6 Training Hours Onsite
- Lifetime Virtual Training
- On-Site Setup/Training + Air Travel Domestic includes:
- One Time Accommodations such as hotel, rental car, flight ticket
- 4~8 Training Hours Onsite
Features and Benefits:
- Two i3200 print heads
- Speed & Efficiency: 40-60 sq. ft/hour (720x1800 Production Resolution)
- Compact Size/Small Footprint: perfect for mid-sized businesses or businesses looking to upgrade from smaller pipelines

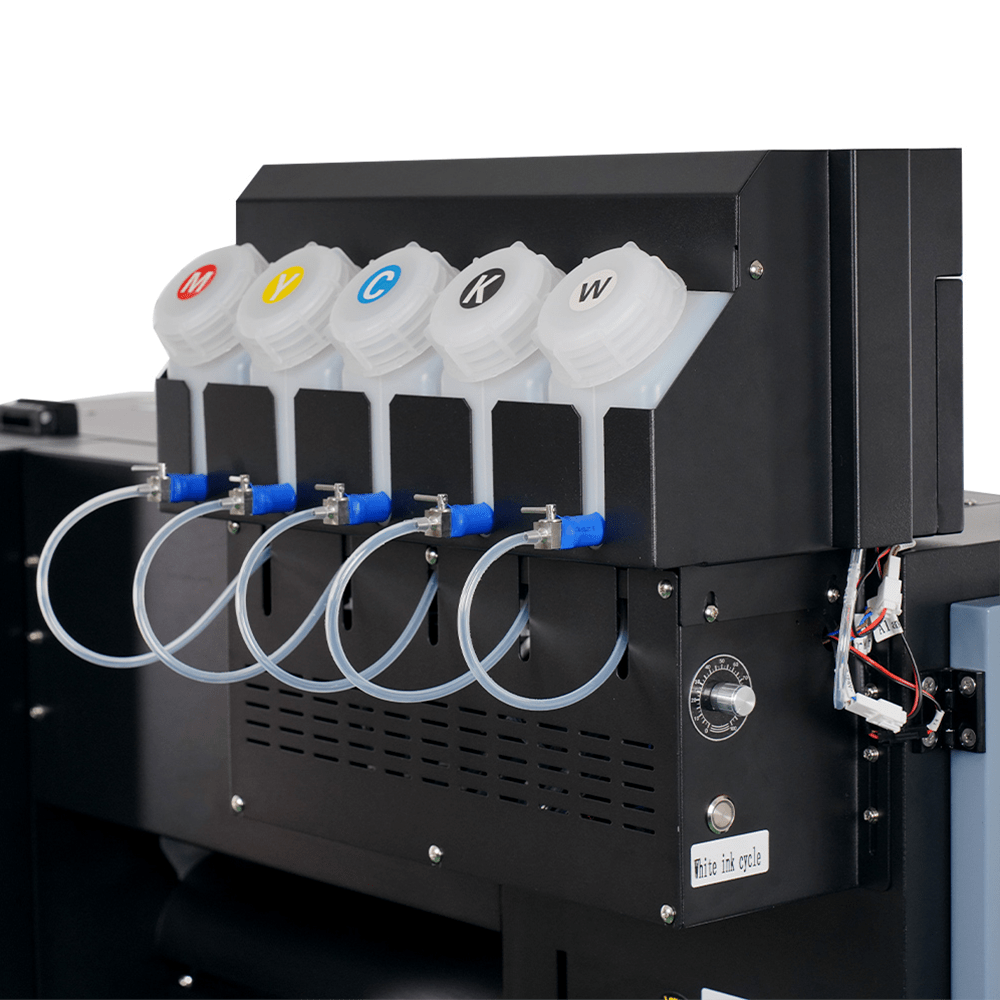

- White Ink Management System (WIMS): timed white ink stirring system to circulate and maintain white ink inside printer
- Head Strike Sensor: helps prevent damage to printhead
- Passive Auto-Cleaning: when printer is left on, it will automatically maintain and clean printhead every 4 hours
- Active Auto-Cleaning: during set intervals (even during printing), printer can stop to clean printhead
- Auto-Wet Capping: printhead sits inside cleaning solution while idle, helping to prevent clogging
-
Auto Ink Alert System: informs user when ink is running low

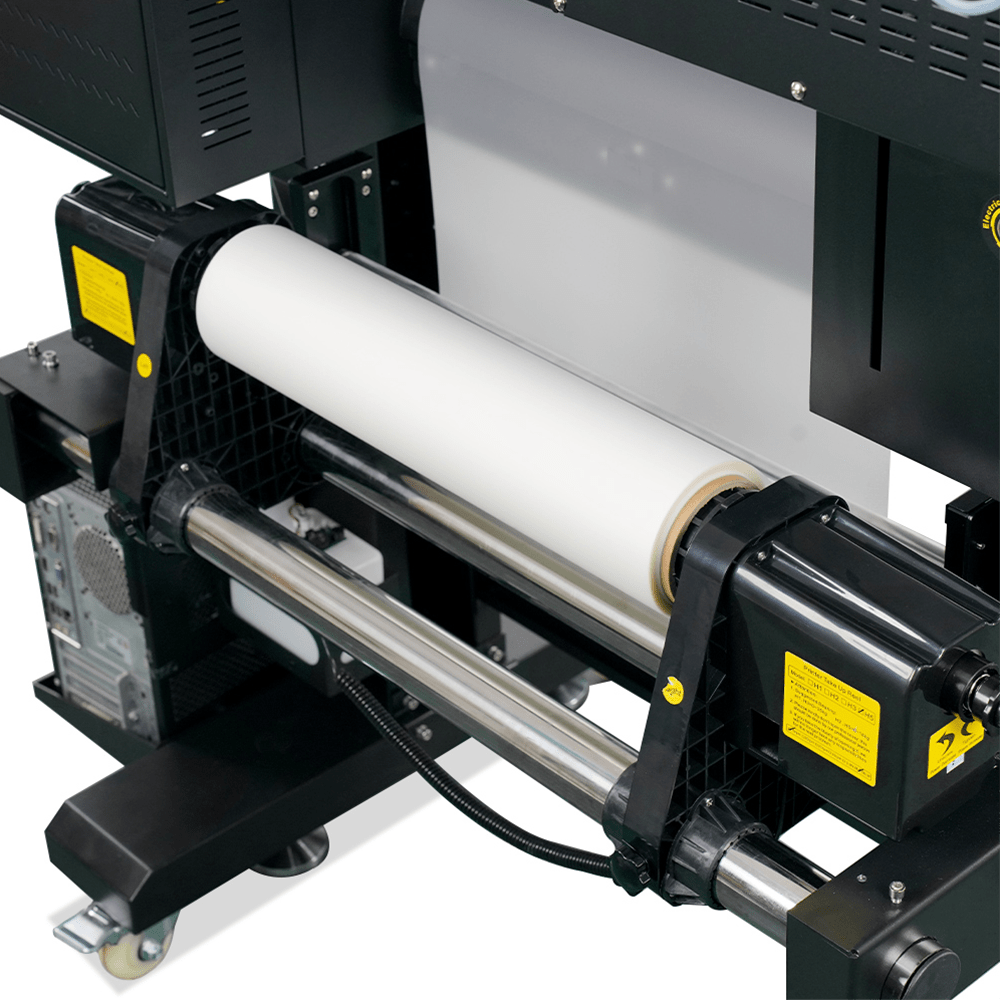

- Automatic Film Sensor: if film runs out/is not detected, stops printing
- Attachment Station: Perfect for add-ons, such as the Printflo Barcode Automation System
- Variety of adjustable settings including:

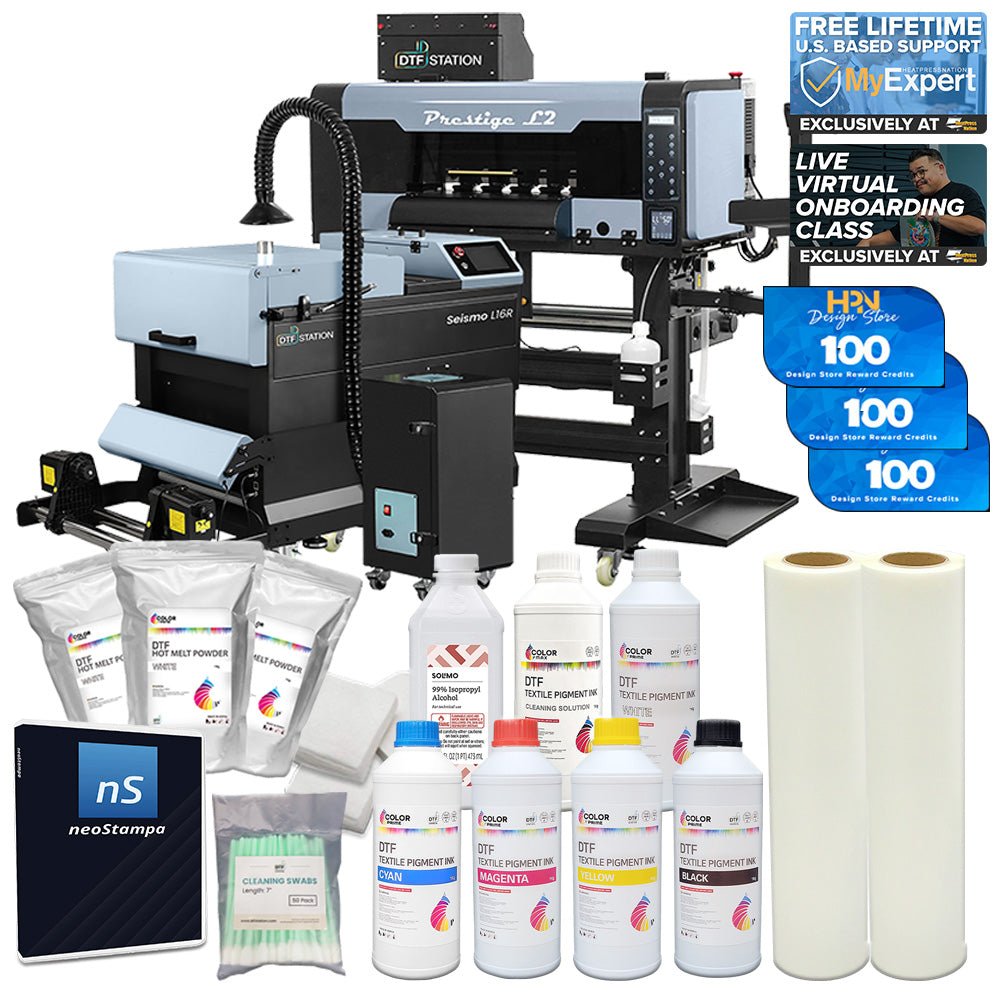

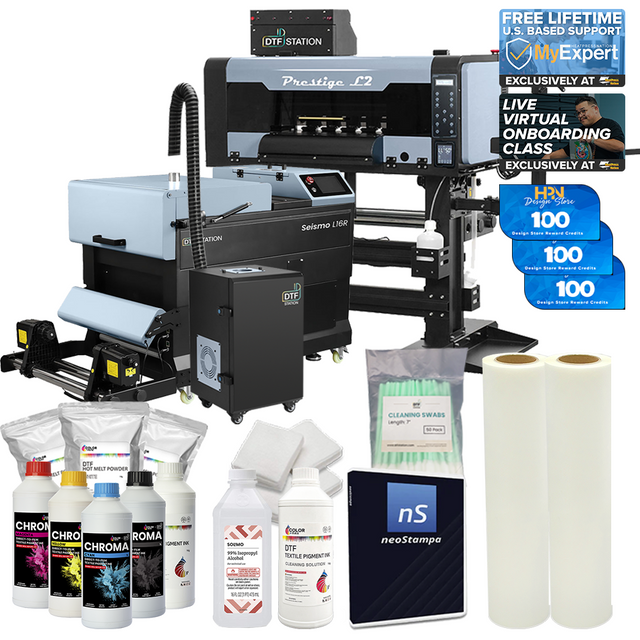

What's Included:
- DTF Station Prestige L2 DTF Printer
- DTF Station L16R Oven & Shaker
- DTF Station Purifier L2 Portable Air Filter
- 300 Credits to the HPN Design Store
- DigiRIP RIP Software - including fully functional Software Trial Version (15 Day)
- 2 - 17.7" x 109 yd Color Prime Quick Glide DTF Film
- 1 set of Color Max DTF Pigment Ink (CMYKW) - 1kg each
- 1kg Color Prime Hot Melt Powder
- 1kg Color Prime Cleaning Solution
- 16oz Isopropyl Alcohol
- 30 - 4" x 4" Lintless Wipes
- 50 - DTF Station 7" Cleaning Swabs
- Power Cord
- Tools
- Ink Dampers
- Ink Filters
- Ink Tube
- Ink Diverter
- USB Dongle
- Ribbon Cables
- Screws
- Feed roller components
Not Included, but Also Needed:
-
Heat Press (used to press final print to garment - 16" x 20" recommended)
- Humidifier (to keep the humidity above 50% in the print room)
- Computer with Windows 10 or higher
Upgrading from the A4 model? See the DTF Station Trade-In Program for getting a credit.
Benefits of Direct to Film Transfers:
 |
Any Color, Any Material: DTF transfers seamlessly adhere to multiple fabric types, regardless of color. Decorate cotton, nylon, polyester, leather, denim, and more. Unlock a world of vibrant possibilities for your designs! |
 |
Easy to Use: Heat and pressure are all you need to transfer your designs. No need for pretreatment spray or tricky adhesive sheets. The transfer process is so simple that you can even sell your transfers for customers to apply themselves. |
 |
Durable: Engineered to withstand the test of time, DTF transfers boast unparalleled durability, ensuring that your designs remain vibrant and intact through countless washes and wears. |
 |
Soft and Stretchable: DTF transfers offer a silky-smooth touch and unparalleled stretchability, ensuring maximum comfort and freedom of movement with every wear. |
 |
Long Shelf Life: With proper storage, DTF transfers can last for 1 year or longer. Print your more popular designs ahead of time, and press them on your schedule. |
Printer Specifications:
- Printer head: Dual Epson I3200 Printheads (CMYK - WWW)
- Printing Accuracy: 1440/2160/2880dpi
- Maximum Print Width: 18.9"
- Print Speed: 50 - 60 sq. ft. / hour (Production Resolution)
- Daily Output: 300 - 400 pcs (Based on design size as 12" x 14", 8 hrs per day)
- Printing Media: PET Film
- Printing Interface: Gigabit network port
- Operating System: Windows 7, Windows 10
- Printing Software: DigiRIP RIP Software
-
Operation Environment:
- Temperature:15℃-30℃ (60 °F-86°F)
- Humidity:35%RH-65%RH
- Rated Voltage: 110volts
- Rated Current: 14amps
- Rated Power: 1500watts
- Product Dimensions: 30.75" x 58" x 56.25" (LxWxH)
- Packaging Dimensions: 40.4" x 70" x 58.25" (LxWxH)
- Machine Weight: 306 lbs
- Packaging Weight: 350 lbs
System Requirements
- Operating System: Windows
- Minimum RAM: 8GB
- Minimum CPU: Intel i5 2.6GHz
- Minimum Free Storage: 5GB
WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a Fume Extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.
DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.
The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product's life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, DTF Station, the manufacturer, offers a conditional 1-Year warranty on up to 2 printheads. Full printhead warranty policy. For warranty claims, we may need to involve the official DTF Station team depending on the reported issue. Be aware that the use of non-DTF Station ink, film, or other supplies will void the warranty. Details depend on training option selected. Terms & Conditions apply. Visit link for full details.
