This is the first Heatpress I have ever owned. I did my first event on 8/24/2024. This unit performed superb. We did customs printing as they ordered. I am So pleased with this investment. Amazing quality and craftsmanship!
Requires manufacturing lead time of 2 weeks and must ship freight. Stands are on backorder until late September.
Get fast, high-performance dye-sub printing right out of the box with the 24" SureColor F570 Pro. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore® technology. A truly turnkey solution, the SureColor F570 Pro arrives with a host of convenient features to streamline workflow, including Epson Edge® Print Pro software with Adobe® PS3 and PDF Print Engines, specialized transfer paper for both rigid and soft media, and a 50-sheet auto-feed tray and built-in cutter. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.

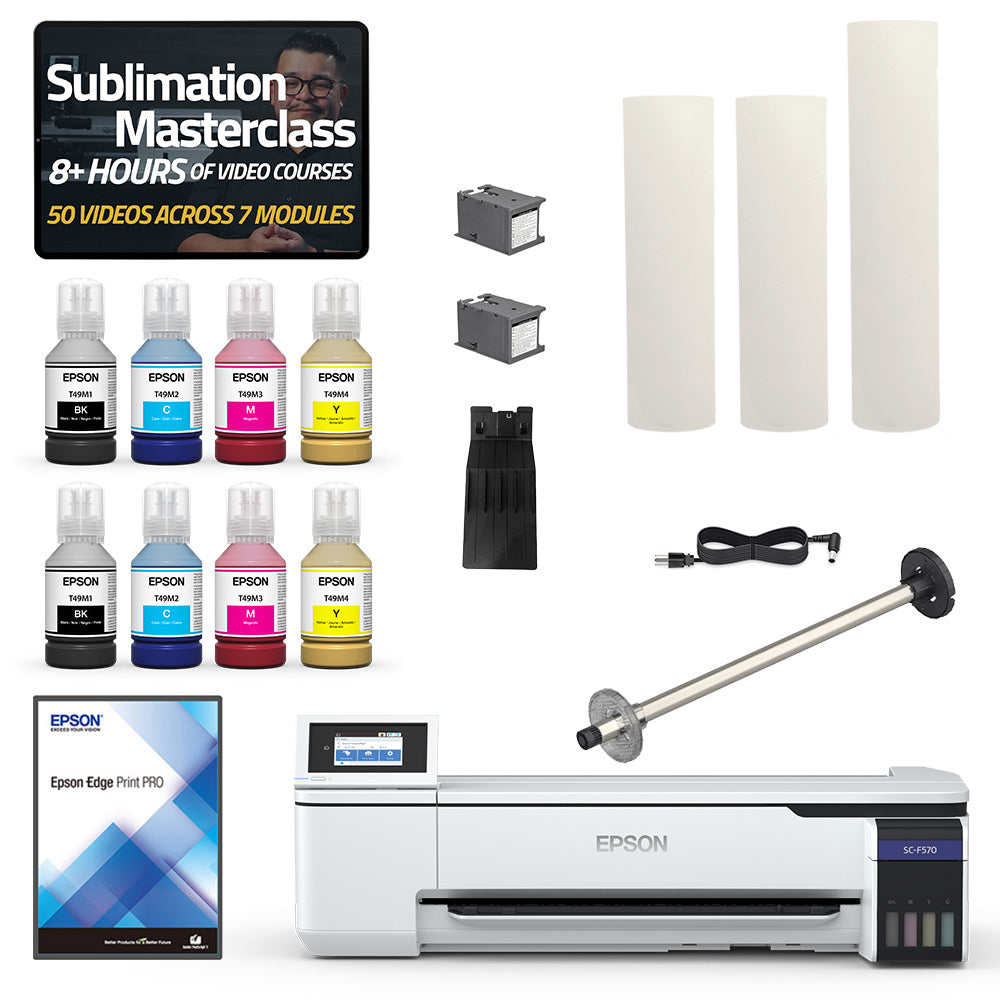

What's Included:
- Epson SureColor F570 Printer
- Epson Edge Print Pro Software
- Two Full Sets of Ink (CMYK - 140 ml each bottle)
- Epson DS Transfer Multi Use Paper - 1, 24" x 100' Roll and 2, 17" x 100' Rolls
- Two Ink Waste Tanks (1 preinstalled)
- 500 HPN Design Store Credits
- Free Access to HPN Sublimation Masterclass
- Unlimited access to 8+ hours of jam packed premium content
- Featuring over 50 videos across 7 modules in an easy to view layout
- Covers everything from equipment selection, product instruction, processes, marketing & business insights!
- 500 HPN Design Store Reward Credits
- Access to download up to 200+ Digital Designs for commercial use!
- Output Tray
- Transfer Roll Spindle
- Built-in Rotary Cutter
- Start Here Poster
- User Guide
- AC Power Cable
Features:
- Astounding print quality: PrecisionCore MicroTFP printhead offers Precision Droplet Control for outstanding clarity, plus commercial-grade reliability with Nozzle Verification Technology.
- Bright, brilliant images: Vibrant ink delivers extraordinary color saturation and high contrast.
- Professional software: Epson Edge Print Pro with an Adobe PostScript® 3 and Adobe PDF Print Engine features job layout and nesting, pattern repeats, and advanced color controls for professional results
- Versatile media support: Accommodates rolls and sheets up to 24" wide; includes a 50-sheet auto-feed tray and built-in cutter for added efficiency.
- Replace ink less often: High-capacity ink bottles with auto-stop for easy, mess-free filling.
- Tackle a variety of print jobs: General-purpose transfer paper produces amazing images on both soft and rigid materials.
- Reliable performance — backed by Epson® world-class service and support
- Compact, clean design — ultra small, sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)
- Intuitive operation — large 4.3" LCD color touchscreen simplifies print tasks
- Flexible connectivity — easily connect to the printer via USB, Ethernet or integrated wireless
Specifications:
- Printing Technology: PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
- Ink Type: Epson T49M Ink Bottles; 4-color (C, M, Y, K)
- Nozzle Configuration: Color and monochrome heads; 800 nozzles x 4 channels
- Droplet Technology: Variable Droplet Technology
- Maximum Resolution: 2400 x 1200 dpi
- In-box Bottle Fill Volume: C, M, Y, K: 140 mL x 2 bottles each
- Retail Bottle Fill Volume: C, M, Y, K: 140 mL Ink Bottle
- Shelf Life: 2 years from printed production date or 6 months after opened
- Ink Note: Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.
- Single Top-loading Roll: 24" wide
- 2" Core Diameter: User-adjustable roll media adapters
- Roll Cutting: High-speed internal rotary cutter; auto or manual
- Maximum Roll Diameter: Up to 4.3"
- Media Thickness: Up to 8.6 mil
- Roll Paper Remaining: The amount of remaining paper can be controlled from the control panel
- Single Sheet, Top Loading: Up to 24" wide
- Auto Sheet Feeder: 11" x 17" Tabloid/A3
- Auto Sheet Feeder Capacity: 50 Sheets
- Minimum Sheet Size (1 sheet and ASF): Letter/A4
- Max. Paper Width: 24.4"
- Left and Right Margins: 0 mm to 3 mm each (0.24" total)
- Maximum Printable Length: Limited by application, OS and driver/RIP used
- Minimum Paper Width: Roll: 8.27"/Sheet: 8.27"
- User Interface Display: 4.3" touchscreen
- Printer Interfaces: SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n)6, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct®
-
Operating Systems Supported:
- Epson Edge Print PRO Software: Windows 10, Windows 8.1 (64-bit)
- System Print Drivers: macOS 10.7 – macOS 14, Windows 10, Windows 8.1
-
Weight and Dimensions (W x D x H):
- Without Optional Stand: 38" x 32" x 10" (970 mm x 811 mm x 245 mm) 64 lb (29 kg)
- With Optional Stand: 38" x 32" x 10" (970 mm x 811 mm x 928 mm) 84 lb (38 kg)
-
Acoustic Noise Level:
- Operating: Approx. 50 dB(A)
- Sleep: Approx. 32 dB(A)
-
Temperature:
- Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
- Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
- Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
-
Relative Humidity:
- Operating: 20–80% (no condensation)
- Operating (Recommended): 45–60% (no condensation)
- Storage: 5–85% (no condensation)
- Safety Standards: UL (MET), FCC (Class A), CSA, CE, EMC
-
Electrical Requirements:
- Voltage: AC 110–240 V
- Frequency: 50–60 Hz
- Current: 1.4 A
-
Power Consumption:
- Printing: Approx. 22 W
- Ready: Approx. 8 W
- Sleep: Approx. 1.6 W
- Power Off (Stand By): 0.2 W
- Limited Warranty and Service: Standard 1-year unit exchange with toll-free phone support Monday through Friday
- Country of Origin: Indonesia
*This product is final sale.*
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, the Epson F570 comes with a 1 Year Manufacturer Warranty from the original date of purchase. Warranty service does not include the cost of freight of the item to or from repair facilities.
