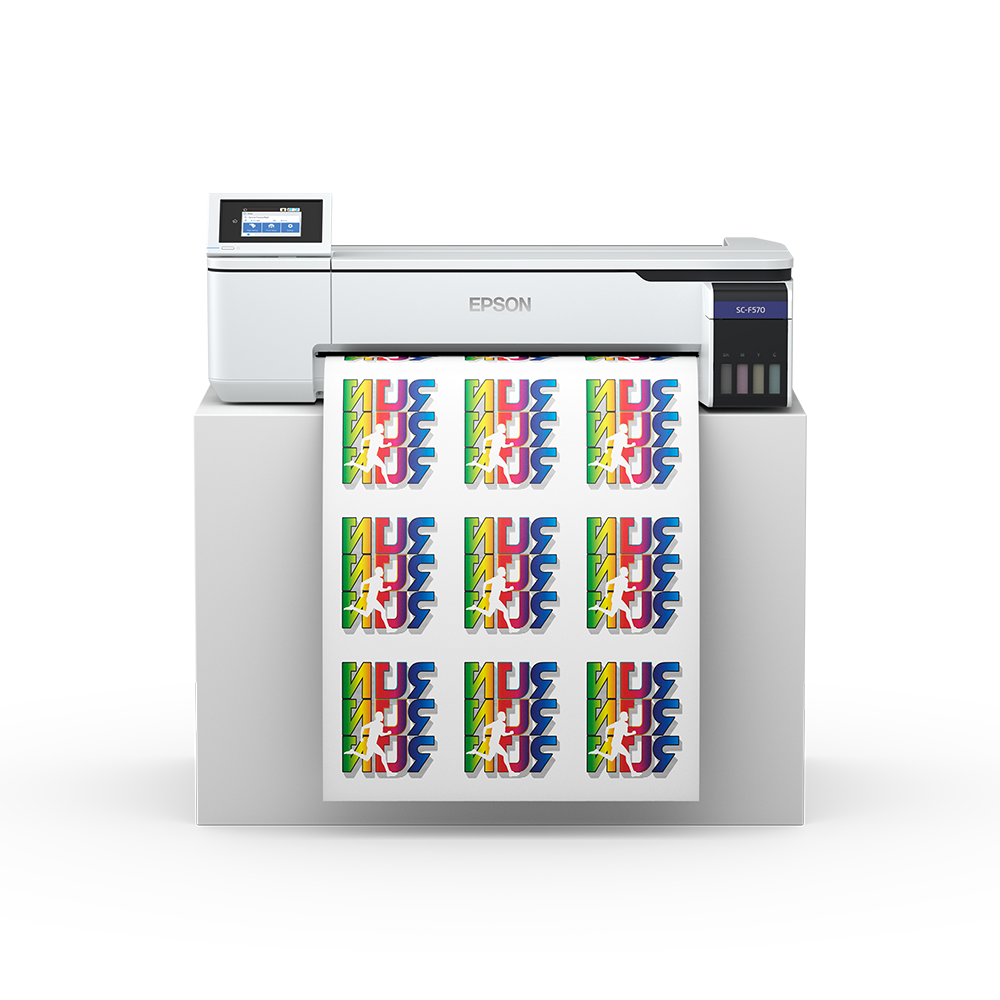

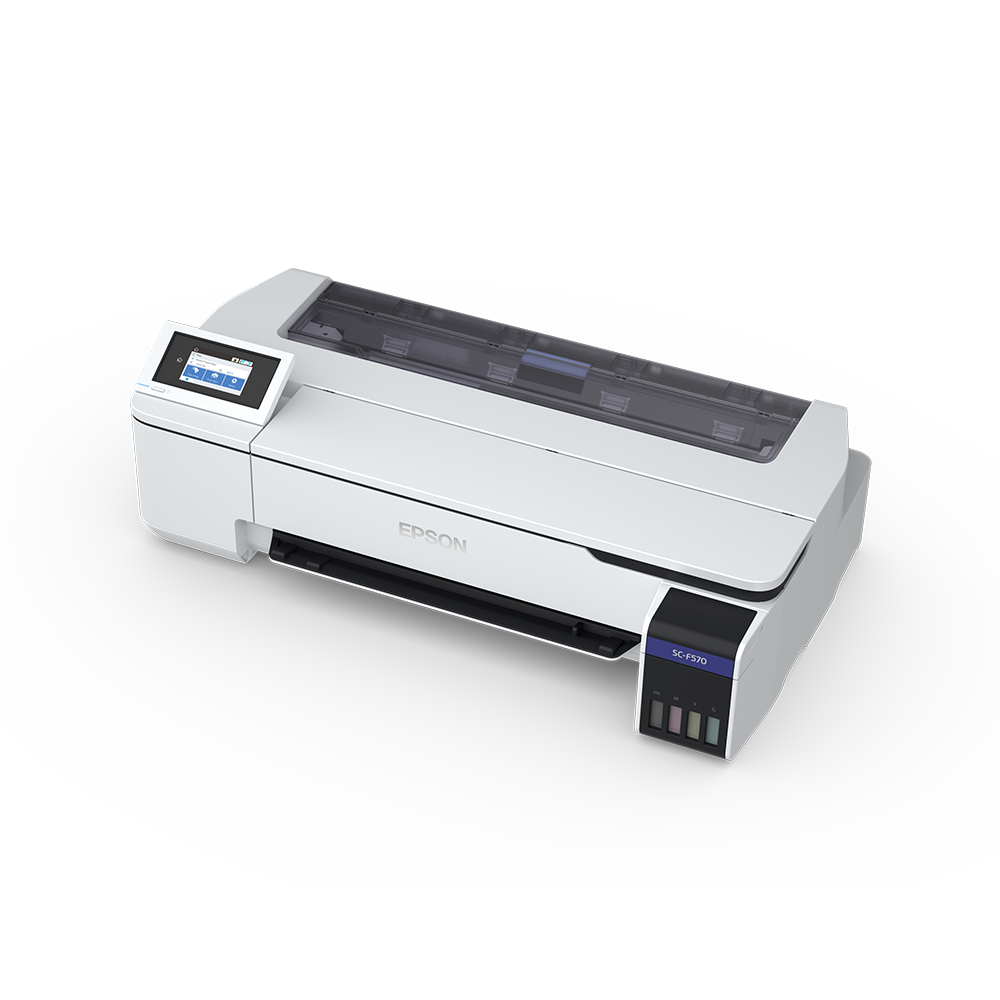

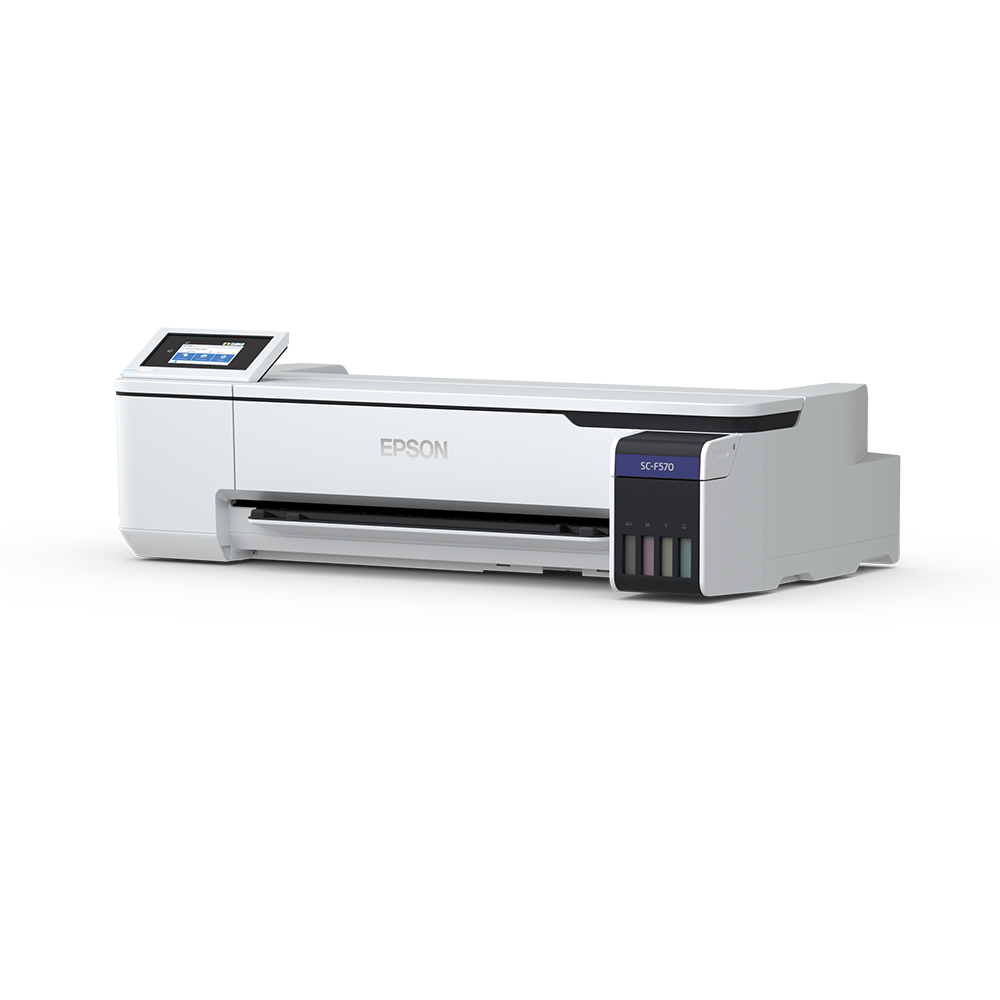

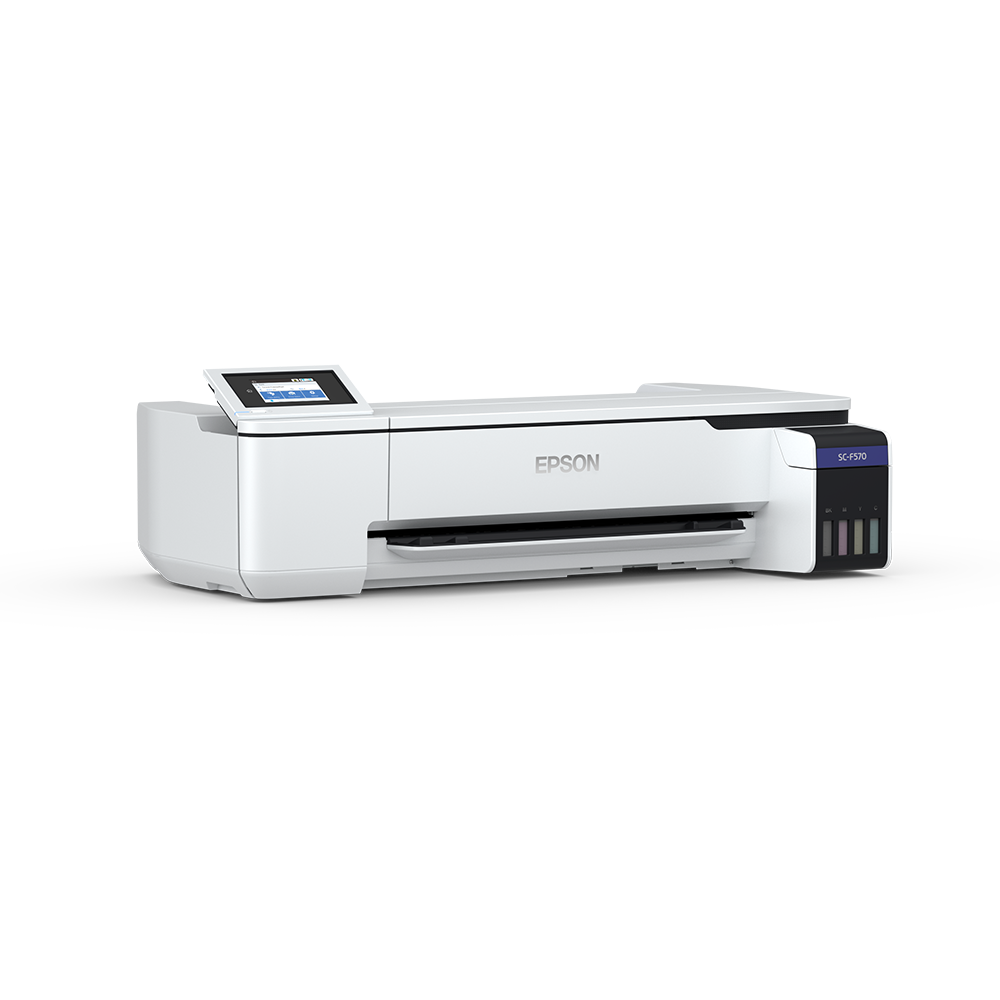

Get fast, high-performance dye-sub printing right out of the box with the 24" SureColor F570 Pro. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore® technology. A truly turnkey solution, the SureColor F570 Pro arrives with a host of convenient features to streamline workflow, including Epson Edge® Print Pro software with Adobe® PS3 and PDF Print Engines, specialized transfer paper for both rigid and soft media, and a 50-sheet auto-feed tray and built-in cutter. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.

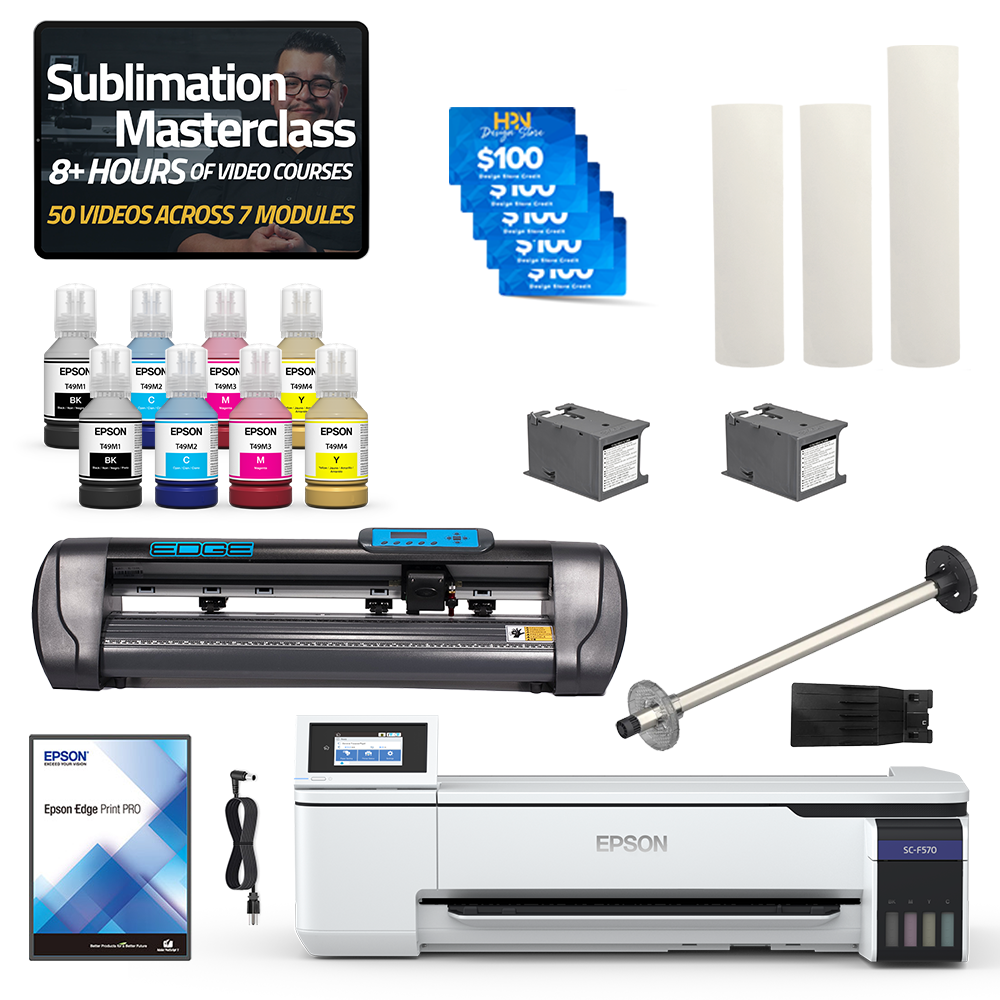

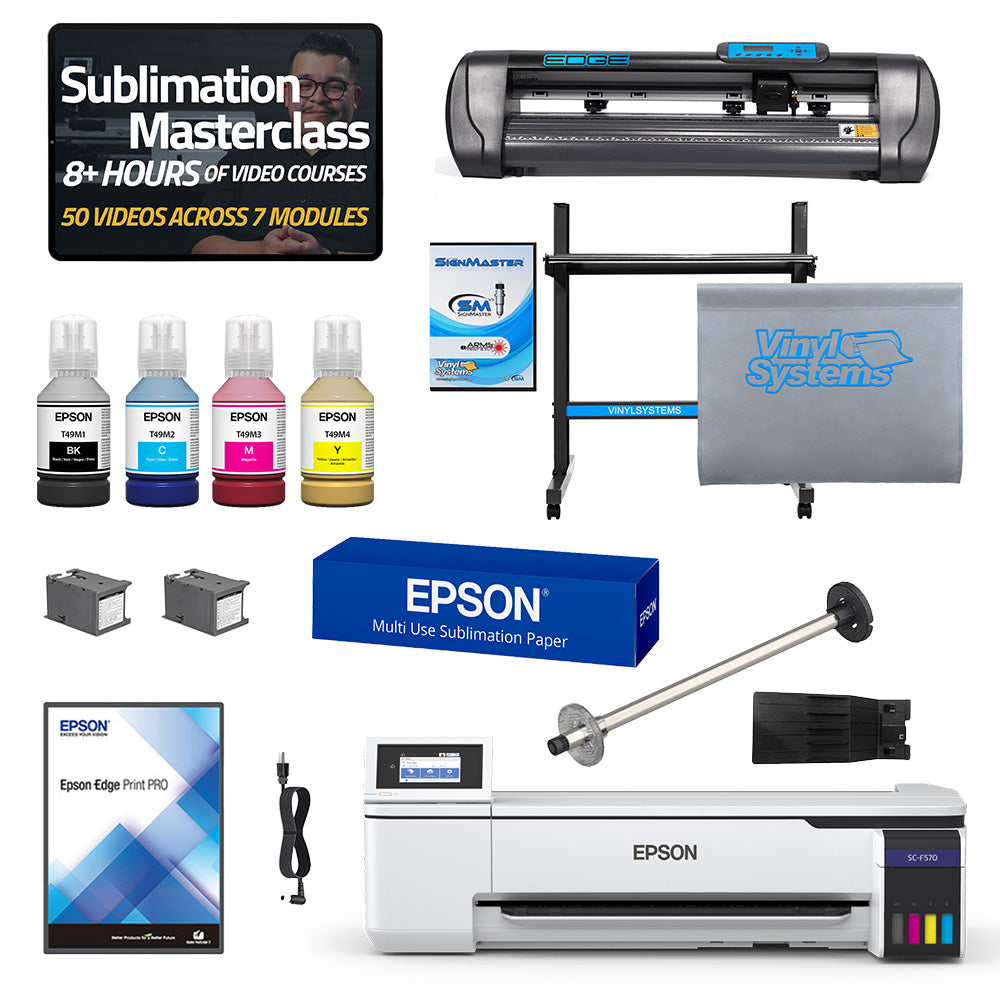

What's Included:
- Epson SureColor F570 Printer
- Epson Edge Print Pro Software
- Two Full Sets of Ink (CMYK - 140 ml each bottle)
- Epson DS Transfer Multi Use Paper - 1, 24" x 100' Roll and 2, 17" x 100' Rolls

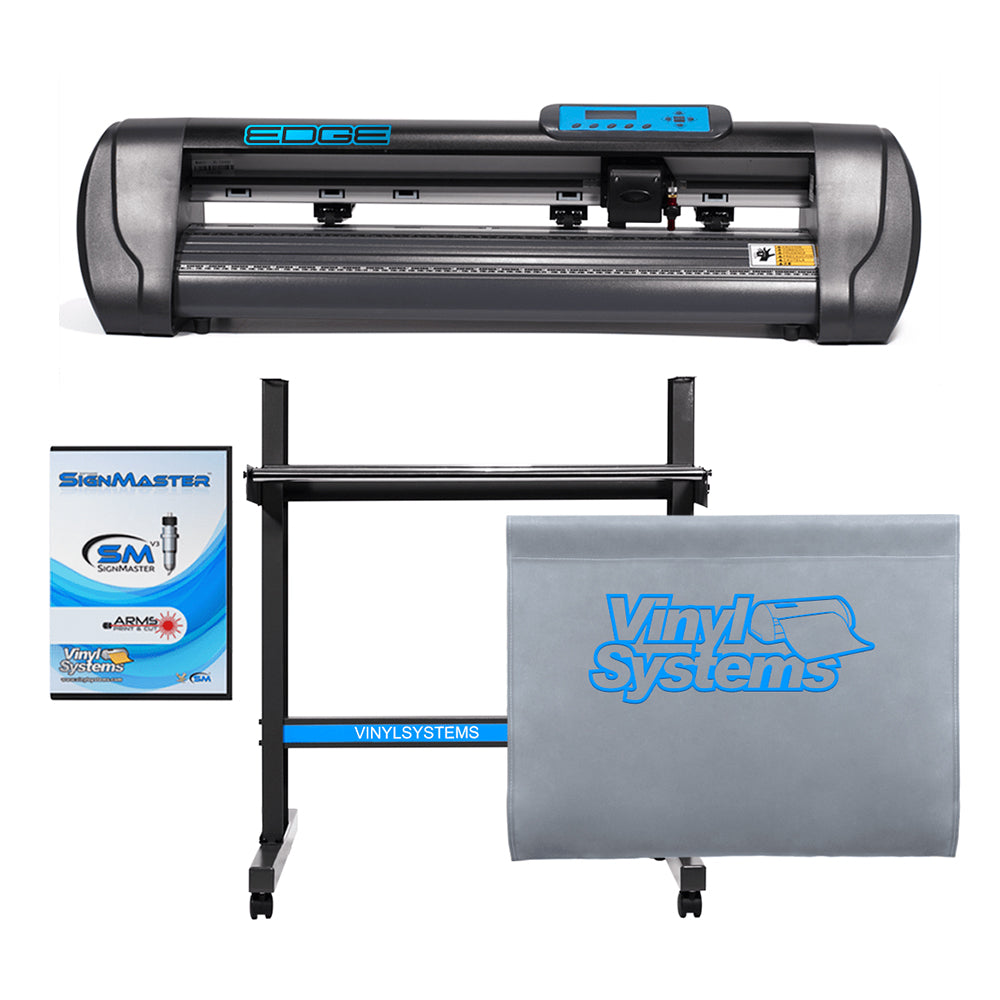

- VinylSystems 28" Edge Vinyl Cutter with Contour Cutting
- Two Ink Waste Tanks (1 preinstalled)
- Free Access to HPN Sublimation Masterclass
- Unlimited access to 8+ hours of jam packed premium content
- Featuring over 50 videos across 7 modules in an easy to view layout
- Covers everything from equipment selection, product instruction, processes, marketing & business insights!
- 500 HPN Design Store Reward Credits
- Access to download up to 200+ Digital Designs for commercial use!
- Output Tray
- Transfer Roll Spindle
- Built-in Rotary Cutter
- Start Here Poster
- User Guide
- AC Power Cable
Features:
- Astounding print quality: PrecisionCore MicroTFP printhead offers Precision Droplet Control for outstanding clarity, plus commercial-grade reliability with Nozzle Verification Technology.
- Bright, brilliant images: Vibrant ink delivers extraordinary color saturation and high contrast.
- Professional software: Epson Edge Print Pro with an Adobe PostScript® 3 and Adobe PDF Print Engine features job layout and nesting, pattern repeats, and advanced color controls for professional results

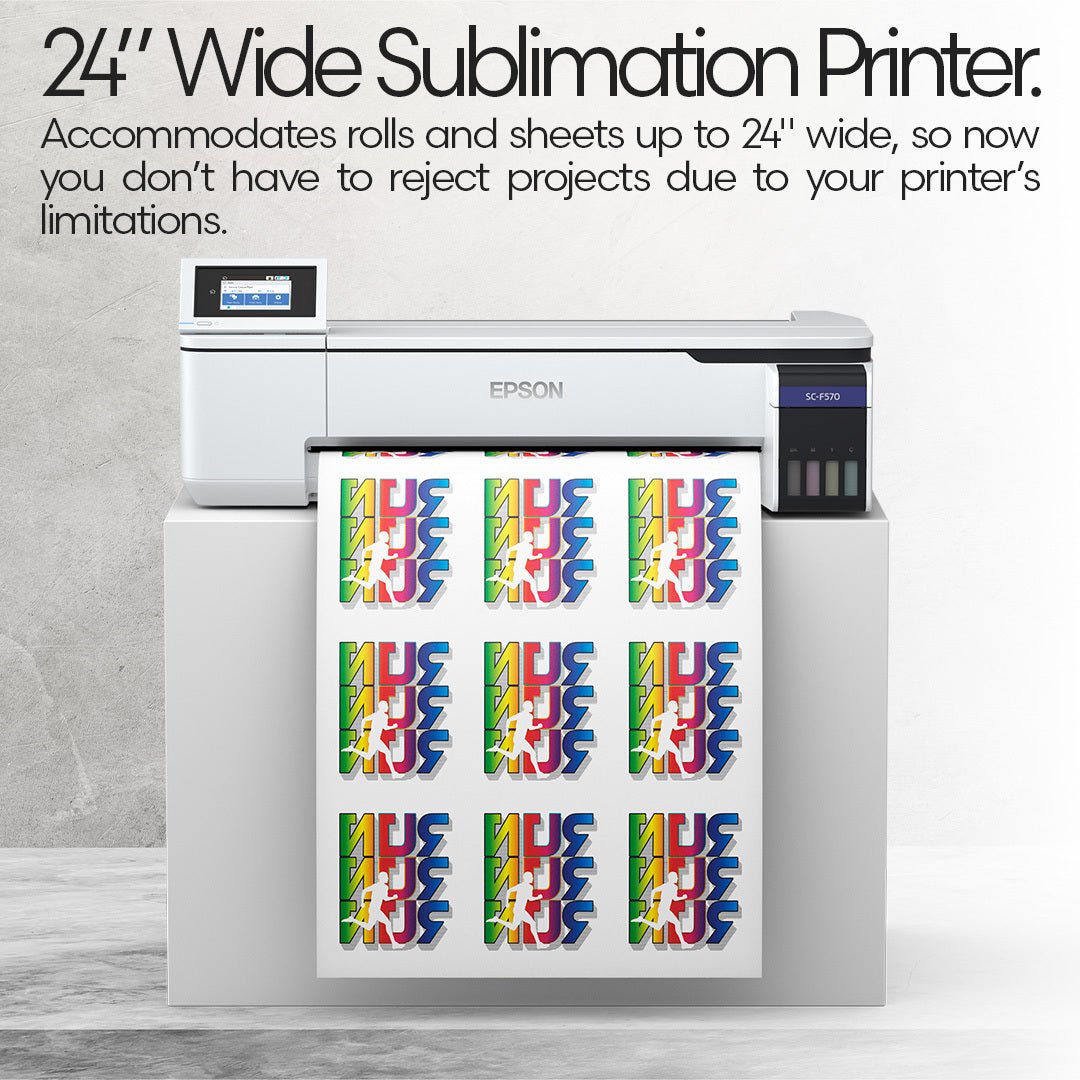

- Versatile media support: Accommodates rolls and sheets up to 24" wide; includes a 50-sheet auto-feed tray and built-in cutter for added efficiency.
- Replace ink less often: High-capacity ink bottles with auto-stop for easy, mess-free filling.
- Tackle a variety of print jobs: General-purpose transfer paper produces amazing images on both soft and rigid materials.
- Reliable performance — backed by Epson® world-class service and support
- Compact, clean design — ultra small, sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)
- Intuitive operation — large 4.3" LCD color touchscreen simplifies print tasks
- Flexible connectivity — easily connect to the printer via USB, Ethernet or integrated wireless
Specifications:
- Printing Technology: PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
- Ink Type: Epson T49M Ink Bottles (C, M, Y, K)
- Nozzles: 800 per channel, color & monochrome
- Droplet Tech: Variable Droplet Technology
- Max Resolution: 2400 x 1200 dpi
- Ink Volume: In-box: 140 mL x 2 (each color), Retail: 140 mL per bottle
- Shelf Life: 2 years (unopened), 6 months (opened)
- Ink Note: Use genuine Epson ink for best results
Media Handling
- Roll Width: Up to 24"
- Core Diameter: 2", user-adjustable
- Roll Cutting: Internal rotary cutter (auto/manual)
- Max Roll Diameter: 4.3"
- Media Thickness: Up to 8.6 mil
- Remaining Paper Display: On control panel
- Single Sheet Loading: Up to 24"
- Auto Sheet Feeder: 11" x 17" (50-sheet capacity)
- Min Sheet Size: Letter/A4
- Max Paper Width: 24.4"
- Margins: 0-3 mm (0.24" total)
- Max Print Length: Limited by OS/driver
Connectivity & UI
- Display: 4.3" touchscreen
- Interfaces: USB 3.0, Wireless LAN (802.11 b/g/n), Ethernet (1000/100/10 Base-T), Wi-Fi Direct®
System Compatibility
- Software: Epson Edge Print PRO (Windows 10, 8.1 64-bit)
- Drivers: macOS 10.7 – 14, Windows 10, 8.1
Size & Noise
- Without Stand: 38" x 32" x 10", 64 lb (29 kg)
- With Stand: 38" x 32" x 10", 84 lb (38 kg)
- Noise Levels: Operating: ~50 dB(A), Sleep: ~32 dB(A)
Operating Conditions
- Temperature: 50˚-95˚F (10˚-35˚C), Recommended: 65˚-75˚F (18˚-24˚C)
- Humidity: 20-80% (operating), 5-85% (storage)
Power & Compliance
- Voltage: 110-240V, 50-60Hz, 1.4A
- Power Consumption: Printing: ~22W, Ready: ~8W, Sleep: ~1.6W, Off: 0.2W
- Certifications: UL (MET), FCC (Class A), CSA, CE, EMC
Warranty & Origin
- Warranty: 1-year exchange, toll-free support (M-F)
- Country of Origin: Indonesia
*This product is final sale.*
The HPN MyExpert Support guarantee offers Lifetime Technical Support. No matter your product’s stage, we’ve got you covered.
Our expert technicians provide assistance from setup to troubleshooting, even years later. Often imitated, never duplicated—they’ll always have your back.
Buy with confidence! Plus, the Epson F570 includes a 1-year manufacturer warranty (freight costs not included).
