HPN TrueSpec 16" x 20" Auto-Open Hybrid Heat Press Complete Bundle

SKU: HPN-TS-1620-B-5P

Price:
Translation missing: en.product.general.price$1,699.95 USD

Found a Lower Price?

Learn More About MyExpert Protection Here
Description
Warranty

TrueSpec Logo

*Limited pre-order available now. Heat press is expected to ship mid-January.*

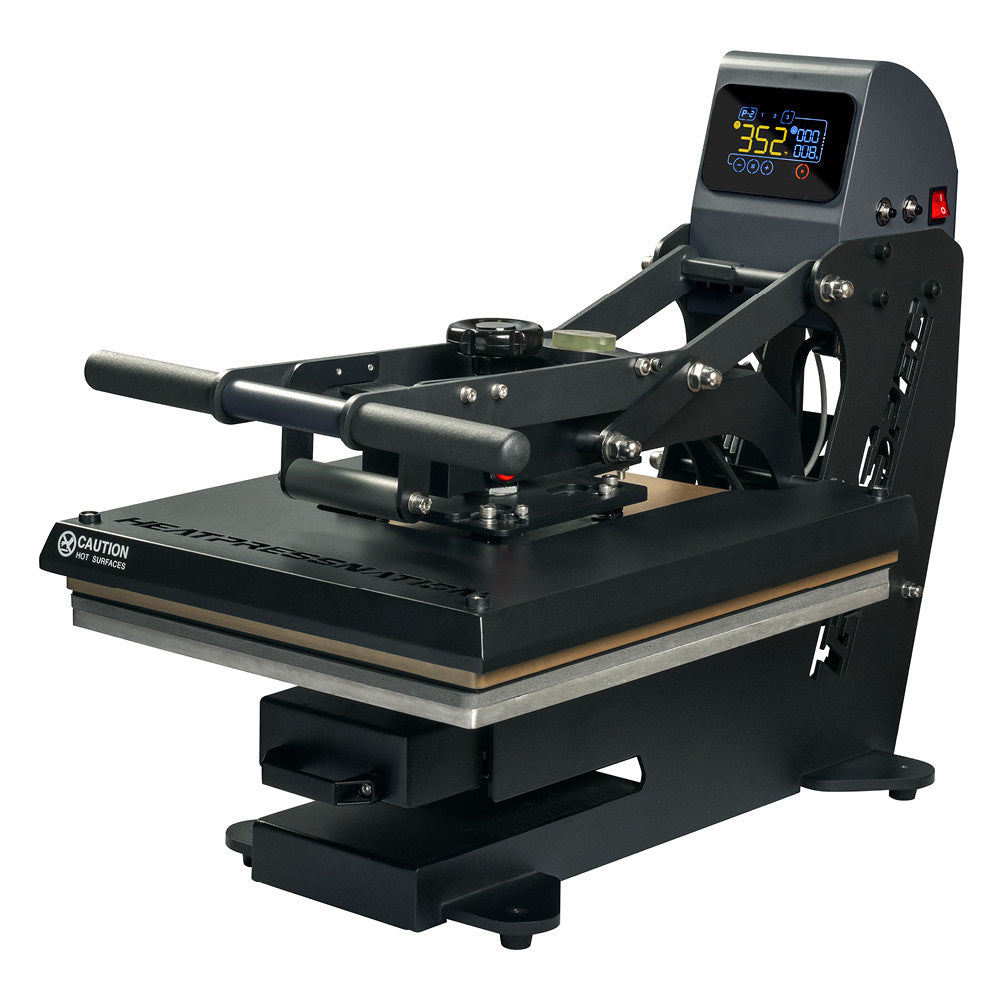

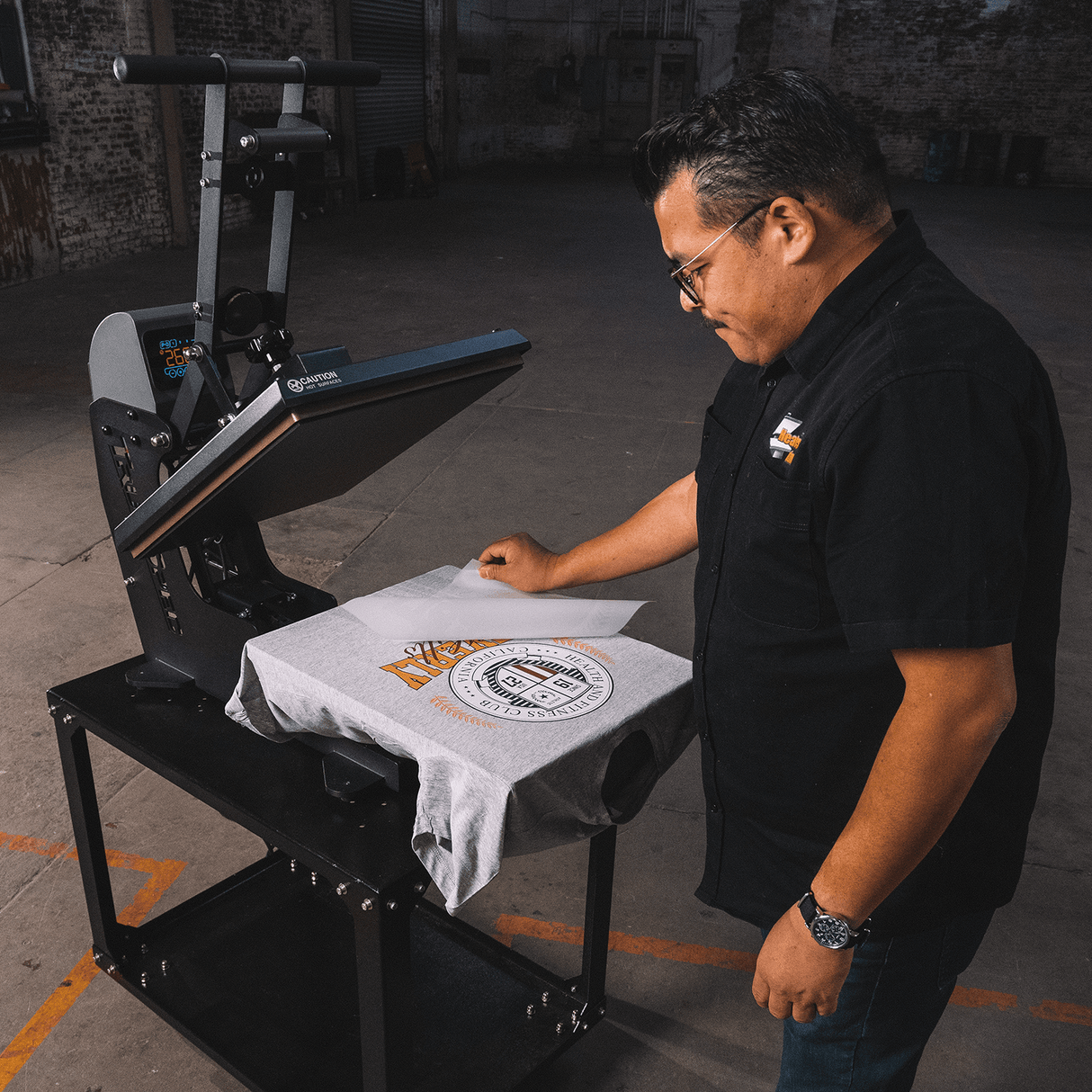

Introducing the TrueSpec 16" x 20" Auto-Open Hybrid Heat Press by Heat Press Nation – a revolutionary machine designed from the ground up to elevate your heat press experience. Built with a laser-cut steel frame for durability, TrueSpec is designed to withstand the rigors of any job. The double-bar handle and pull-down lever make it easy to apply even pressure across substrates, ensuring consistent results every time. The heating element is our best yet – over 20% thicker than our Signature Series, with unmatched heat distribution and retention, plus an anti-burn shield for added safety.

TrueSpec’s advanced features take personalization and ease of use to a new level. The redesigned computer box houses a touchscreen control panel with real-time pressure readout, three preset slots for your favorite settings, and a convenient built-in backup fuse for peace of mind. With the option to switch between auto-open and manual operation, premium gas shocks for automatic opening, and interchangeable lower platens, TrueSpec offers ultimate flexibility. Plus, the slide-out lower platen ensures both safety and efficiency – no more reaching in and risking burns. Elevate your business with the power and precision of the TrueSpec Heat Press.

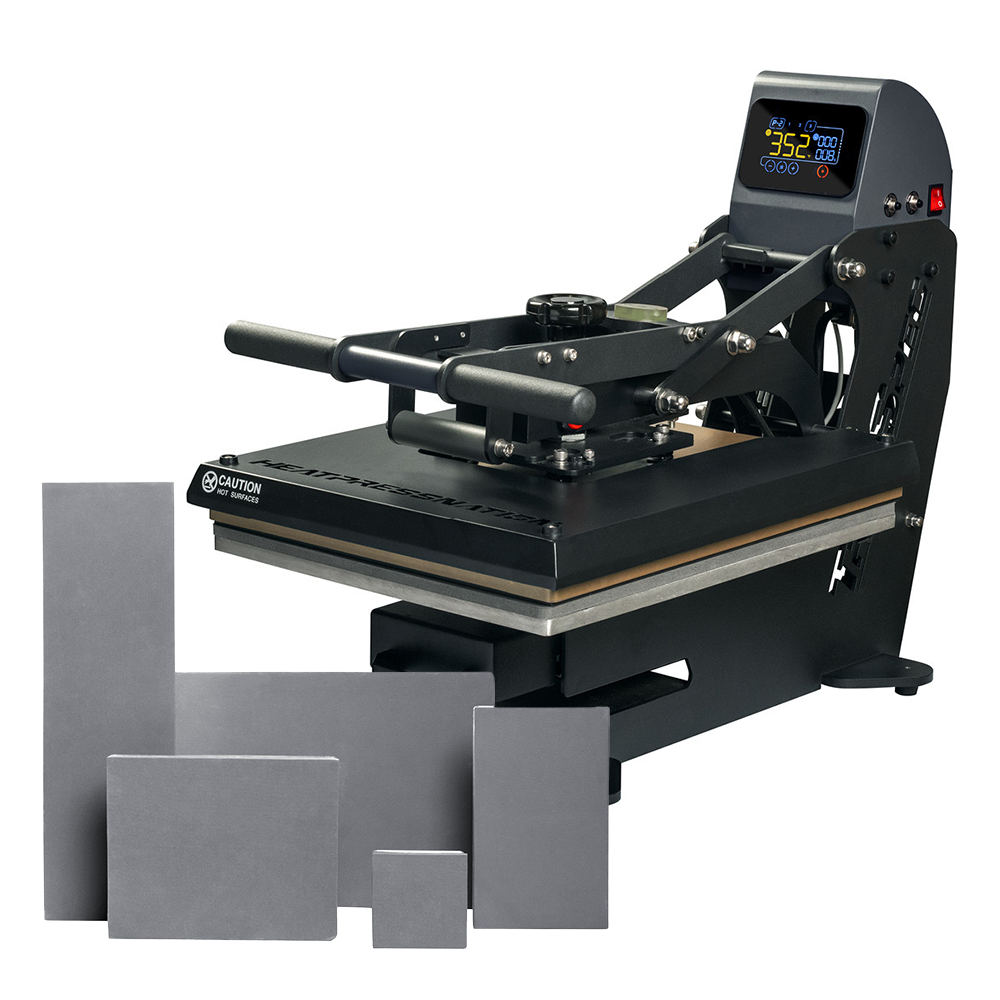

What's Included:

  • HPN TrueSpec 16" x 20" Auto-Open Hybrid Heat Press
  • Fast Fit Platens for TrueSpec:
    • 4" x 4"
    • 6" x 10"
    • 8" x 10"
    • 6" x 20"
    • 11" x 15"

UL Certified Parts

FEATURES

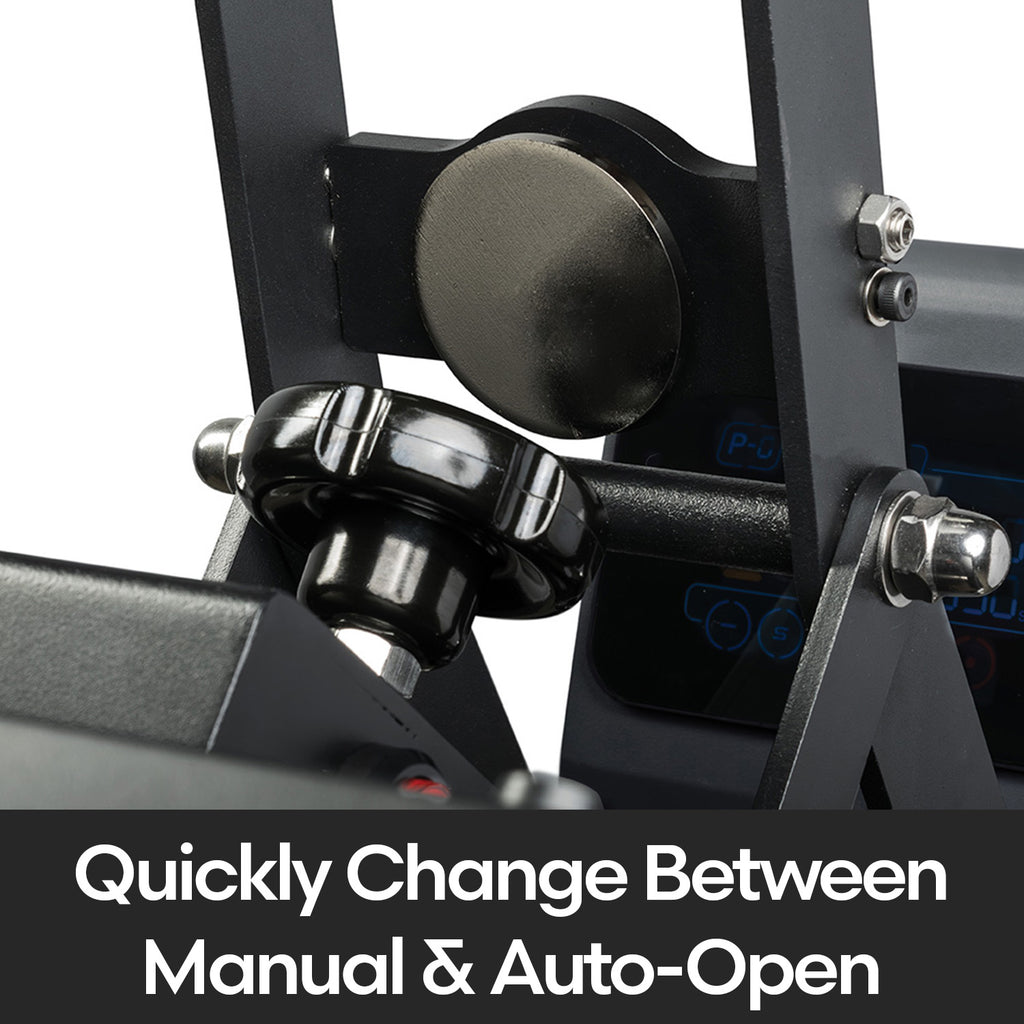

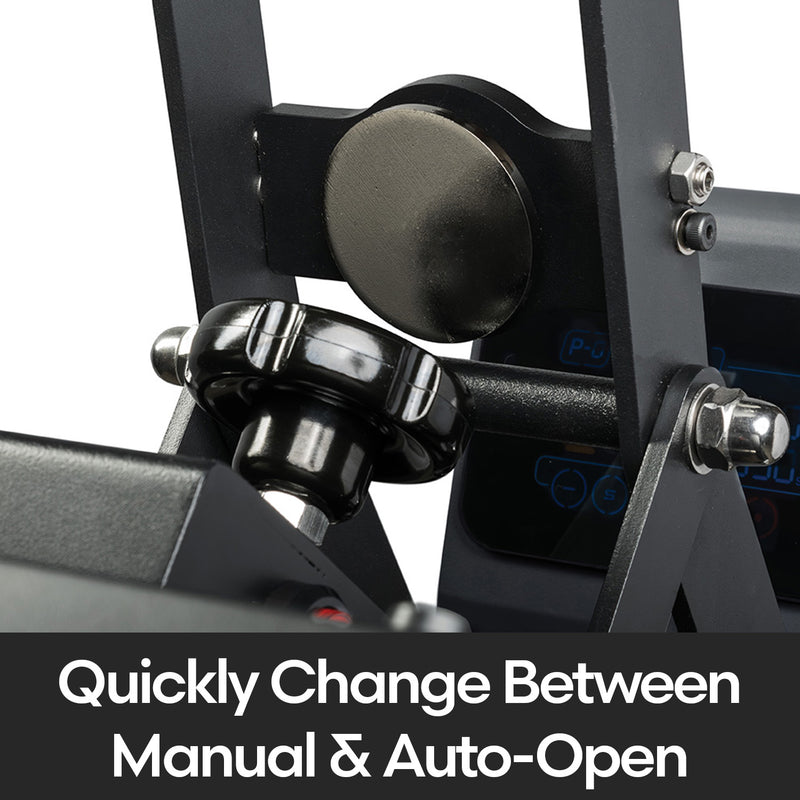

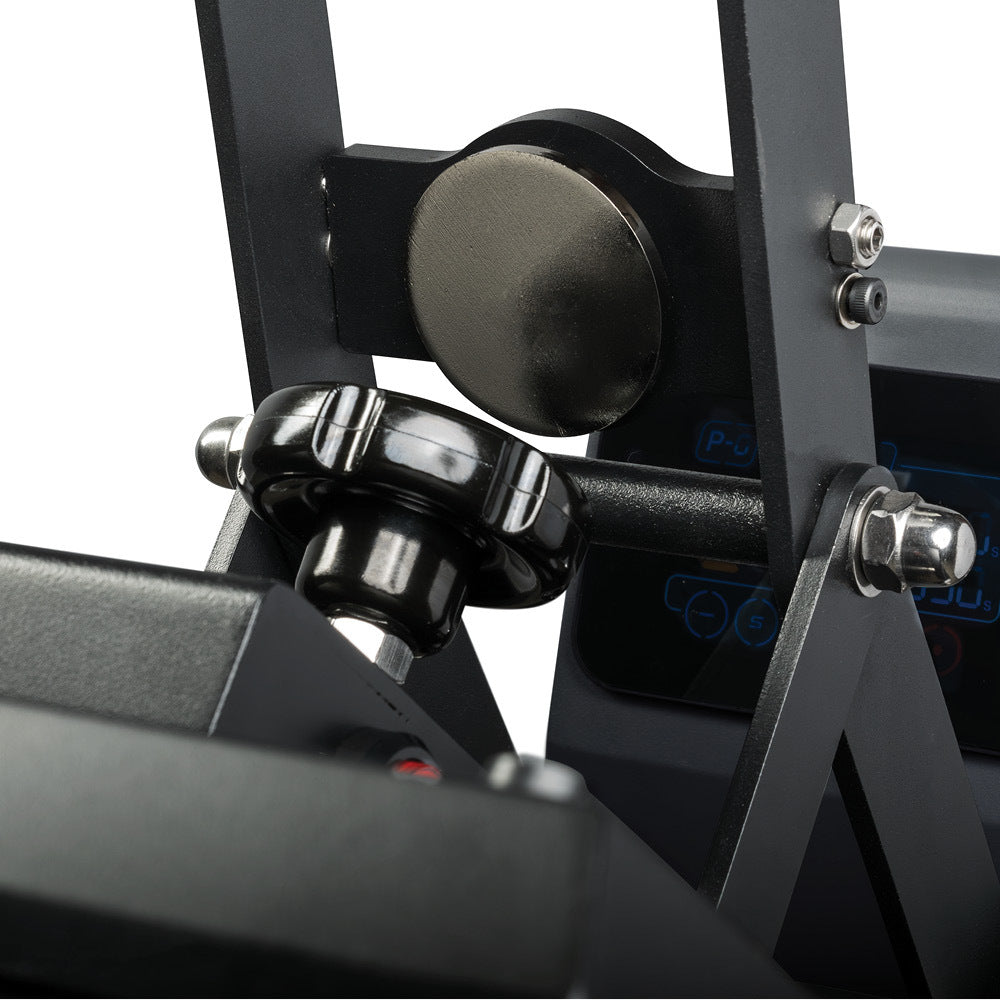

 Auto Open Magnet

Hybrid Magnetic Auto-Open Release: With HPN TrueSpec, you can now switch between auto-open and manual-open by simply rotating the contact plate. When activated, the auto-open release feature on the HPN TrueSpec allows the heat press to open automatically when the timer reaches zero, giving you time to focus on other aspects of your project while your material transfers.

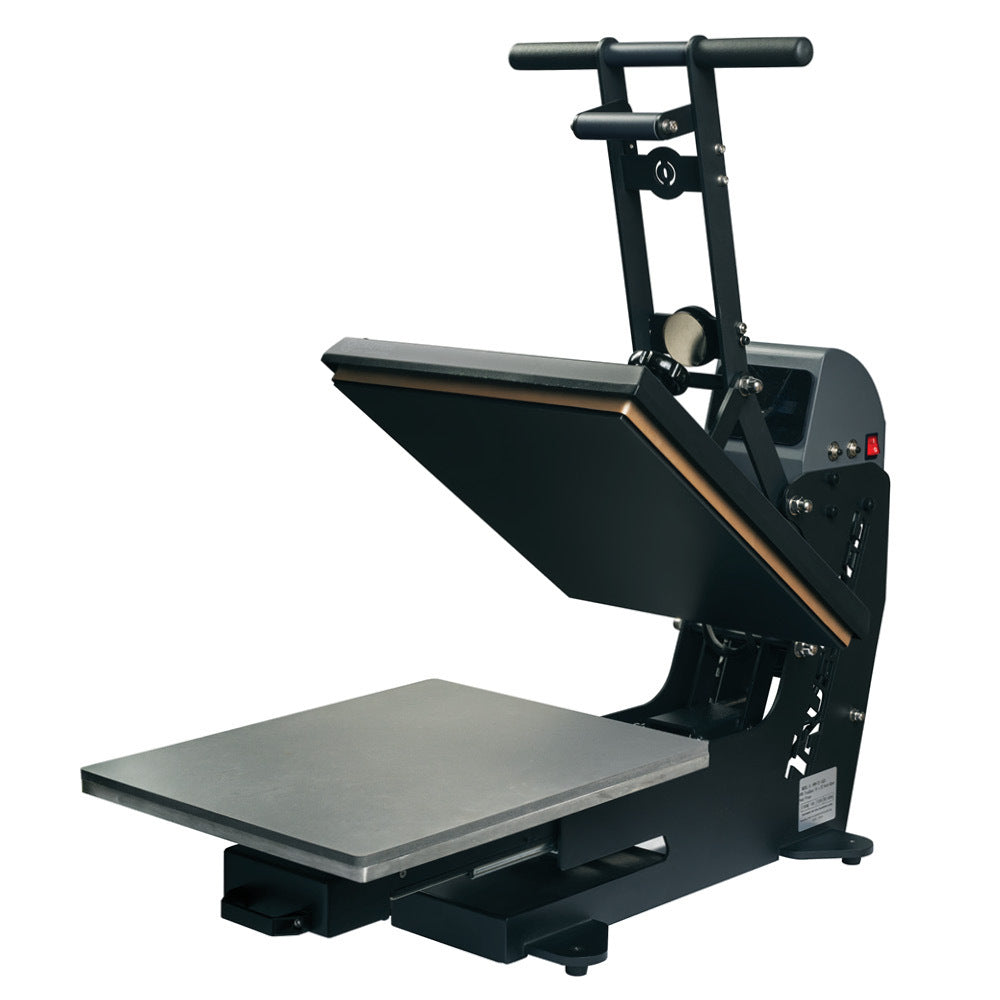

Slide Out Lower Platen

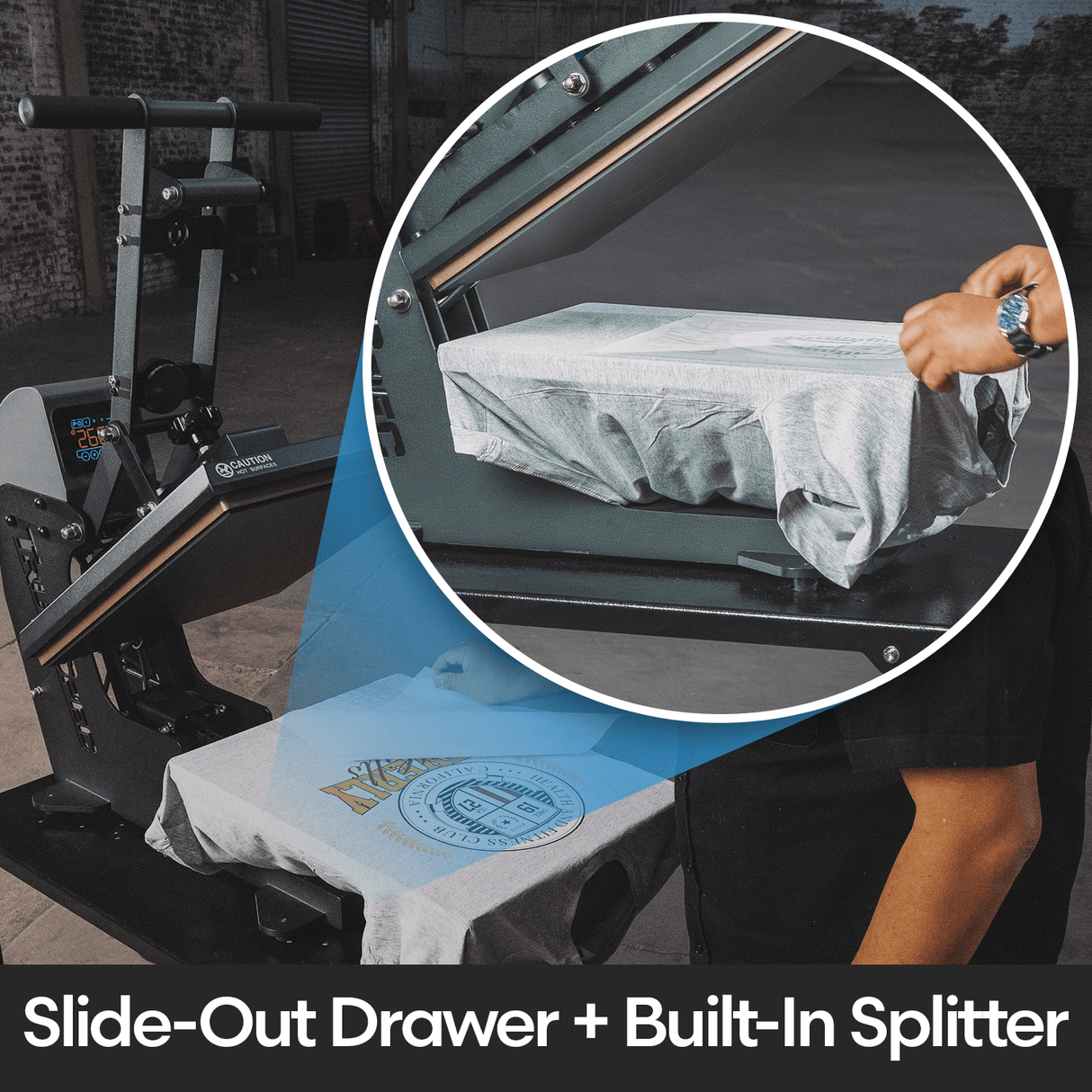

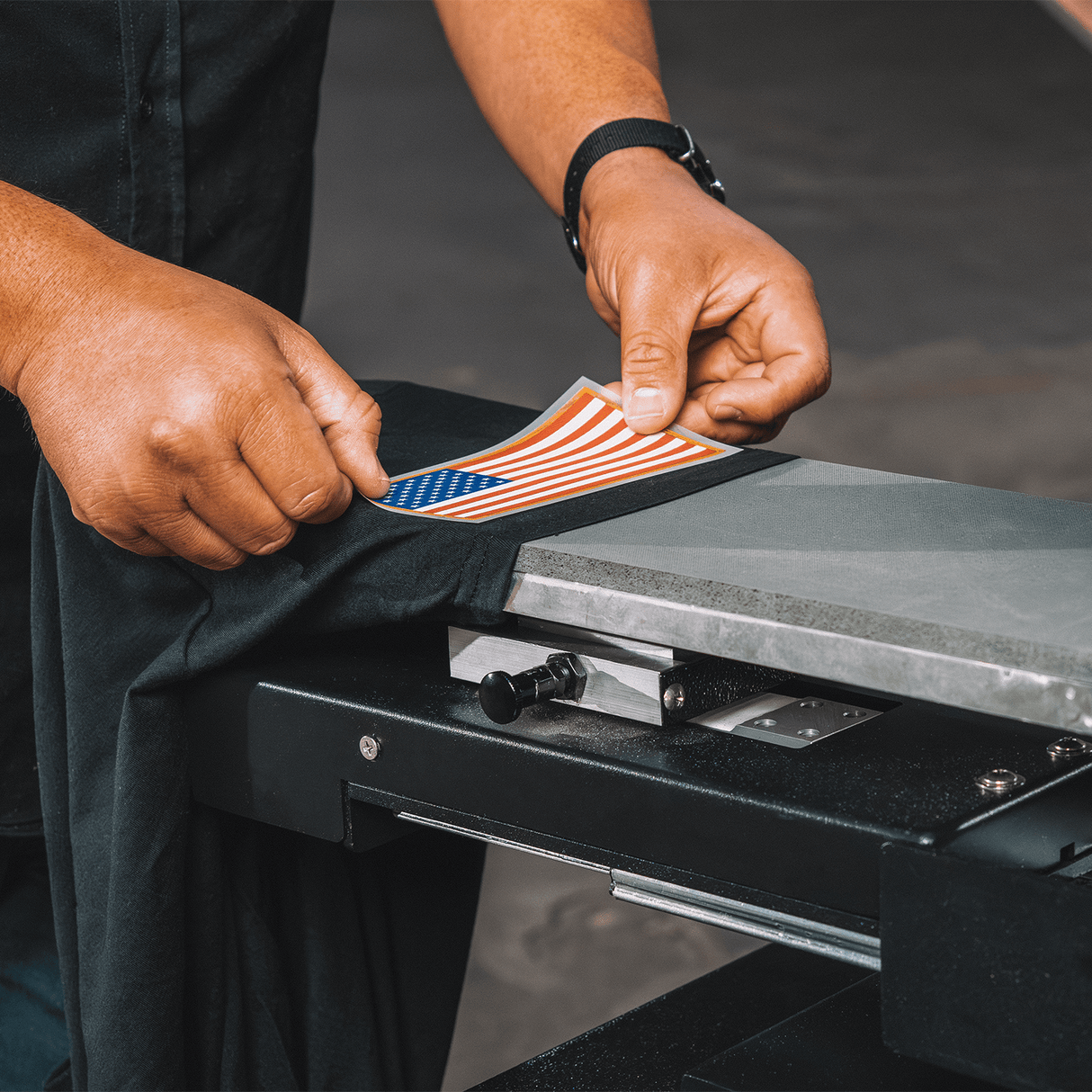

Drawer Style Lower Platen: The drawer style lower platen allows you more space to lay down your transfer material without having to put your hands directly underneath the heat. This feature provides you with increased safety while maintaining the compact nature of a clamshell heat press.

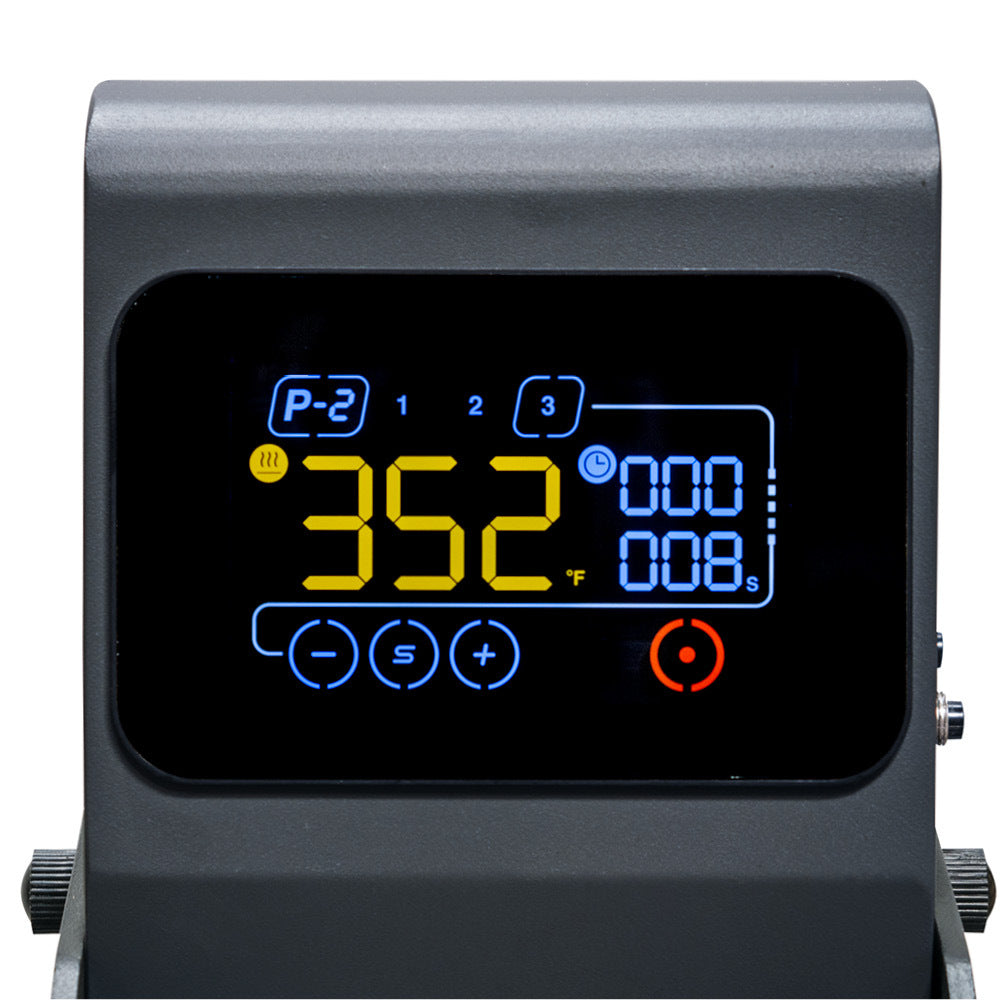

Digital Computer Gauge

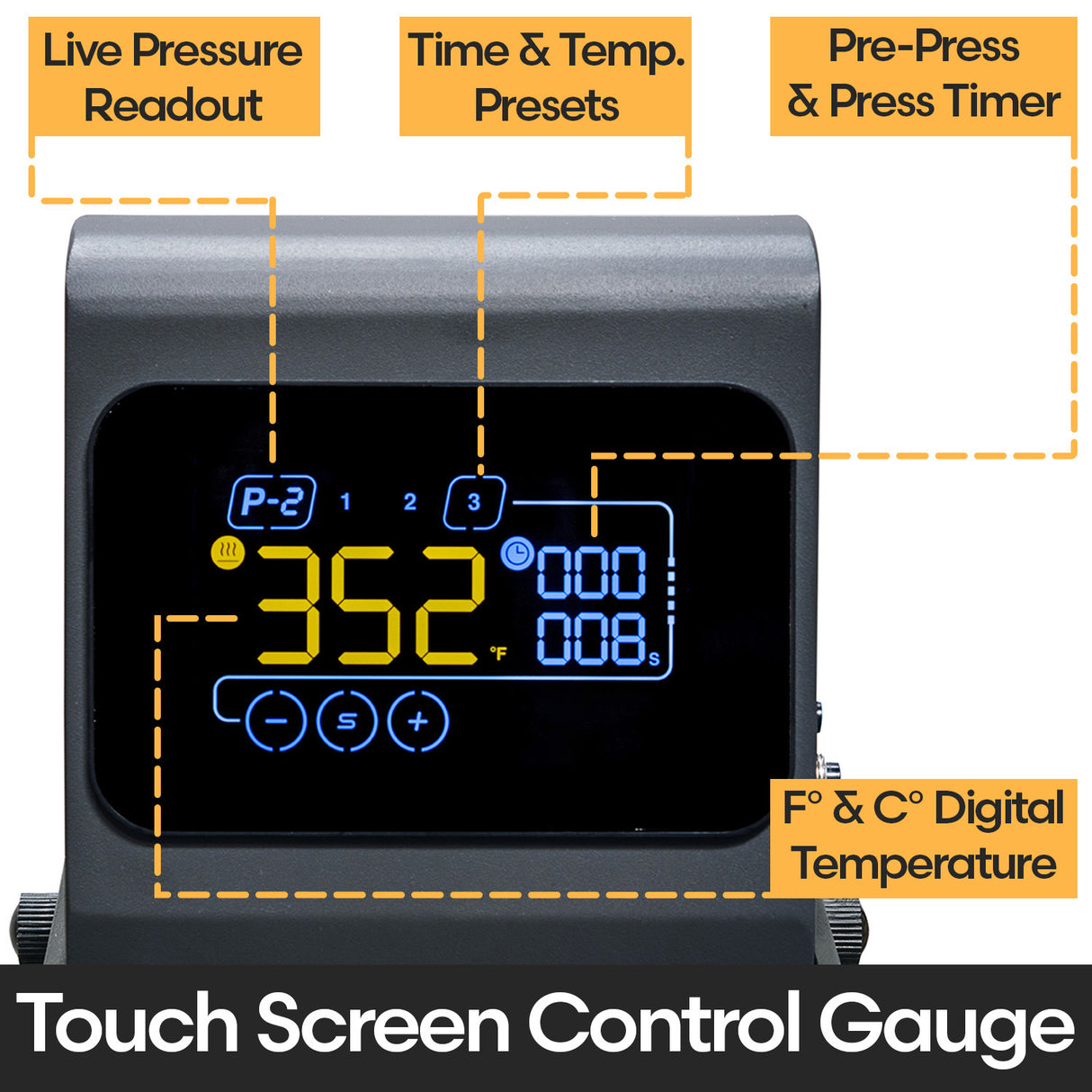

Upgraded Time/Temperature Gauge: HPN TrueSpec features a completely redesigned computer box. The gauge is a touchscreen with an Active Pressure Readout, 3 Preset Slots for time/temp recall, and a new pre-heat timer.

Additional Platens

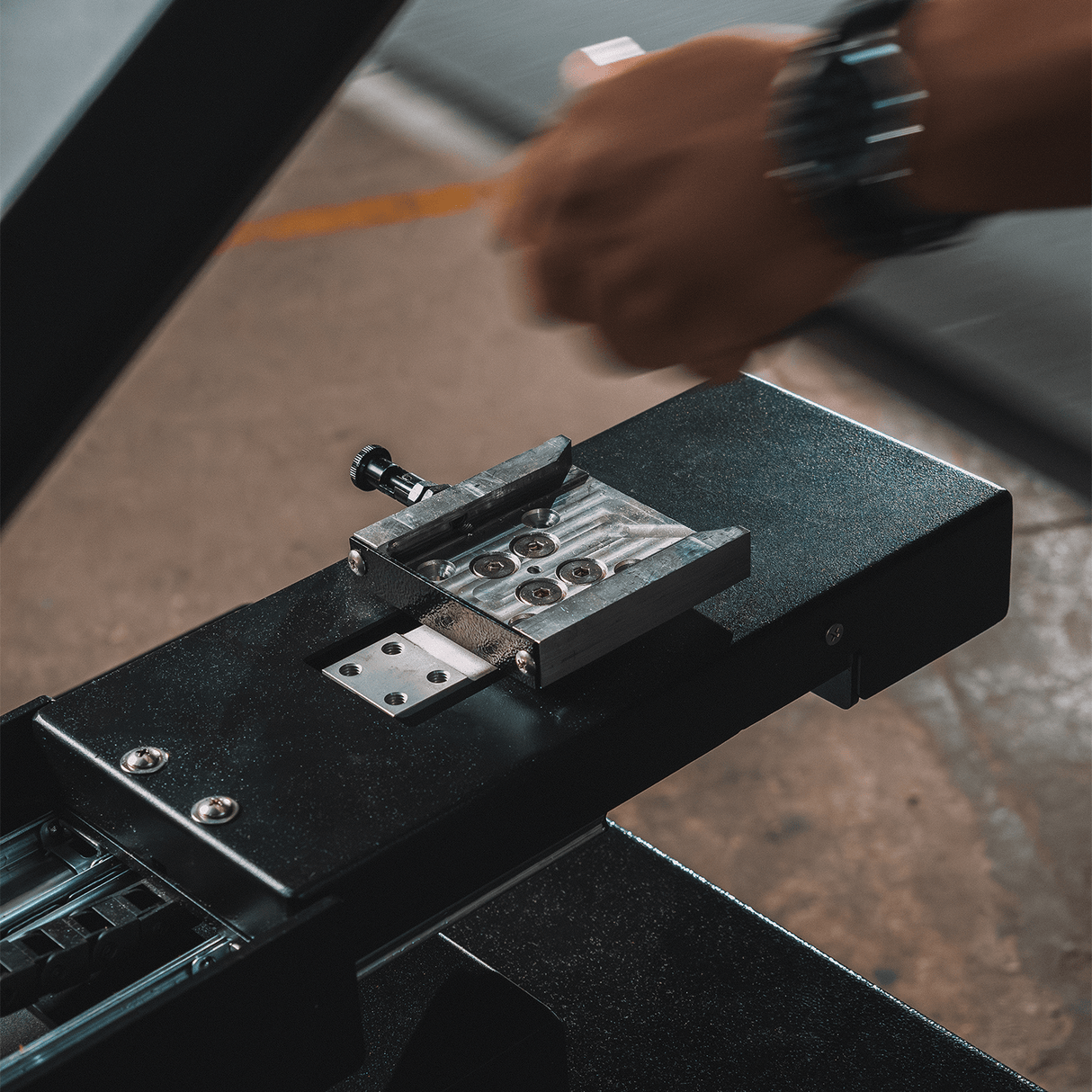

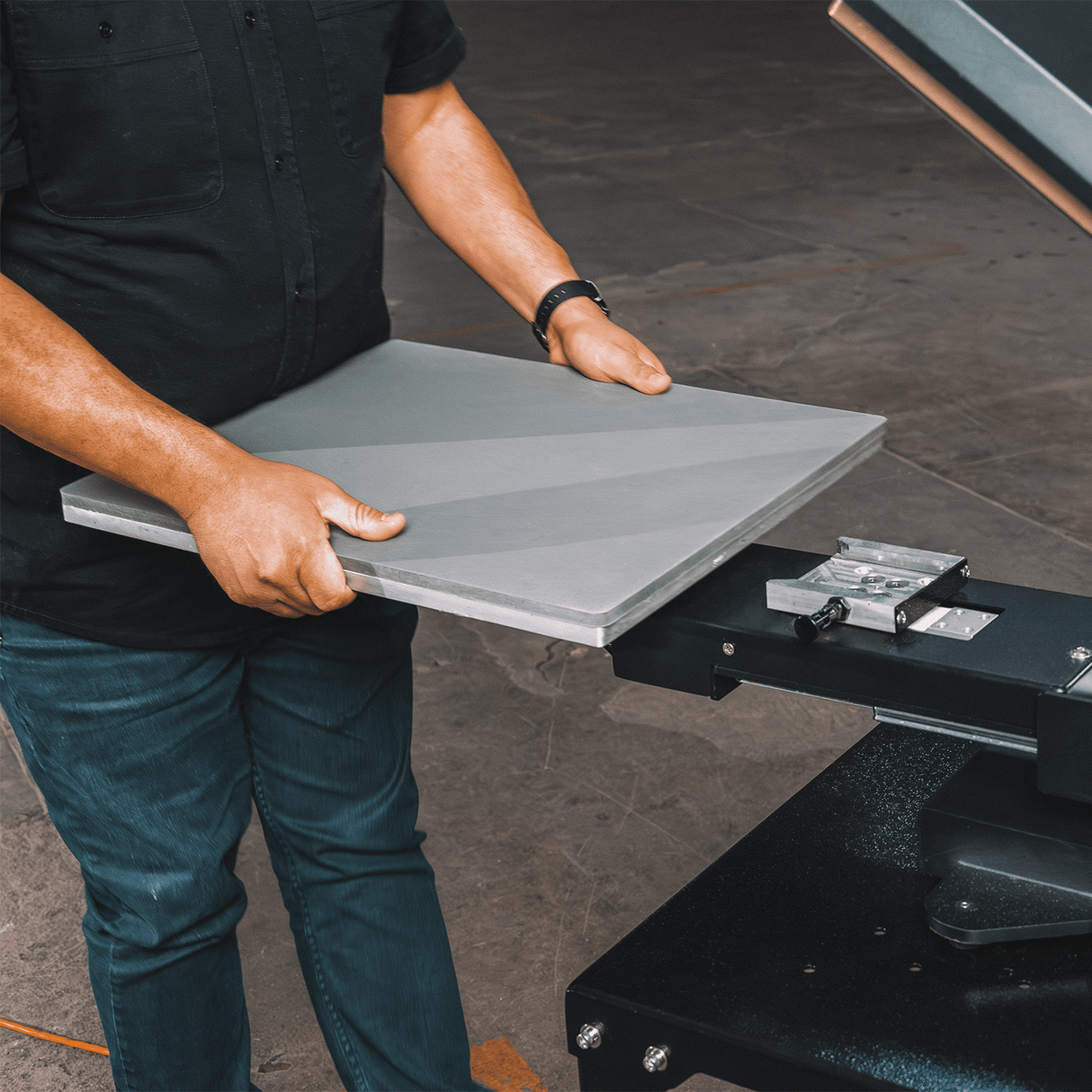

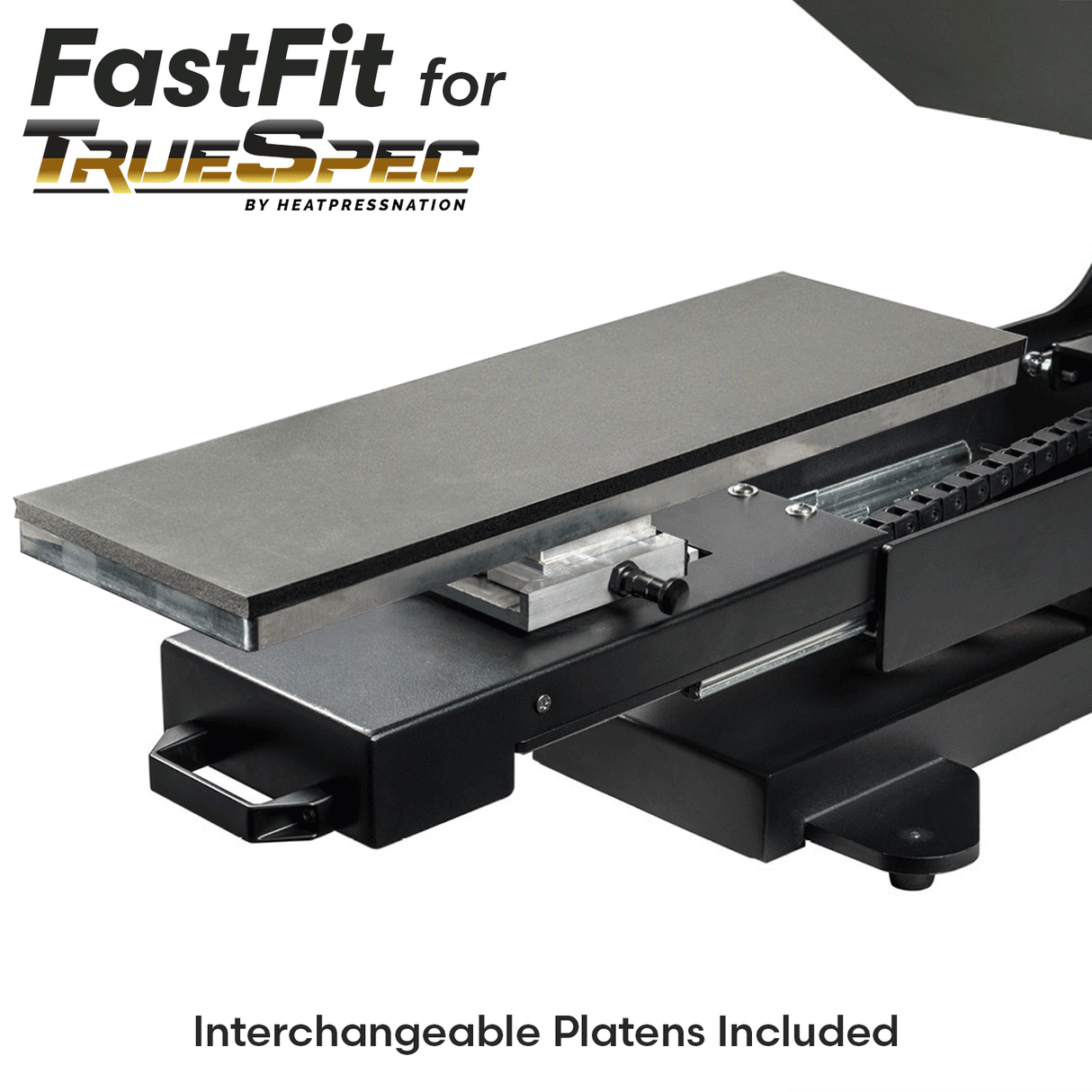

Fast Fit Platens for TrueSpec: The HPN TrueSpec heat press can handle any job with its interchangeable lower platens. Available in 4" x 4", 6" x 10", 8" x 10", 6" x 20", and 11" x 15", these platens also come with a unidirectional mount so they can be orientated in both landscape and portrait.

  • Industrial-Grade Laser-Cut Steel Frame
  • Solid-Core Heating Element - 20% Thicker than the Signature Series
  • Quick Connect Heating Element
  • Quick Connect Control Housing
  • Auto-Release Button
  • Anti-Burn Shield Cover

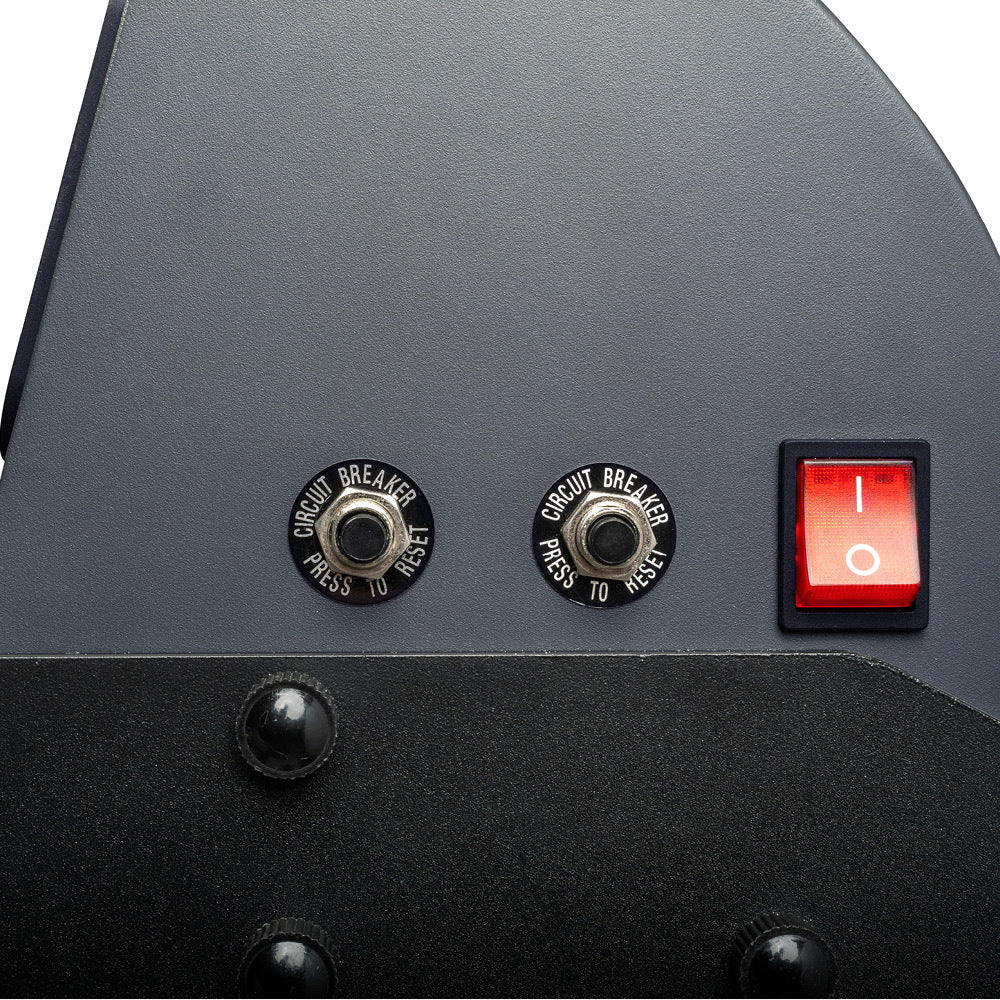

  • Dual-Circuit Protection

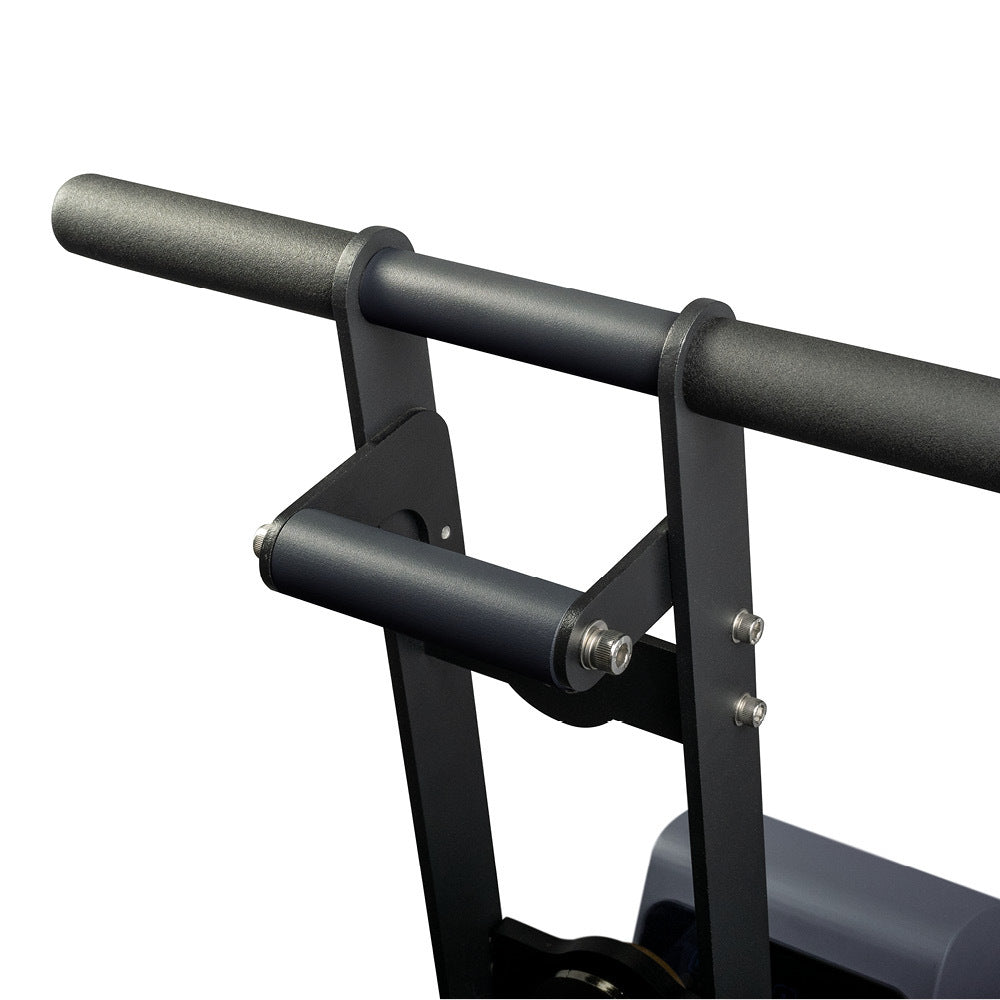

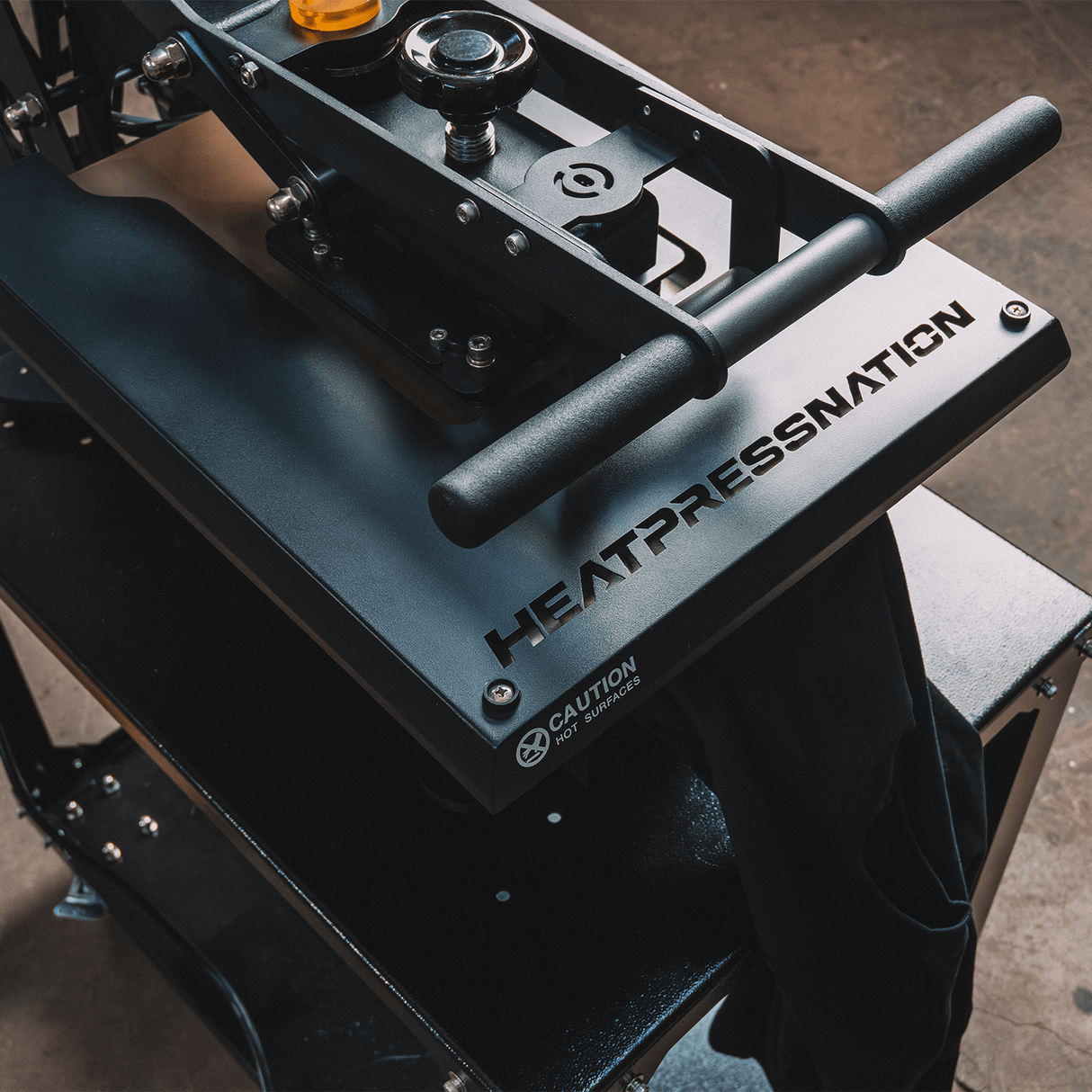

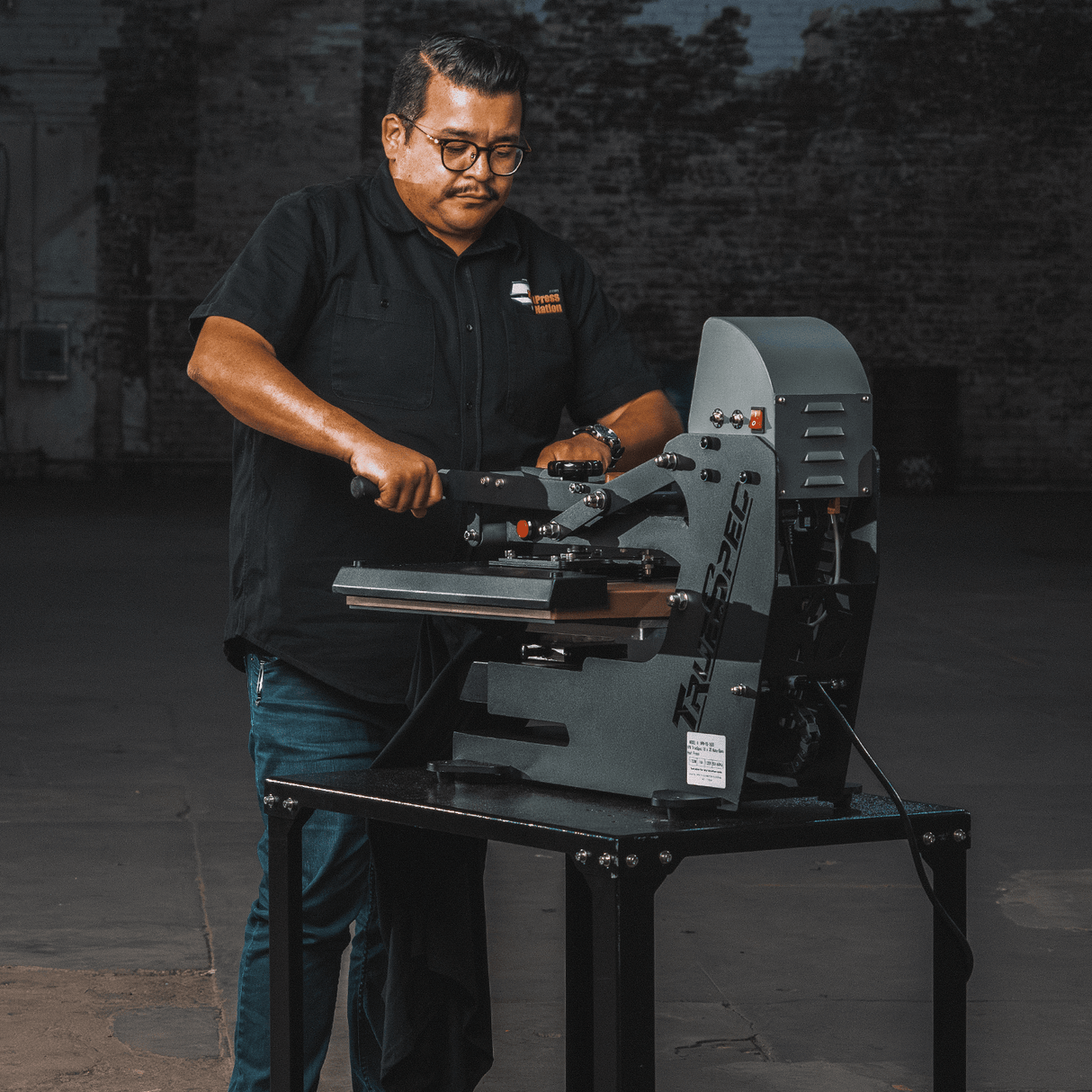

  • Double-Bar Handle with Pull-Down Lever

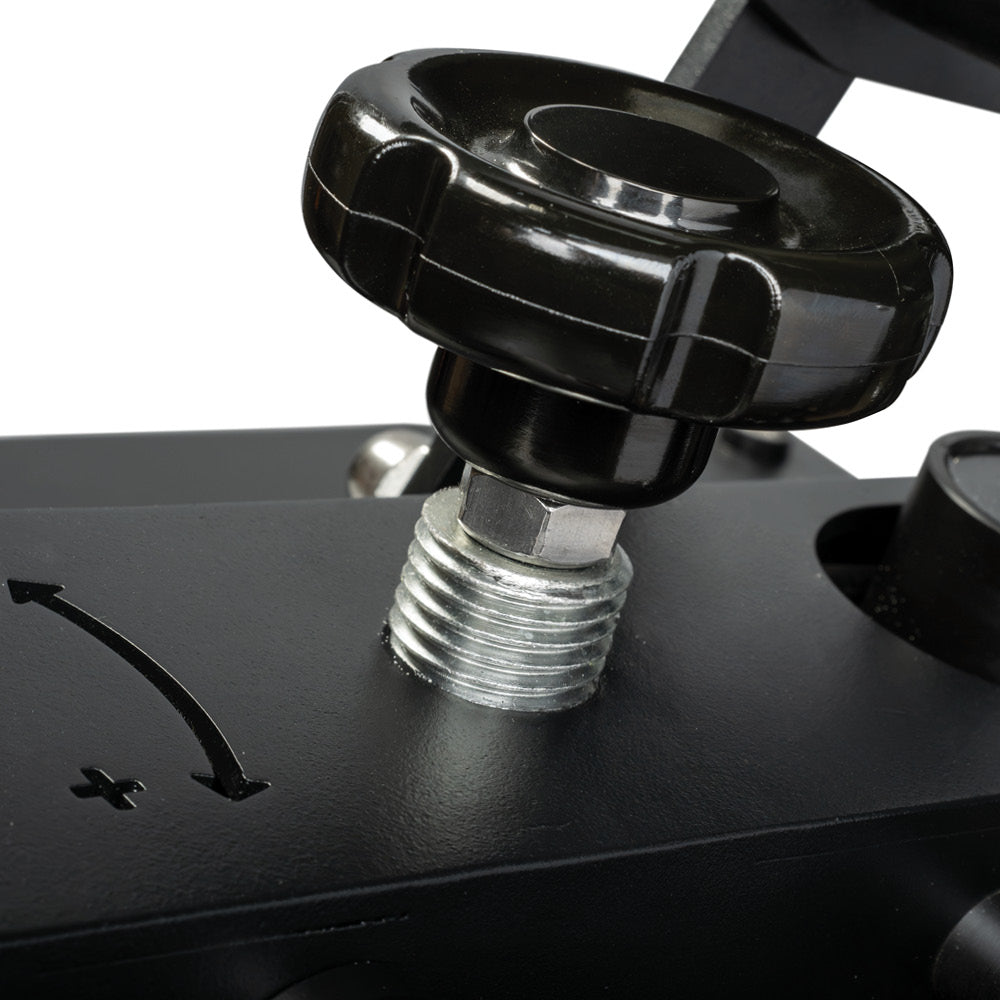

  • Full Pressure Range Knob
  • Select UL Certified Components
  • 16" x 20" Baked-On, Non-Stick Coated Heat Platen
  • T-Shirt Splitable
  • Lifetime Technical Support

SPECIFICATIONS

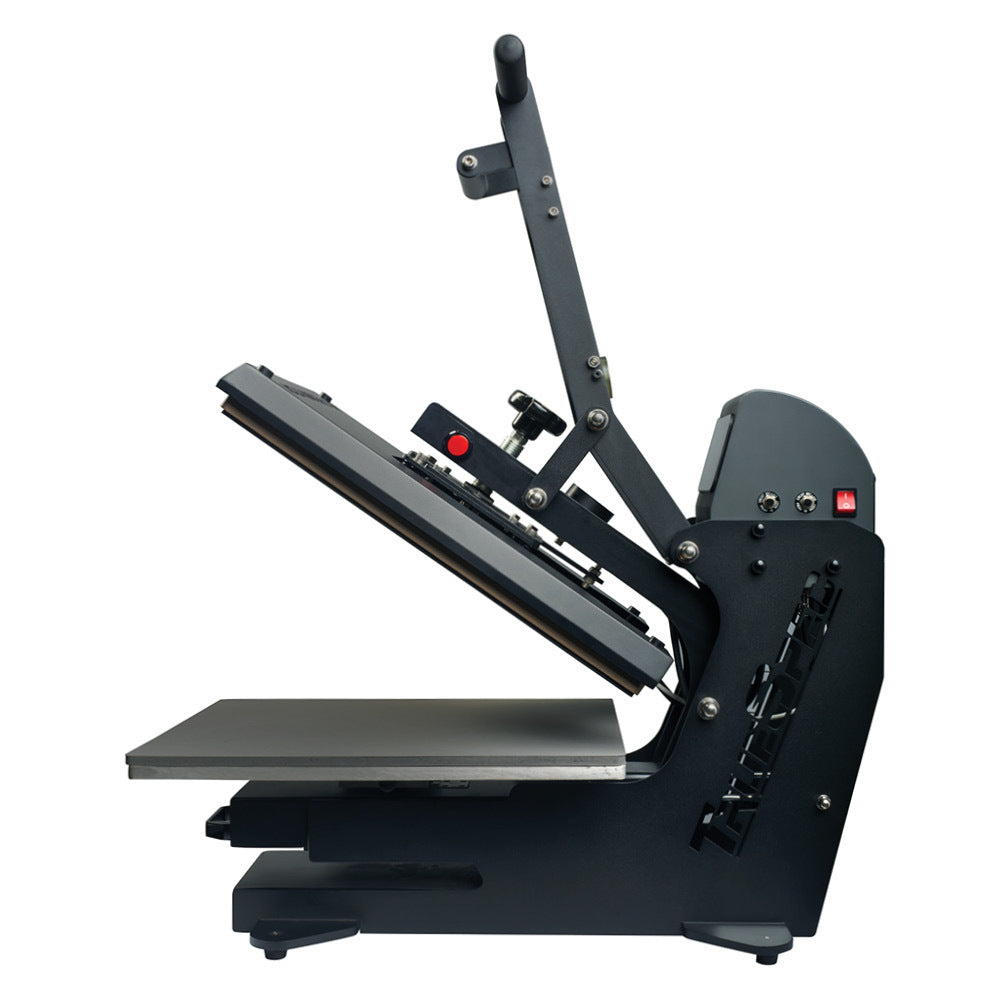

  • Heat Press Style: Hybrid Auto-Open/Manual Clamshell Press with a Slide-out Drawer
  • Heat Press Base Dimensions:  23” x 13” x 38” (D x W x H in open position)
  • Heat Press Weight: 143 lbs
  • Gauge Reading: Fahrenheit or Celsius degree measure
  • Voltage: 120V
  • Power Rating: 1700W/14 Amps
  • Maximum Temperature: 437º F
  • Time Range: 0-999 Seconds
  • Shipping Weight:
    • Carton 1: 140 lbs
    • Carton 2: 31 lbs
  • Shipping Dimensions:
    • Carton 1: 23" x 36" x 23"
    • Carton 2: 20" x 24" x 11"

MyExpert Support Logo

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, all HPN TrueSpec heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.

MyExpert Protection Logo

EXTENDED WARRANTY

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

PLANS

  • 1 Year Total Coverage - Included with purchase
  • 2 Years Total Coverage - $49.99
  • 3 Years Total Coverage - $79.99
  • 4 Years Total Coverage - $99.99

Add "MyExpert Protection" when adding your product to the cart
