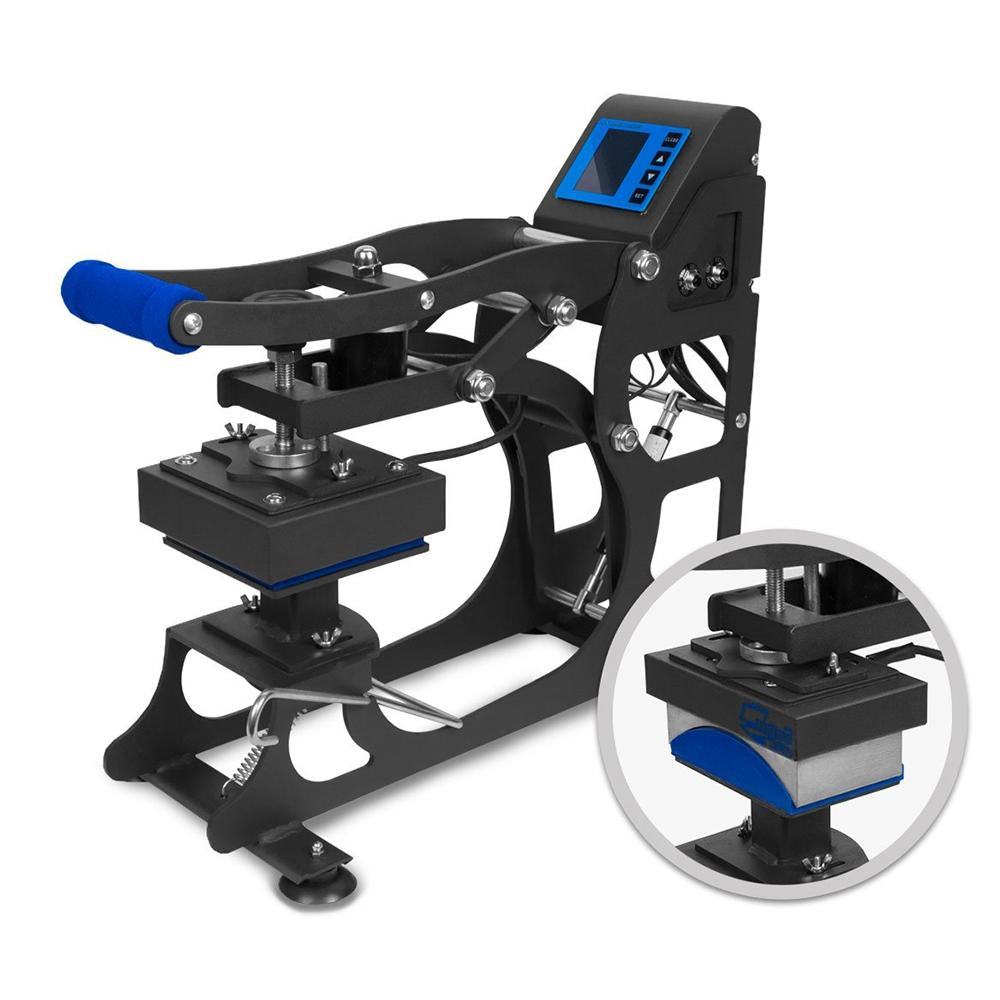

The HPN Black Series Cap & Label Combo with Auto-Open functionality is the latest addition to the critically acclaimed Black Series heat press line-up. With the cap attachment, this heat press will enable you to press hats & caps which are at an all time demand high. The included tag & label platen can be swapped in place to make it possible to brand your clothing garments in the tag area as well as make it easier to press smaller substrates like baby onesies. The Auto-Open functionality allows you to press quicker and more efficiently. This heat press will automatically open up upon completion of the digital auto start timer. You can focus on the next transfer without having to worry about over pressing. This heat press is the perfect heat press to add to your arsenal.
*Note: The lower platen of this press is no longer painted black as pictured in the product photo. Instead, it features a raw steel finish. This difference is purely cosmetic and does not change the overall functionality of this press.*
FEATURES
Upgraded Time/Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Black Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds before it reaches zero to prevent overheating of your material.

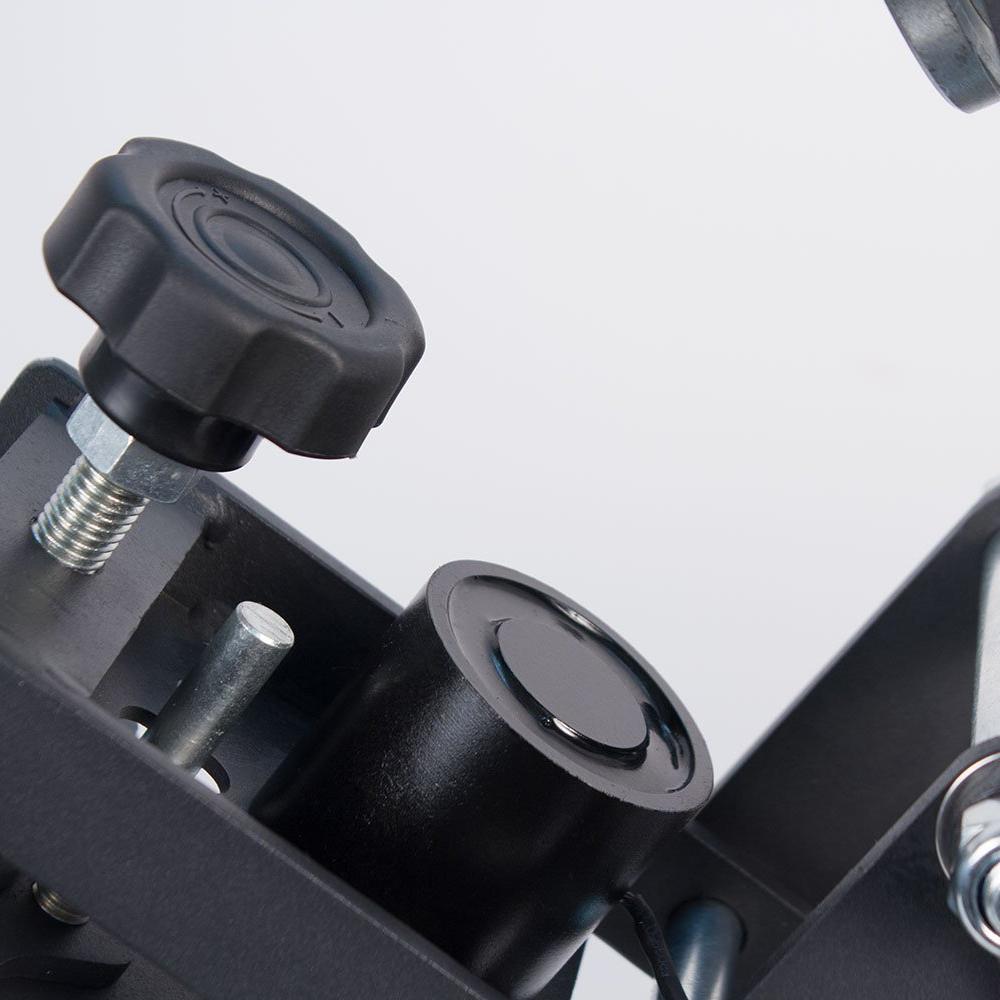

Full pressure adjustable low to high pressure clamp
Digital time and temperature gauge
Temperature gauge readable in both Fahrenheit and Celsius degree measure
Micro processor precision heat and temperature gauge with large readout
Silicon wrapped swing away bar for easy "out of the way" application
Full range heating coils for quick heat up
Adjustable timer alarm indicates completion of heat press cycle
Automatic alarm and time starts when heat press is engaged
Energy efficient electrical system
Precision heat adjustment of single degree upward or downward movement
Automatic alarm and time start when heat press is engaged
SPECIFICATIONS
Heat Press Style: Auto-Open Cap Press & Label Press
Heat Press Base Dimensions: 19" x 10" x 28" (D x W x H in open position)
Cap Heat Platen Size:3.5" X 5.5"
Lower Cap Platen Size:3.5" X 5"
Flat Heat Platen Size: 5" X 5"
Flat Lower Platen Size: 5" X 5"
Voltage:110V/60Hz
Power Rating:800W/8 Amps
Time Range:0-999s
Temperature Range:0-400°F
Shipping Weight: 41 lbs
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, all HPN Black Series heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
EXTENDED WARRANTY
Protect your investment by extending the manufacturer's parts and service warranty.
HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.
PLANS
1 Year Total Coverage - Included with purchase
2 Years Total Coverage - $49.99
3 Years Total Coverage - $79.99
4 Years Total Coverage - $99.99
Add "MyExpert Protection" when adding your product to the cart
APPLICATION RECOMMENDATIONS
Cap portions are only meant for non-structured, 100% cotton hats.
Structured hats and foam hats are able to be used as well but require additional supplies such as our vapor apparel foam kit.
The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support (A $200 Value included with your purchase). No matter where you are in your product's life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
We're here to help you with:
Technical Support
Equipment Consultations
Troubleshooting
Business Tips
& More!
Extended Warranty
Protect your investment by extending the manufacturer's parts and service warranty.
HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.
Plans
2 Years Total Coverage - $49.99
3 Years Total Coverage - $79.99
4 Years Total Coverage - $99.99
Add "MyExpert Protection" when adding your product to the cart
Temps are spot on. We use it mainly for a tag press and love it. The tone is not that loud so it can be hard to hear sometimes when the shop is in full swing. It does only beep once its opening no pre warning. Heat up times are not too bad. it does take about 10-15 mins to get a good proper full heat up. All in all its a perfect fit for our shop and will continue to use HPN for our presses. Thank you
G
Grant
Meh, it is ok.
I picked up a refurbished model and was surprised at the lack of adjustability with the lower hat platen. It also lacks a bit in the design department in this area too. Inefficient design aspects which slow production down.
I will keep it for the 5" platen is all really.
R
RICHARD BRANDANO
HPN Black Series Cap & Label Combo Auto-Open Heat Press Transfer Machine
I ordered quite a lot of Siser HTV and had an issue with one of the rolls I ordered. I called and spoke with a lady named Jerry. She was able to get my a replacement for the area that was affected. Today, there was an issue on my end and I called and spoke with a gentleman named Austin. He was able to get me the same amount of vinyl I needed for the same price and expedite it to me. They both went above and beyond and because of their customer service I will never purchase in bulk anywhere else! They were truly amazing and very helpful!
This is the first Heatpress I have ever owned. I did my first event on 8/24/2024. This unit performed superb. We did customs printing as they ordered. I am So pleased with this investment. Amazing quality and craftsmanship!
