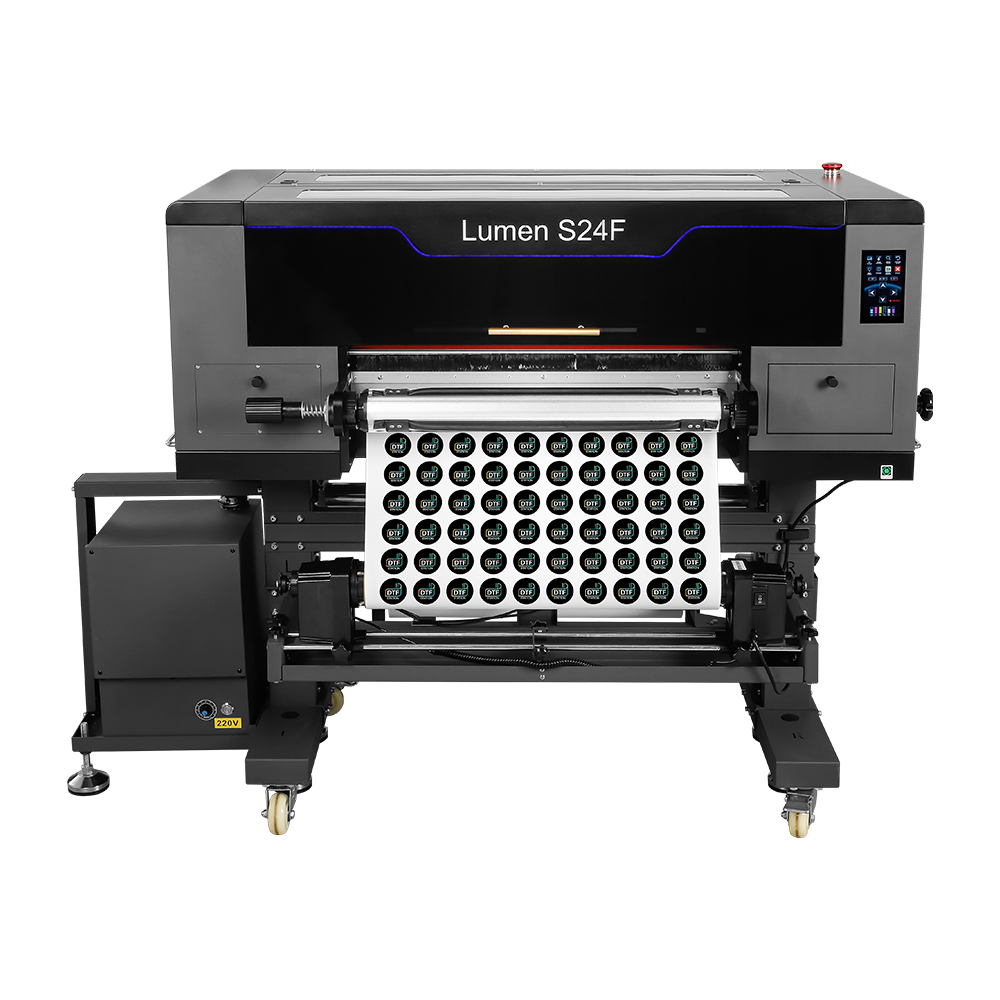

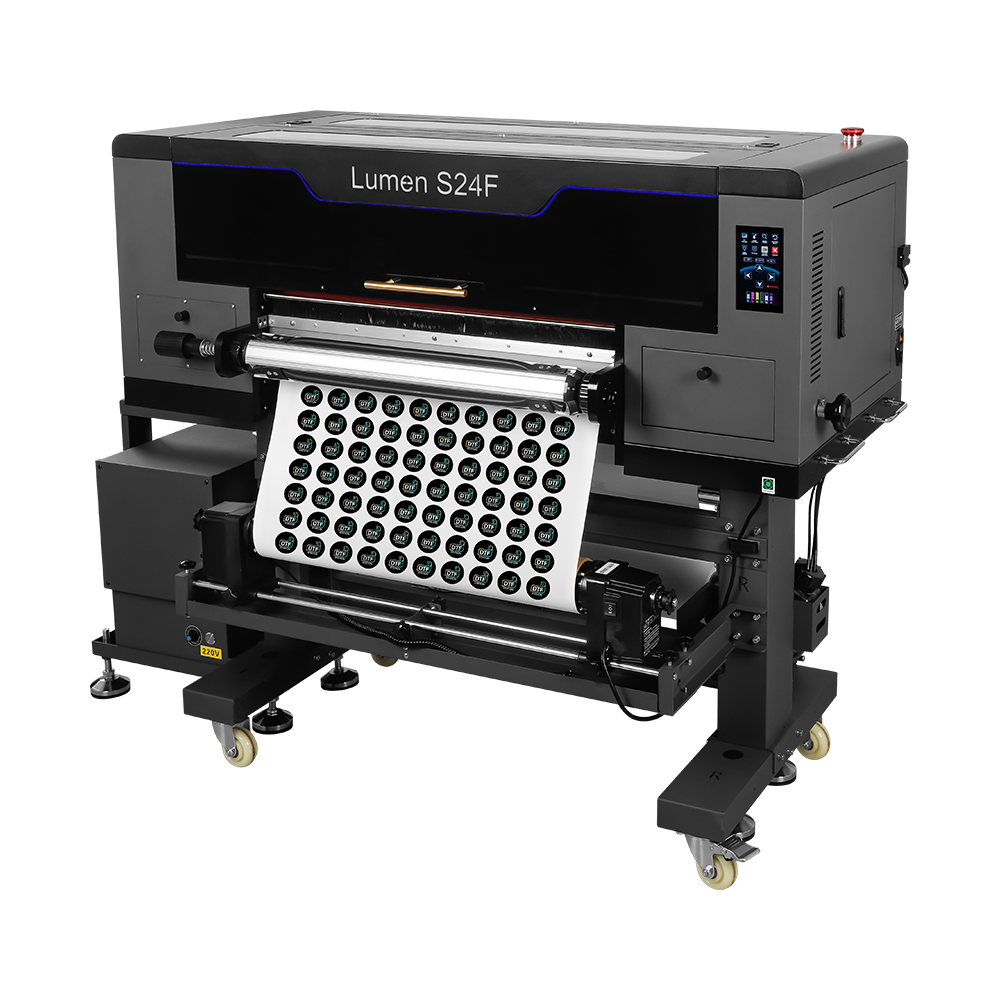

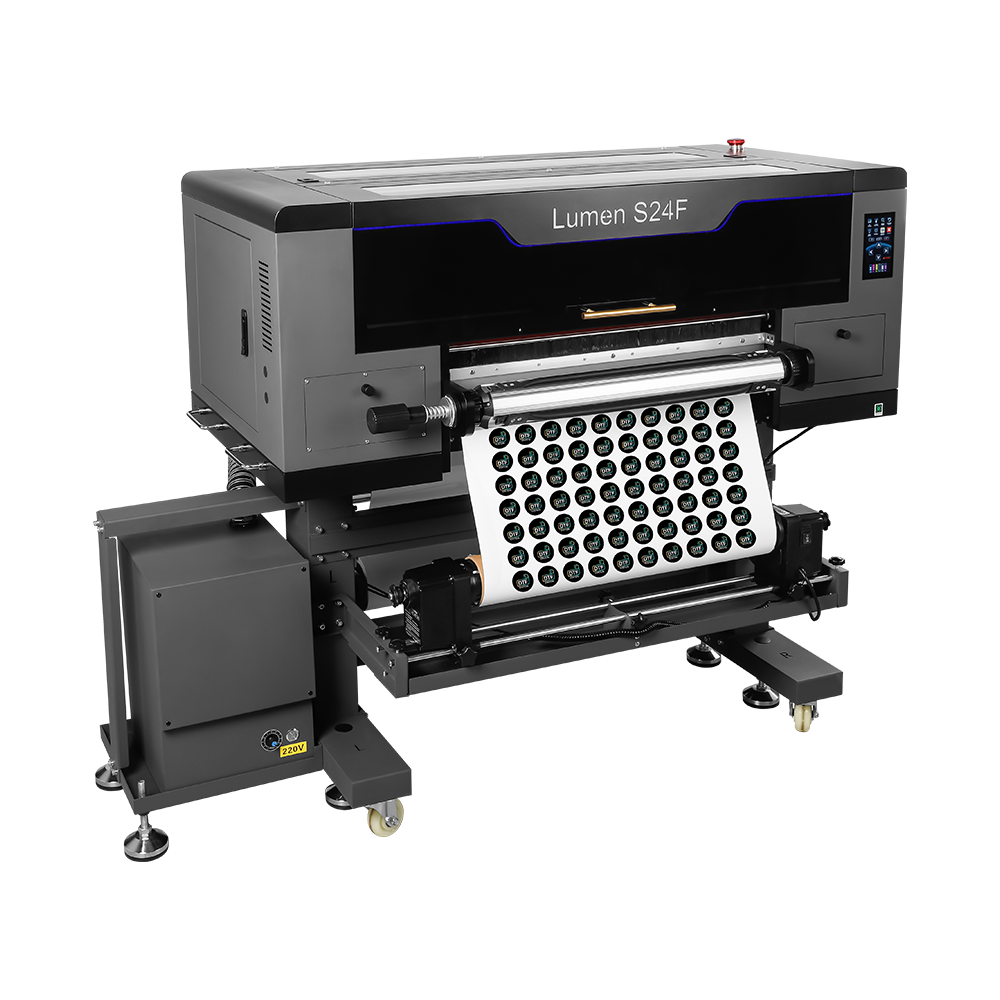

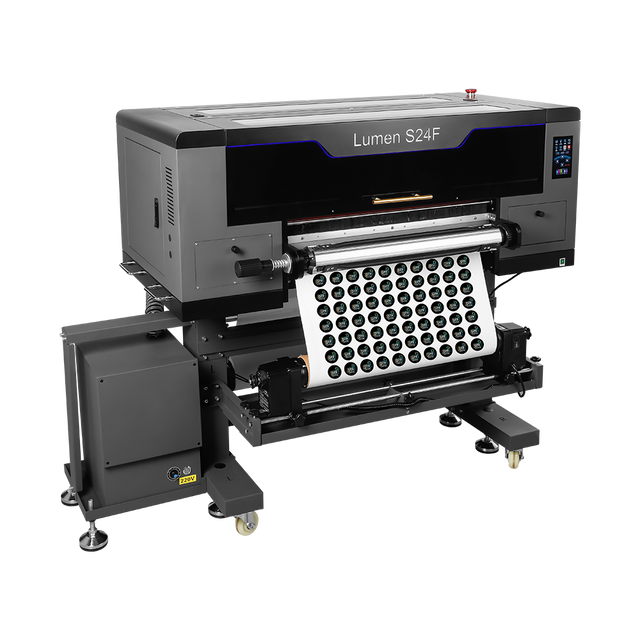

Lumen S24F 3D Embossed UV DTF Printer

Available for Pre-Order - Expected Mid December 2026

Bring a whole new dimension to custom printing with the DTF Station Lumen S24F, a 24" 3D Embossed UV DTF Printer designed to create raised, textured transfers with stunning depth and detail. Unlike traditional flat UV DTF printing, the Lumen S24F uses flexible UV inks and layered varnish effects to produce dimensional designs that resemble embroidery, patches, and other textured finishes. Ideal for decorating structured fabric accessories such as hats, tote bags, shoes, and patches, the Lumen S24F opens up new possibilities for premium custom products.

Powered by dual Epson printheads and an advanced AI-assisted design workflow, the Lumen S24F makes creating dimensional transfers easier than ever. Its Image Presto software transforms flat artwork into raised designs with 31 available relief and stitch-style effects, complete with 3D previews before printing. Featuring integrated printing and laminating, automatic white ink circulation, intelligent cleaning systems, and a built-in fume purifier, the Lumen S24F is engineered to streamline production while delivering impressive dimensional results.

Requires On-Site Training (Included):

• One Time Driving Distance within 2 hours (of Buena Park, CA, 90621) OR
• One Time Accommodations such as hotel, rental car, flight ticket
• 4-8 Training Hours Onsite
• Lifetime Virtual Training

Features:

• 3D Embossed UV DTF Printing: Create raised, textured transfers with dimensional varnish effects that add depth, gloss, and a premium finish to your designs.
• AI-Assisted Design Software: Image Presto simplifies dimensional artwork preparation with visual masking, 31 relief and stitch-style treatments, and interactive 3D previews.
• Dual Epson Printheads: Equipped with Epson i3200HD-U1 and i1600HD-U1 printheads for detailed color, white ink, and varnish printing.
• Flexible UV Ink Technology: Specialized CMYK, White, and Varnish inks designed for dimensional transfers on compatible structured fabric accessories.
• 2-in-1 Printing and Laminating: Integrated printing and lamination streamline the UV DTF production process without requiring a separate laminating machine.
• Built-In Fume Purifier: Integrated filtration helps manage fumes during operation without requiring a separate extraction unit.
• Intuitive Touchscreen Controls: A single integrated touchscreen simplifies machine operation and monitoring.
• Advanced Sensors:
  • Head Strike Sensor: Helps protect the printheads from potential media collisions.
  • Auto Ink Alert System: Notifies operators when ink levels are running low.
  • Film Sensor: Detects media availability to help prevent printing errors.
  • Cover Safety Sensor: Monitors the machine's protective cover.
  • Static Control: Helps minimize static interference during printing.
• Advanced Maintenance Features:
  • White Ink Circulation: Keeps white ink moving throughout the system to help maintain consistency.
  • Automatic Printhead Cleaning: Reduces manual maintenance requirements and helps prevent clogs.
• 24" Printing Width: Accommodates larger artwork and multiple designs for efficient transfer production.

Benefits:

• Premium Dimensional Transfers: Create raised, glossy designs with unique textures that stand out from traditional flat printing.
• Embroidery-Inspired Effects: Produce stitch-style textures and dimensional patch designs without traditional embroidery equipment. Embroidery-style effects are subject to software compatibility and development status.
• Streamlined Artwork Preparation: Image Presto makes it easier to transform existing artwork into dimensional designs, reducing the need to manually create complex white and varnish layers.
• Expanded Customization Opportunities: Offer premium textured designs for compatible hats, patches, tote bags, footwear, and other structured accessories.
• Integrated Production Workflow: Combine printing and laminating in one system to simplify production and eliminate the need for separate laminating equipment.
• Reduced Maintenance Demands: Automatic cleaning, white ink circulation, and intelligent sensors help maintain consistent performance and minimize interruptions.
• Built-In Fume Management: Integrated filtration reduces the need for additional external extraction equipment while supporting a cleaner production environment.

What's Included:

• DTF Station Lumen S24F 3D Embossed UV DTF Printer
• neoStampa RIP Software
• Image Presto 3D Design Software
• On-Site Training

Not Included, but Also Needed:

• Compatible 3D Embossed UV DTF Inks - Cyan, Magenta, Yellow, Black, White, and Varnish
• Compatible 3D Embossed UV DTF Transfer Film
• Compatible Cleaning and Maintenance Solutions
• Computer Compatible with Required Software
• Heat Press for Applying Transfers to Compatible Fabric Accessories
• Properly Ventilated Commercial Workspace

Applications:

• Custom Patches: Produce raised, dimensional designs with embossed finishes and textured details for decorative and branded patches.
• Hats and Headwear: Create premium-looking logos, raised graphics, and embroidery-inspired designs for compatible structured caps and headwear.
• Tote Bags: Add dimensional branding, textured artwork, and glossy accents to compatible fabric bags.
• Shoes and Footwear: Customize suitable footwear materials with raised logos, decorative patterns, and specialty textured designs.
• Can Coolers: Personalize compatible fabric can coolers with raised graphics and dimensional designs.
• Structured Fabric Accessories: Expand your product offerings with customized fabric goods that can accommodate dimensional UV DTF transfers.

PLEASE NOTE: The Lumen S24F is intended for selected structured fabric products and accessories. It is not recommended for standard T-shirt production. Always verify material compatibility and test application settings before production.

Compatible With:

• DTF Station Approved 3D Embossed UV DTF Inks, Film, and Maintenance Supplies
• Image Presto 3D Design Software
• neoStampa RIP Software

Printer Specifications:

• Printing Technology: 3D Embossed UV DTF
• Maximum Print Width: 24" (60 cm)
• Printheads: (1) Epson i3200HD-U1 + (1) Epson i1600HD-U1
• Ink Configuration: CMYK + White + Varnish
• Print Resolution: 720 x 1200 dpi
• Printing Speed: Approximately 5.4 sq. ft. / hour (0.5 m² / hour)
• Software: Image Presto, neoStampa RIP, DTF Station Pilot
• Ink Management: Automatic White Ink Circulation
• Printhead Maintenance: Automatic Cleaning
• Safety Sensors: Head Strike, Cover Safety, Film Detection, Ink Alerts
• Static Control: Included
• Fume Extraction: Built-In Purifier
• User Interface: Integrated Touchscreen
• Connectivity: Ethernet, USB, Wi-Fi Available
• Dimensions (W x D x H): 61.7" x 35.6" x 46.4"
• Weight: 368 lbs
• Power Requirements: 1,000W / 110V / 9.1A or 220V / 4.55A
• Recommended Installation Space: 101.1" x 75"
• Recommended Operating Space: 138" x 114.4"
• Suggested Transfer Settings: 284-302°F (140-150°C), 10-15 seconds, 50-65 PSI (Medium Pressure). Adjust according to material and application requirements.

WARNING: Operate UV DTF equipment in a properly ventilated commercial environment and follow all manufacturer safety guidelines. UV inks, varnishes, and cleaning chemicals may present health hazards if improperly handled. Avoid direct skin and eye contact with uncured inks and cleaning solutions, and use appropriate personal protective equipment when handling chemicals and performing maintenance. Although the Lumen S24F includes a built-in fume purifier, adequate room ventilation is still recommended. Follow all applicable safety data sheets and manufacturer instructions for safe operation, handling, and disposal.

IMPORTANT MAINTENANCE INFORMATION: UV DTF printers require regular operation and maintenance to maintain consistent print quality and prevent ink system and printhead issues. The Lumen S24F features automatic white ink circulation and printhead cleaning to help reduce maintenance demands. Operators must still perform routine inspections, nozzle checks, cleaning, and other manufacturer-recommended maintenance procedures. Always follow the manufacturer’s maintenance and shutdown instructions.
