Lotus LTS 470 / 480 / 500 / 500 C Large-Format Semi-Automatic Heat Press Series

The Lotus LTS 470 / 480 / 500 / 500 C Large-Format Semi-Automatic Heat Press Series is designed for professional decorators who need substantially more pressing area for oversized textiles, sublimation graphics, sportswear, workwear, technical textiles, and other large-format applications. Available in three transfer-area formats and an optional slide-out configuration, the series lets you choose the machine that best matches your production requirements.

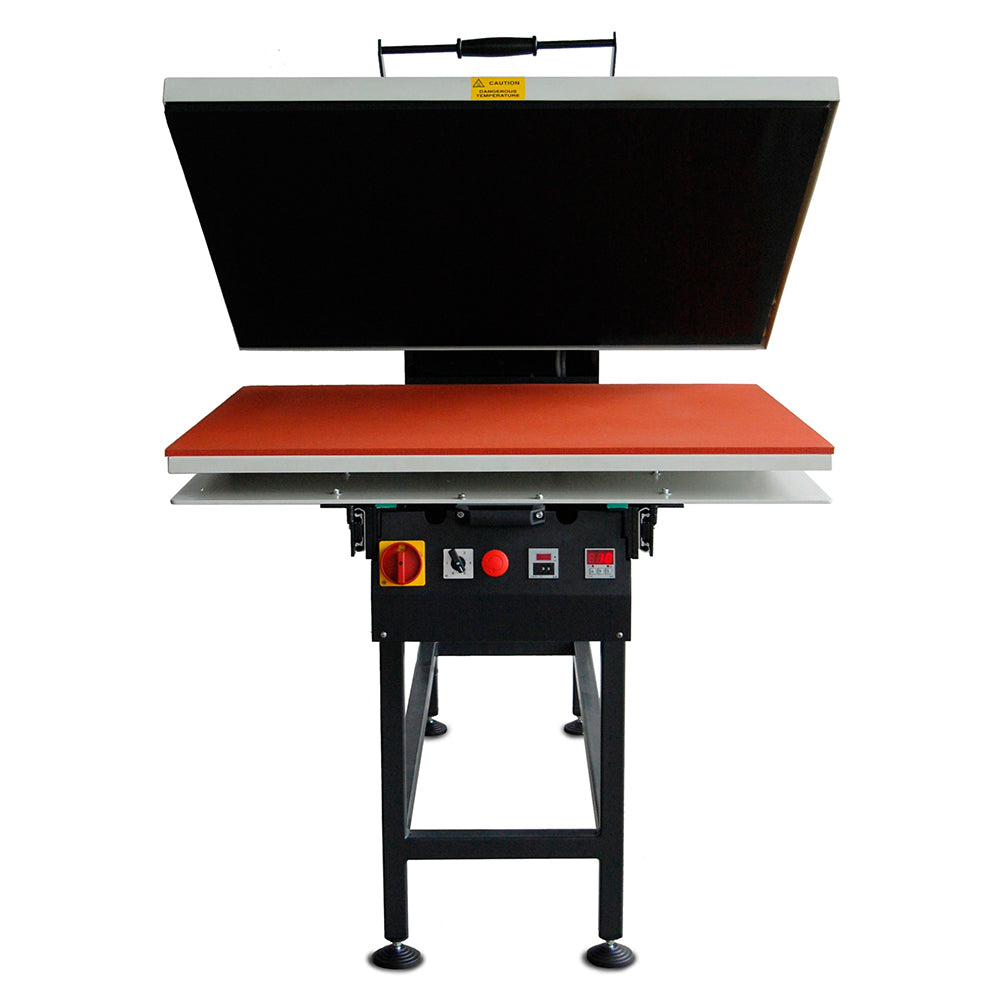

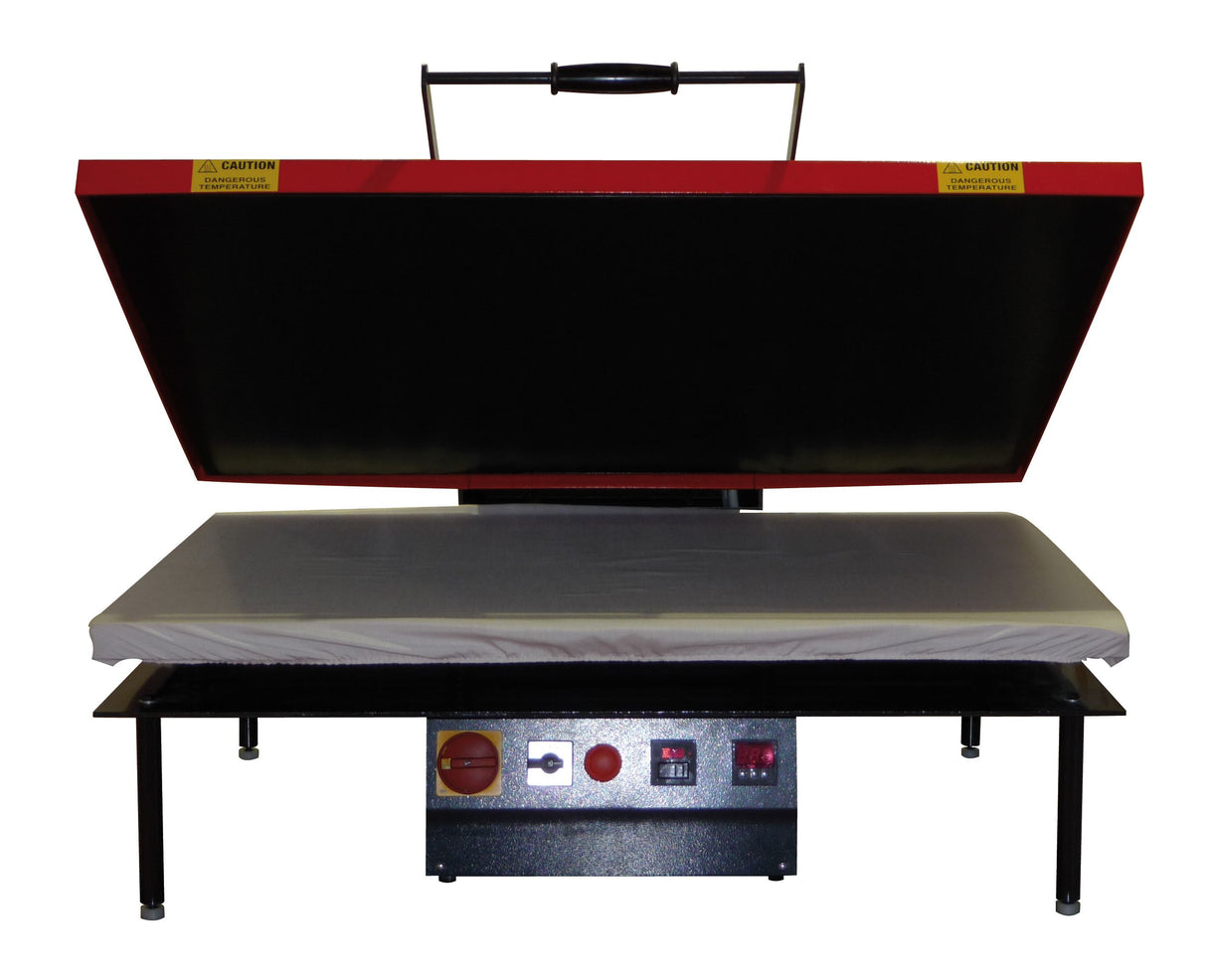

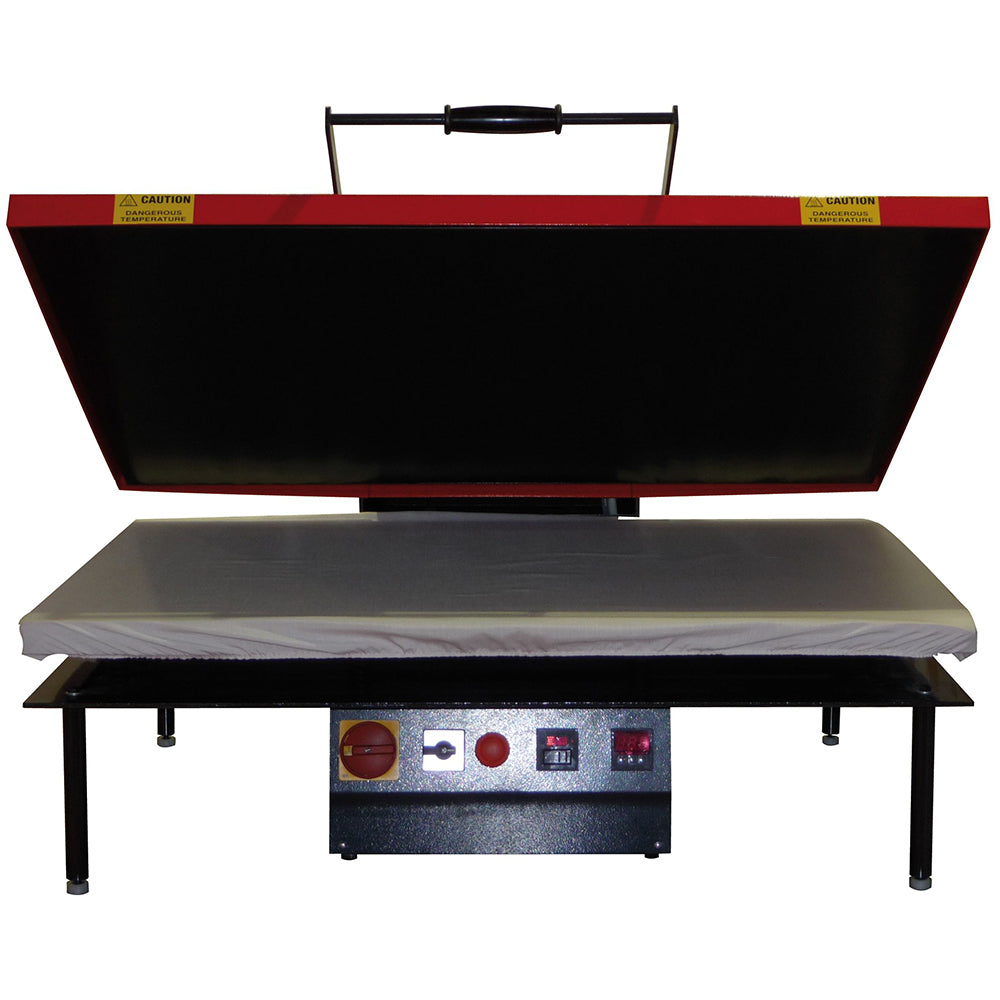

The LTS 470 provides a 90 x 50 cm transfer area, the wider LTS 480 expands to 120 x 50 cm, and the LTS 500 provides a deeper 100 x 70 cm workspace. The LTS 500 C uses the same 100 x 70 cm transfer area as the LTS 500 but adds an extractable lower platen for easier loading, alignment, and unloading of large textiles and transfers.

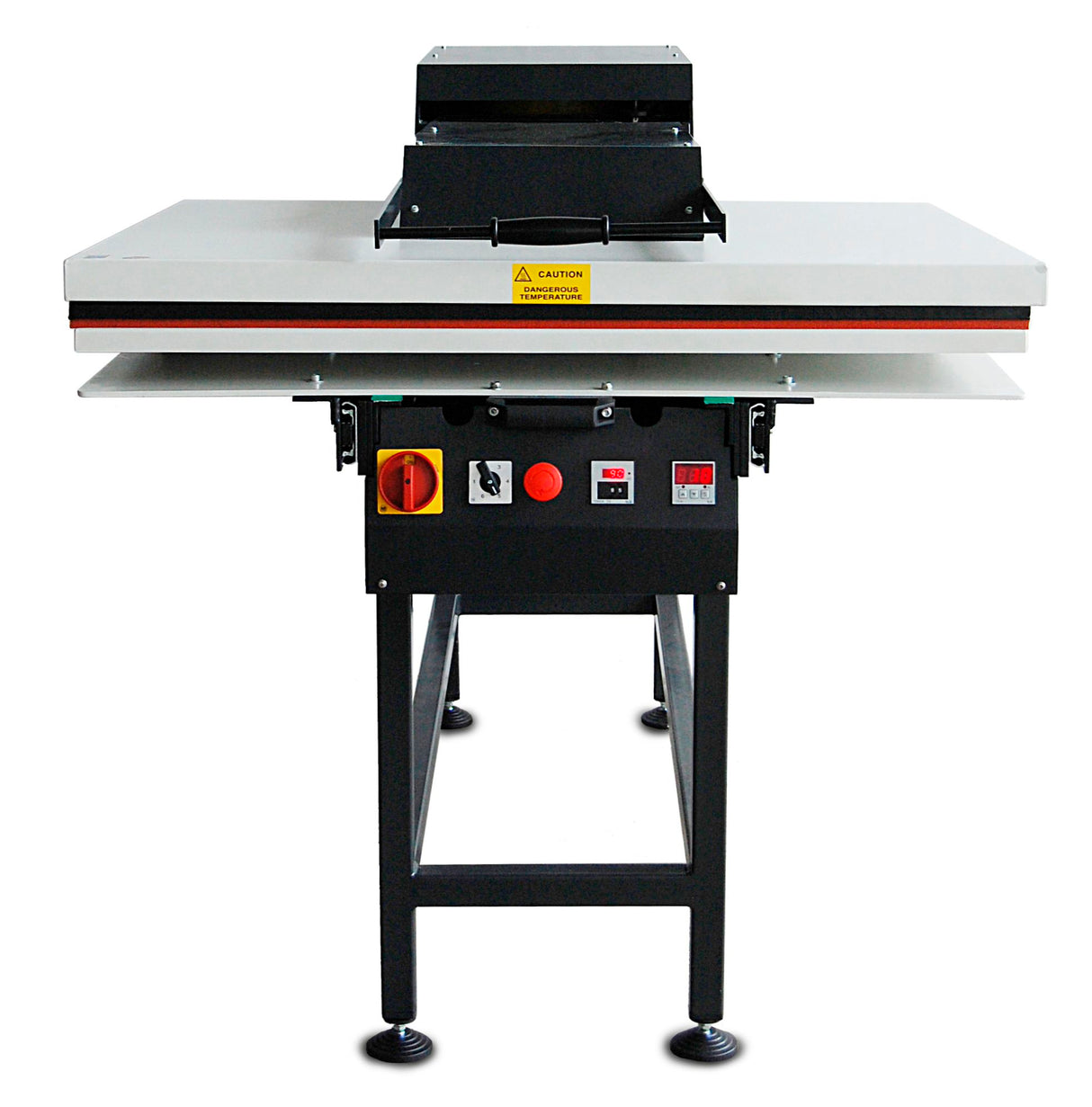

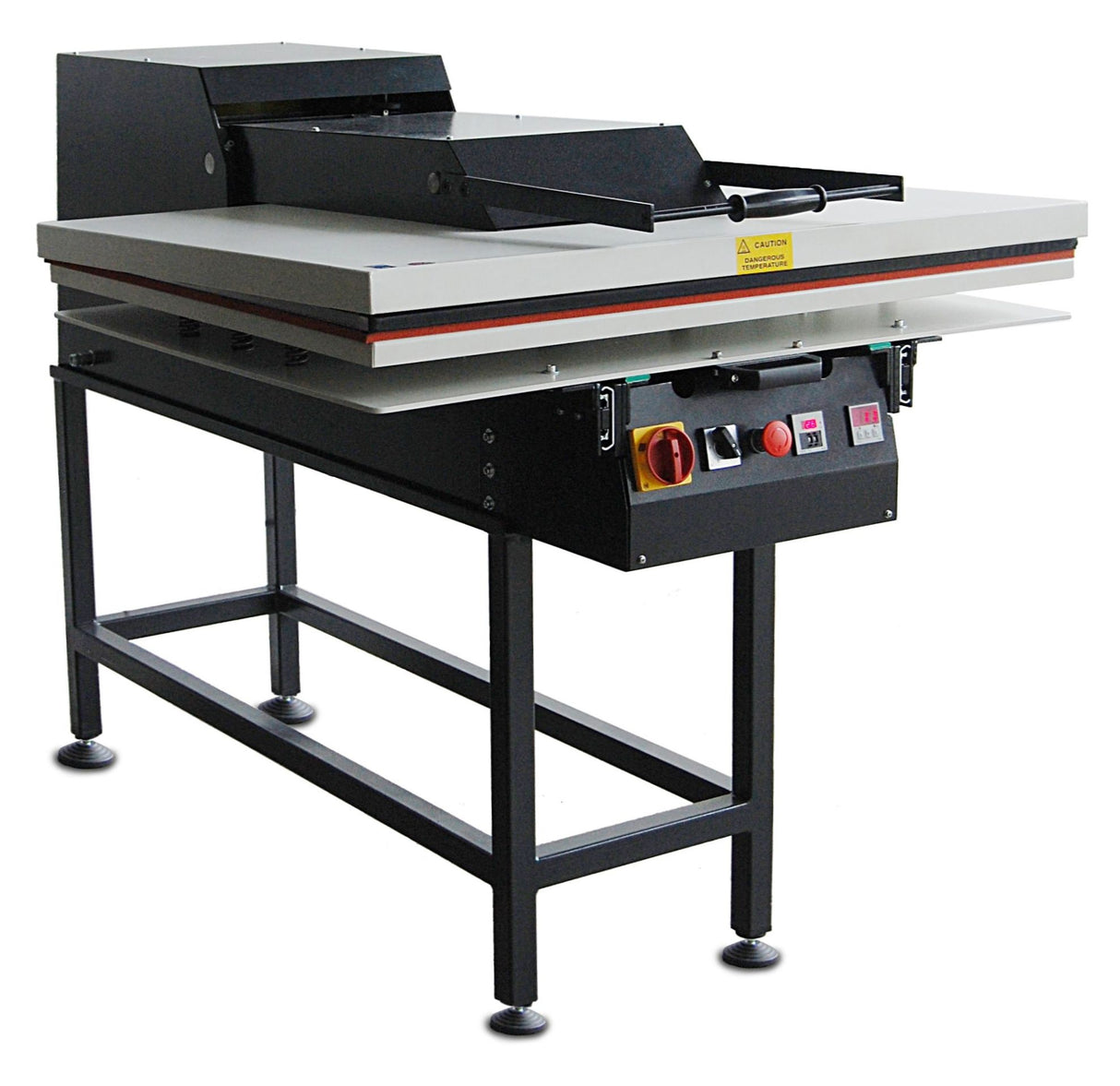

All four models use a semi-automatic electromagnetic locking system. The operator manually lowers the heating platen using the smooth-running handle, after which the electromagnet holds the press securely closed and under pressure for the programmed transfer cycle. When the timer reaches zero, the platen automatically unlocks and opens, reducing repetitive operator effort and helping prevent over-pressing.

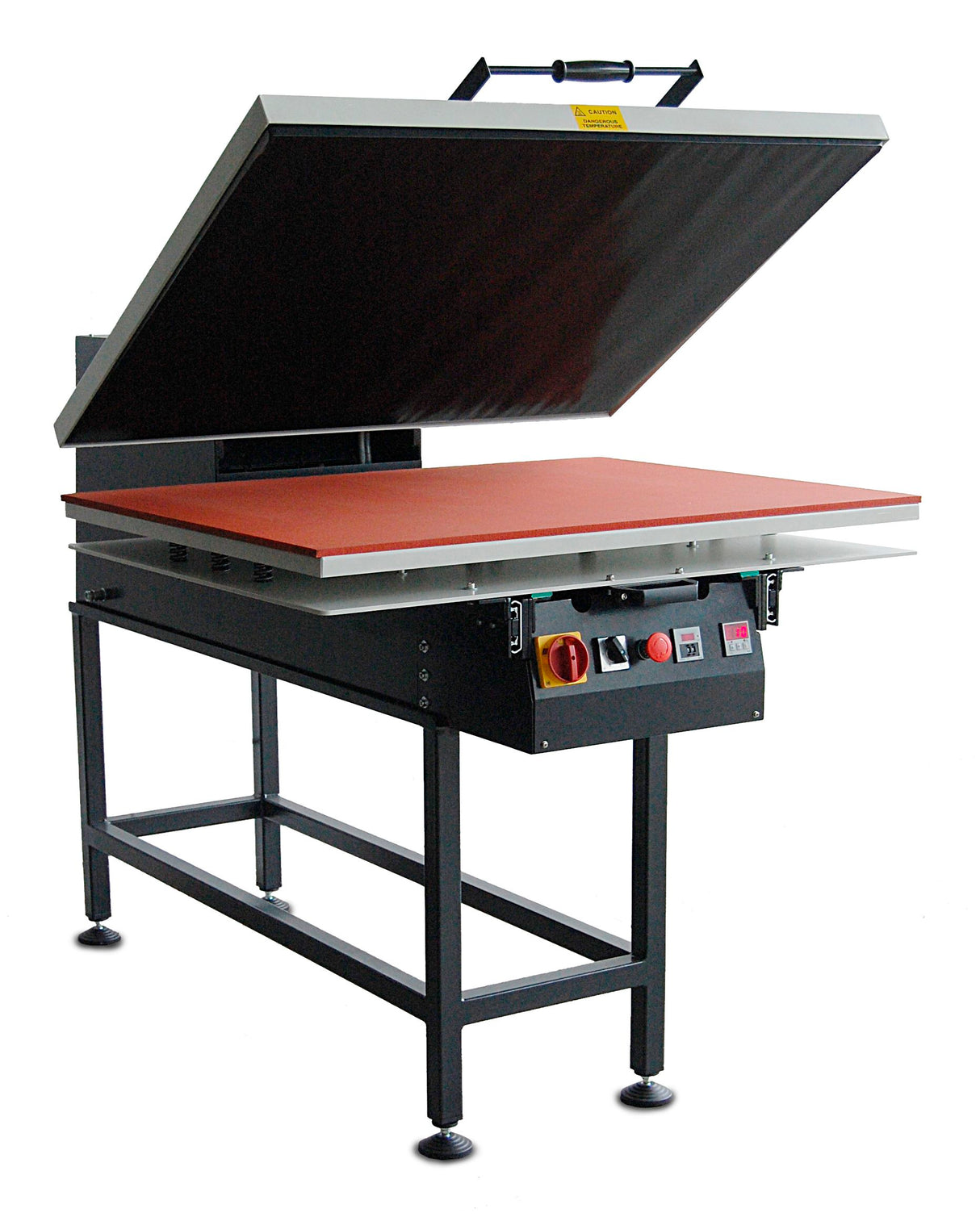

The large lower platen features a silicone surface with a heat-resistant Nomex® cover, while the heating platen uses a protective Teflon covering. This combination provides a professional work surface for large textile and sublimation applications while helping protect both the press and the materials being decorated.

Lotus's Mikanit 2.0 heating technology provides fast warm-up and even, stable temperature distribution across the oversized heating surface. Individual heating elements can also be serviced separately when required, helping extend the useful life of the heating system.

Digital time and temperature controls provide straightforward adjustment and monitoring throughout production, while continuously adjustable pressure allows the operator to fine-tune the press for different textiles and transfer materials. An automatic Eco Mode activates after 30 minutes of inactivity to place the machine into an energy-saving standby state.

Choose Your Model

Key Features

• Large-format pressing areas – Choose from 90 x 50 cm, 120 x 50 cm, or 100 x 70 cm transfer surfaces
• Semi-automatic electromagnetic operation – Locks the heating platen under pressure after manual closing
• Automatic opening – Heating platen automatically unlocks and opens when the timed cycle is complete

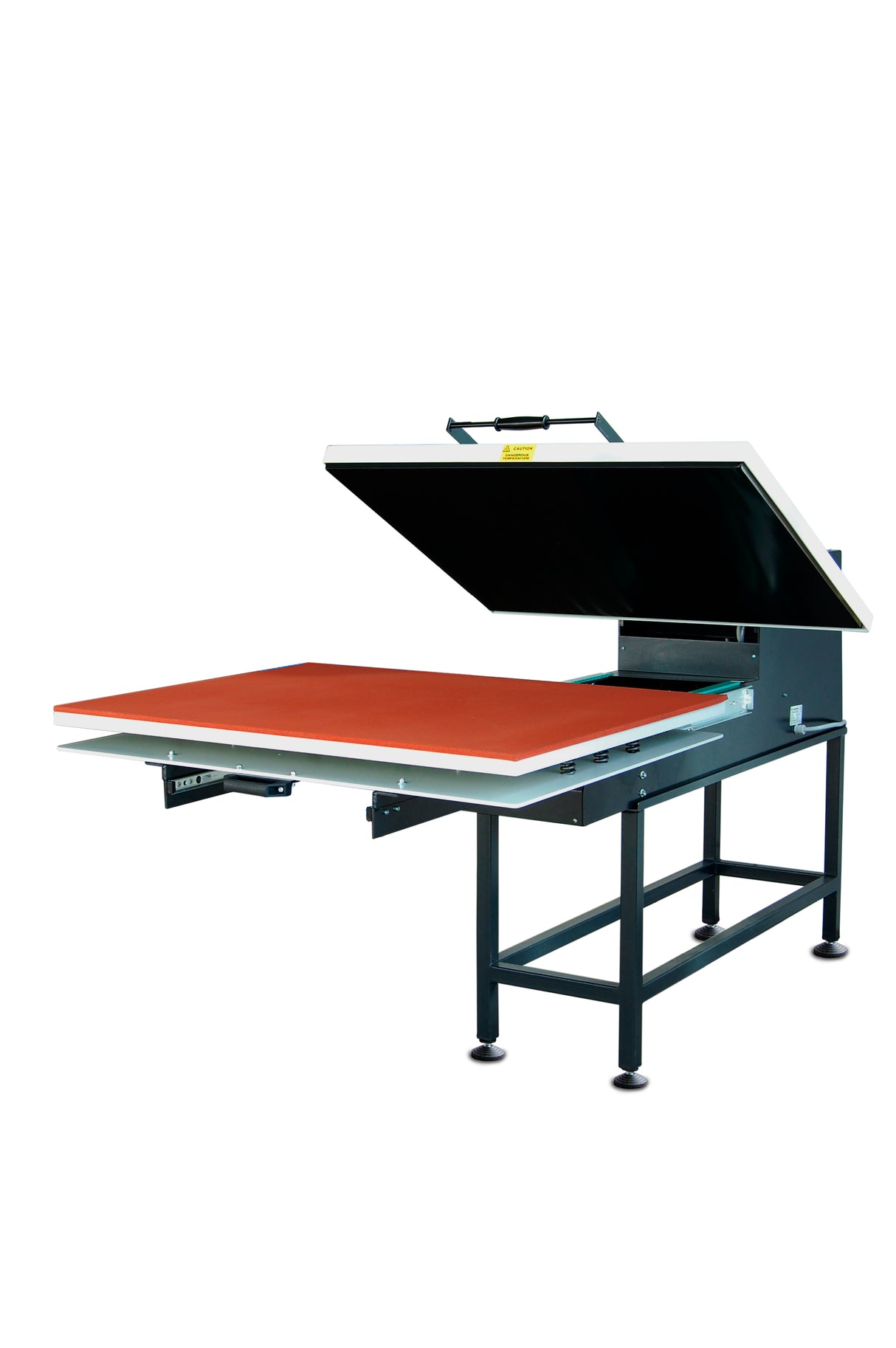

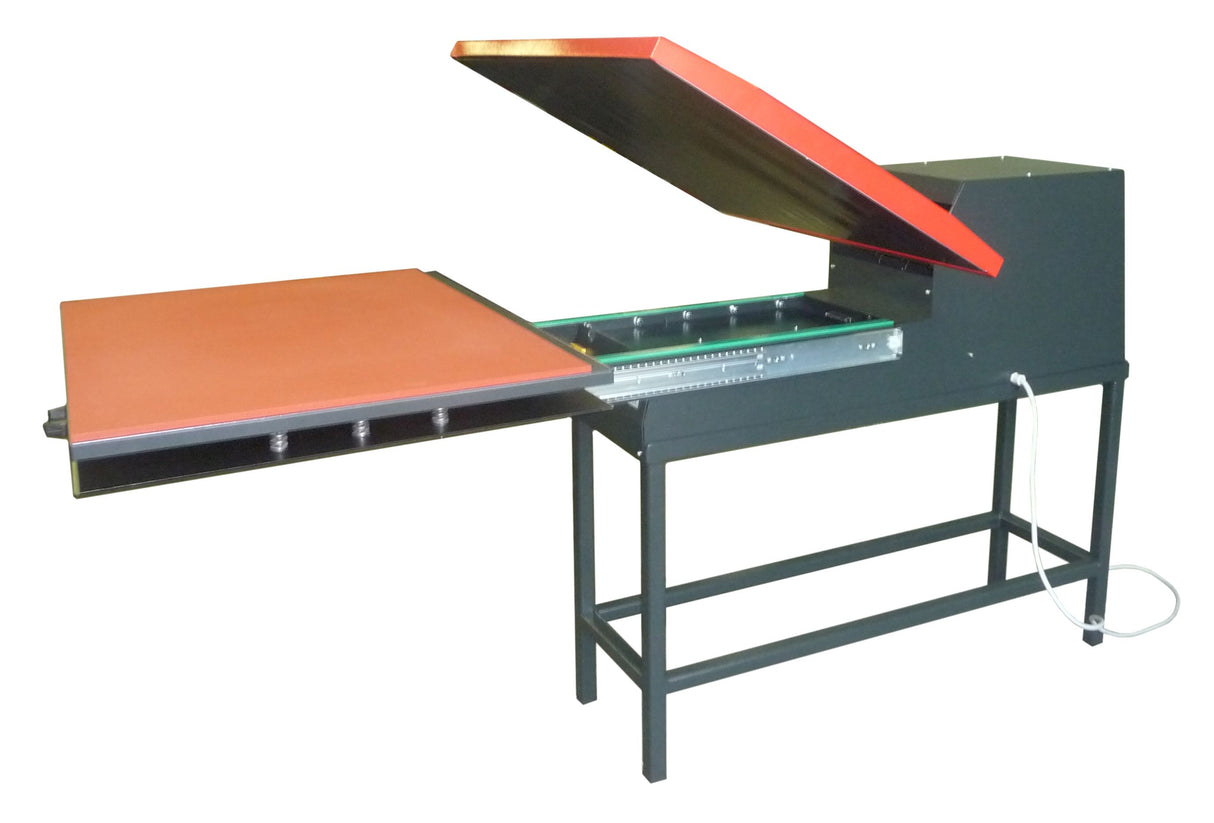

• LTS 500 C slide-out platen – Extractable lower work surface provides easier access for loading and alignment
• Continuously adjustable pressure – Fine-tune pressing force for different textiles, substrates, and transfer materials
• Digital time and temperature controls – Provides clear setup and monitoring of transfer parameters
• Acoustic and visual cycle alerts – Clearly indicate when the heating platen is automatically released
• Silicone lower-platen surface – Provides a professional pressing surface for large textiles and transfers
• Heat-resistant Nomex® cover – Protects the lower platen during production
• Teflon-covered heating platen – Helps protect the heating surface and transfer materials
• Mikanit 2.0 heating technology – Designed for fast heating and even, stable temperature distribution
• Serviceable heating elements – Individual heating rods can be replaced separately when required
• Automatic Eco Mode – Activates after 30 minutes of inactivity to reduce energy consumption
• 2-year heat press warranty
• 10-year heating system warranty

Applications

• Large-Format Heat Transfers
• Heat Transfer Vinyl / Flex
• Flock Transfers
• Screen Print Transfers
• Large-Format Textile Sublimation
• Oversized Apparel Graphics
• Sportswear
• Workwear and Uniforms
• Fashion and Textile Products
• Technical Textiles
• Lamination
• Thermal Fixation
• Large Sublimation Media

Specifications

Electrical requirements vary by model. Verify the selected model's voltage and facility requirements before installation.
