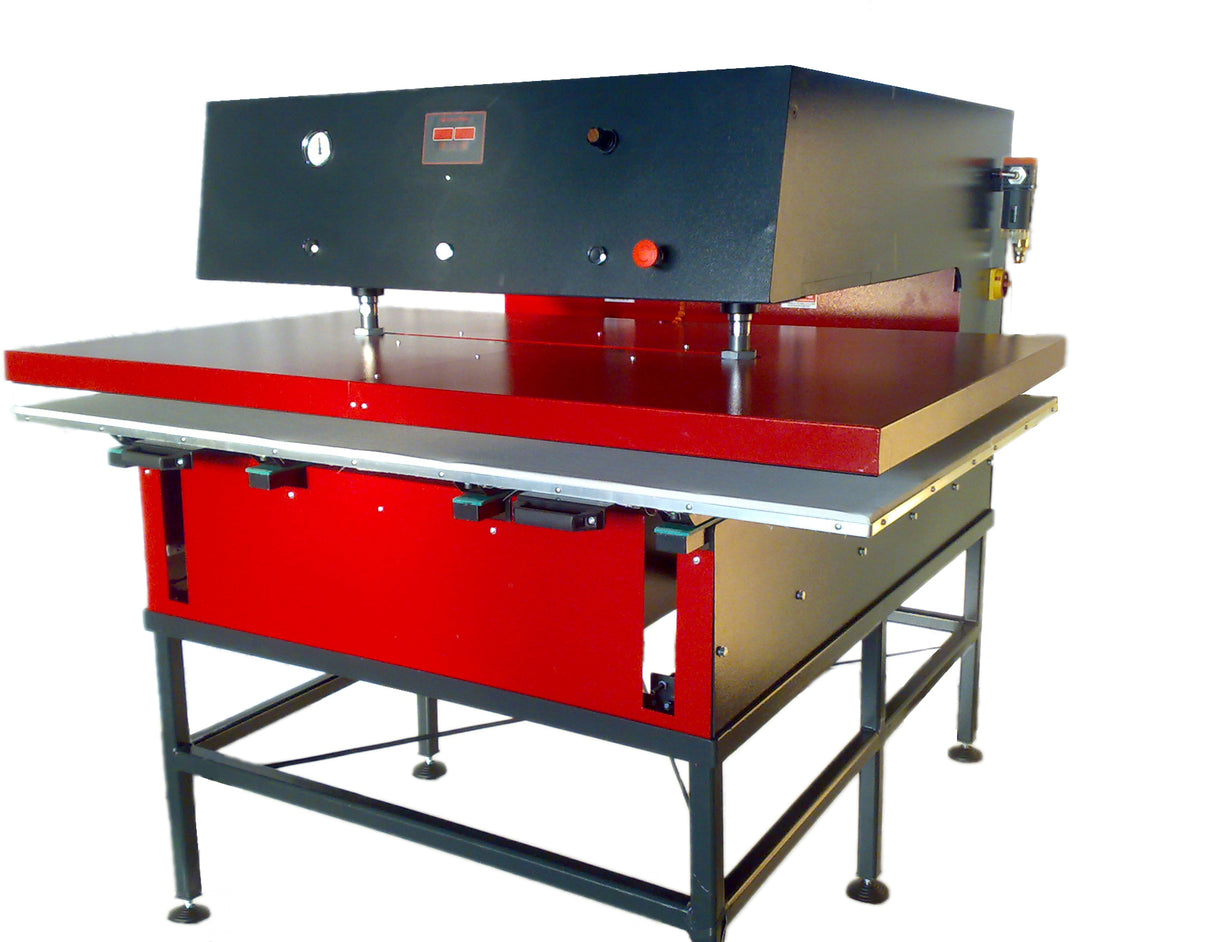

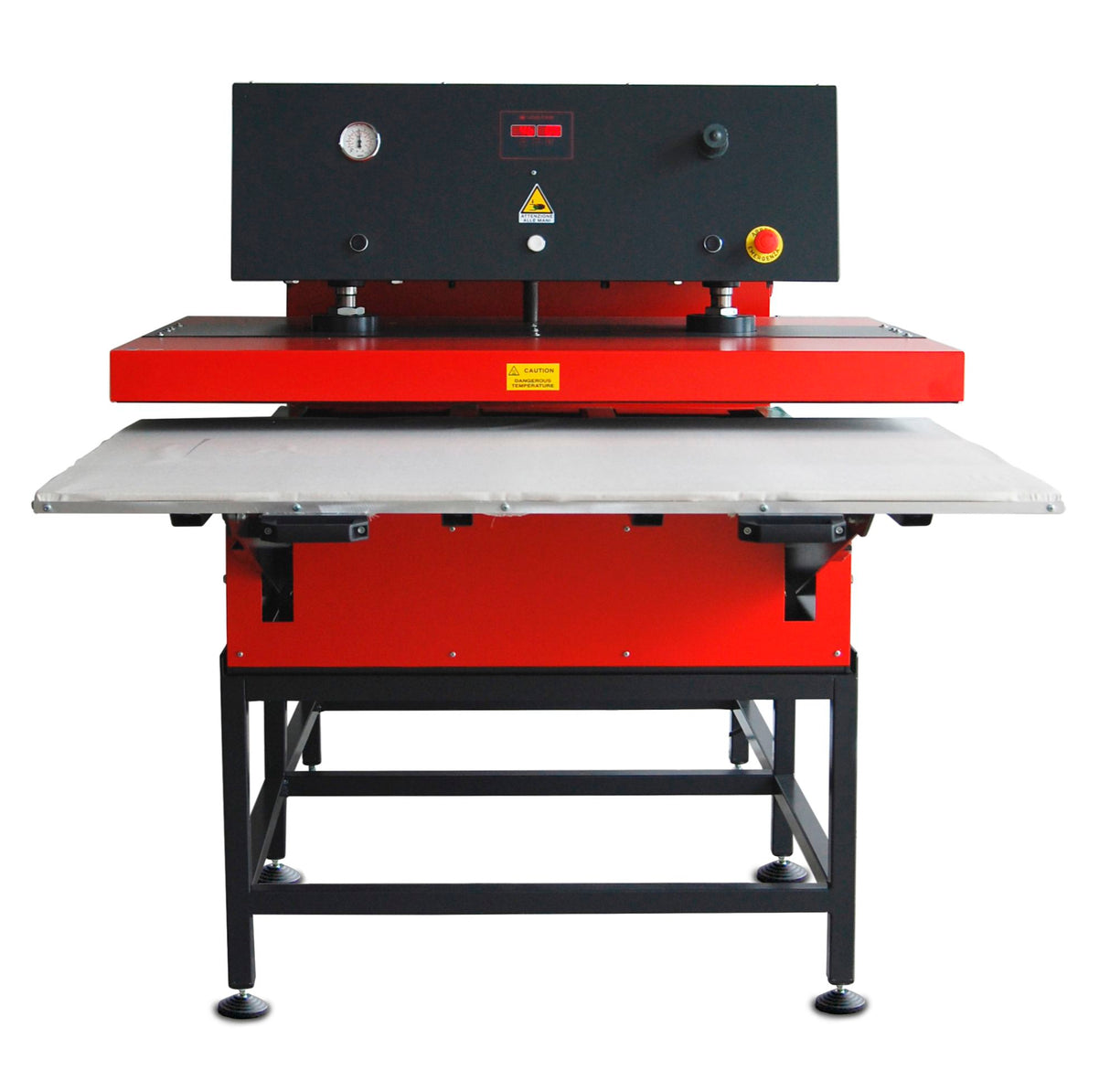

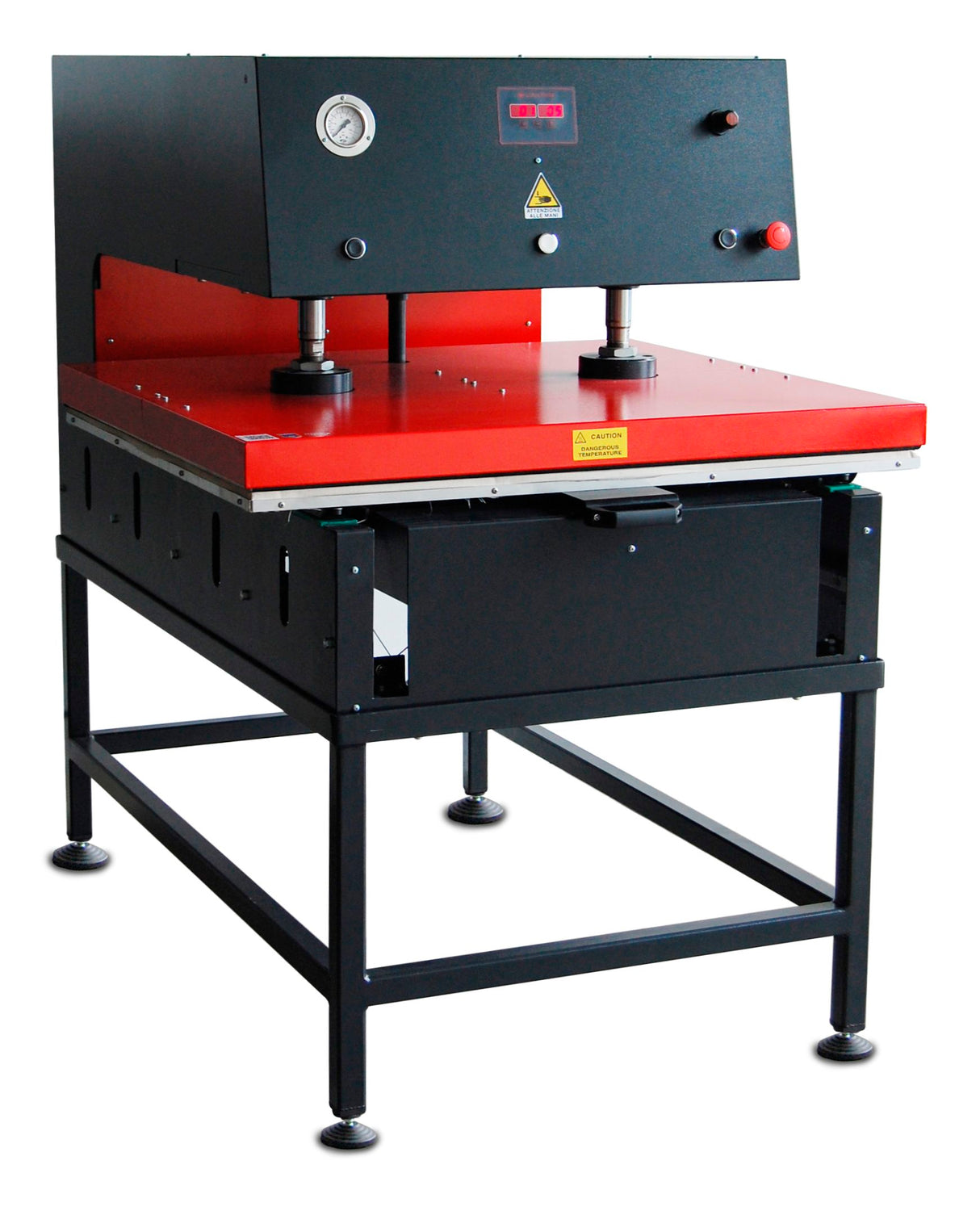

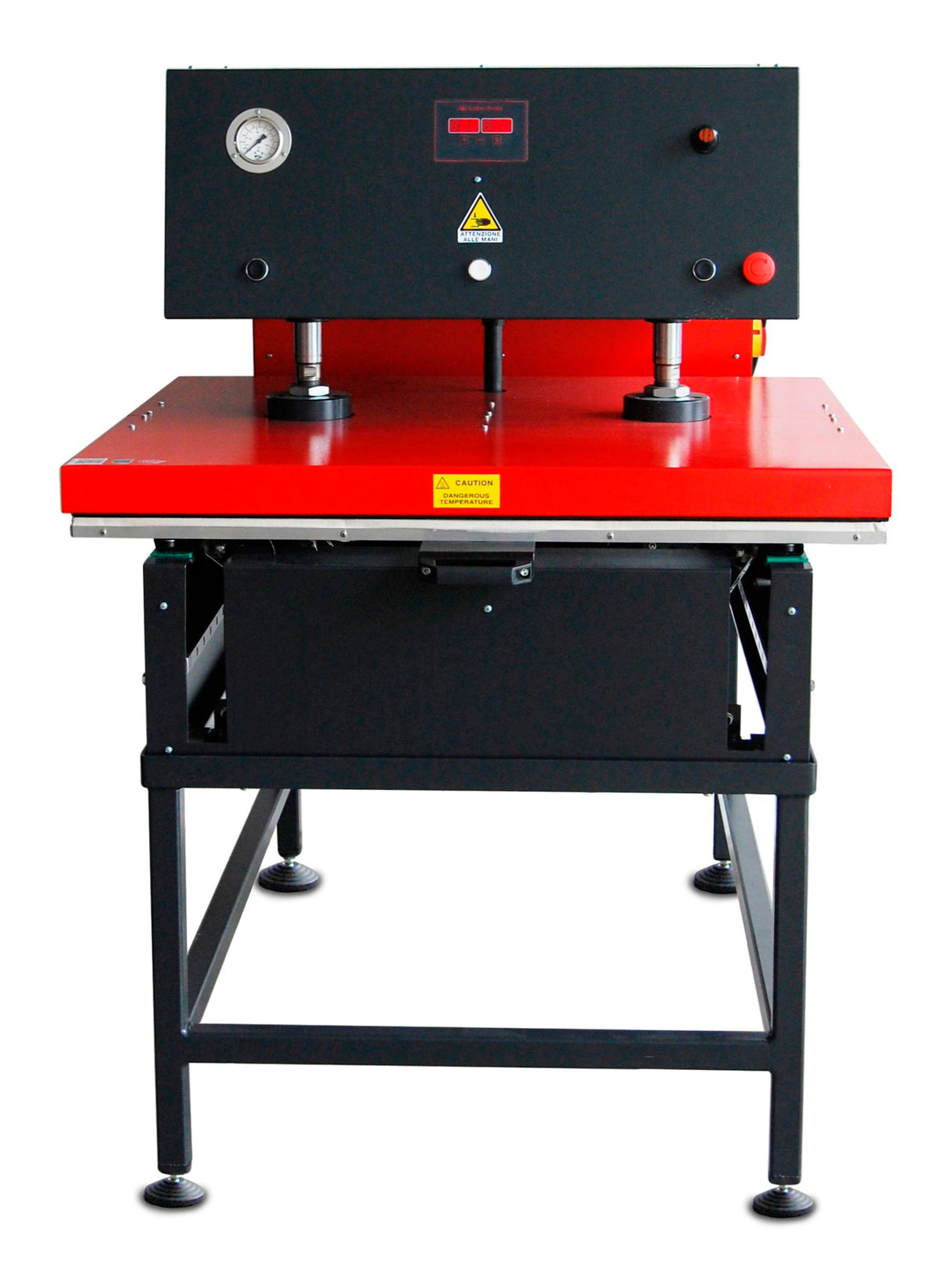

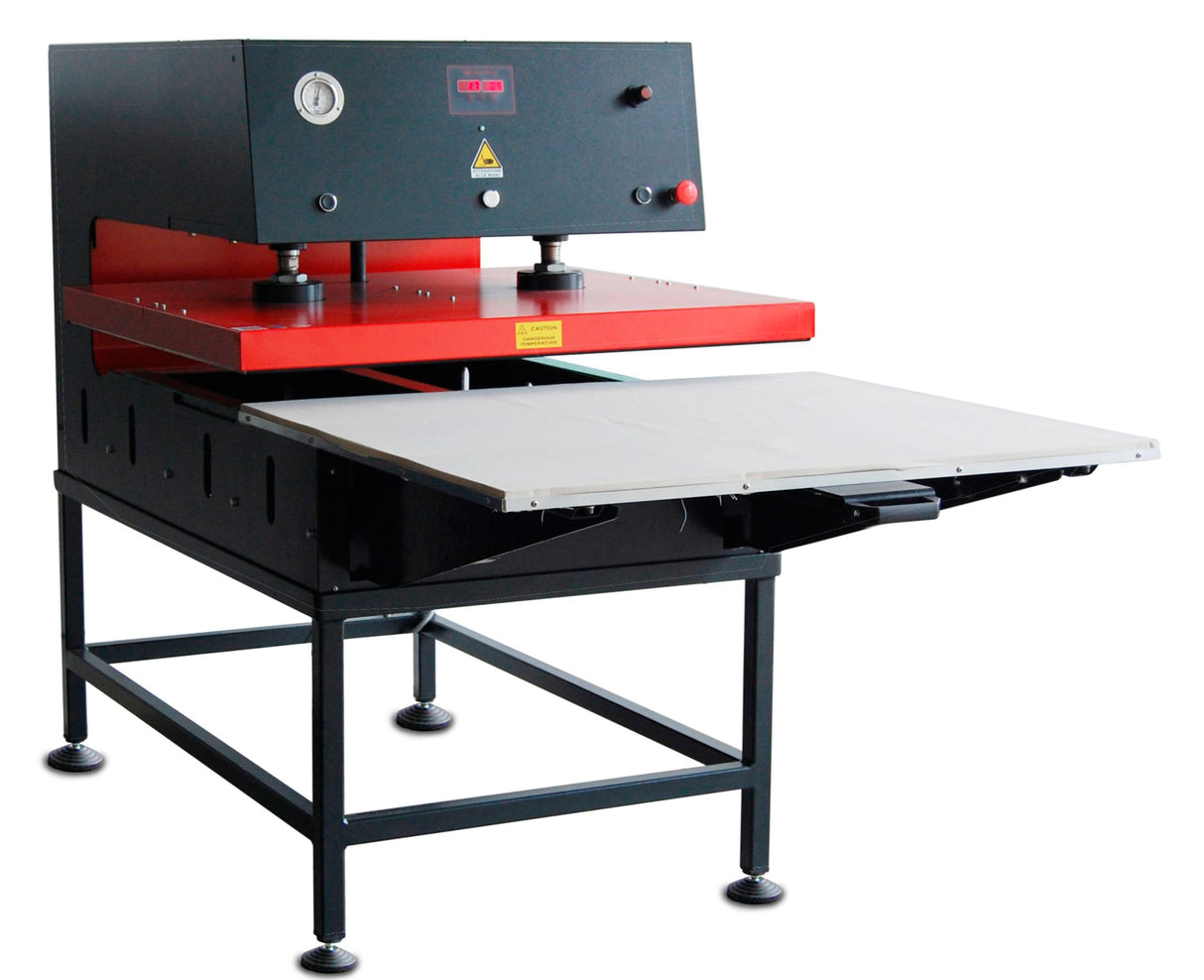

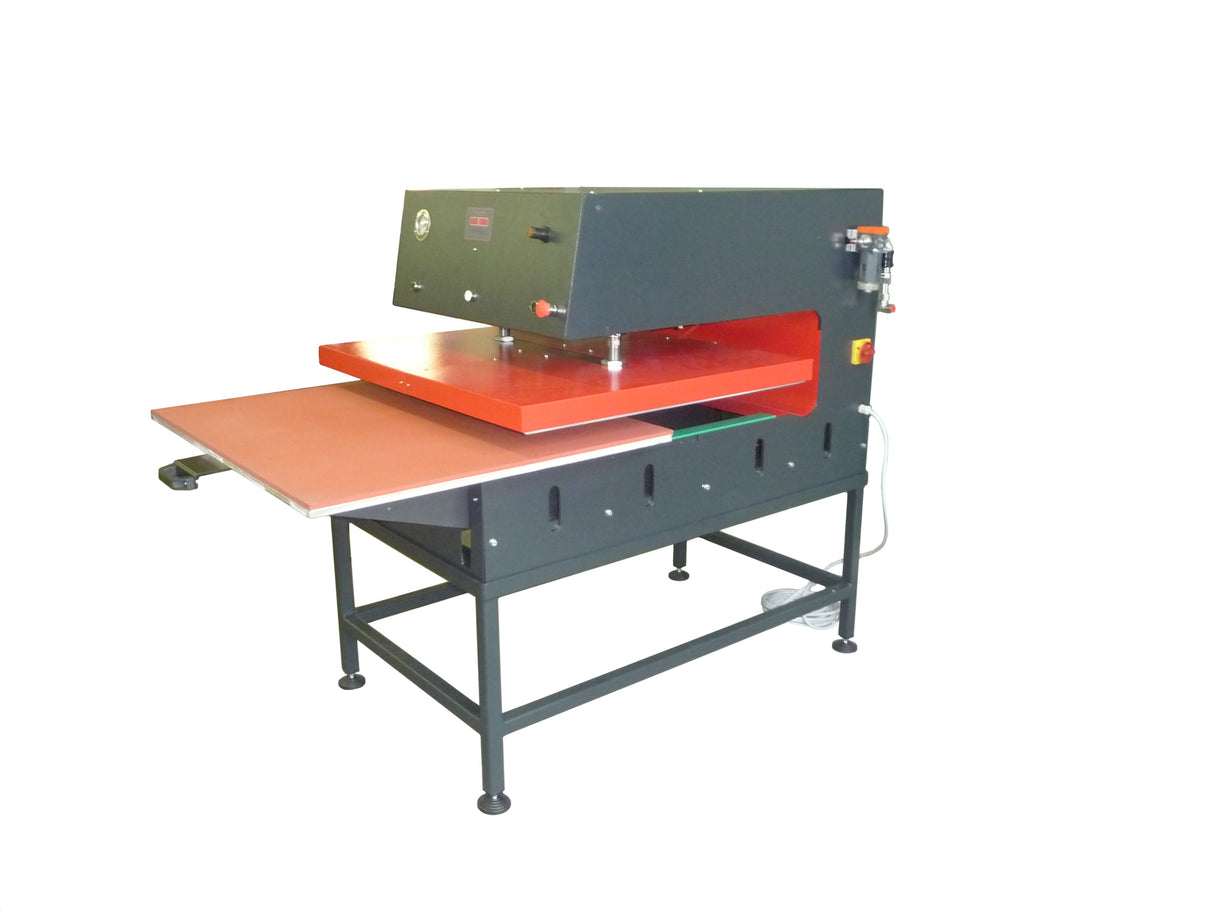

Lotus LTS 609 / 630 / 640 / 660 / 690 Large Format Heat Press

Introducing the Lotus LTS 609 / 630 / 640 / 660 / 690 Large Format Heat Press! Designed for XXL heat transfer and sublimation applications, this large-format series is built for oversized textiles, hard substrates, ChromaLuxe panels, technical textiles, and other production applications that require a large pressing surface, high contact pressure, and consistent temperature.

The Lotus LTS Large Format Series features pneumatic efficiency with automatic operation. At the push of a button, the heating plate lowers, locks, and keeps the item under pressure. After the countdown reaches zero, the heating plate automatically lifts, helping create a safer and more efficient production workflow.

These machines feature an extractable printing plate for comfortable positioning of textiles, sublimation media, and print motifs. On request, select models can also be supplied with an additional lower heating plate for specialty production needs.

Built with Lotus' Mikanit 2.0 heating technology, this series delivers fast heating, even temperature distribution, and consistent transfer performance across large-format applications.

FEATURES

• Large-format pneumatic heat press series for XXL transfer and sublimation applications
• Available in 100 x 90 cm, 130 x 90 cm, 130 x 100 cm, 160 x 90 cm, and 160 x 100 cm transfer areas
• Ideal for sublimation on large-format textiles and hard substrates, including ChromaLuxe panels
• Great for technical textiles, lamination, automotive, interior design, product design, fashion, sportswear, and workwear applications
• Push-button operation lowers, locks, and keeps the heating plate under pressure
• Heating plate automatically lifts after the timer reaches zero

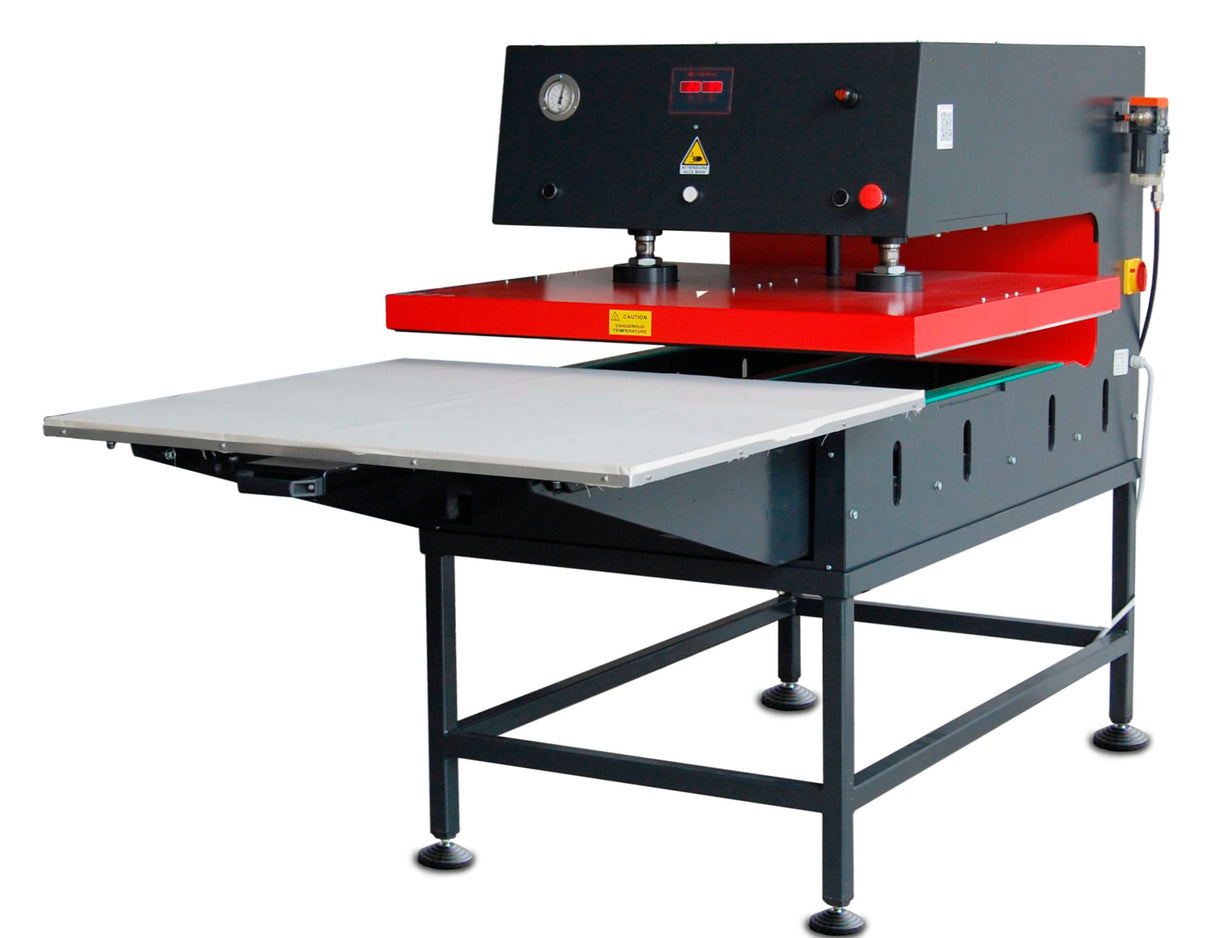

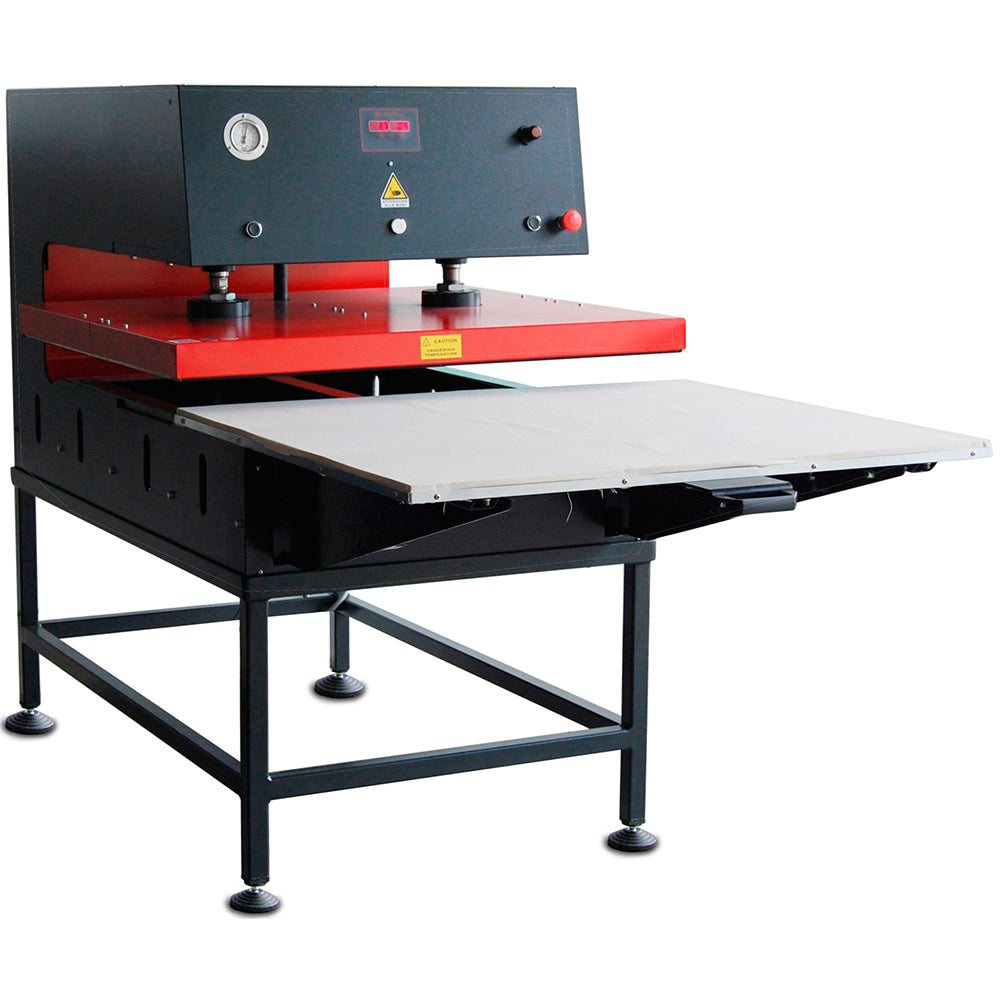

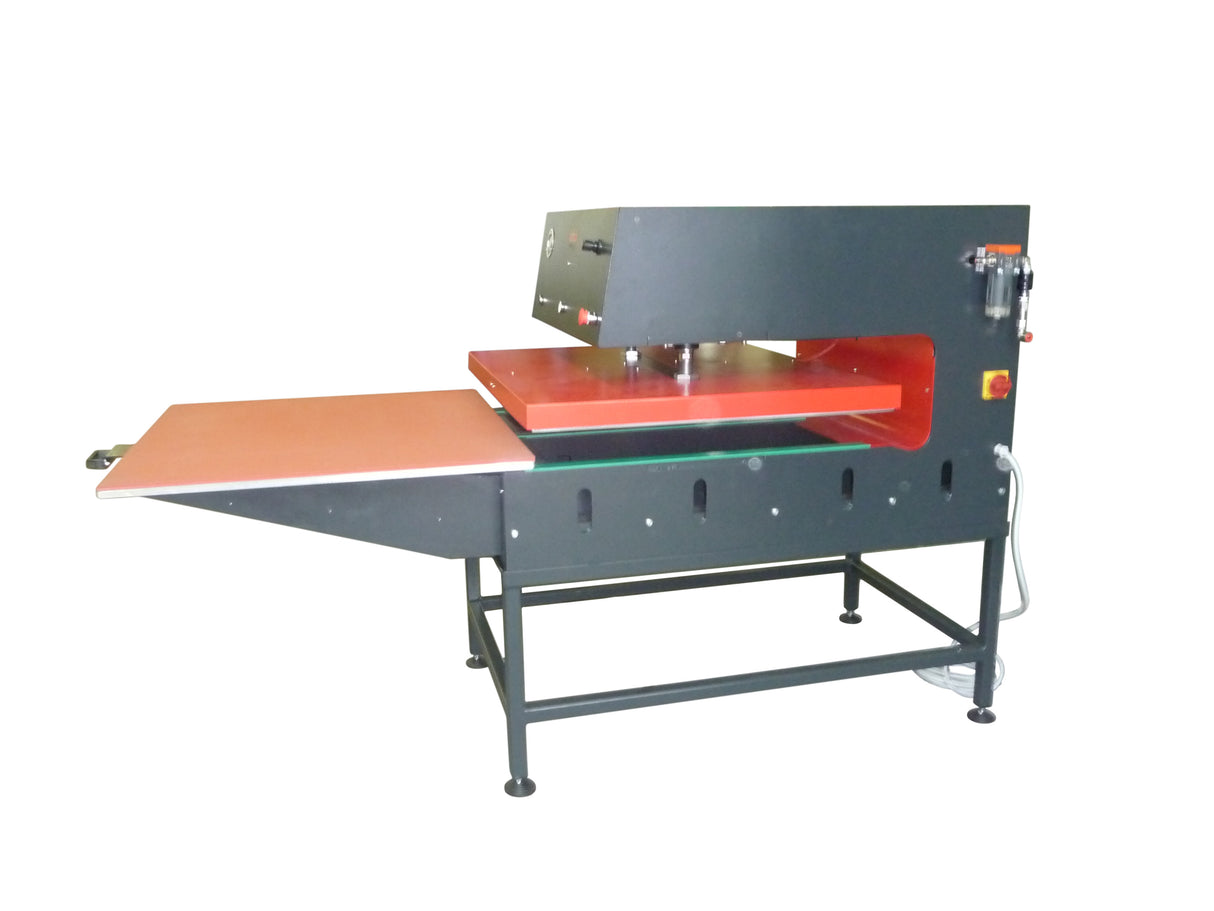

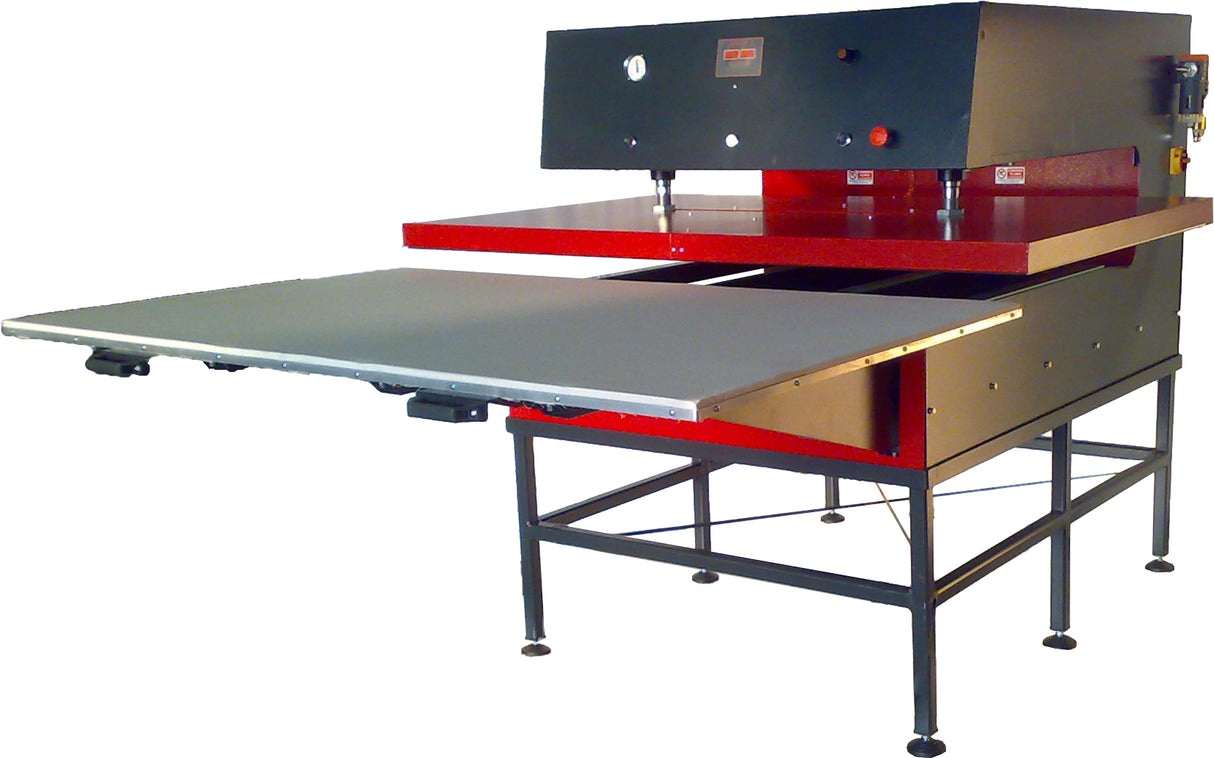

• Extractable printing plate provides easier positioning and loading
• Optional additional lower heating plate available on request
• Clear digital display for easy time and temperature setup
• Memory function saves up to three temperature and time programs
• Job counter function tracks completed prints
• Pre- and post-pressing function allows the press cycle to be shortened without changing saved settings
• High pressure operation up to 8 bar
• Mikanit 2.0 heating technology provides fast heating and consistent temperature distribution
• 2-year warranty on heat press
• 10-year warranty on heating system

SPECIFICATIONS

• Available Models: LTS 609 / LTS 630 / LTS 640 / LTS 660 / LTS 690
• Transfer Area: 100 x 90 cm (LTS 609) / 130 x 90 cm (LTS 630) / 130 x 100 cm (LTS 640) / 160 x 90 cm (LTS 660) / 160 x 100 cm (LTS 690)
• Digital Timer: 0 - 999 Seconds
• Temperature Range: 0 - 250°C
• Heating Output: 6000W (LTS 609) / 8100W (LTS 630 and LTS 640) / 11100W (LTS 660 and LTS 690)
• Voltage: 380V
• Product Weight: 480 kg (LTS 609) / 550 kg (LTS 630) / 600 kg (LTS 640) / 650 kg (LTS 660) / 700 kg (LTS 690)
• Contact Pressure: 0 - 400 g/cm² or 2.5 - 8 bar
• Applications: Sublimation, Transfer Print, Fixation, Lamination, ChromaLuxe Panels, Technical Textiles, Hard Substrates
