Lotus LTS 238 / LTS 250 Dual-Platen Heat Press Series

The Lotus LTS 238 / LTS 250 Dual-Platen Heat Press Series is designed for professional decorators who want the efficiency of two workstations without moving to a large pneumatic production press. Available with either dual 38 x 45 cm platens on the LTS 238 or dual 40 x 50 cm platens on the LTS 250, the series allows one garment or substrate to be prepared while the opposite station is being pressed.

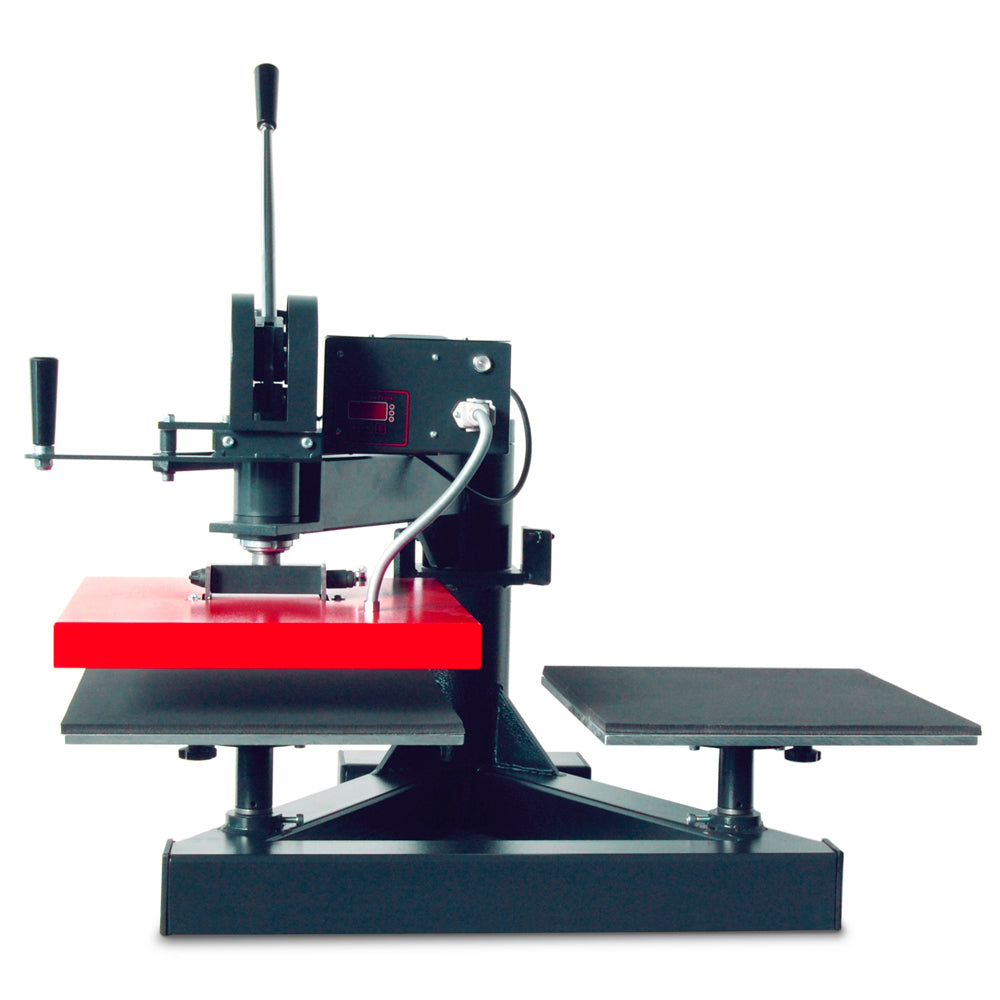

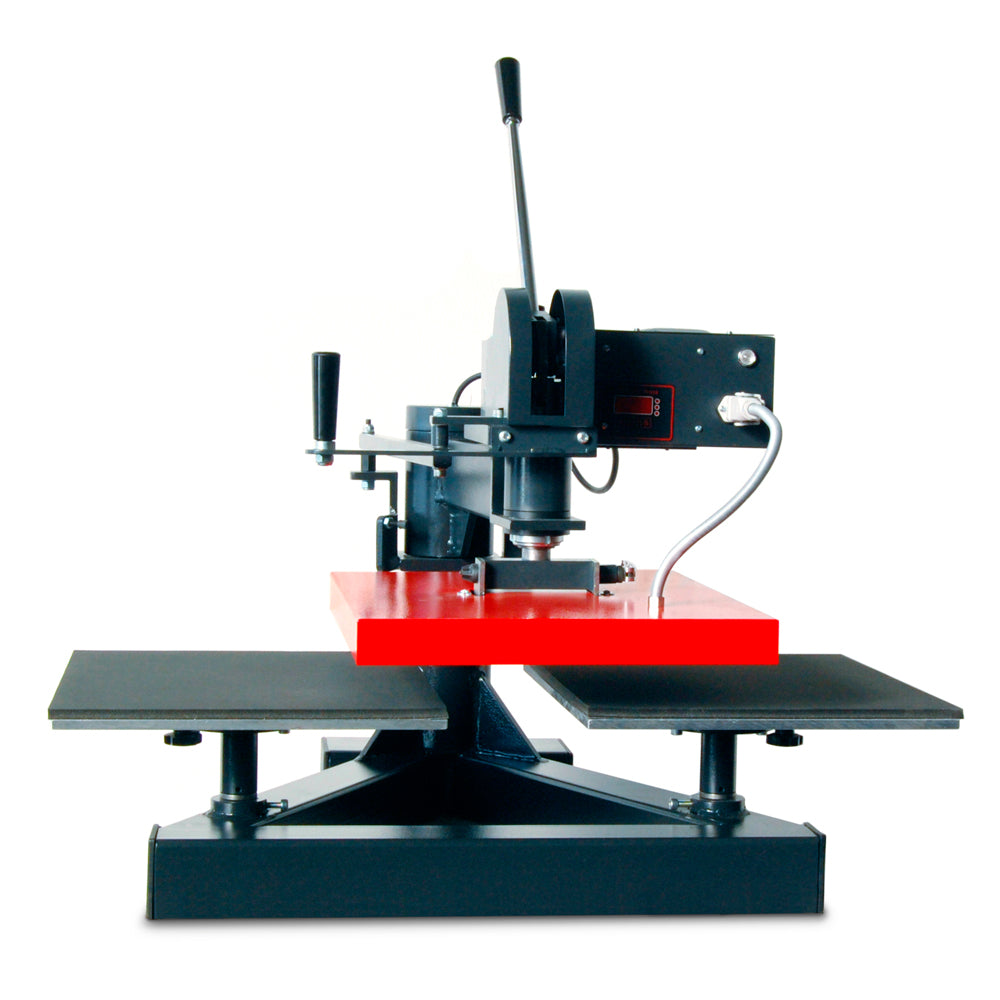

Both models use a side-to-side swing-away heating platen that moves between two freestanding lower platens. While one transfer is being pressed, the operator can unload the previous item and position the next transfer on the open workstation, helping reduce downtime during repetitive production.

The freestanding lower platens allow garments to be threaded onto the press in a single layer, helping keep seams, extra fabric layers, and previously applied graphics away from the transfer area. Lotus's modular platen system also allows compatible specialty platens to be installed for children's garments, breast pockets, sleeves, trouser legs, umbrellas, round products, caps, and other specialty applications.

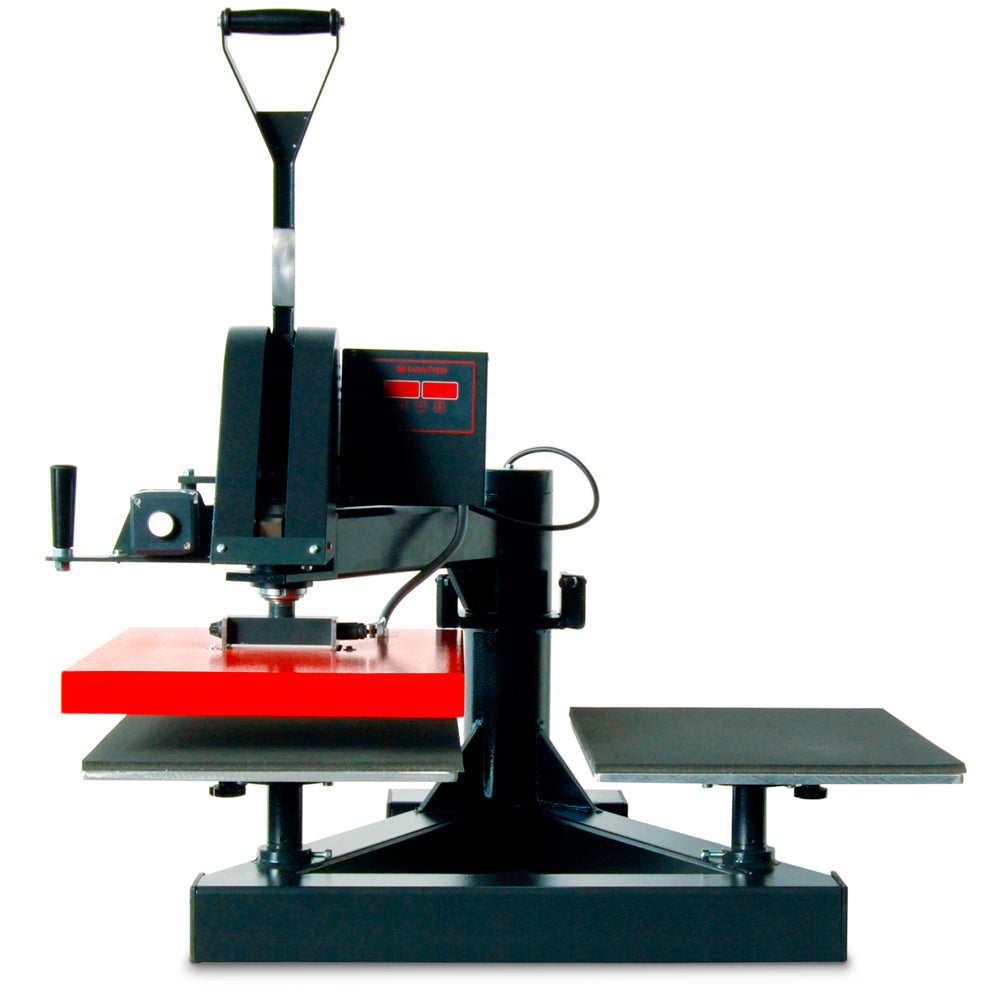

Choose the manual configuration for straightforward mechanical operation with continuously adjustable pressure and a locking pressure arm. For greater convenience, the SA semi-automatic configuration uses an electromagnetic locking system that automatically releases and opens the heating platen when the programmed transfer time is complete.

The SA versions also add three programmable time and temperature presets along with pre- and post-press functionality, allowing operators to perform short garment pre-presses or finishing presses without changing the primary transfer settings.

Across the series, Lotus's Mikanit 2.0 heating technology provides fast warm-up and consistent temperature distribution, while digital time and temperature controls help maintain repeatable production. Whether you're decorating apparel, sportswear, workwear, bags, sublimation media, or specialty textiles, the LTS 238 / 250 Series provides a flexible dual-station platform designed to improve workflow and productivity.

Choose Your Model

Choose Your Operation

Key Features

• Dual-station production – Prepare one garment or substrate while working on the opposite platen
• Two platen sizes available – Choose dual 38 x 45 cm or dual 40 x 50 cm workstations
• Swing-away heating platen – Moves between both workstations while providing clear access to the unused platen
• Freestanding lower platens – Allow garments to be threaded onto the press and decorated in a single layer
• Modular platen system – Compatible with optional specialty platens in multiple shapes and sizes
• Optional cap attachment – Expands compatible configurations for headwear decoration
• Continuously adjustable pressure – Fine-tune pressing force for different textiles and transfer materials
• Digital time and temperature controls – Provides simple setup and monitoring of transfer settings
• Acoustic and visual cycle alerts – Clearly indicate pressing-cycle status
• Mikanit 2.0 heating technology – Designed for fast heating and even, stable temperature distribution
• Serviceable heating elements – Individual heating rods can be replaced separately when required
• 2-year heat press warranty
• 10-year heating system warranty

SA Semi-Automatic Features

• Electromagnetic locking – Holds the heating platen securely under pressure during the programmed cycle
• Automatic opening – Heating platen automatically unlocks and opens when the timer reaches zero
• 3 programmable presets – Save frequently used time and temperature combinations
• Pre- and post-press function – Perform shorter pressing cycles without changing the primary transfer settings
• Automatic cycle alert – Acoustic feedback indicates when the heating platen is being released

Applications

• Heat Transfer Vinyl / Flex
• Flock Transfers
• Screen Print Transfers
• Textile Sublimation
• T-Shirts and Sweatshirts
• Sportswear
• Workwear and Uniforms
• Bags and Accessories
• Technical Textiles
• Lamination
• Fixation
• Caps with Optional Cap Attachment
• Sleeves, Pockets, and Specialty Placements with Optional Platens

Specifications

Optional specialty platens and cap attachments are sold separately.
