Lotus LTS 750 / LTS 760 Pneumatic Heat Press Series

The Lotus LTS 750 / LTS 760 Pneumatic Heat Press Series is a professional dual-station heat press platform designed for high-output apparel decoration, sublimation, technical textiles, workwear, bags, and specialty transfer applications. Available in two platen sizes and multiple production-focused configurations, the LTS 750 / 760 family allows decorators to build a pneumatic pressing system around the exact workflow their business requires.

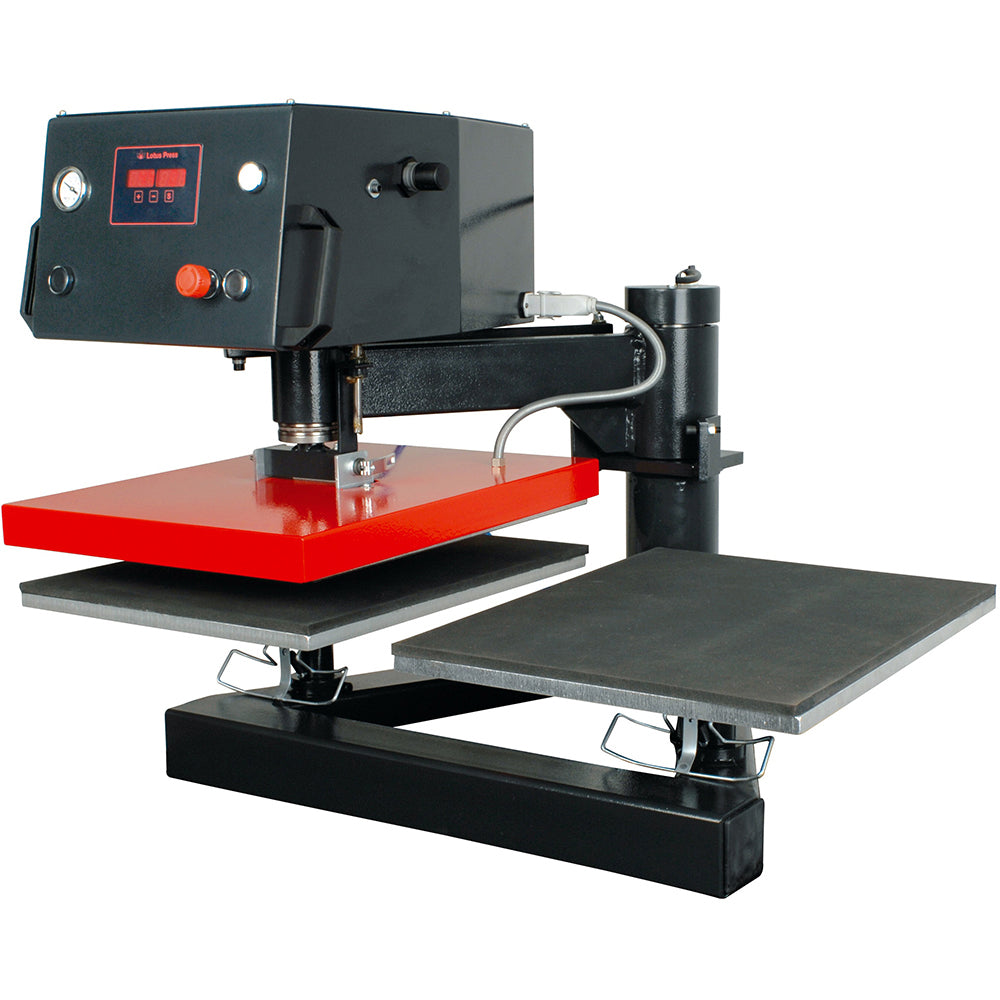

The LTS 750 features two 40 x 50 cm work platens, while the larger LTS 760 provides two 45 x 60 cm work platens. With two stations available, the operator can load and prepare one garment or substrate while the opposite station is being pressed, helping reduce idle time and improve throughput during repetitive production.

Pneumatic operation eliminates the need to manually close the heating platen. At the push of a button, the press lowers, locks under consistent pressure, completes the programmed transfer cycle, and automatically opens when the timer reaches zero. Continuously adjustable pneumatic pressure and wide platen access make the platform suitable for everything from apparel and sportswear to sublimation media and technical textile applications.

The LTS 750 / 760 family is highly modular, with interchangeable lower platens and optional cap attachments available for compatible configurations. Lotus's Mikanit 2.0 heating technology provides fast warm-up and even, stable temperature distribution, while individually serviceable heating elements help support long-term professional use.

Eight available configurations allow the machine to be tailored to specialized production needs. Choose the standard dual-platen platform for versatile everyday production, the BAG configuration for bulky garments and bags, PA for powered swing-away operation, PSA for vacuum-assisted DTG and specialty textile applications, S for upper and lower heating, or one of the TS touchscreen configurations for more advanced digital workflow control.

Choose Your Model

Choose Your Configuration

Key Features

• Dual-station production – Prepare one item while the opposite workstation is completing its pressing cycle
• Pneumatic operation – Provides consistent pressure while reducing repetitive operator effort
• Automatic opening – Heating platen lifts automatically when the programmed transfer time is complete
• Two platen sizes – Choose dual 40 x 50 cm or dual 45 x 60 cm workstations
• Multiple specialized configurations – Select the operating system that best fits your applications and production volume
• Freestanding lower platens – Allow garments to be threaded in a single layer for easier positioning and cleaner pressing
• Interchangeable platen system – Compatible configurations support specialty platen sizes and shapes
• Optional cap attachments – Expand compatible models for headwear decoration
• 3 programmable presets – Standard digital-control configurations can store commonly used time and temperature settings
• Production counter – Helps track completed pressing cycles
• Pre- and post-press functionality – Allows shortened pre-press or post-press cycles without changing the primary transfer program
• Mikanit 2.0 heating technology – Designed for fast heating and even, stable temperature distribution
• Serviceable heating elements – Individual heating rods can be replaced separately when required
• 2-year heat press warranty
• 10-year heating system warranty

Specialty Configuration Features

• BAG: Extended freestanding lower platens make it easier to load bulky sports bags, workwear, and thick textiles

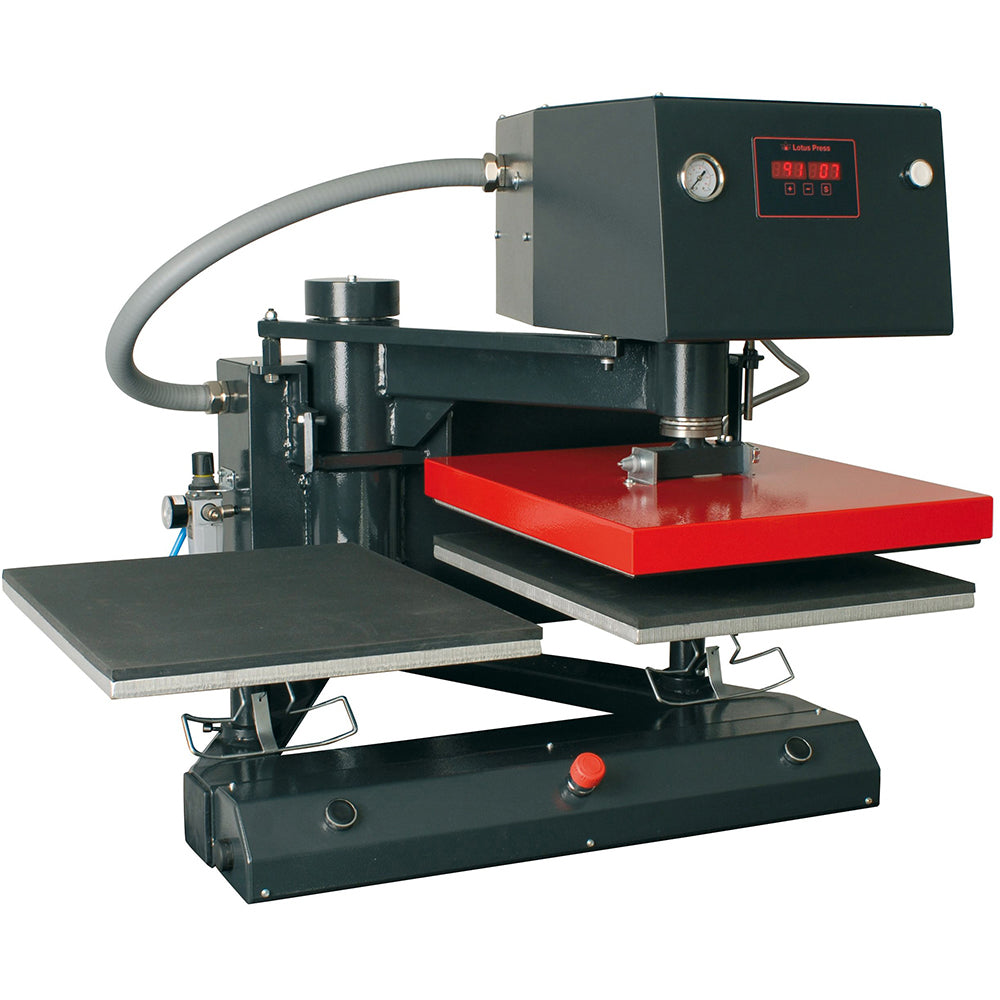

• PA: Heating platen can automatically swing away at the push of a button for faster access to the workstations

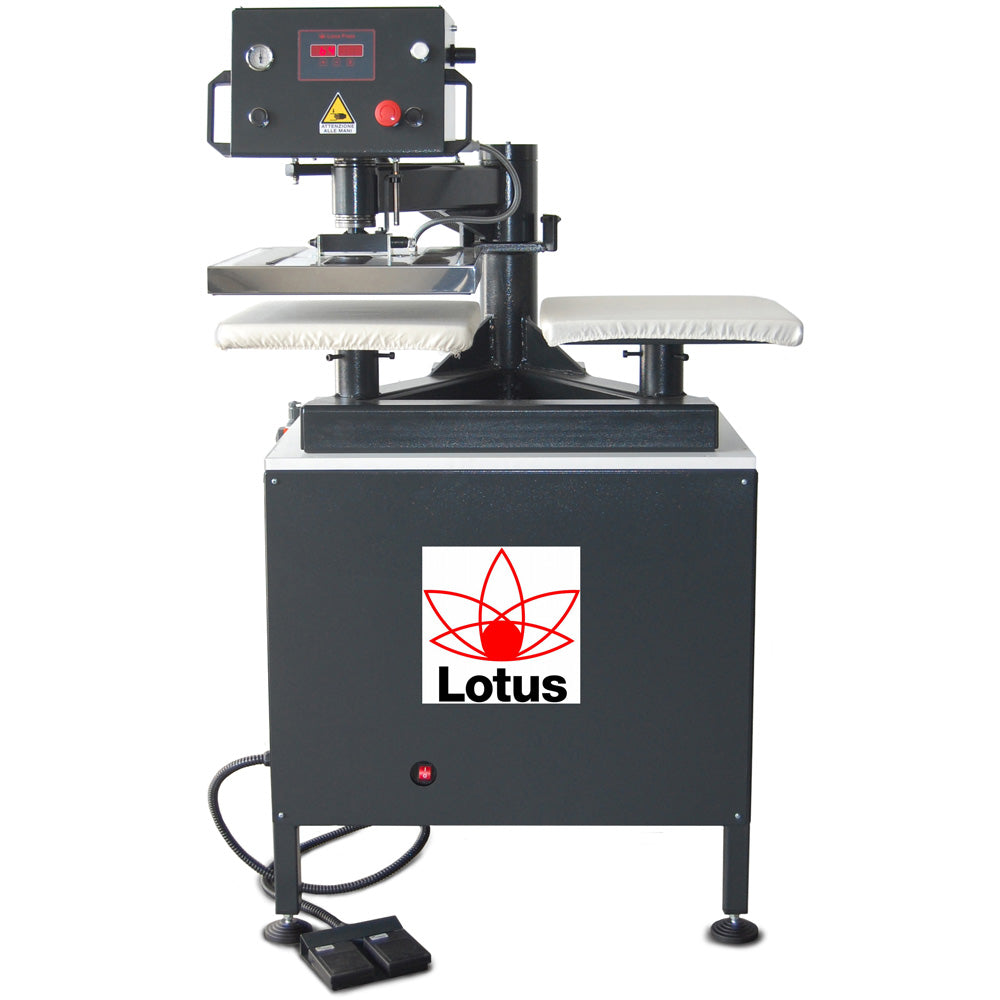

• PSA: Perforated heating components and lower platens work with an integrated vacuum system to extract vapors and help hold thin fabrics in position
• PSA: Particularly useful for DTG fixation, thin textiles, and rhinestone applications

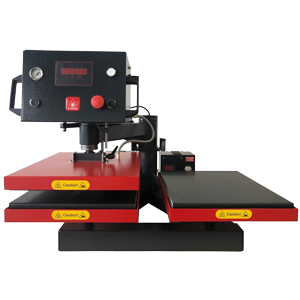

• S: Upper and lower heating systems can provide heat from both sides, with independent temperature control
• TS: Touchscreen interface provides advanced program management and production tracking

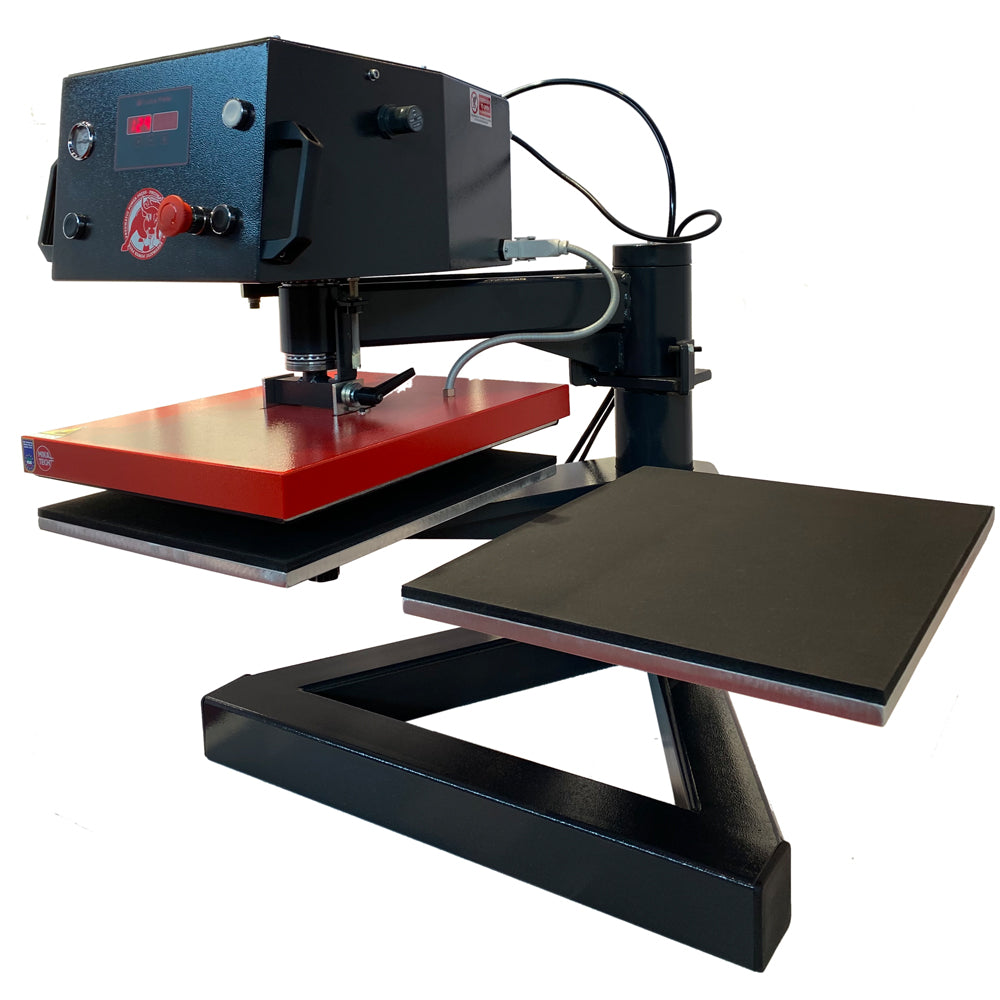

• BAG TS: Combines the bulky-item platen design with touchscreen controls

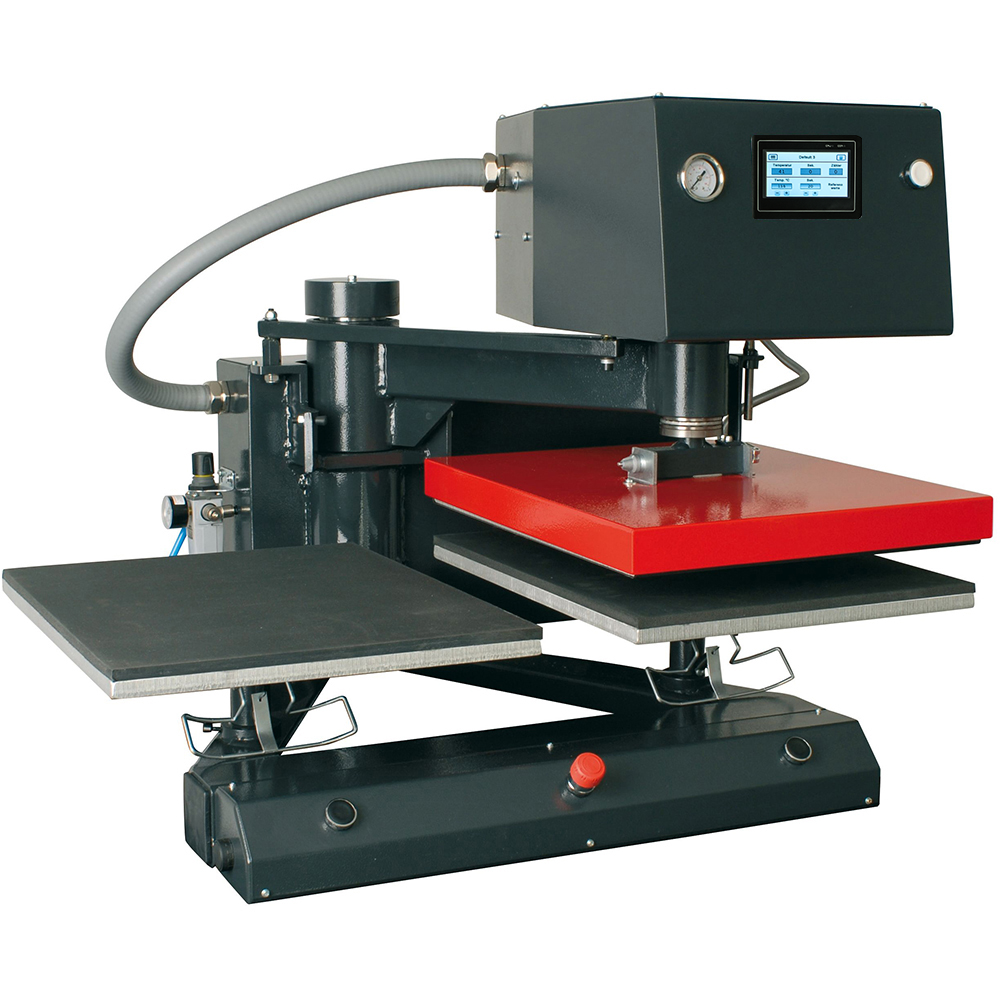

• PA TS: Combines automatic swing-away operation with touchscreen controls

Applications

• Heat Transfer Vinyl / Flex
• Flock Transfers
• Screen Print Transfers
• Textile Sublimation
• Rigid Sublimation Media
• Sportswear
• Workwear and Uniforms
• Bags and Bulky Textiles
• Technical Textiles
• Lamination
• Fixation
• DTG Fixation with PSA Configuration
• Rhinestones and Specialty Textiles with S or PSA Configurations
• Caps with Compatible Optional Cap Attachments

Specifications

Configuration-Specific Specifications

• S Dual-Heated Model: LTS 750 S uses heated upper and lower platens
• PSA Models: Operate on 380 V and support up to 10 bar pneumatic pressure
• PSA Model: LTS 750 PSA uses a vacuum system with perforated lower plates
• Other configuration weights may vary depending on platen system, automatic swing mechanism, and control package
