The revolutionary Expert II LX is 25 years of GCC knowledge packed into one of the best vinyl cutters on the market today. In a league of its own, the Expert II LX offers a standard 350 grams of cutting force at blazing fast speeds of up to 27.7 IPS for stunning cut accuracy and efficiency.

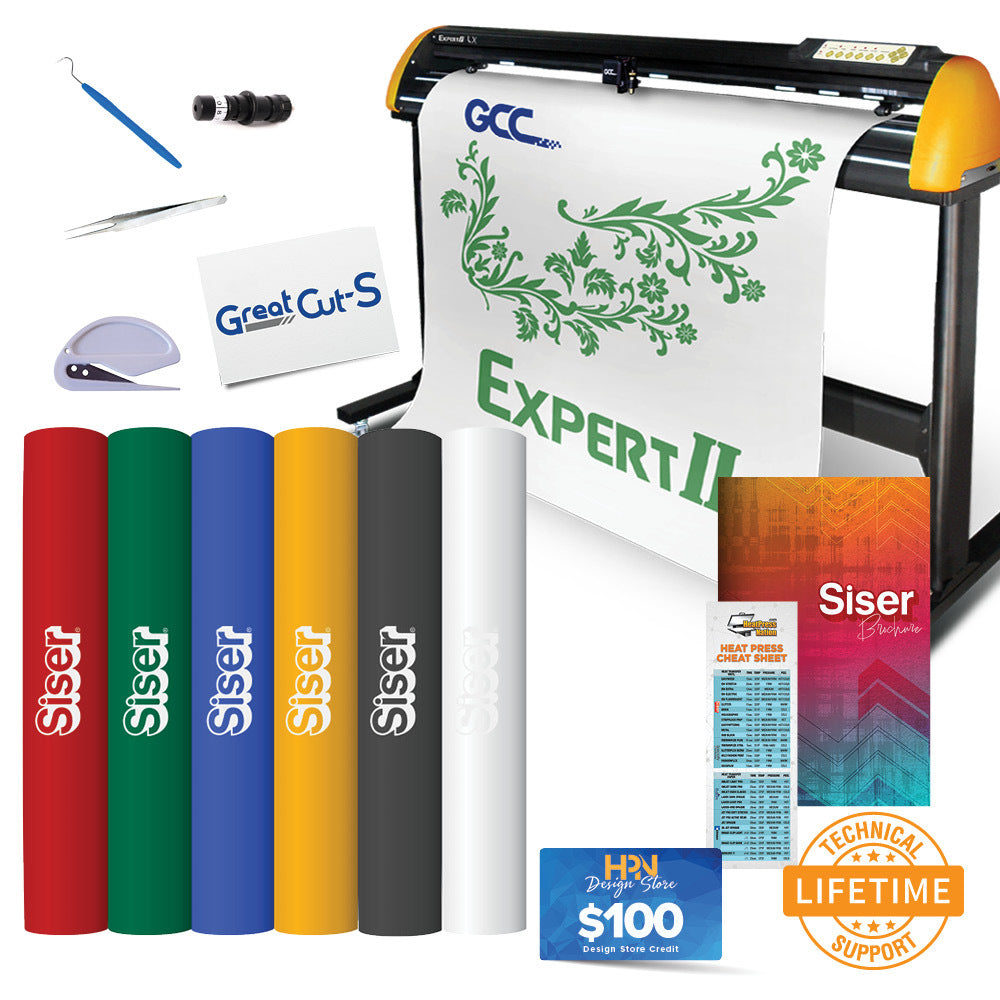

Utilizing the same high grade components of GCC's pro line cutters provides the user with a quality cutting experience for an efficient and cost effective product. The Expert II LX features dual port USB and Serial Bus connectivity for faster data transmission, a simple user friendly on board inter-face, as well as GCC's Greatcut software designed for easy media transferring from many industry leading programs such as CorelDraw, Illustrator, InkScape and SignPal. The Expert II LX is the industry standard of cutter plotters. Note: products in bundle photo are subject to availability.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Features:
|
Advanced AAS II Contour Cutting System: Advanced Automatic-Aligning System (AAS II) guarantee precise contour cutting by detecting the registration marks on digitally produced images.
|
|
Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.
|
|
Windows Drivers: Expert II includes a "one click" Windows driver that allows sign makers to edit signs from CorelDraw and Adobe Illustrator output directly Expert II.
|
|
Rhinestone Application: Expert II handles rhinestone stencil cutting with ease. You will be amazed at its versatility
|
|
Guaranteed 3 Meter Tracking: Expert II comes with a stable drum that can guarantee 3 meter tracking to ensure quality outputs and saves you from wasted material and cost.
|
|
VCM (Voice Coil Motor): VCM ensures cutting quality. As a result, Expert II can provide sophisticated cutting quality steadily and consistently.
|
|
User-Friendly Interface: Expert II comes with a the special VLCD software, providing a simple and intuitive workflow for users of all levels.
|
|
Dual-Port Connectivity: GCC Expert II supports dual-port connectivity with USB and serial ports.
|
Specifications:
- Max. Cutting Width: 600 mm (23.6 in.)
- Max. Loading Width: 719 mm (28.3 in.)
- Material Thickness: .8mm
- Drive: Stepper
- Cutting Force: 350g
- Maximum Cutting Speed: 705mm/s (27.8 in.)
- Mechanical Resolution: 0.012mm
- Repeatability: 0.1mm
- Tracking: 3M
- Interfaces: USB 2.0 & Serial
- Type of Command: HPGL, HPGL/2
- Stand: Optional
-
Software: GCC GreatCut-S
- Has Contour Cutting: Yes
SYSTEM REQUIREMENTS
- Pentium processor-based PC or compatible computer (Windows)
- Windows XP SP3/Vista/7/8/10/11 (Windows)
- Intel or Apple Silicon based Macintosh (Mac)
- Macintosh OSX 10.11 - 12 (Mac)
- 512 MB of RAM or more
- At least 50 MB of available hard disk space
- USB Port 1.1 or 2.x
Includes:
