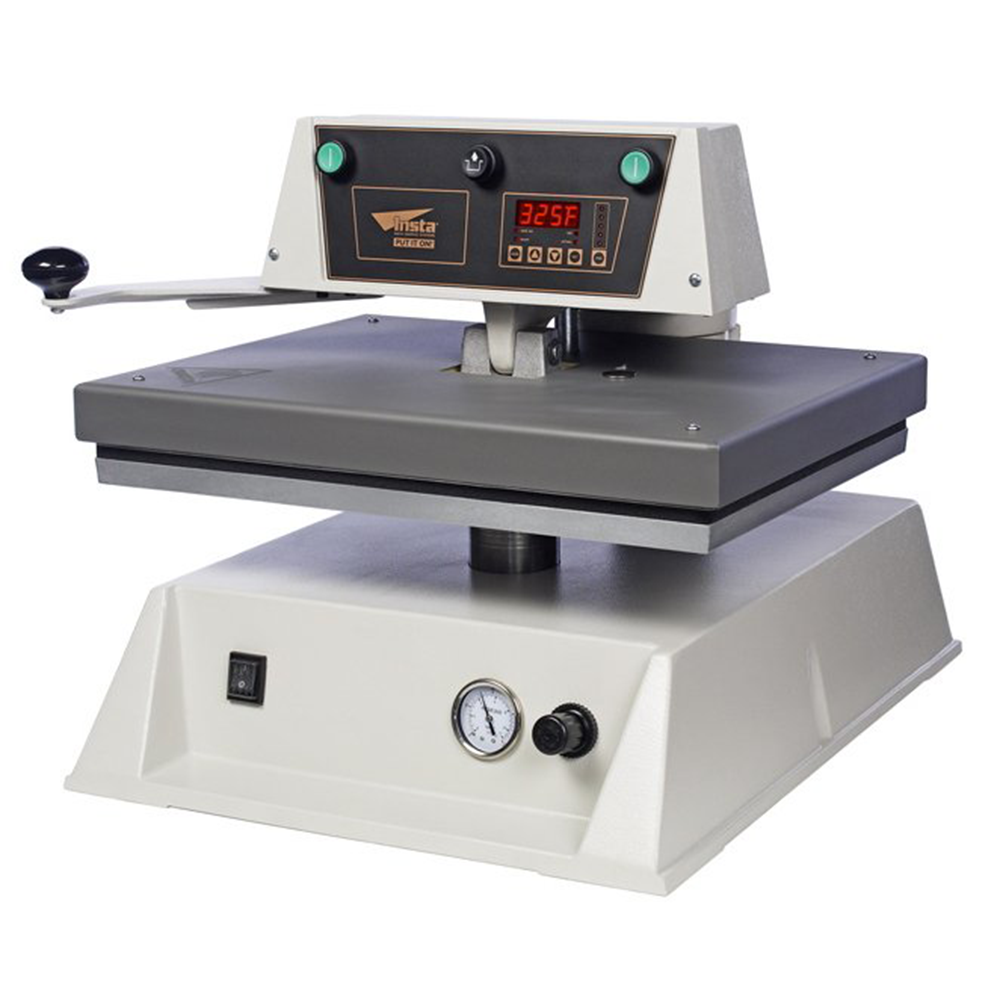

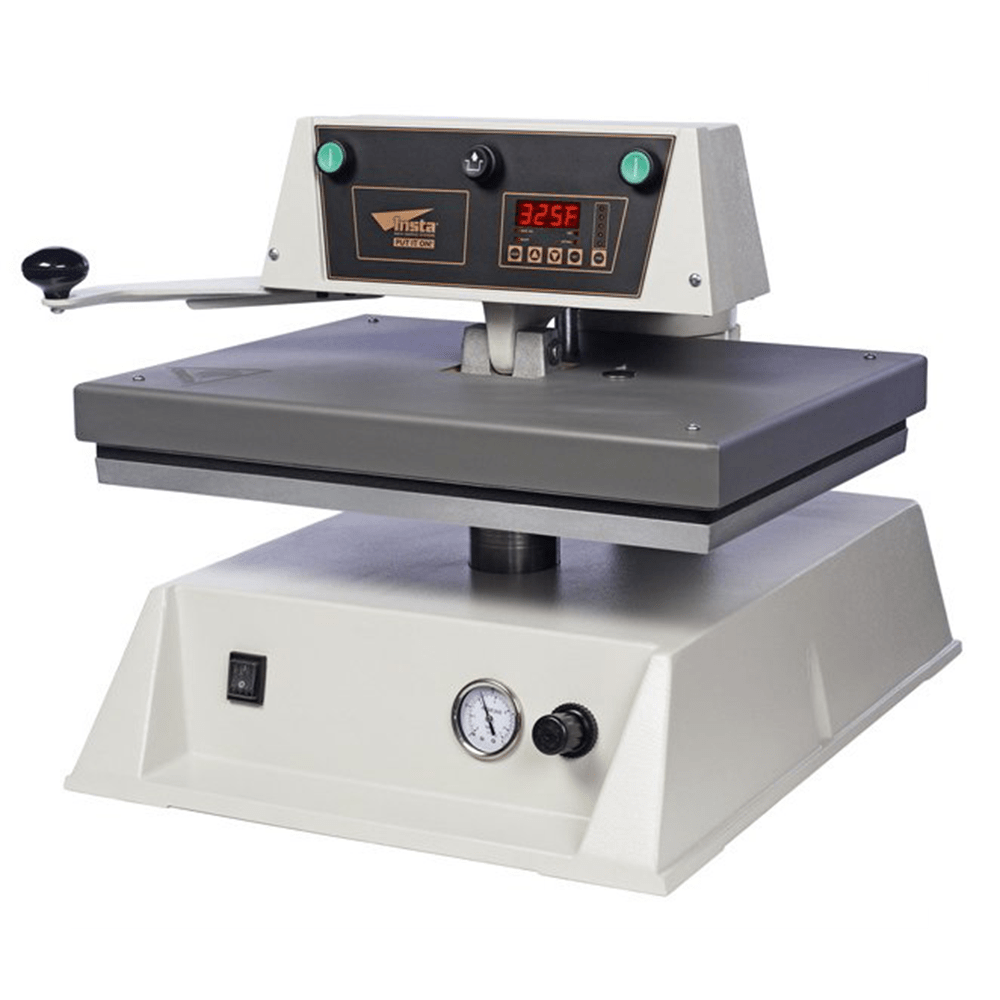

Insta’s Model 728 Automatic Swing Away heat press machine is a work-horse and has long been considered the most reliable and durable heat press on the market. Its air-driven operation prevents operator fatigue and promotes consistent production speed. The 728 is used globally, by contractors for many of the world’s top apparel brands, and is chosen for its fast heat recovery, accurate temperature, even pressure and its ability to achieve consistent results under 24/7 use.
The Model 728 has been strategically designed to generate & evenly distribute tremendous pressure throughout its upper and lower platens. And, its cast-in tubular heating element heats the metal from within, to produce constant and long lasting heat. A successful heat transfer application requires 3 key elements to work in tandem– time, temperature & pressure. The Model 728 has mastered those elements and gets the job done every time.
SPECIFICATIONS
Made of cast aluminum for maximum durability.
Swing-away upper platen.
Fully adjustable pneumatic pressure control located at the front of the machine for easy access.
Integrated digital controller which features controls for time, temperature (Fahrenheit or Centigrade), 5 programmable presets & cycle counter.
Protective heat shroud.
Warranty – Lifetime warranty on the upper heating element, 1 year on parts & 90 days on labor.
UL, CuL & CE approved. RoHS/WEE compliant.
Made in the USA.
WORKING SPACE
Depth: 30” (76.2 cm)
Width: 33" (83.82 cm)
Height: 25.75” (65.4 cm)
Power: 120 volt – 1750 Watts, 14.6 Amps
Platen Size: 15” x 20”
Shipping Weight: 180 lbs.
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, all INSTA Graphics heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
