Geo Knight MAXI Press Air Top & Bottom Heating Large Format Heat Press

SKU: MAXI-3242AB

Size: 32" x 42"
Price:
Translation missing: en.product.general.price$21,500.00 USD

Found a Lower Price?

Description
Warranty
Instructions

Geo-Knight Logo

*Requires at least 3 weeks for manufacturing lead time and must ship freight*

A $375 crating fee will apply at checkout

The Geo Knight MAXI PRESS AIR is the next step up from the Manual version. This automatic press provides massive amounts of pressure due to its dual air-bag, 10-ton/20,000 lbs max force pneumatic pressing system. The heavy steel triple reinforced welded C-Frame design is built to withstand a lifetime of intense pressing and automatic operation. It also allows for full draping of materials over the front, left and right sides of the press, without, hindrance. The electronic digital temperature control maintains even heat across the entire surface of the heater. In addition, the timer automatically starts when the press is activated and automatically releases the press when elapsed. For a large format heavy pressure automatic press that is one step below the larger industrial 931 Triton machines, the MAXI PRESS AIR is the solution.

*This product is available for commercial delivery only and a forklift is required*

FEATURES

  • SuperCoil-Microwinding™ heater technology
  • Ultra thick heater block assembly
  • Solid steel pressure bars
  • Heavy steel frame structures
  • 20,000 lbs force, 10-ton air bag lift mechanism
  • Self-leveling pressure system
  • Solid lower platen base
  • Solid loading bed with ultra-thick nomex padding
  • Dual button easy-activate safety circuit
  • Heavy duty locking casters for easy movability and solid foundation support
  • Automatic press, release, temp & timer controls
  • Full one year warranty on the heating element, controls, and entire press
  • Minimum Compressed Air Required: 20gal, 4cfm, 100psi, 3/8" line
  • Top & Bottom Heat: 44x64 = 36KW/3PH - 32x42 = 18KW/1PH

WEIGHT AND DIMENSIONS

  • Crated: 72x73x55
  • Footprint: 66” Left-To-Right x 62” Front-To-Back
  • Weight: 3092 lbs

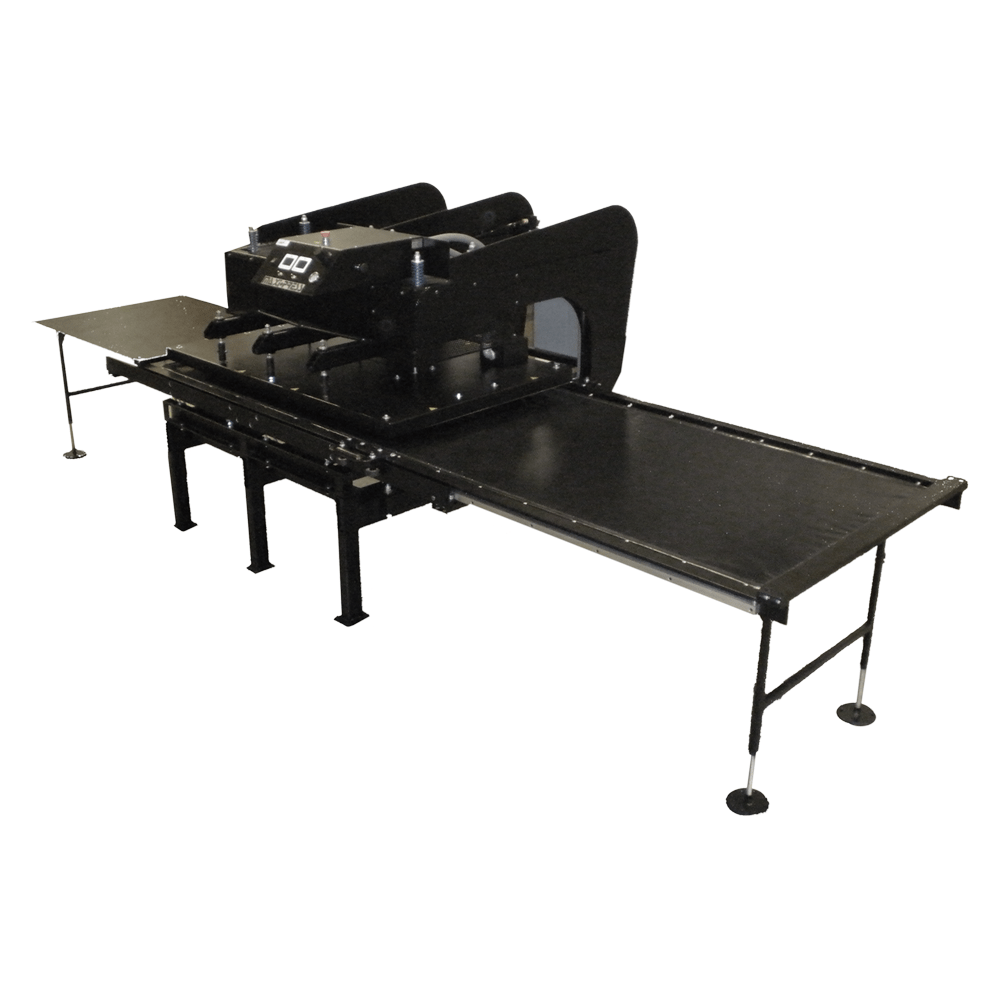

WEIGHT AND DIMENSIONS TWIN SHUTTLE:

  • Crate 1: 96x85x84
  • Footprint: 198” Left-To-Right x 66” Front-To-Back
  • Weight: 4526 lbs

MyExpert Support Logo

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, Geo Knight, the manufacturer, offers the following warranty on this product:

  • Full one-year warranty on the heating element, controls, and entire press
